Mud Guard

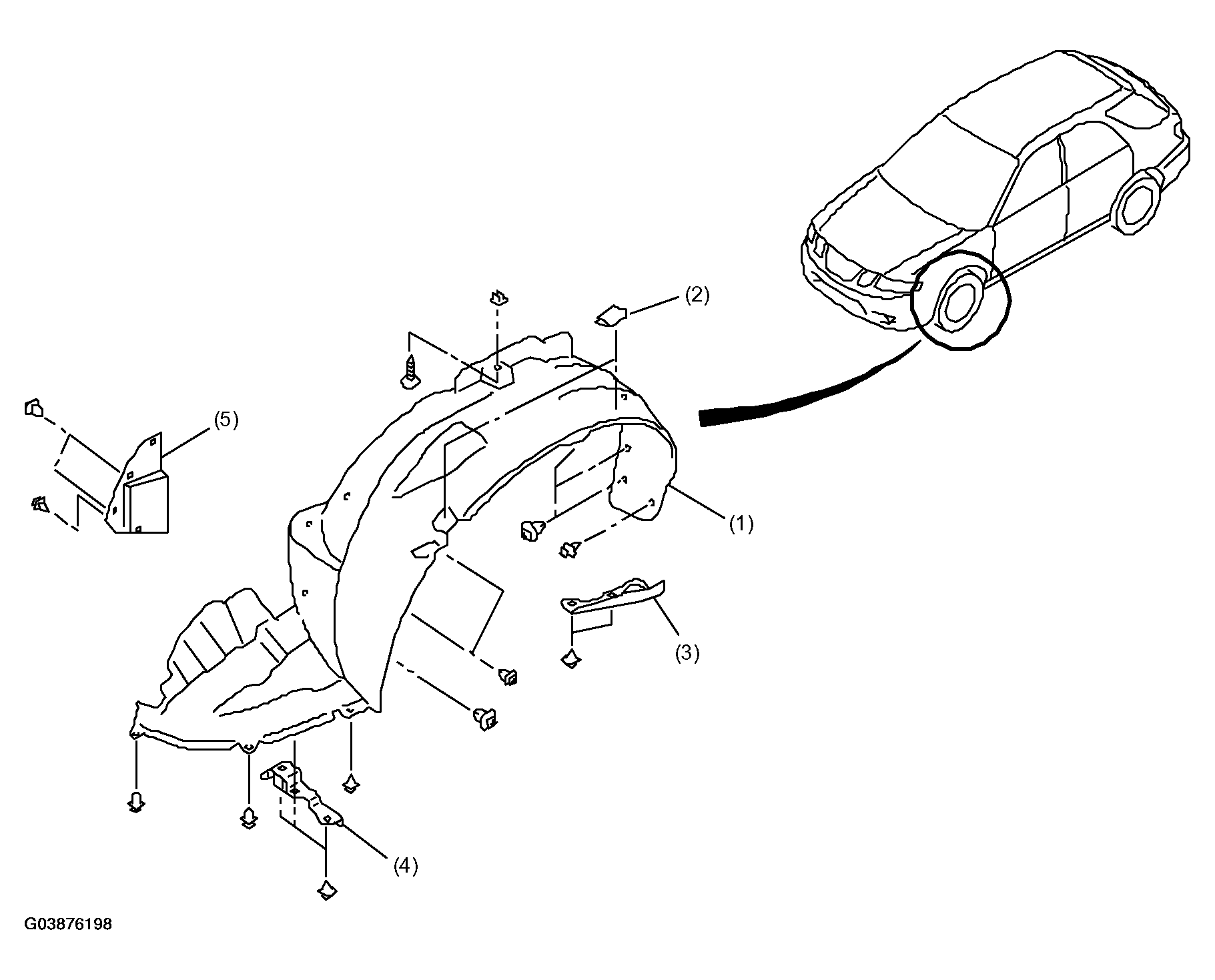

Fig 1: Illustration For Steps 1-5
G03876198Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Mud guard
  2. Hook
  3. Sub frame cover
  4. Front air flap plate (AERO model)
  5. Mud guard plate (RH)
