Front Bumper

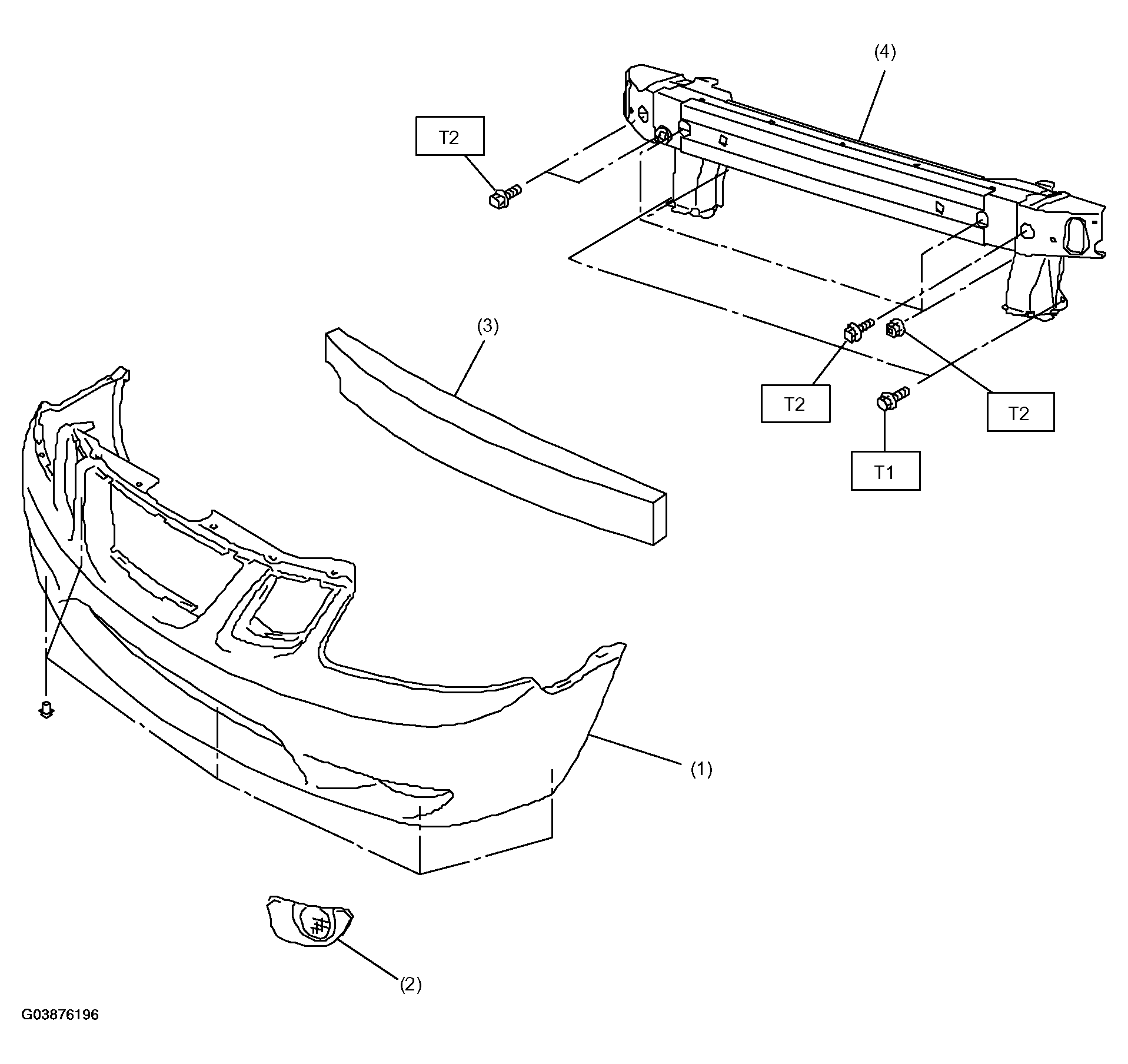

Fig 1: Illustration For Steps 1-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Bumper face
2. Fog light cover
3. Bumper energy absorber
4. Bumper beam

Tightening torque: Nm (kgf-m, ft-lb)

T1: 32 (3.3, 24)

T2: 69 (7.0, 51)
