Cowl Panel

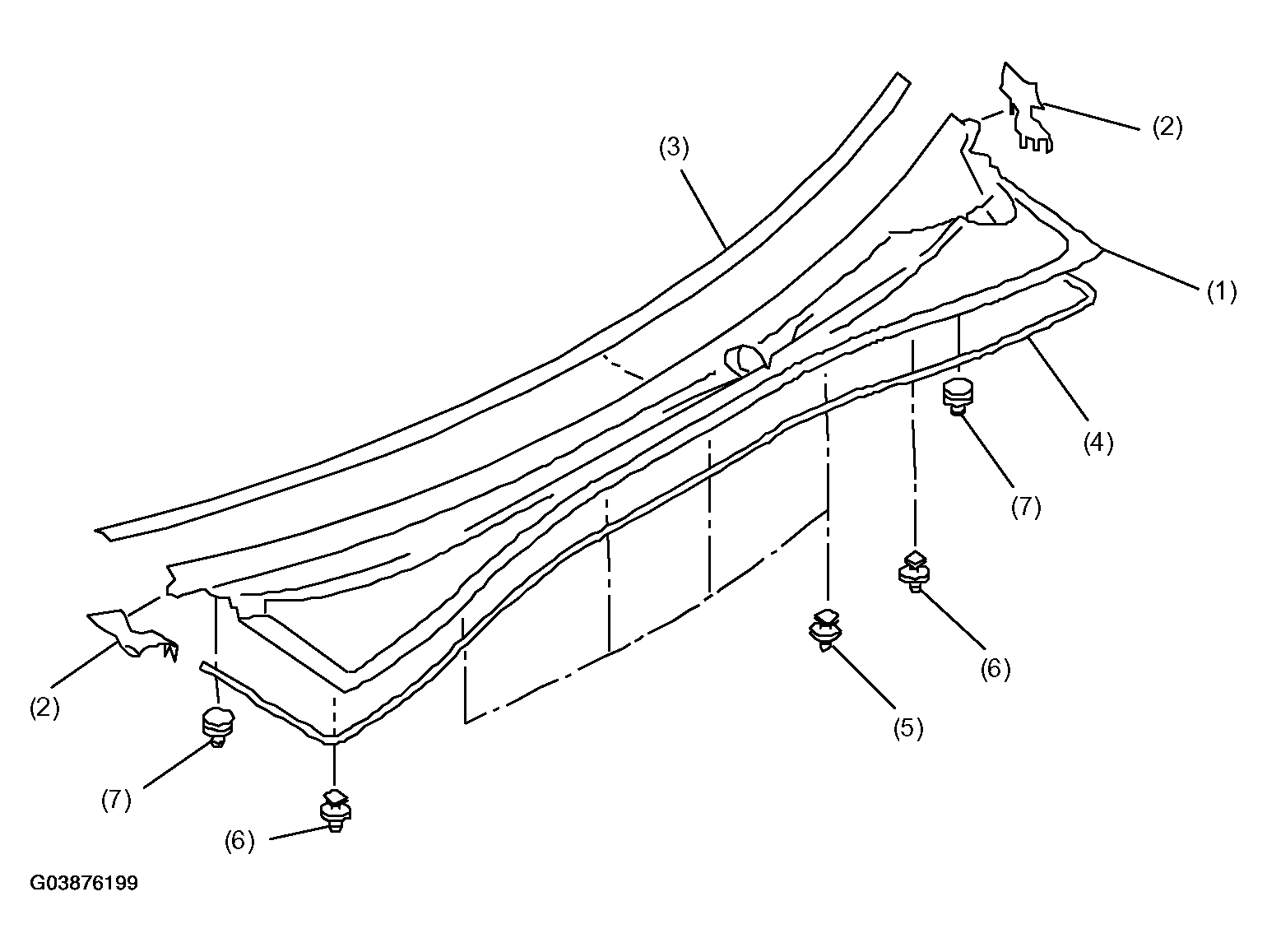

Fig 1: Illustration For Steps 1-7
G03876199Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Cowl panel
  2. Cowl side panel
  3. Protector
  4. Seal
  5. Clip
  6. Clip (pin)
  7. Clip F
