Hood Lock & Remote Openers

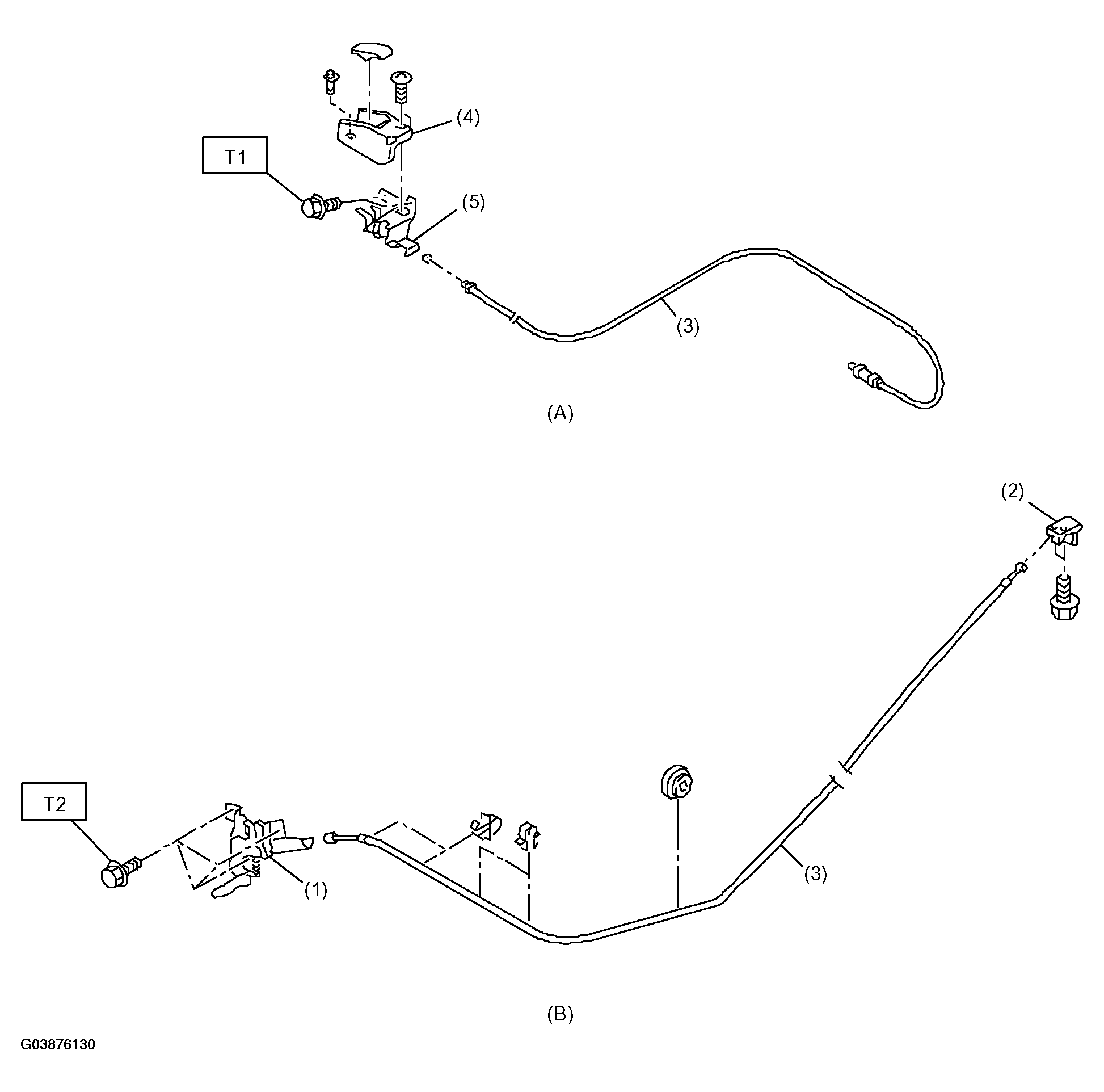

Fig 1: Illustration For Steps 1-5

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Fuel lid opener
2. Front hood opener

1. Hood lock ASSY
2. Lever ASSY
3. Cable
4. Cover
5. Pull handle ASSY

Tightening torque: Nm (kgf-m, ft-lb)

T1: 6.4 (0.65, 4.7)

T2: 32 (3.3, 23.9)
