Washer Tank

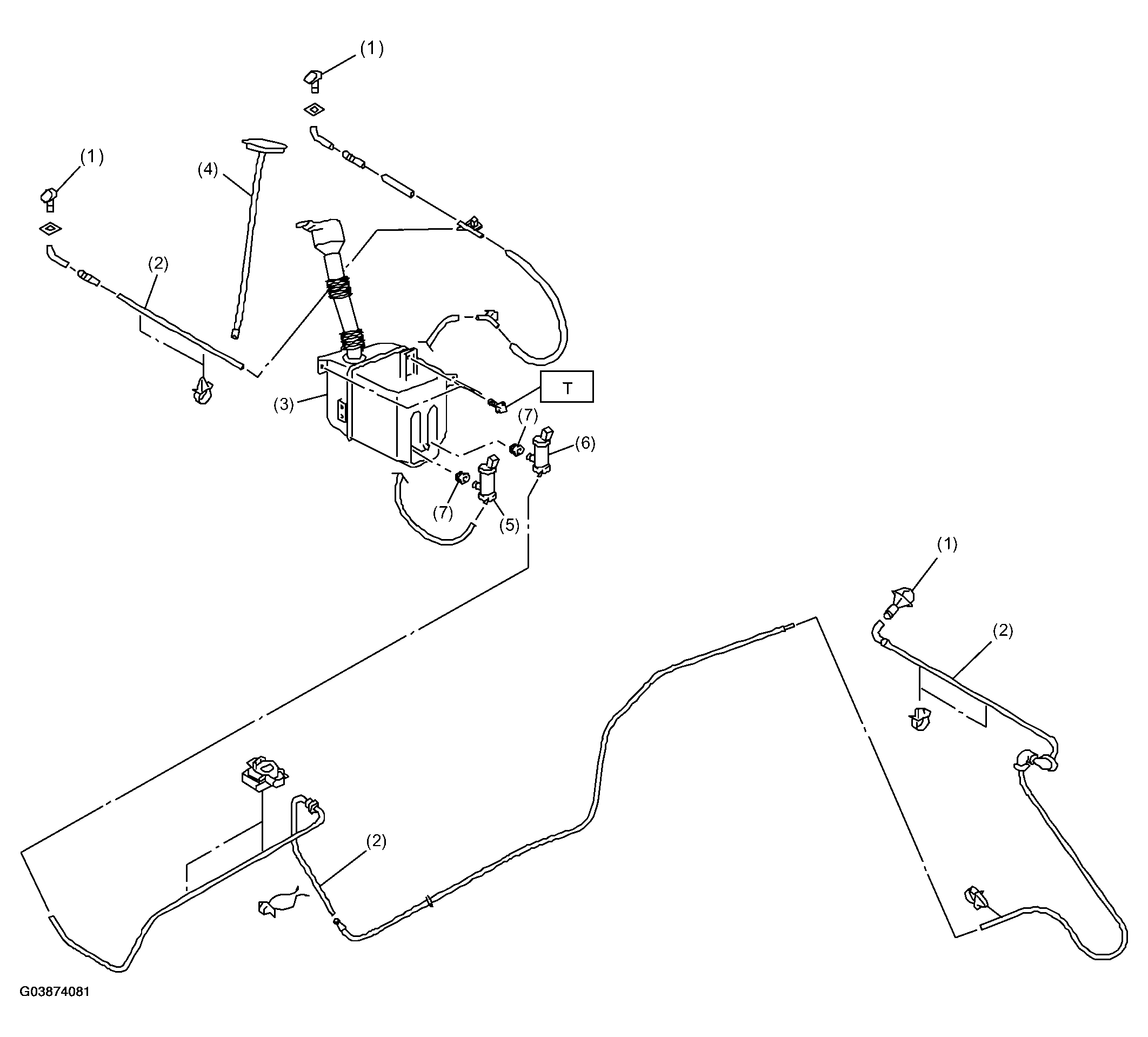

Fig 1: Identifying Washer Tank Components
G03874081Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Washer nozzle
  2. Washer hose
  3. Washer tank
  1. (5) Front washer motor
  2. (6) Rear washer motor
  3. (7) Grommet

    Tightening torque: Nm (kgfm, ft-lb)

    T: 6.0 (0.61, 4.4)
