Front Wiper

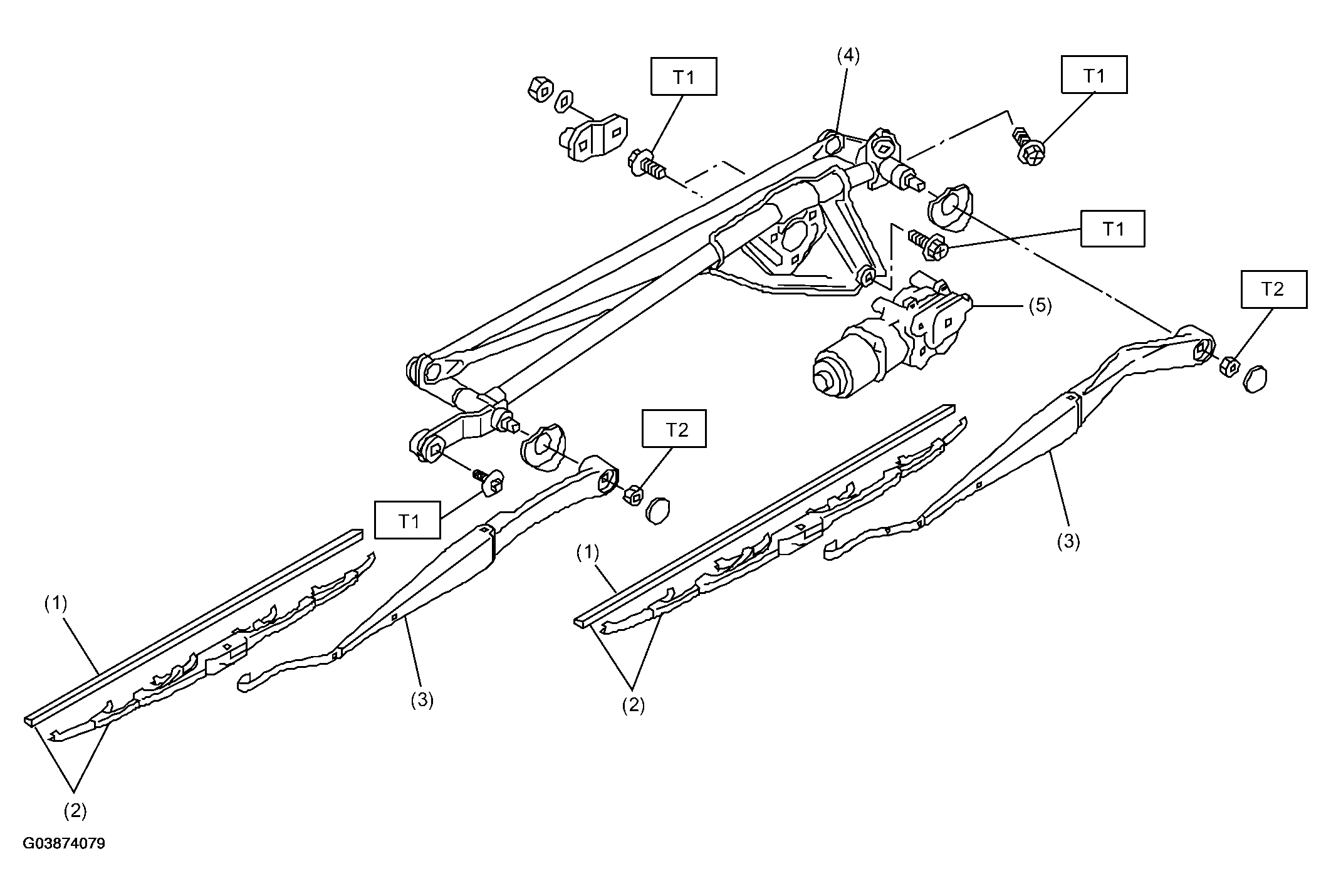

Fig 1: Identifying Front Wiper Components
G03874079Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Wiper rubber
  2. Wiper blade ASSY
  3. Wiper arm
  4. Wiper link
  5. Wiper motor

    Tightening torque: Nm (kgfm, ft-lb)

    T1: 6.0 (0.61, 4.4)

    T2: 20 (2.0, 14.5)
