Wiper Control Relay: Removal

Disconnect the ground cable from battery.

Remove the right quarter lower trim.

Loosen the nut to remove control unit.

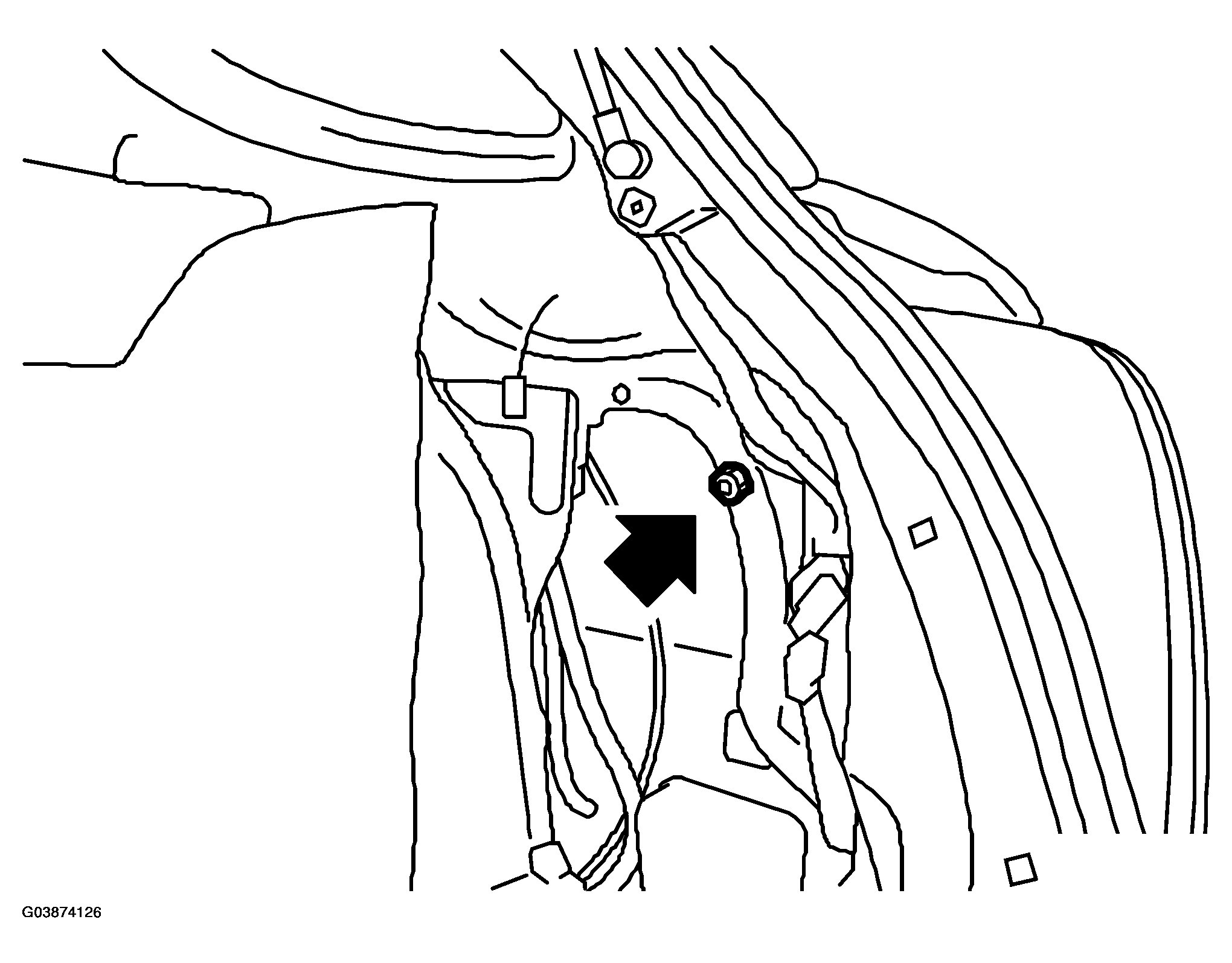

Fig 1: Locating Nut
G03874126Courtesy of SAAB-SCANIA OF AMERICA, INC.
