Combination Switch (Wiper): Removal

Disconnect the ground cable from battery.

Remove the instrument panel lower cover.

Loosen the screw to remove steering column cover lower.

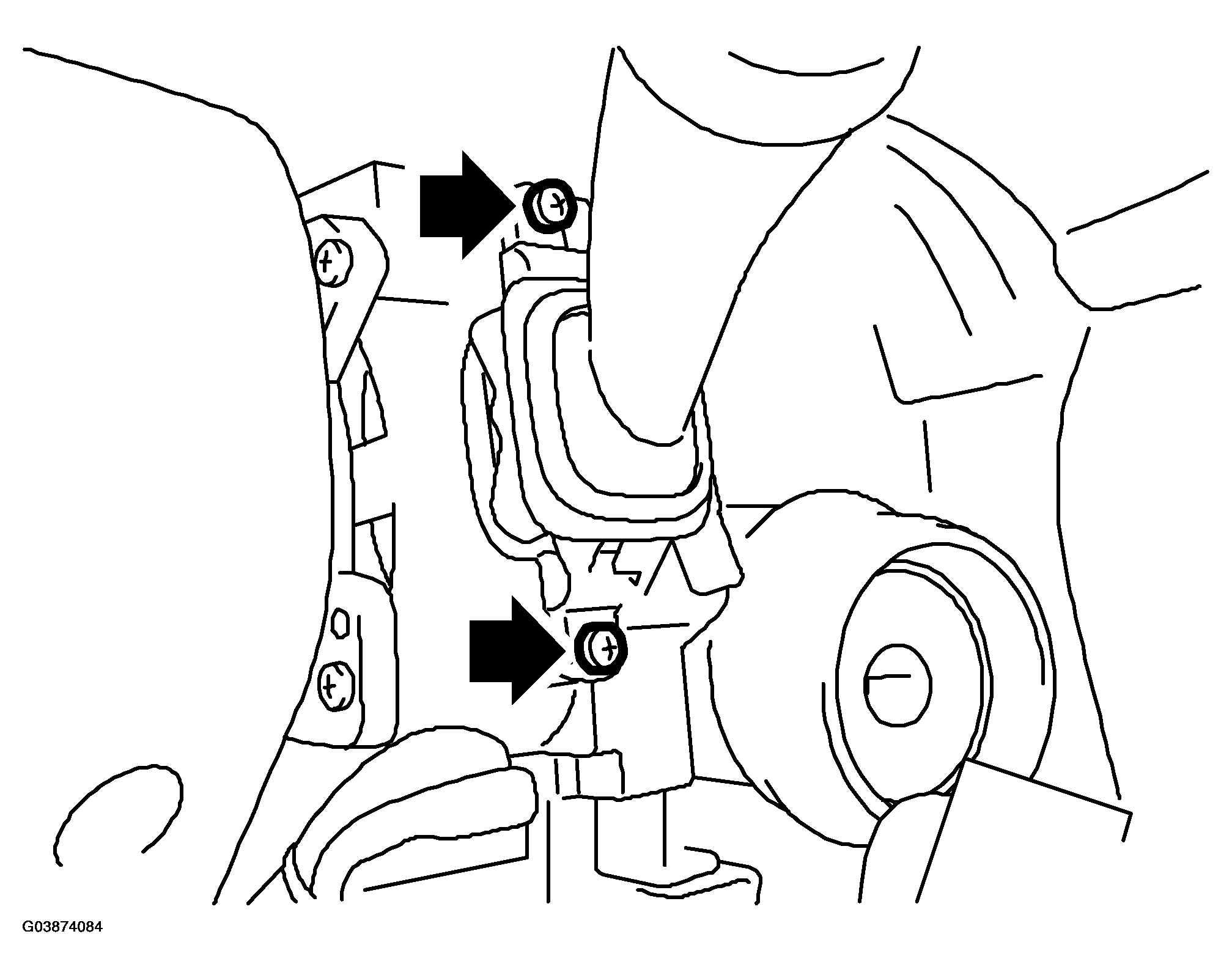

Fig 1: Locating screw

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the screw to steering column cover upper.

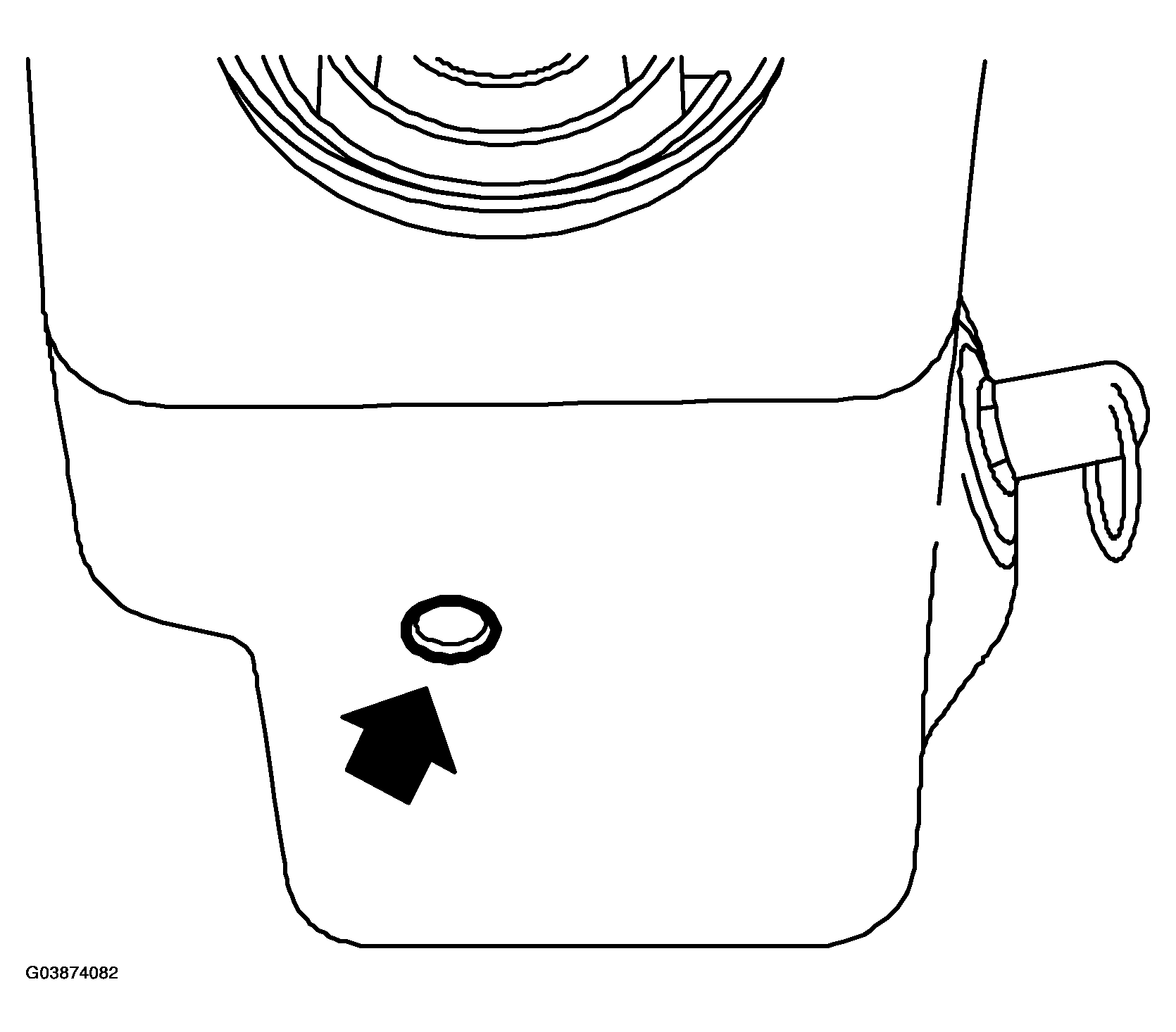

Fig 2: Removing Screw To Steering Column Cover Upper

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connectors from combination switches.

Loosen the screw to remove combination switch.

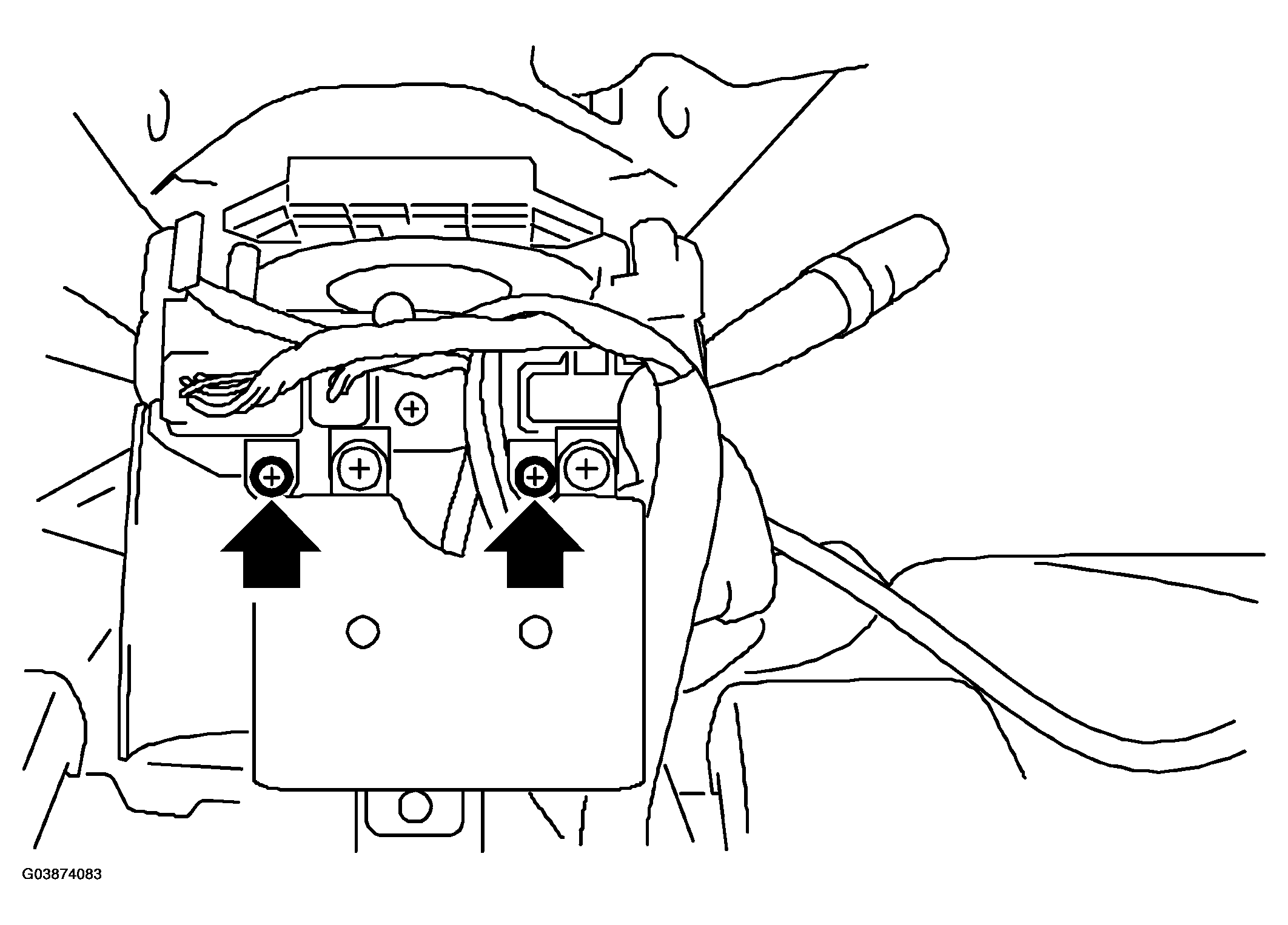

Fig 3: Removing Combination Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.
