Entertainment Systems: Adjustment/Replacement/Inspection: Tweeter: Removal

Disconnect the ground cable from battery.

Remove the front door trim.

Remove the tweeter mounting screws.

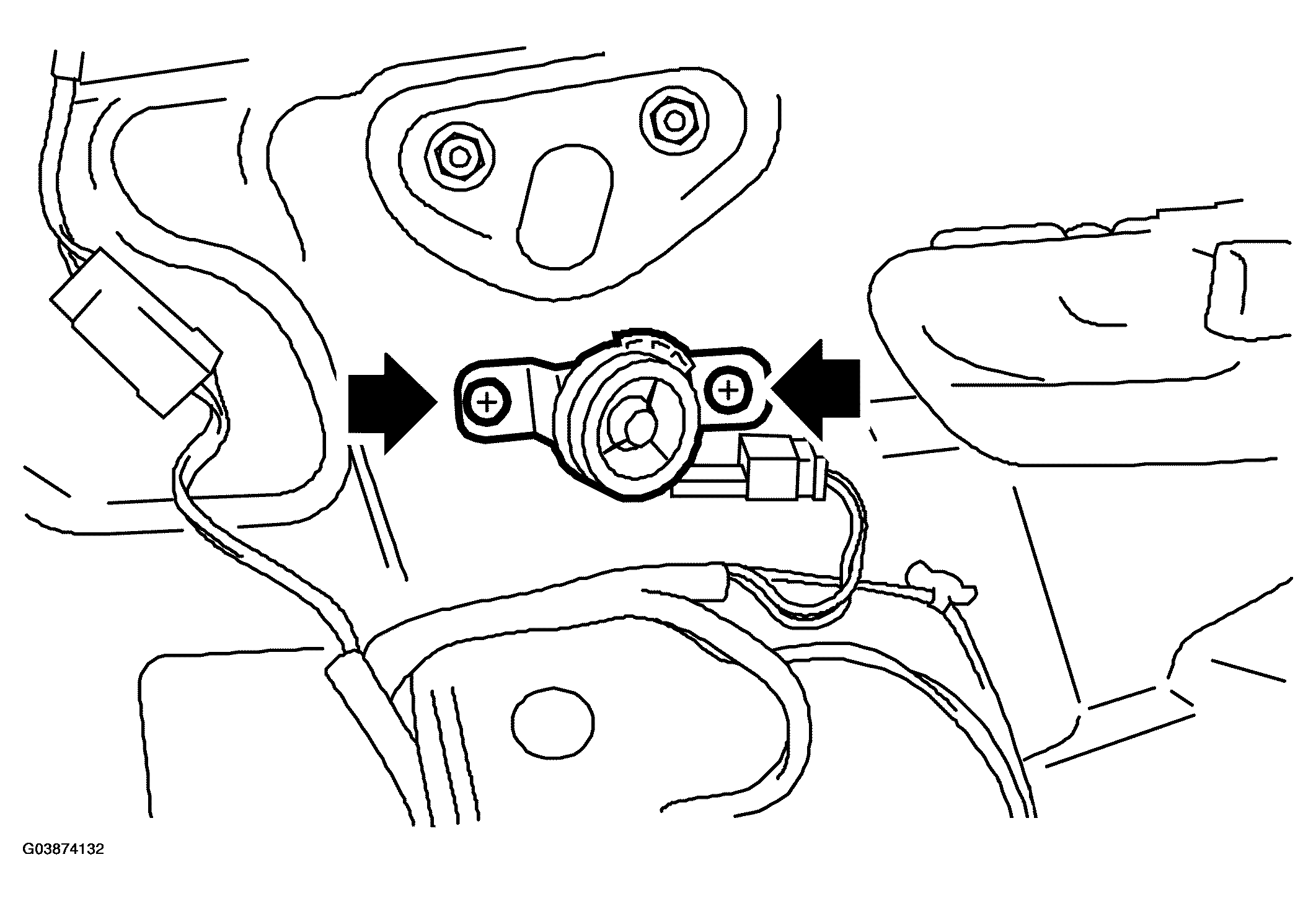

Fig 1: Removing Tweeter Mounting Screws
G03874132Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the harness connector and remove tweeter.
