Entertainment Systems: Adjustment/Replacement/Inspection: Audio: Removal

Disconnect the ground cable from battery.

Remove the console front panel.

Remove the center panel while disconnecting connector.

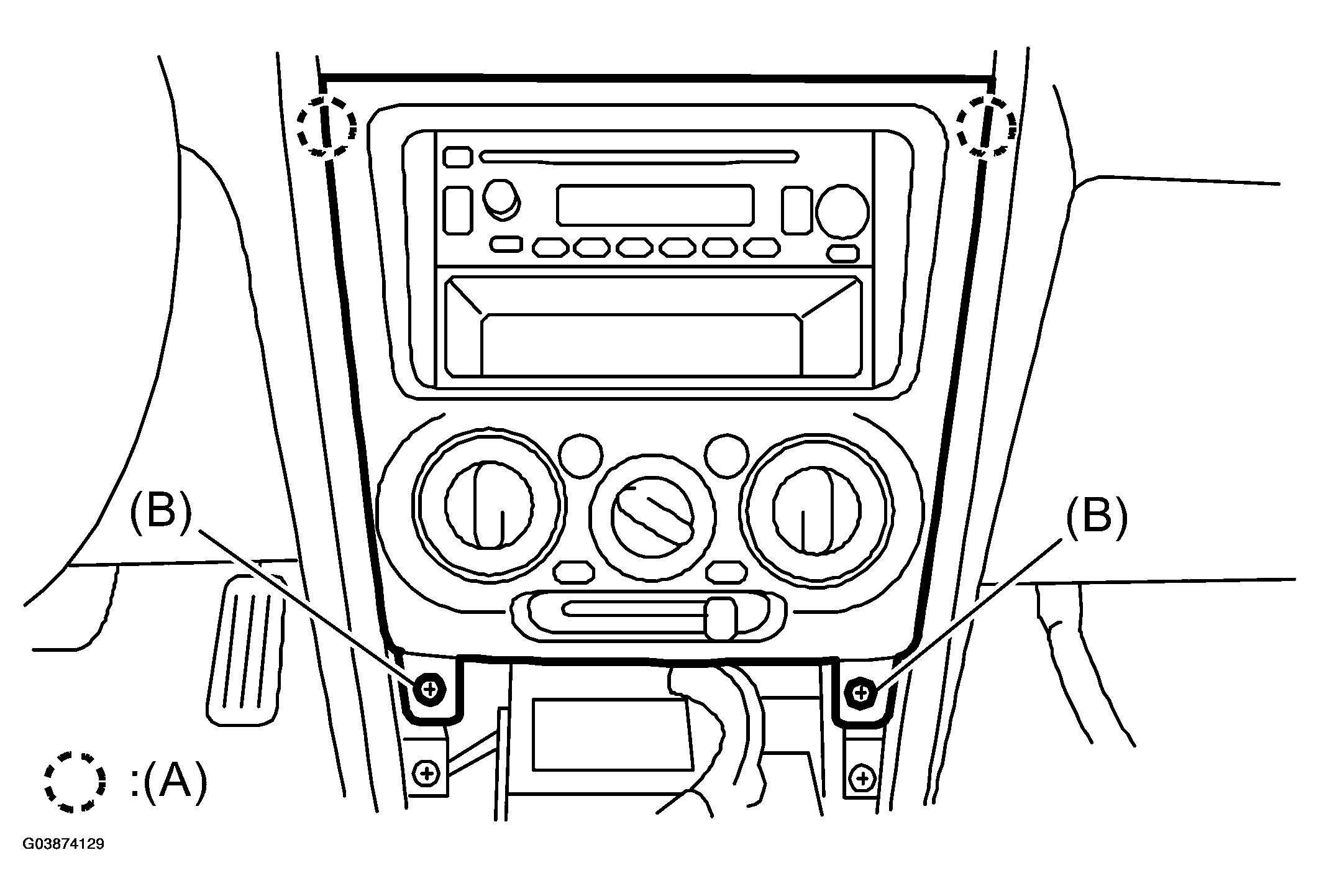

Fig 1: Removing Console Front Panel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Hook pawl

Remove the fitting screws, and slightly pull out the audio from center console.

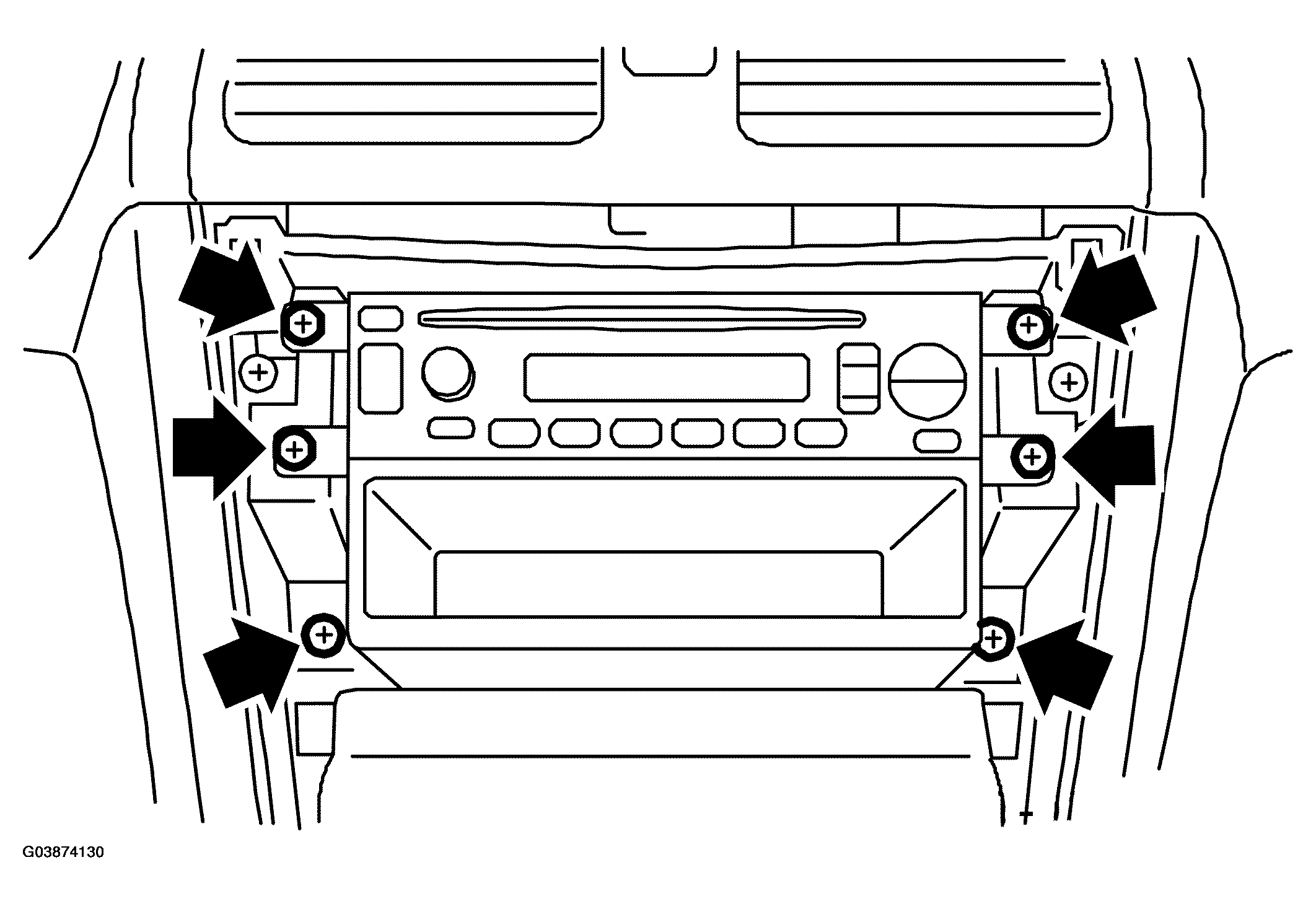

Fig 2: Removing Fitting Screws

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the harness connectors and antenna feeder cord.
