Entertainment Systems: Adjustment/Replacement/Inspection: Antenna: Repair

Clean the antenna wire and surrounding area with a cloth dampened by alcohol.

Paste a thin masking film on the glass along broken wire.

Deposit conductive silver composition (DUPONT No. 4817) on the broken portion with a drawing pen.

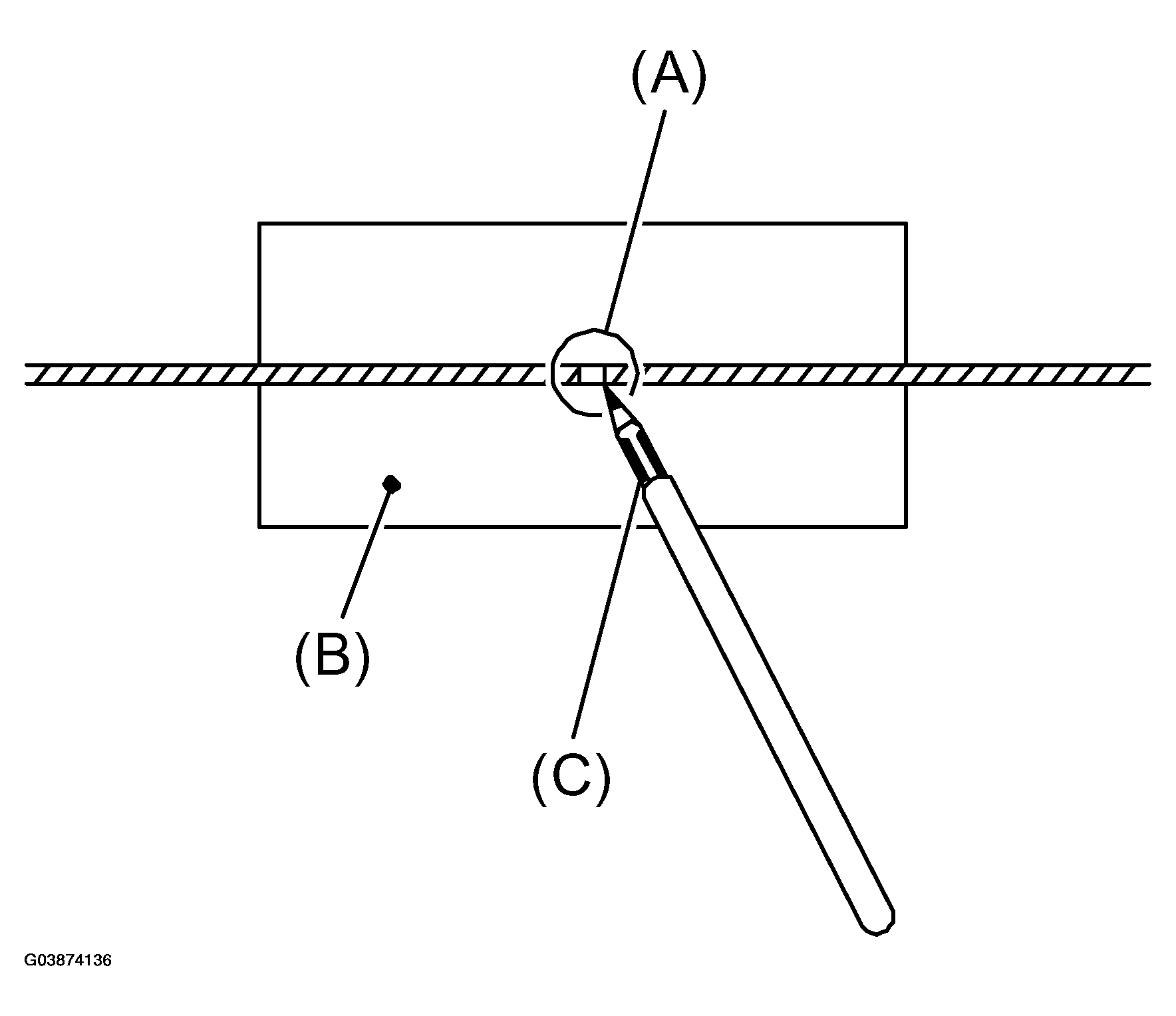

Fig 1: Pasting Thin Masking Film On Glass Along Broken Wire

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Broken portion
2. Masking film
3. Conductive silver composition

Dry out the deposited portion.

After repair has been completed, measure the resistance in repaired wire.
