Saab 9-2X 2.5i Linear

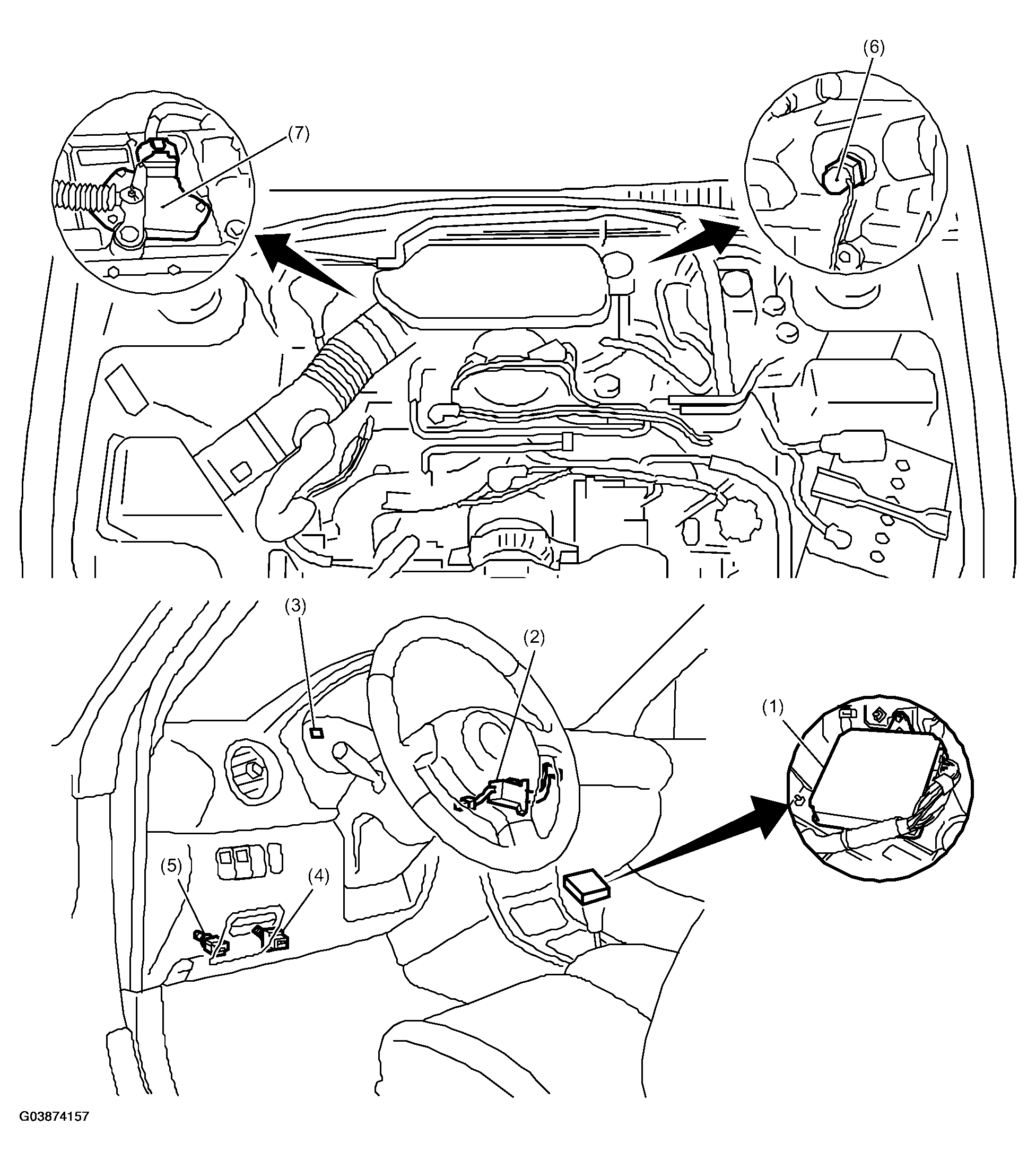

Fig 1: Locating Cruise Control System Components - Saab 9-2X 2.5i Linear
G03874157Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Engine control module (ECM)
  2. Cruise control command switch (with built-in main switch)
  3. Cruise indicator light & cruise set indicator light
  4. Stop light and brake switch
  5. Clutch switch (MT model)
  6. Neutral position switch (MT model)
  7. Inhibitor switch (AT model)
