Knock Sensor: Adjustment/Replacement: Installation

Install the knock sensor to cylinder block.

NOTE: Extraction area of knock sensor cord must be positioned at a 60° angle relative to the engine rear.

Tightening torque:

24 Nm (2.4 kgf-m, 17.4 ft-lb)

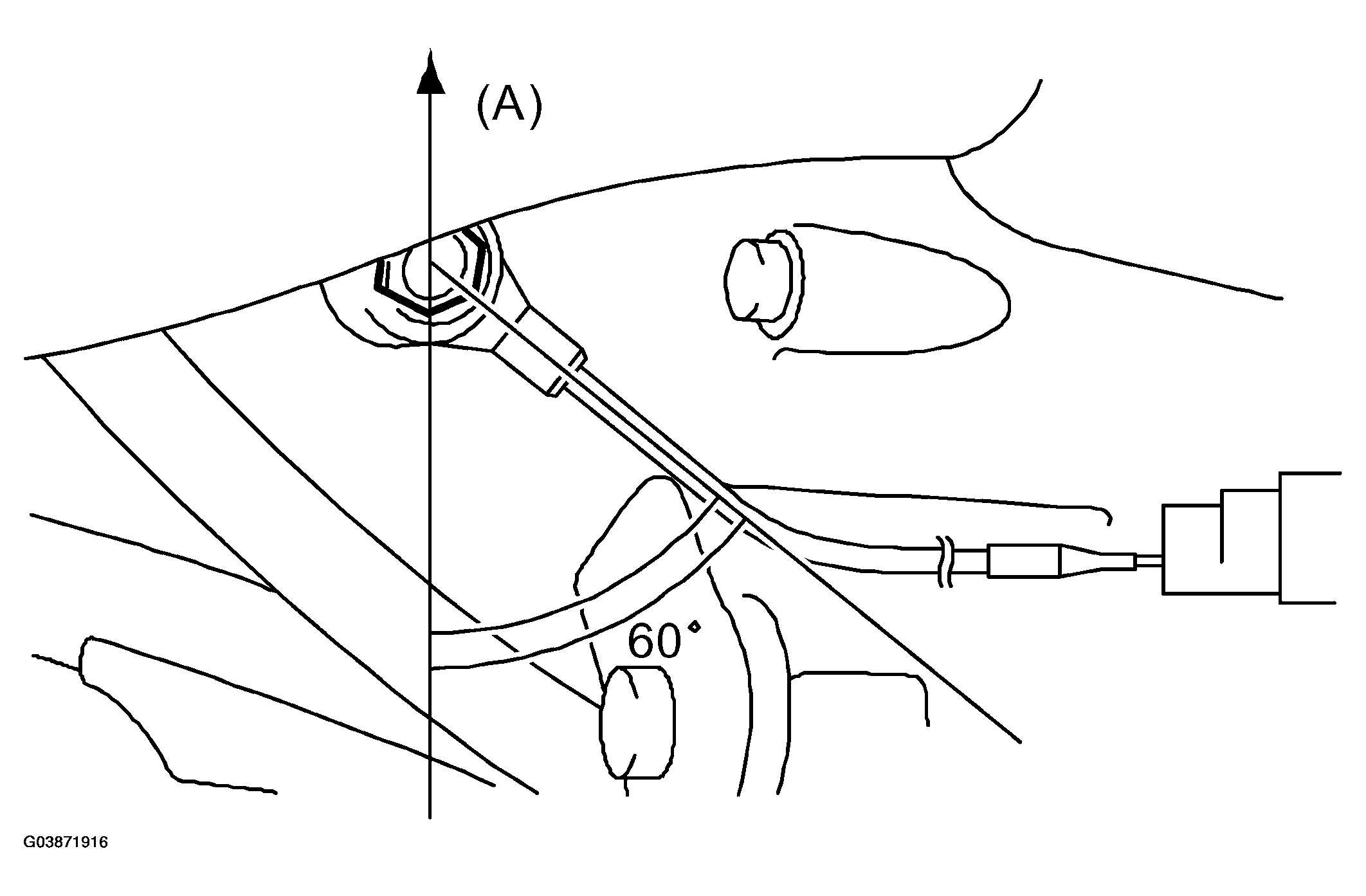

Fig 1: Identifying Installation Angle Of Knock Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Connect the knock sensor connector.

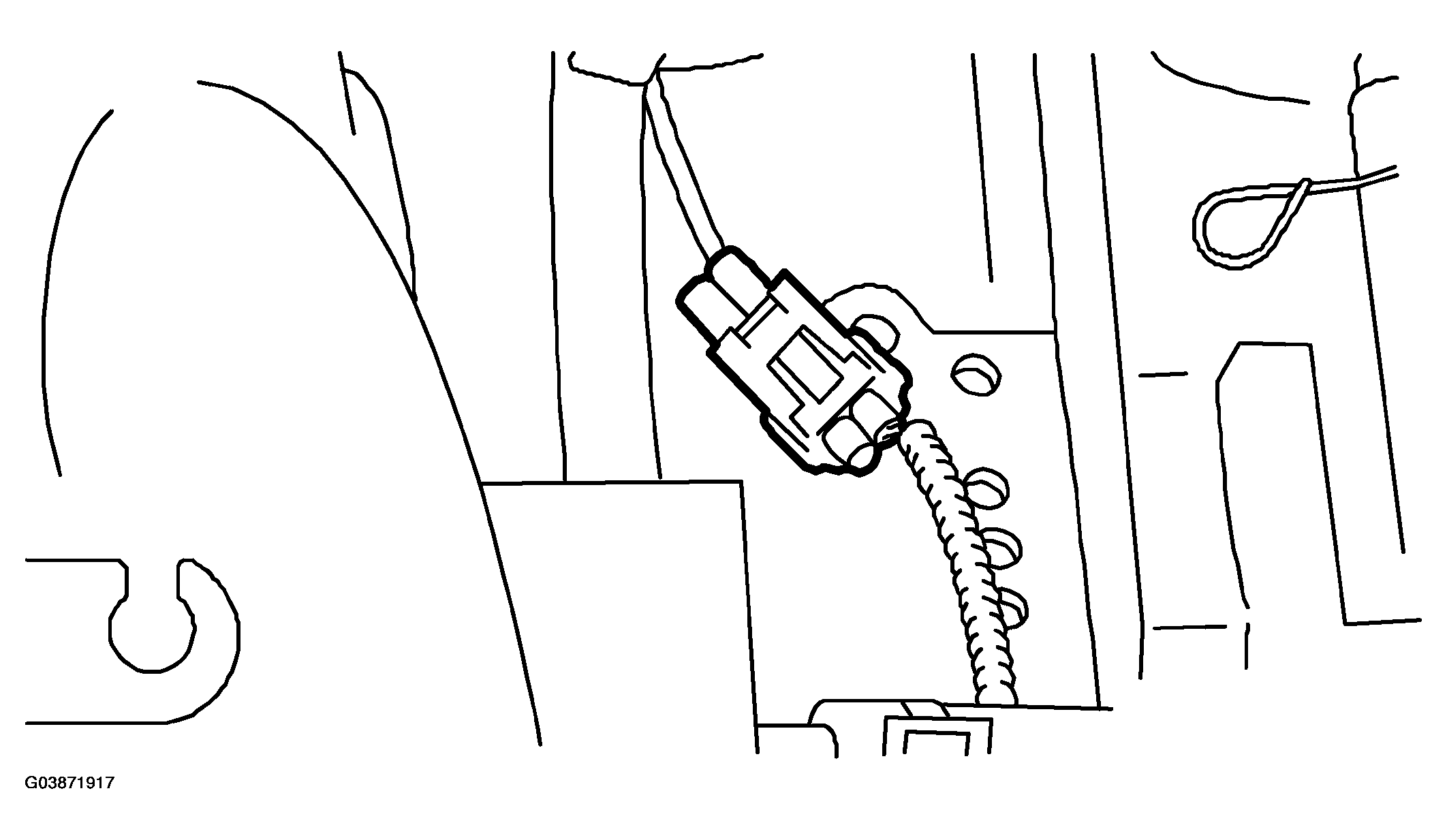

Fig 2: Connecting Knock Sensor Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the air intake chamber.

Connect the battery ground cable to battery.

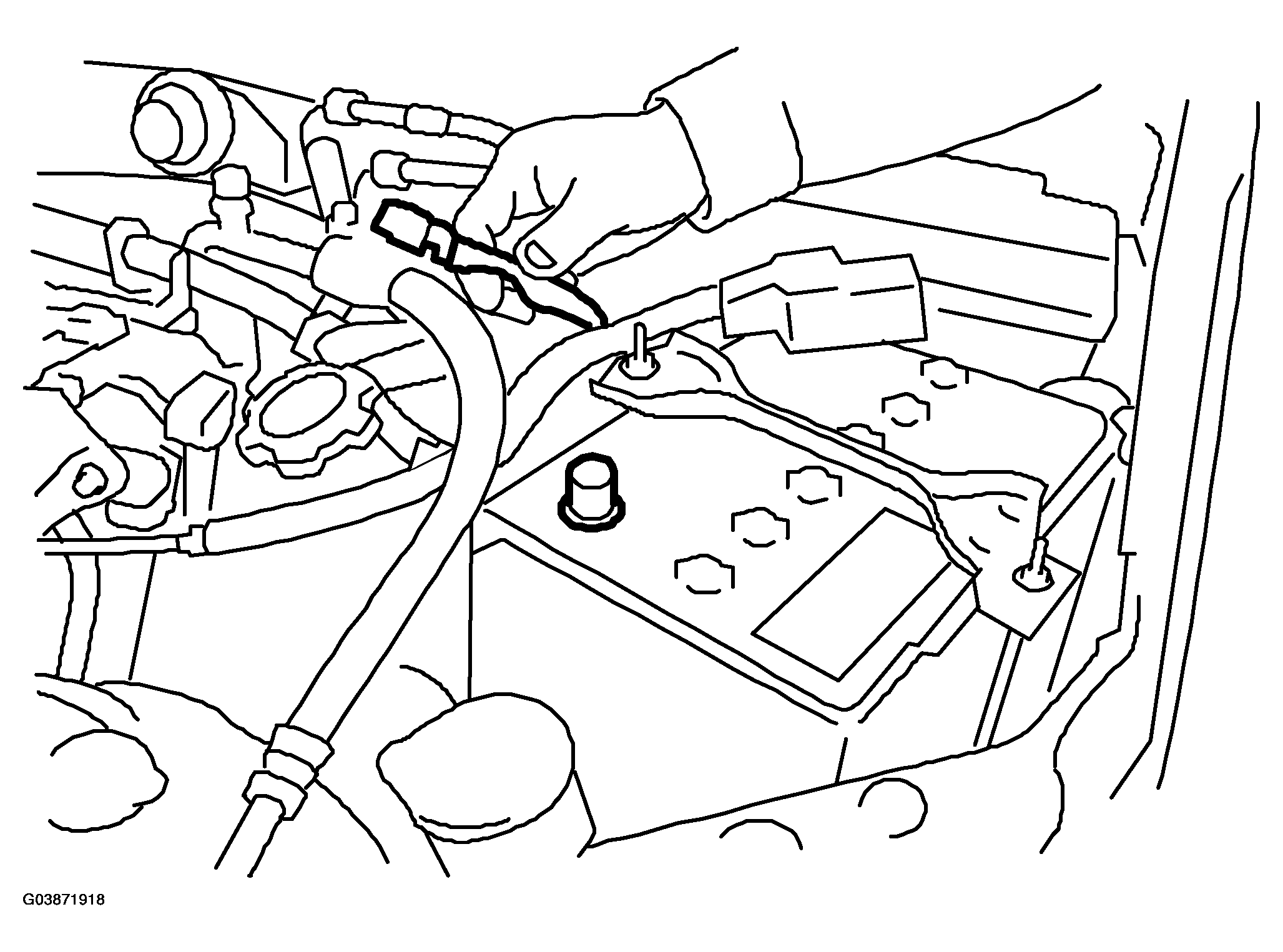

Fig 3: Connecting Battery Ground Cable To Battery

Courtesy of SAAB-SCANIA OF AMERICA, INC.
