Transfer And Extension Case With VTD

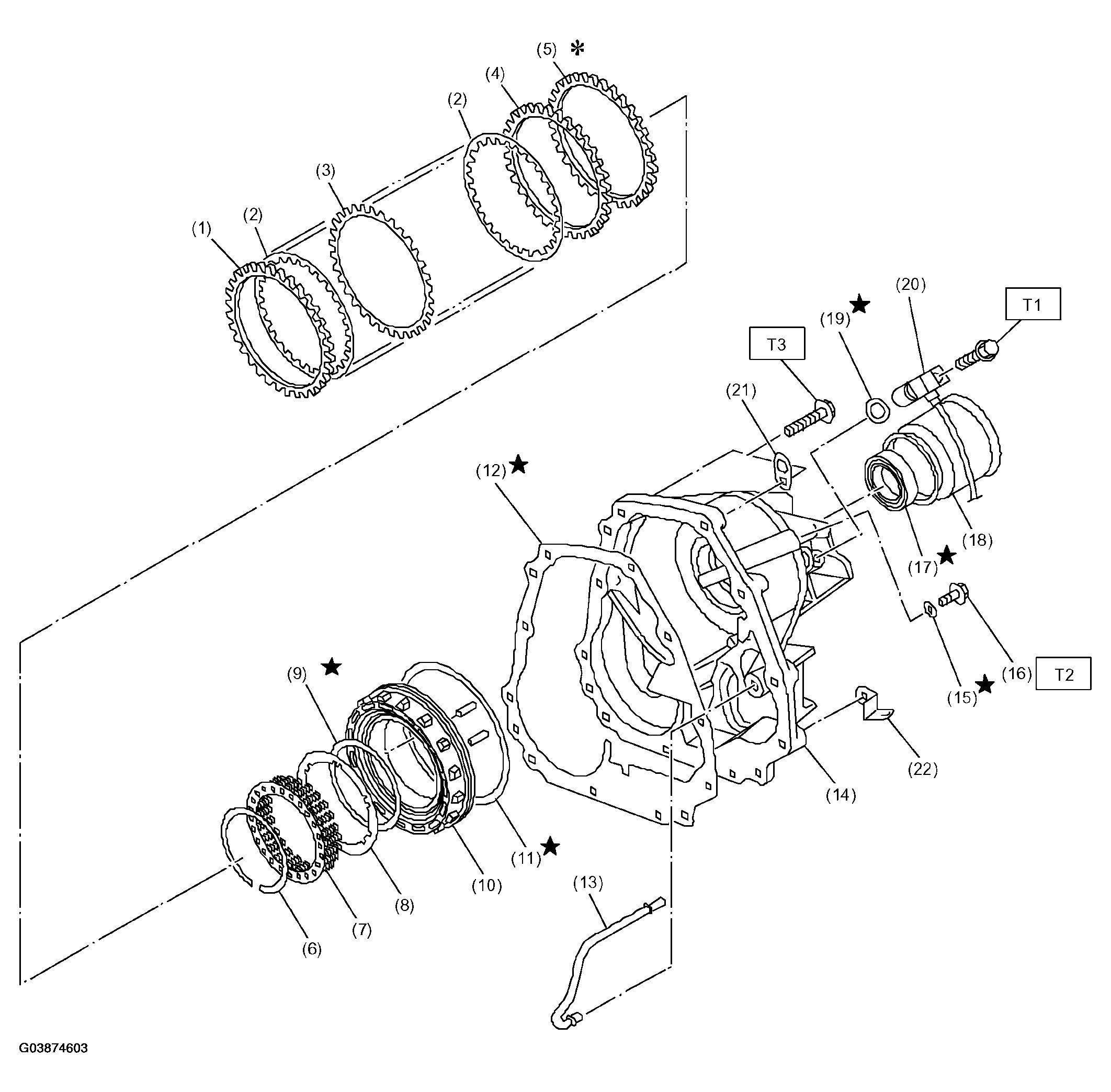

Fig 1: Identifying Components Transfer And Extension Case With VTD

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Driven plate (Thick)
2. Driven plate
3. Driven plate (Thin)
4. Driven plate (Thick)
5. Retaining plate
6. Snap ring
7. Spring retainer
8. Plate
9. O-ring
10. Multi-plate clutch (LSD) piston
11. D-ring
12. Gasket
13. Multi-plate clutch (LSD) pipe
14. Extension case
15. O-ring
16. Test plug
17. Oil seal
18. Dust cover
19. O-ring
20. Rear vehicle speed sensor
21. Transmission hanger
22. Harness bracket

Tightening torque: Nm (kgfm, ft-lb)

T1: 7 (0.7, 5.1)

T2: 13 (1.3, 9.4)

T3: 25 (2.5, 18.1)
