Transfer And Extension Case With MPT

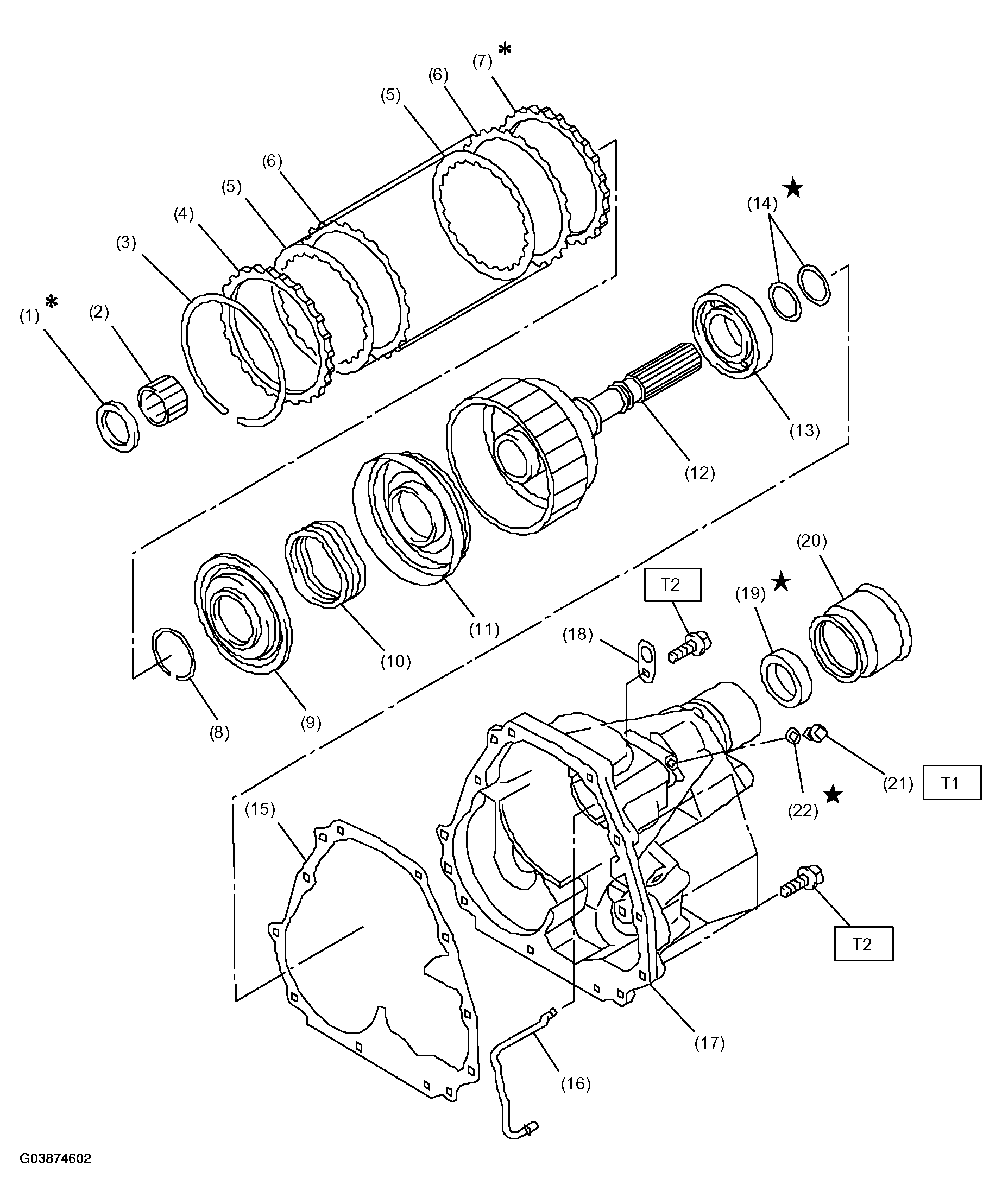

Fig 1: Identifying Components Transfer And Extension Case With MPT

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Thrust needle bearing
2. Needle bearing
3. Snap ring
4. Pressure plate
5. Drive plate
6. Driven plate
7. Retaining plate
8. Snap ring
9. Transfer clutch piston seal
10. Return spring
11. Transfer clutch piston
12. Rear drive shaft
13. Ball bearing
14. Seal ring
15. Gasket
16. Transfer clutch pipe
17. Extension case
18. Transmission hanger
19. Oil seal
20. Dust cover
21. Test plug
22. O-ring

Tightening torque: Nm (kgfm, ft-lb)

T1: 13 (1.3, 9.4)

T2: 25 (2.5, 18.1)
