Differential Gear

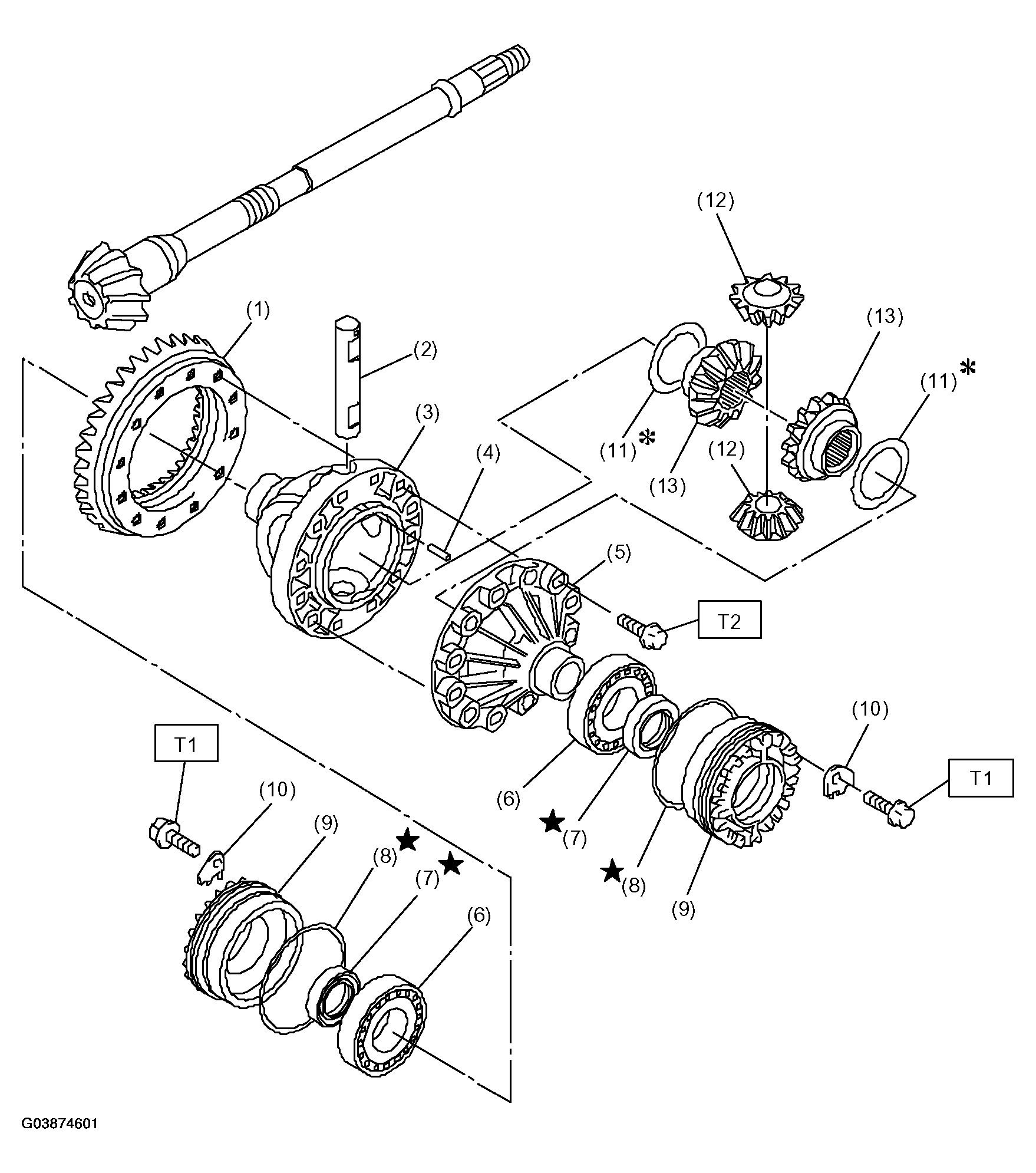

Fig 1: Identifying Components Differential Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Hypoid driven gear
2. Pinion shaft
3. Differential case (RH)
4. Straight pin
5. Differential case (LH)
6. Taper roller bearing
7. Oil seal
8. O-ring
9. Differential side retainer
10. Lock plate
11. Washer
12. Differential bevel pinion
13. Differential bevel gear

Tightening torque: Nm (kgfm, ft-lb)

T1: 25 (2.5, 18.1)

T2: 62 (6.3, 45.6)
