Control Valve And Harness Routing

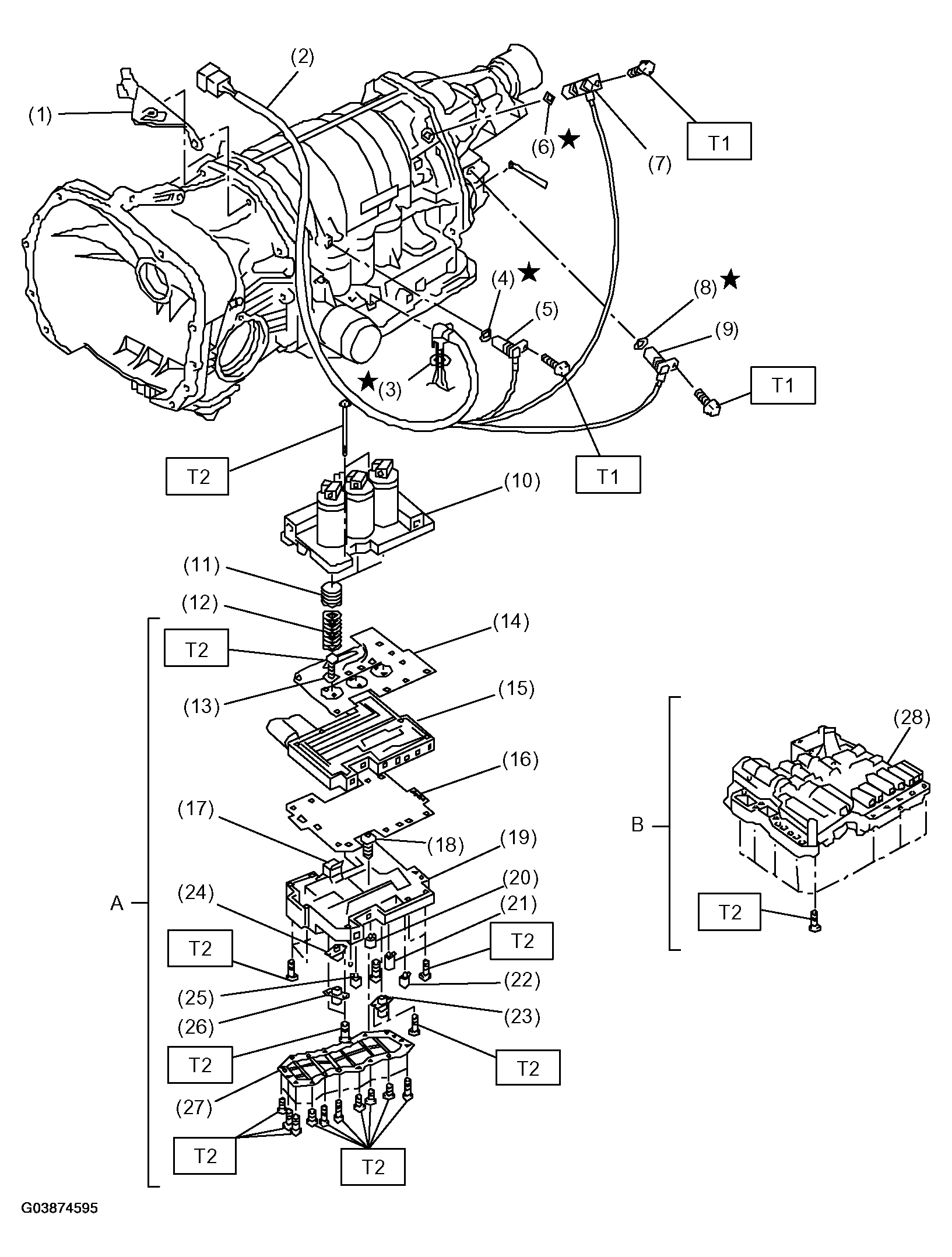

Fig 1: Identifying Components Control Valve And Harness Routing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. A : Saab 9-2X 2.0T Aero
2. B : Saab 9-2X 2.5i Linear

1. Stay
2. Transmission harness
3. O-ring
4. O-ring
5. Torque converter turbine speed sensor
6. O-ring
7. Front vehicle speed sensor
8. O-ring
9. Rear vehicle speed sensor
10. Upper valve body
11. Accumulator piston
12. Accumulator spring
13. Side plate
14. Separate plate
15. Middle valve body
16. Separate plate
17. Fluid filter
18. Fluid filter
19. Lower valve body
20. Shift solenoid 2
21. Shift solenoid 1
22. 2-4 brake timing solenoid
23. 2-4 brake duty solenoid
24. Line pressure duty solenoid
25. Low clutch timing solenoid
26. Lock-up duty solenoid
27. Oil strainer
28. Control valve ASSY

Tightening torque: Nm (kgfm, ft-lb)

T1: 7 (0.7, 5.1)

T2: 8 (0.8, 5.8)
