Pitching Stopper

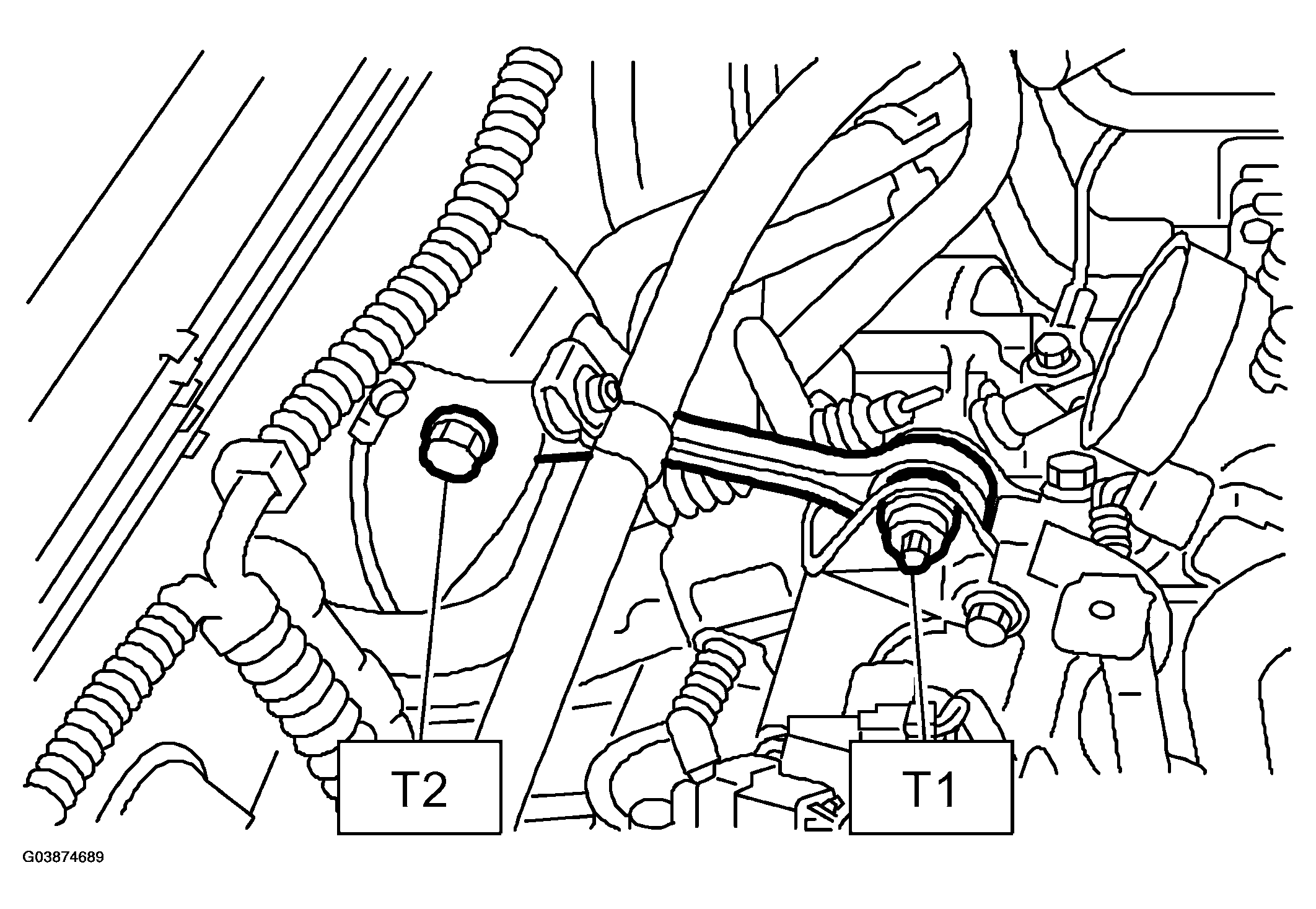

Install the pitching stopper.

Tightening torque:

T1: 50 Nm (5.1 kgf-m, 37 ft-lb)

T2: 58 Nm (5.9 kgf-m, 43 ft-lb)

Fig 1: Locating Drain Plug

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the air intake chamber. (Saab 9-2X 2.5i Linear)

Remove intercooler. (Saab 9-2X 2.0T Aero)
