Transfer Clutch: Installation

Select the thrust needle bearing.

Install the transfer clutch assembly to the case.

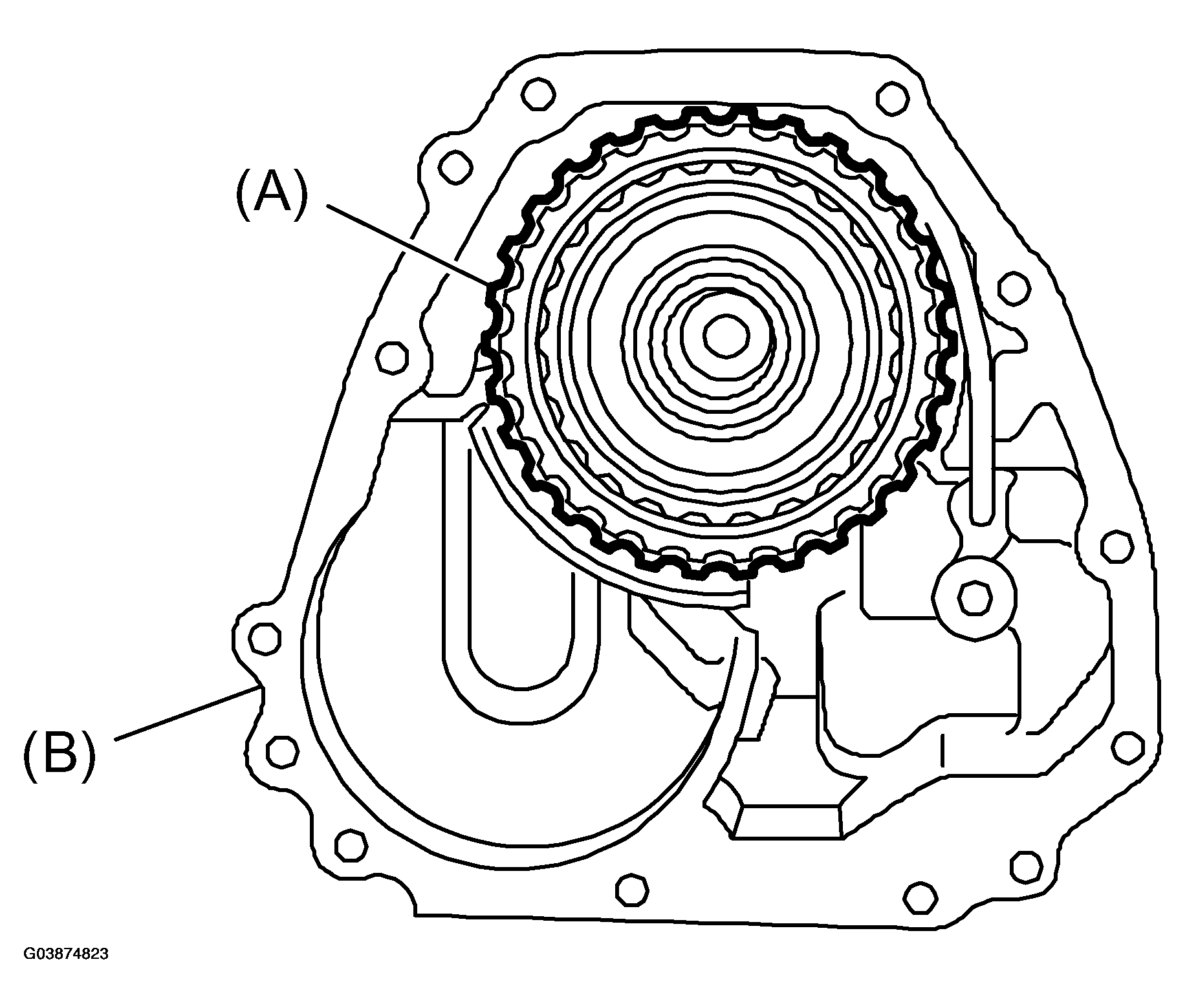

Fig 1: Installing Transfer Clutch Assembly To Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Transfer clutch
2. Extension case

Replace with new gasket, and tighten bolts to secure the case.

Tightening torque: 25 Nm (2.5 kgf-m, 18.1 ft -lb)

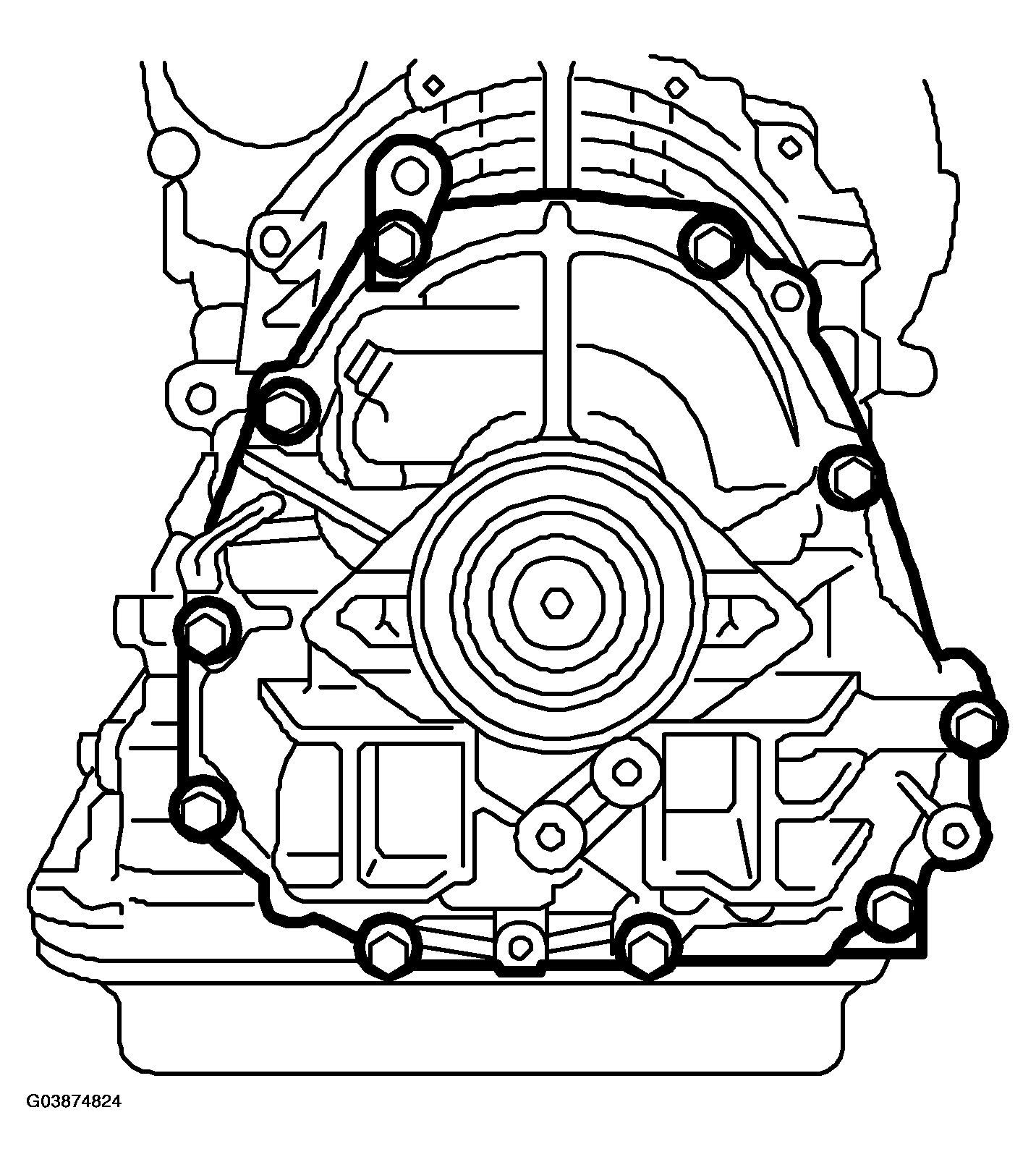

Fig 2: Tightening Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the transmission assembly to vehicle.
