Transfer Clutch: Disassembly

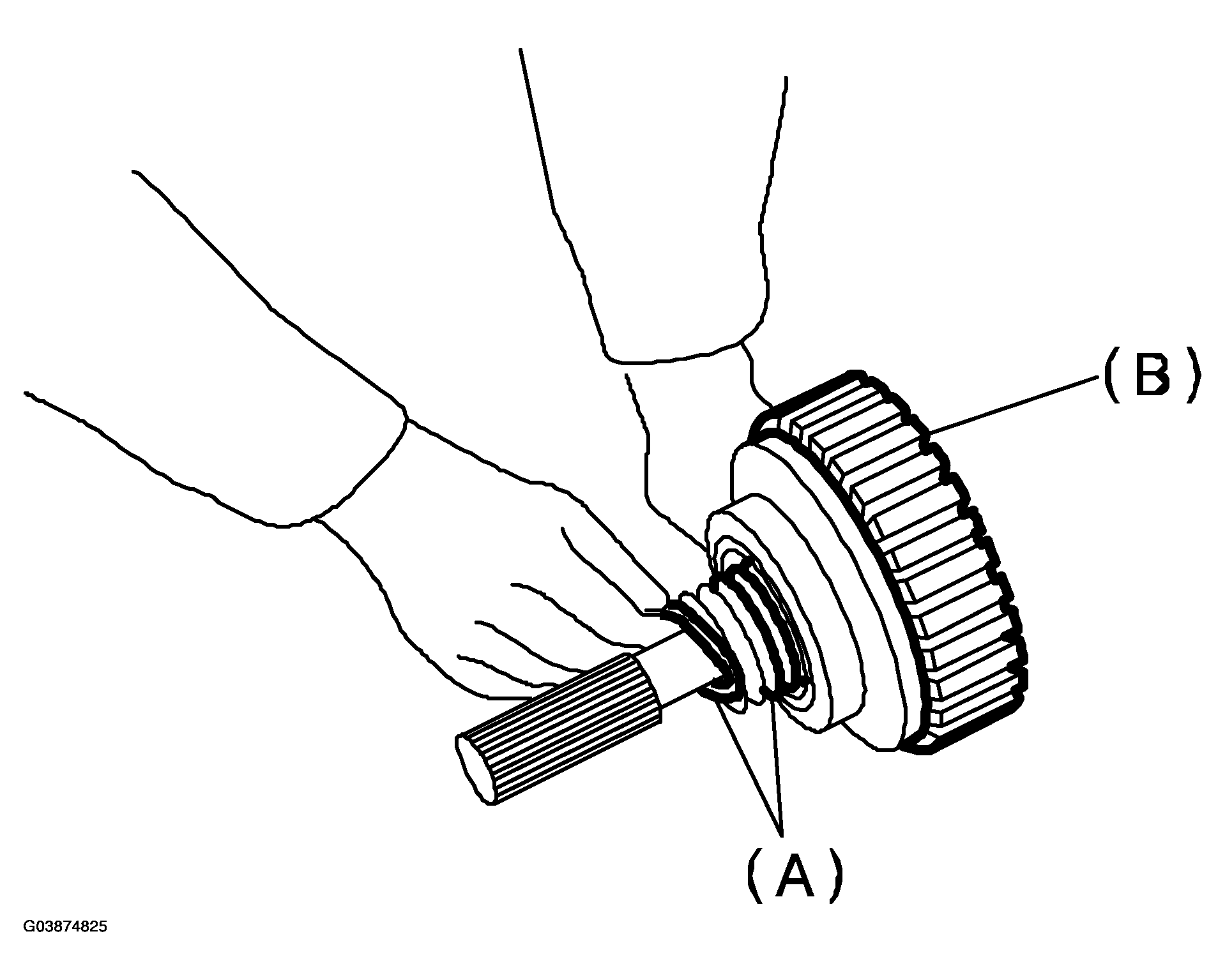

Remove the seal ring.

Fig 1: Removing Seal Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

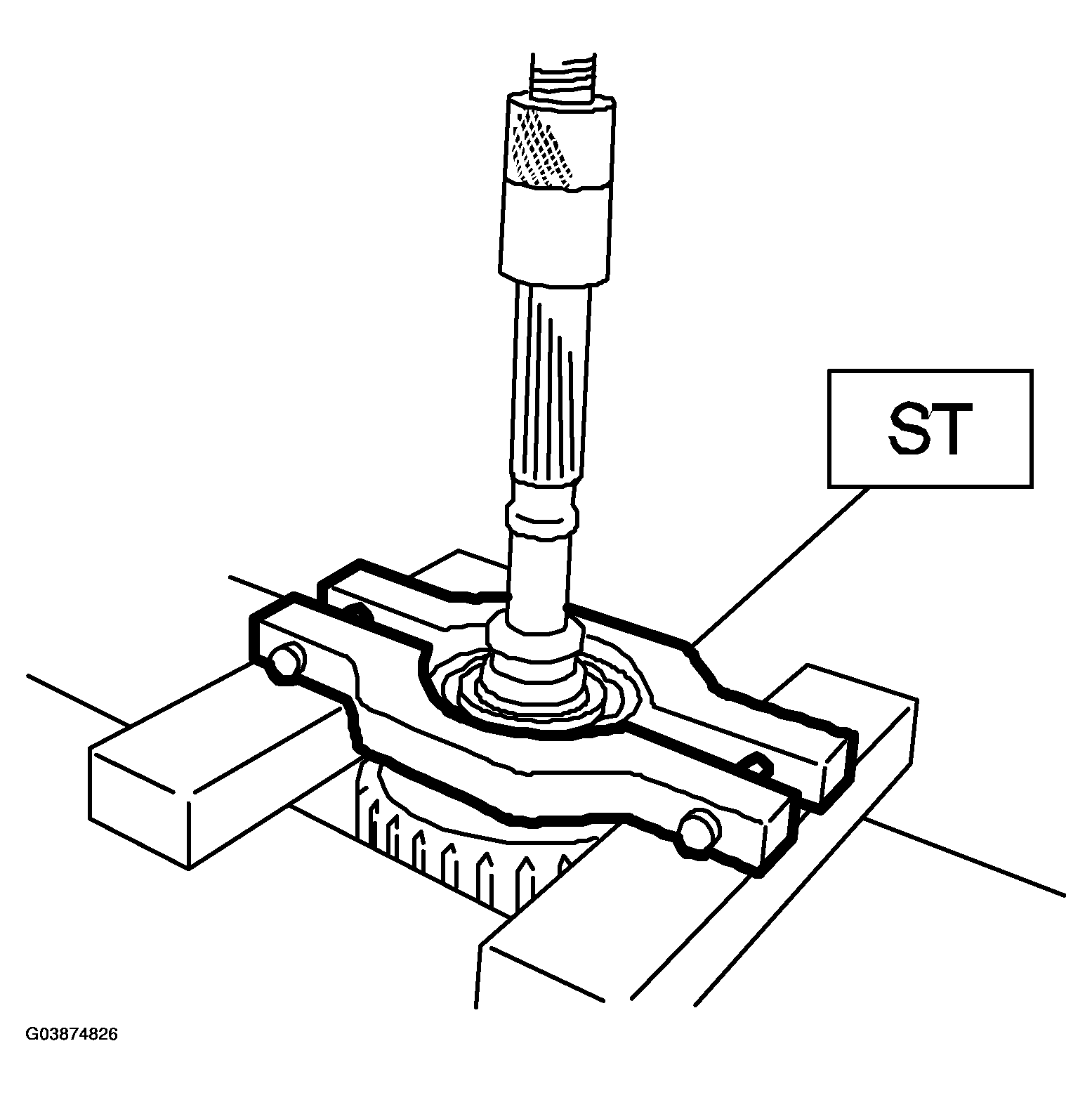

Using a press and ST, remove the ball bearing.

ST 32005091 REMOVER

Fig 2: Removing Ball Bearing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

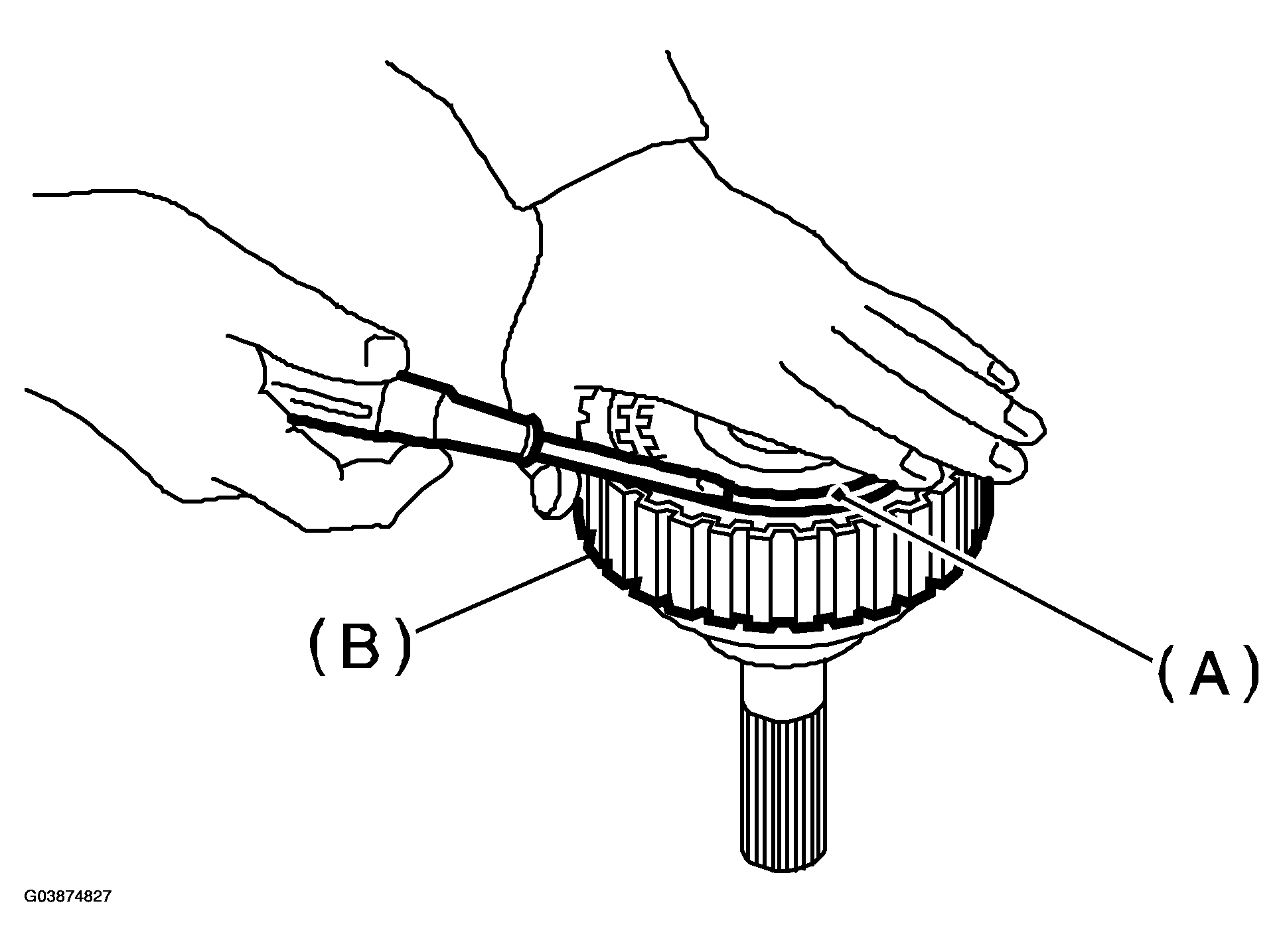

Remove the snap ring, and take out the pressure plate, drive plates, and driven plates.

Fig 3: Removing Snap Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

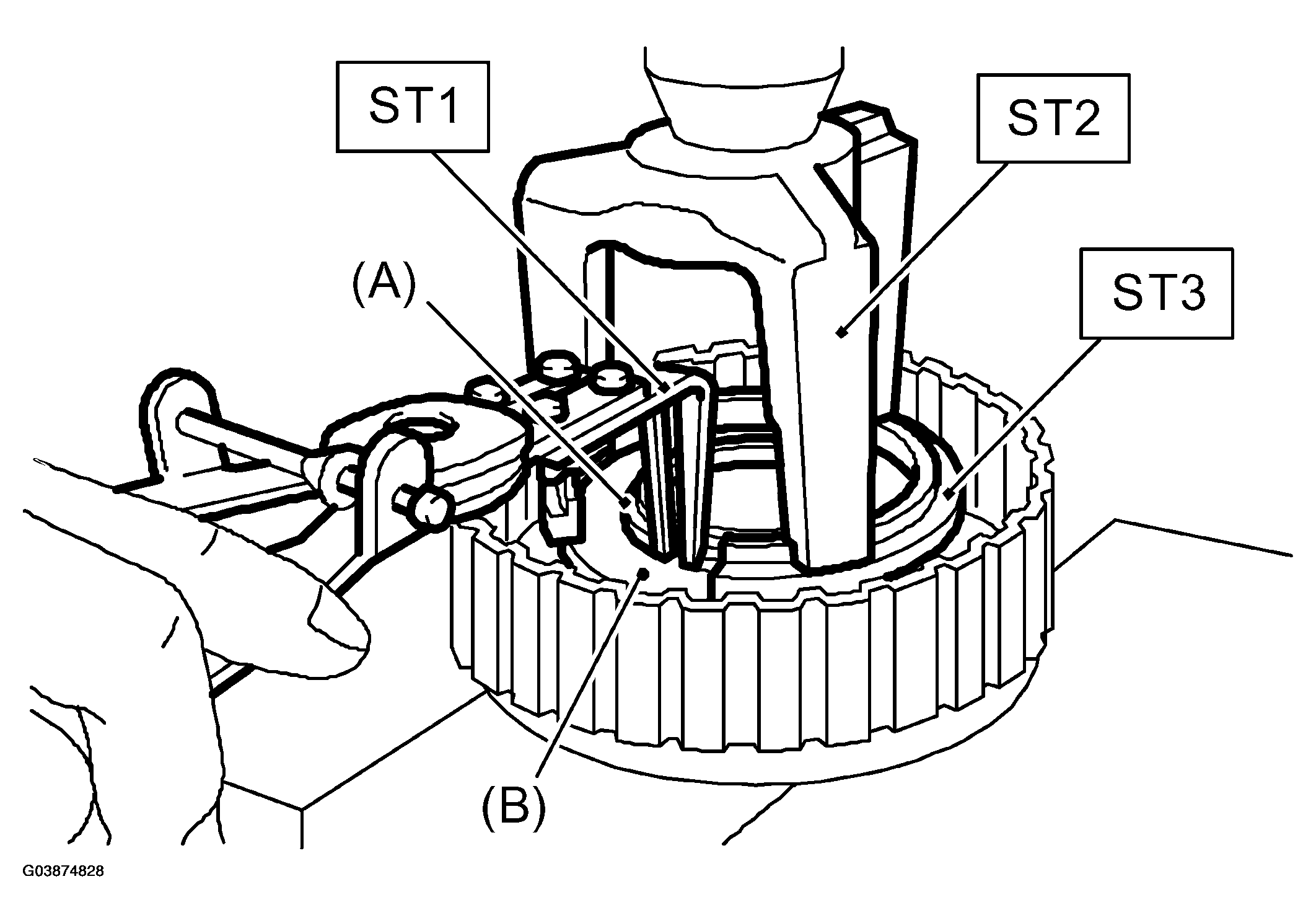

Remove the snap ring with ST1, ST2 and ST3, and take out the return spring and transfer clutch piston seal.

ST1 32005082 PLIERS

ST2 32005075 COMPRESSOR

ST3 32005072 SEAT

Fig 4: Removing Snap Ring With ST1, ST2 And ST3

Courtesy of SAAB-SCANIA OF AMERICA, INC.

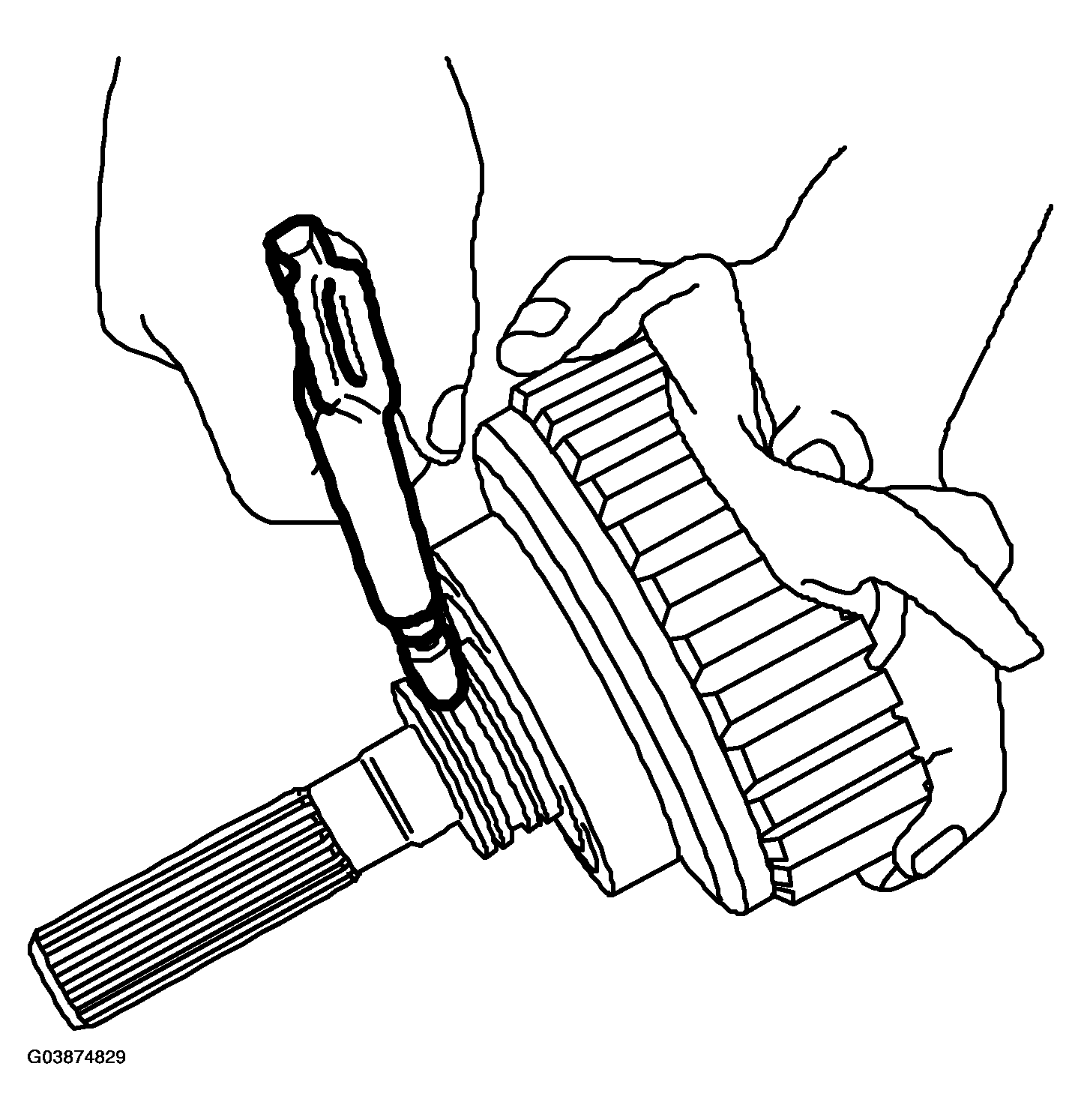

Apply compressed air to the rear drive shaft to remove the piston.

Fig 5: Applying Compressed Air To Rear Drive Shaft

Courtesy of SAAB-SCANIA OF AMERICA, INC.
