MPT Model

Remove the transmission assembly from the vehicle.

Remove rear vehicle speed sensor, and separate the transmission case and extension case.

Set the range select lever to "P".

Straighten the staked portion, and remove the lock nut.

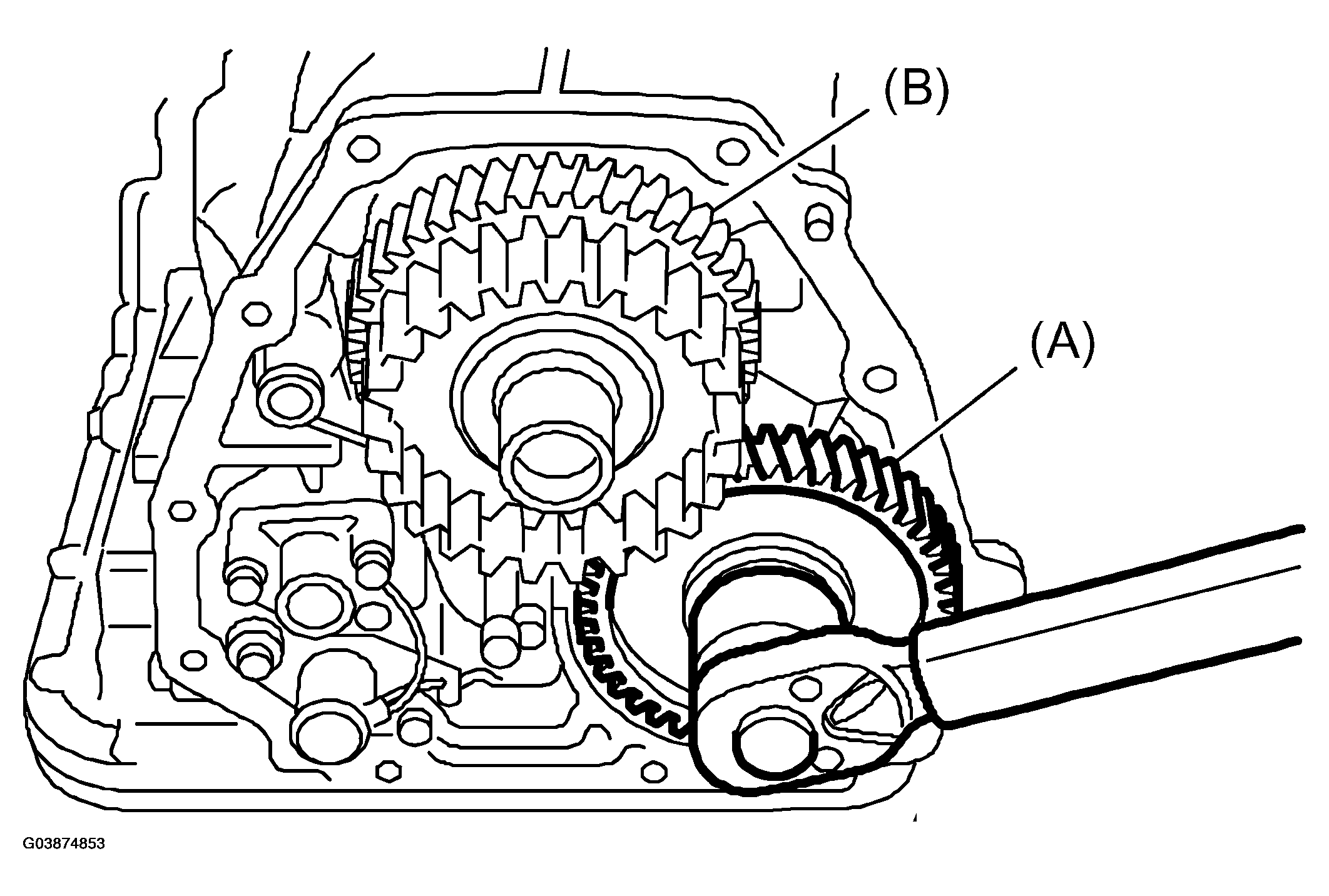

Fig 1: Removing Lock Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Reduction driven gear
2. Reduction drive gear

Using the ST1 and ST2, extract the reduction driven gear.

ST1 32005144 PULLER

ST2 32005174 PULLER SET

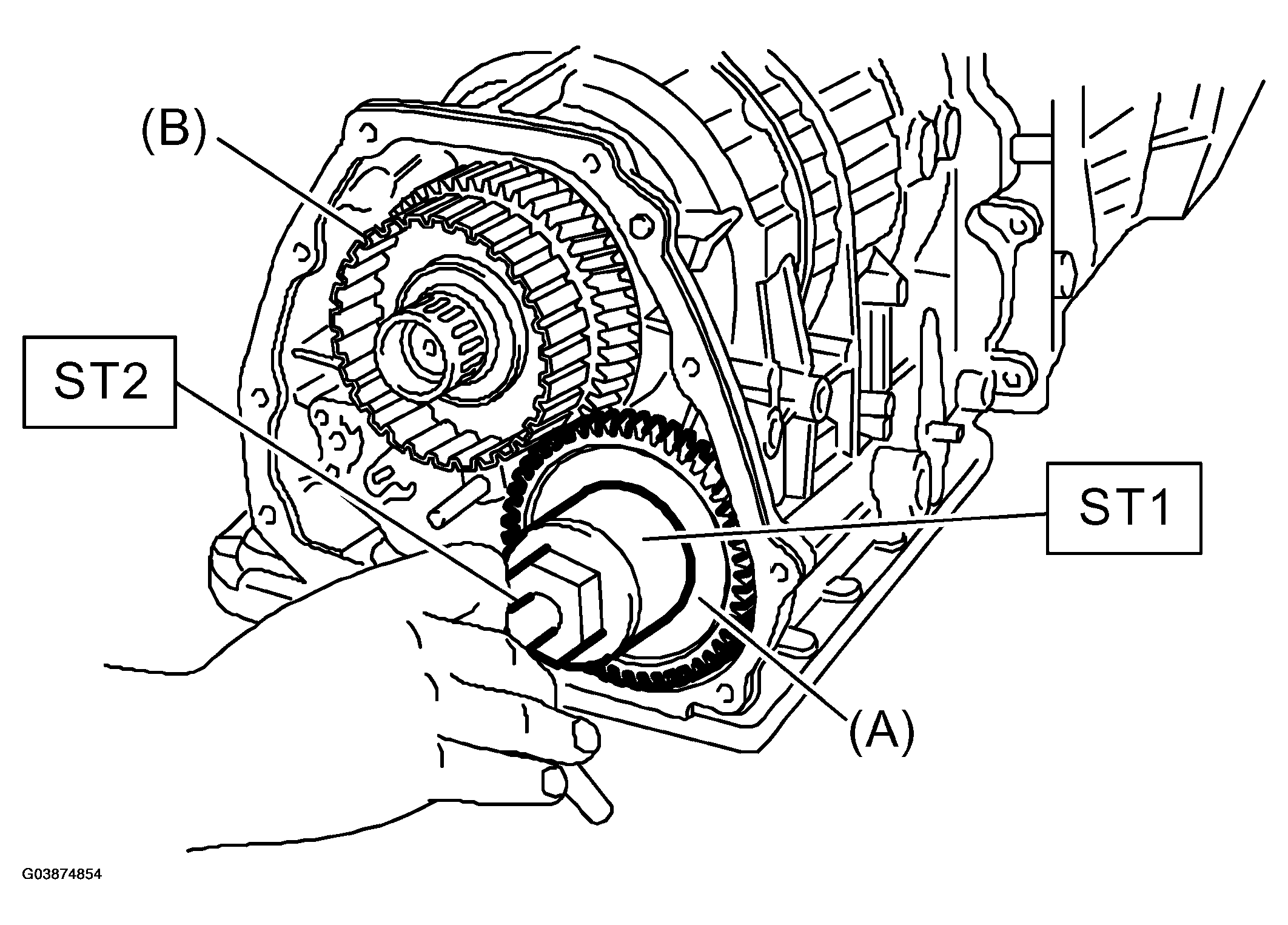

Fig 2: Extracting Reduction Driven Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Reduction driven gear
2. Reduction drive gear
