VTD Model

Set the select lever to "P" range.

Using a plastic hammer, install reduction driven gear assembly.

Using a plastic hammer, install the center differential assembly.

Install a new self-lock nut and a washer.

Tightening torque:

100 Nm (10.2 kgf-m, 73.8 ft-lb)

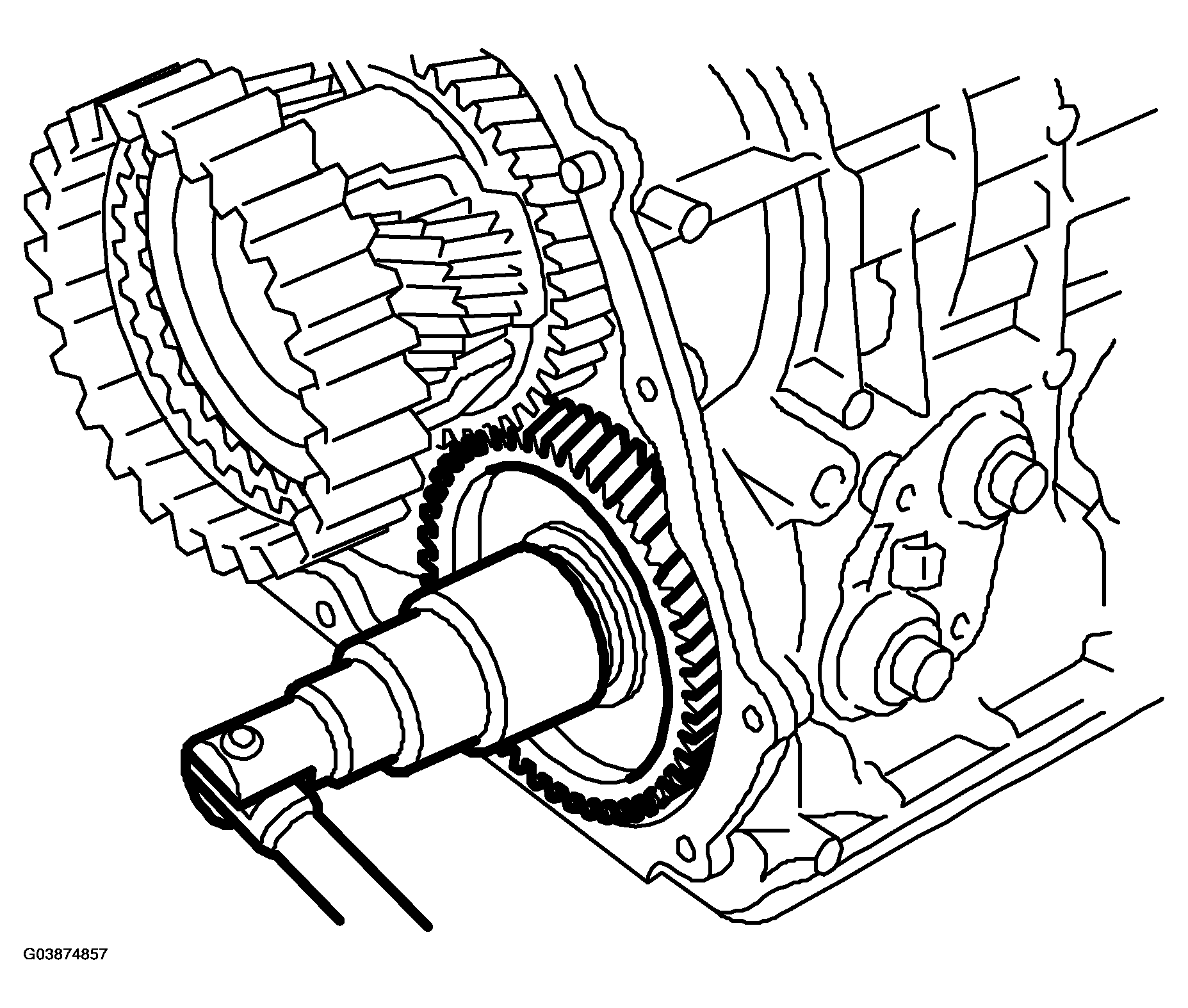

Fig 1: Installing New Self-Lock Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

After tightening, stake the lock nut securely.

Insert the rear drive shaft assembly.

Combine the transmission case with the extension case, and install rear vehicle speed sensor.

Install the transmission assembly to vehicle.
