MPT Model

Set the select lever to "P" range.

Using a plastic hammer, install reduction driven gear assembly and new washer, and tighten new drive pinion lock nut.

Tightening torque:

100 Nm (10.2 kgf-m, 73.8 ft-lb)

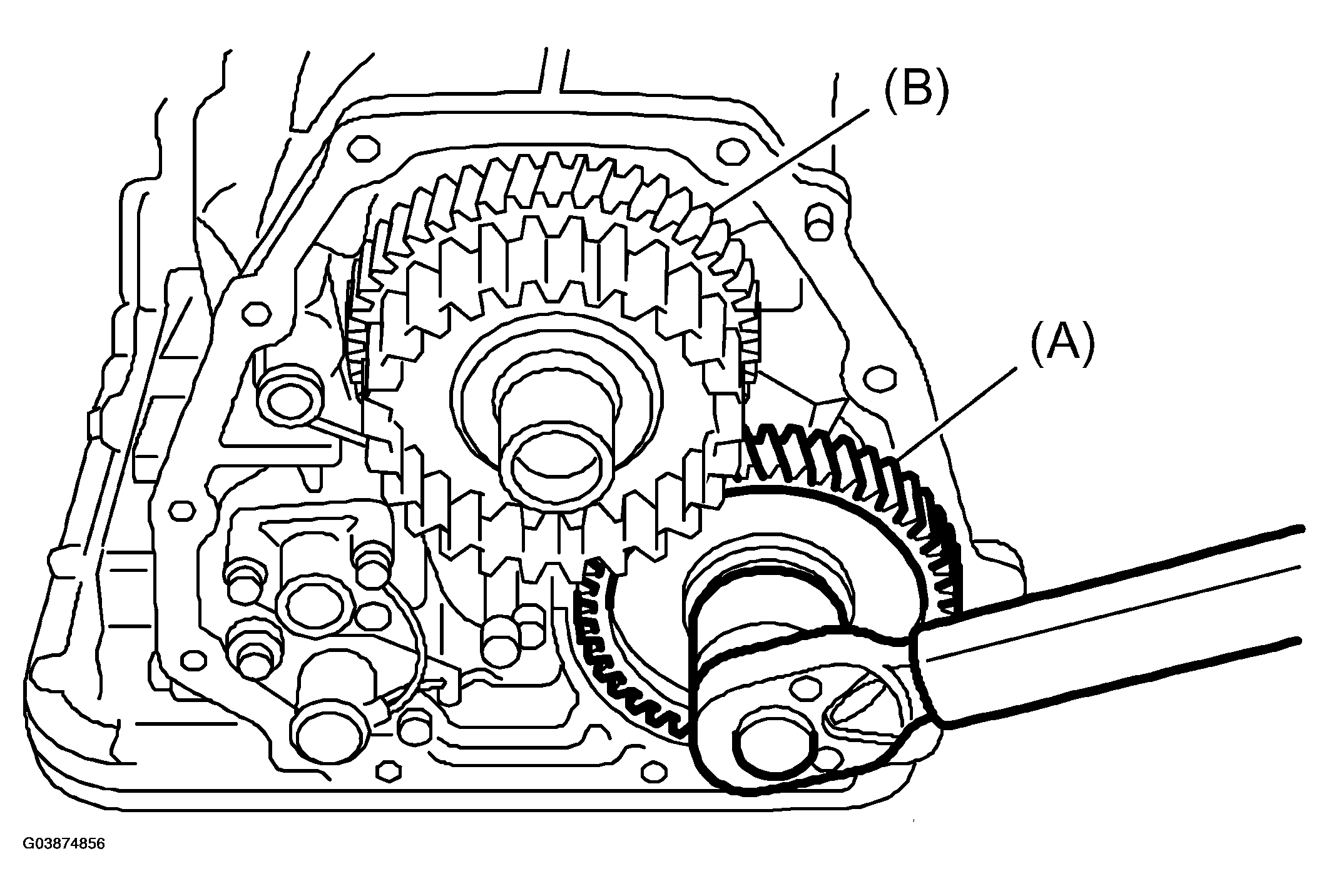

Fig 1: Tightening Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Reduction driven gear
2. Reduction drive gear

After tightening, stake the lock nut securely.

Combine the transmission case with the extension case, and install rear vehicle speed sensor.

Install the transmission assembly to vehicle.
