Reduction Driver Gear: Disassembly

Remove snap ring from reduction driven gear.

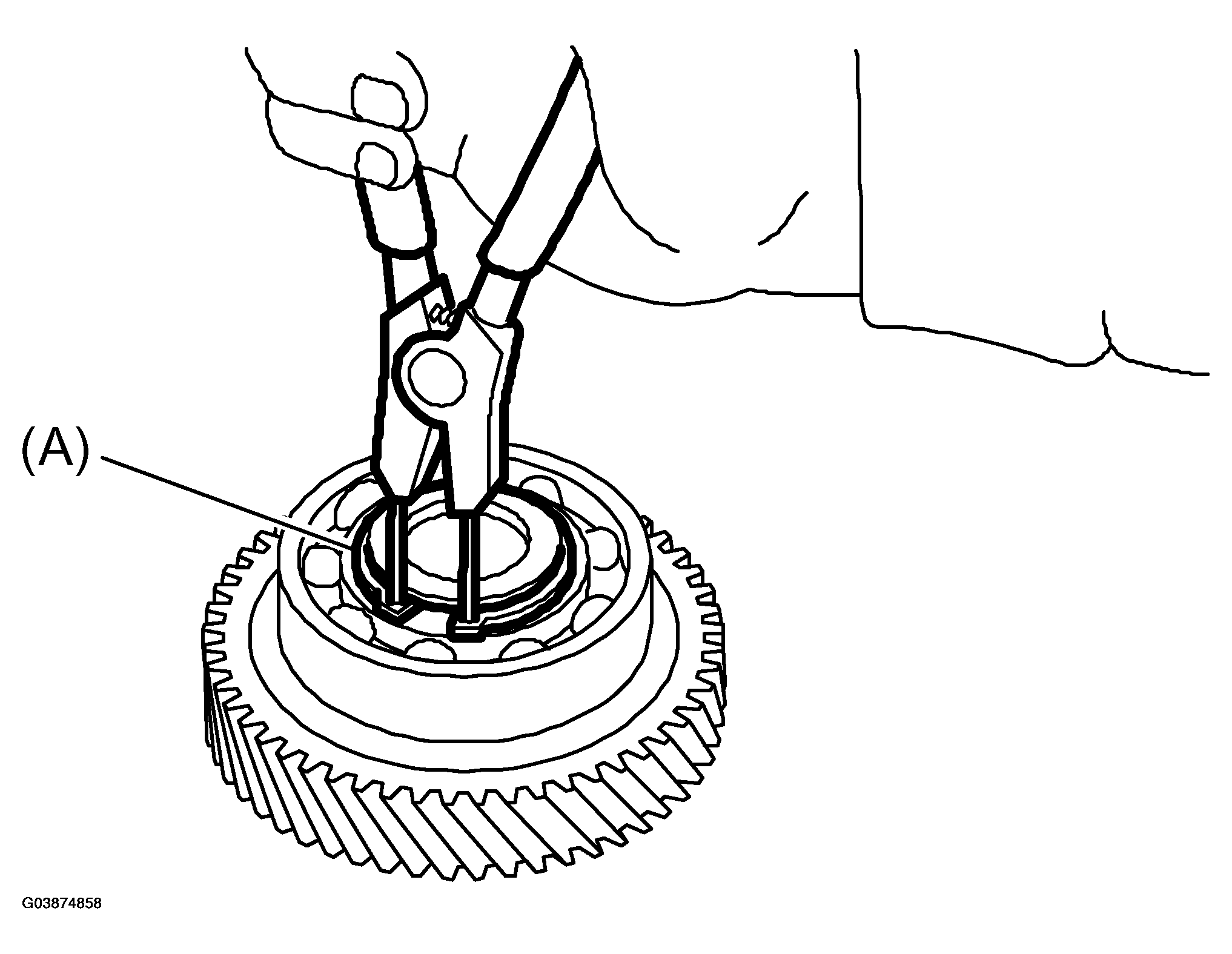

Fig 1: Removing Snap Ring From Reduction Driven Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Snap ring

Using ST, remove ball bearing from reduction driven gear.

ST 32005091 REMOVER

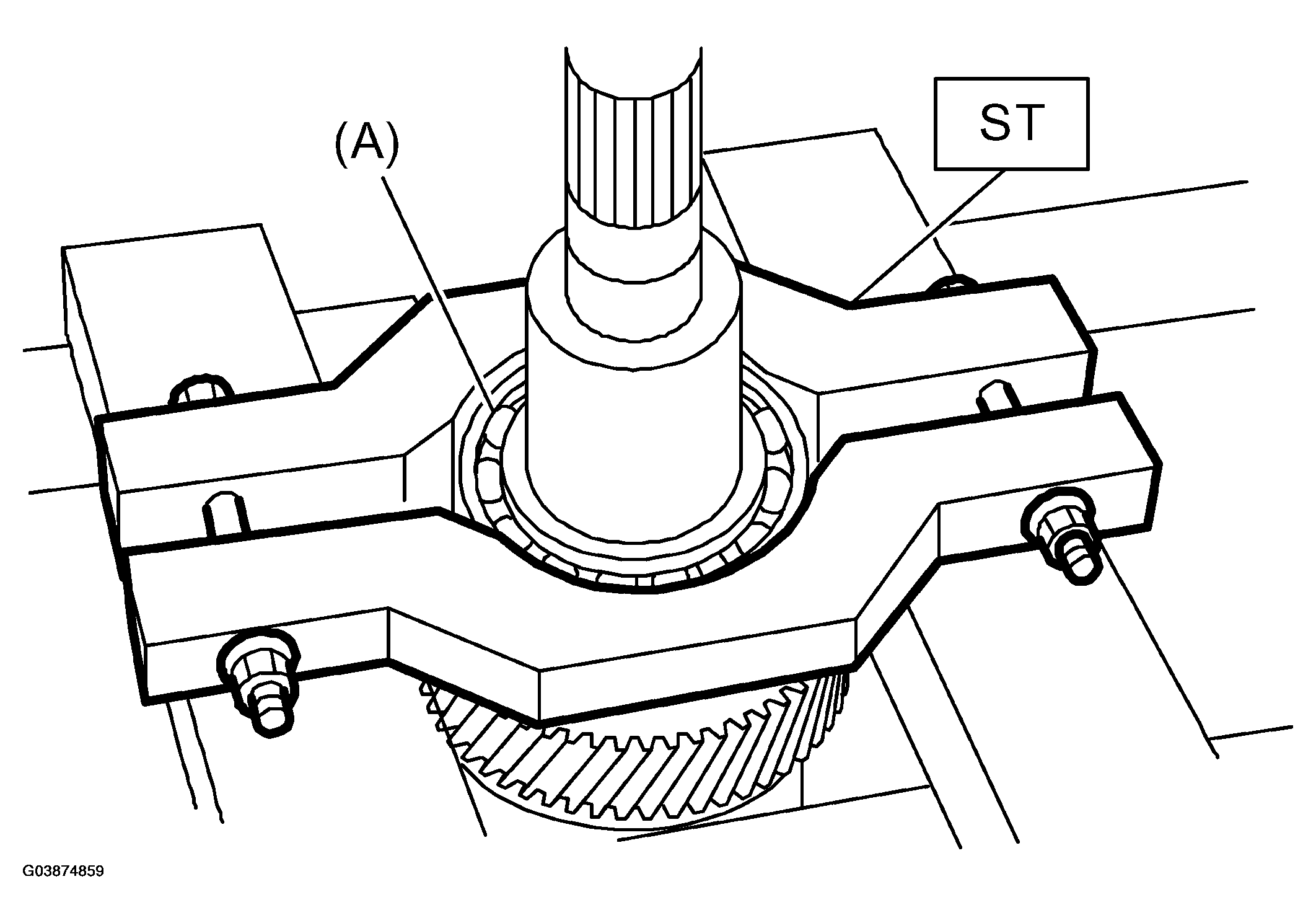

Fig 2: Removing Ball Bearing From Reduction Driven Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Ball bearing

Remove snap ring reduction driven gear.
