Reduction Driver Gear: Assembly

Install snap ring to reduction driven gear.

Using a press, install a new ball bearing to reduction driven gear.

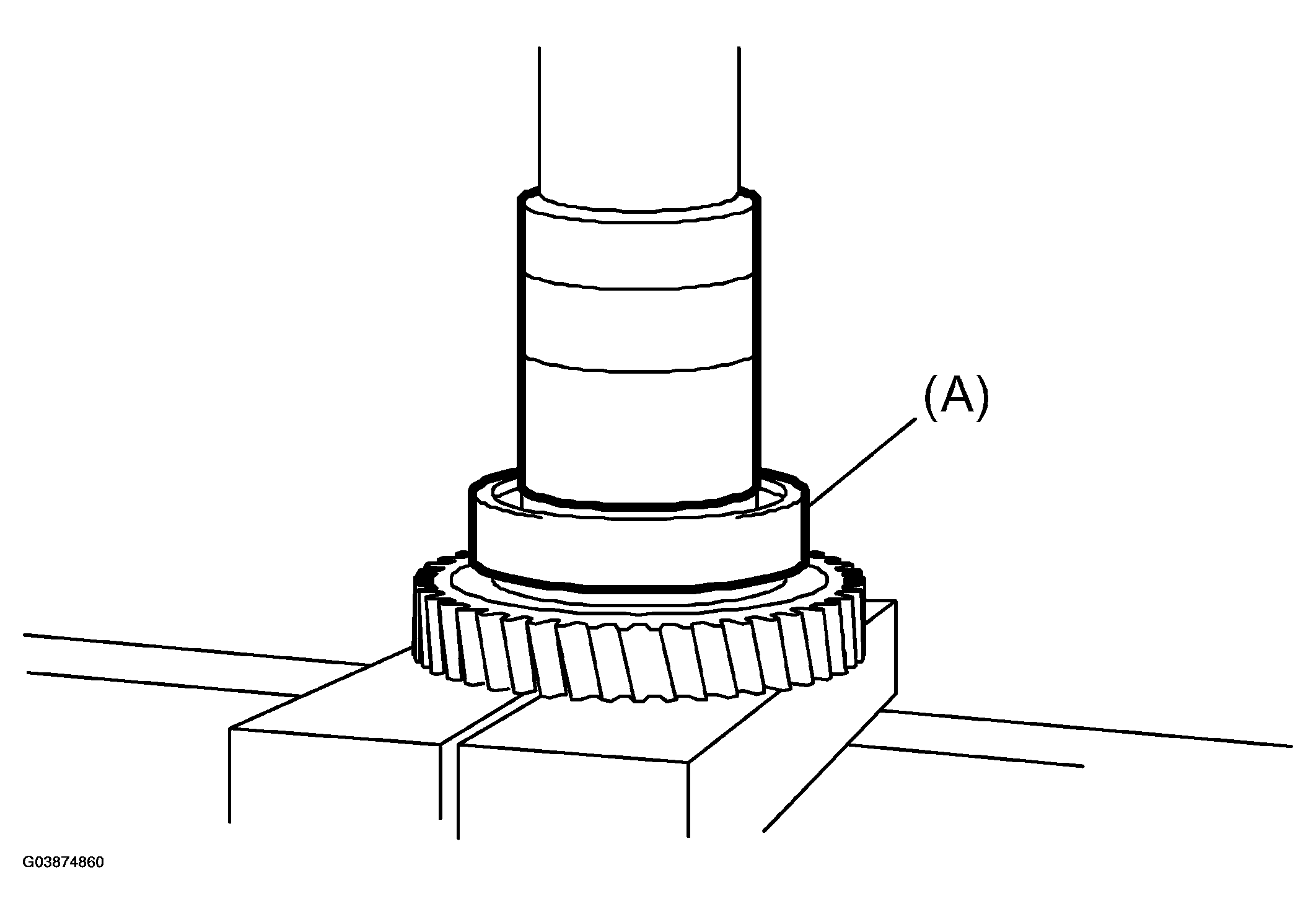

Fig 1: Installing New Ball Bearing To Reduction Driven Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Ball bearing

Install snap ring to reduction driven gear.

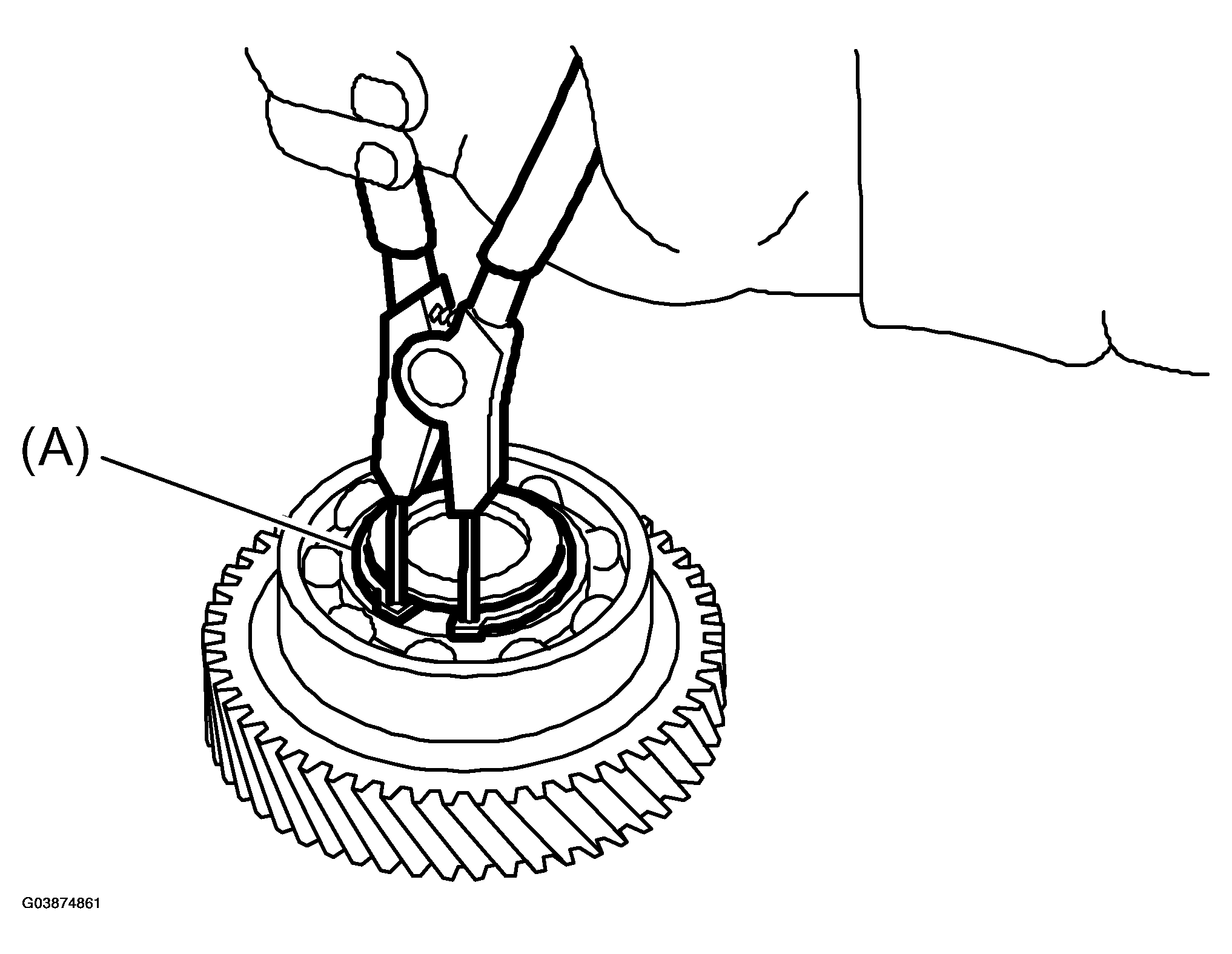

Fig 2: Installing Snap Ring To Reduction Driven Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Snap ring
