Reduction Drive Gear: Assembly

Press-fit the reduction drive gear to the shaft.

Press-fit the a new ball bearing to the reduction drive gear.

Apply vaseline to outer surface of seal ring and shaft groove.

Apply ATF to new seal rings and attach them.

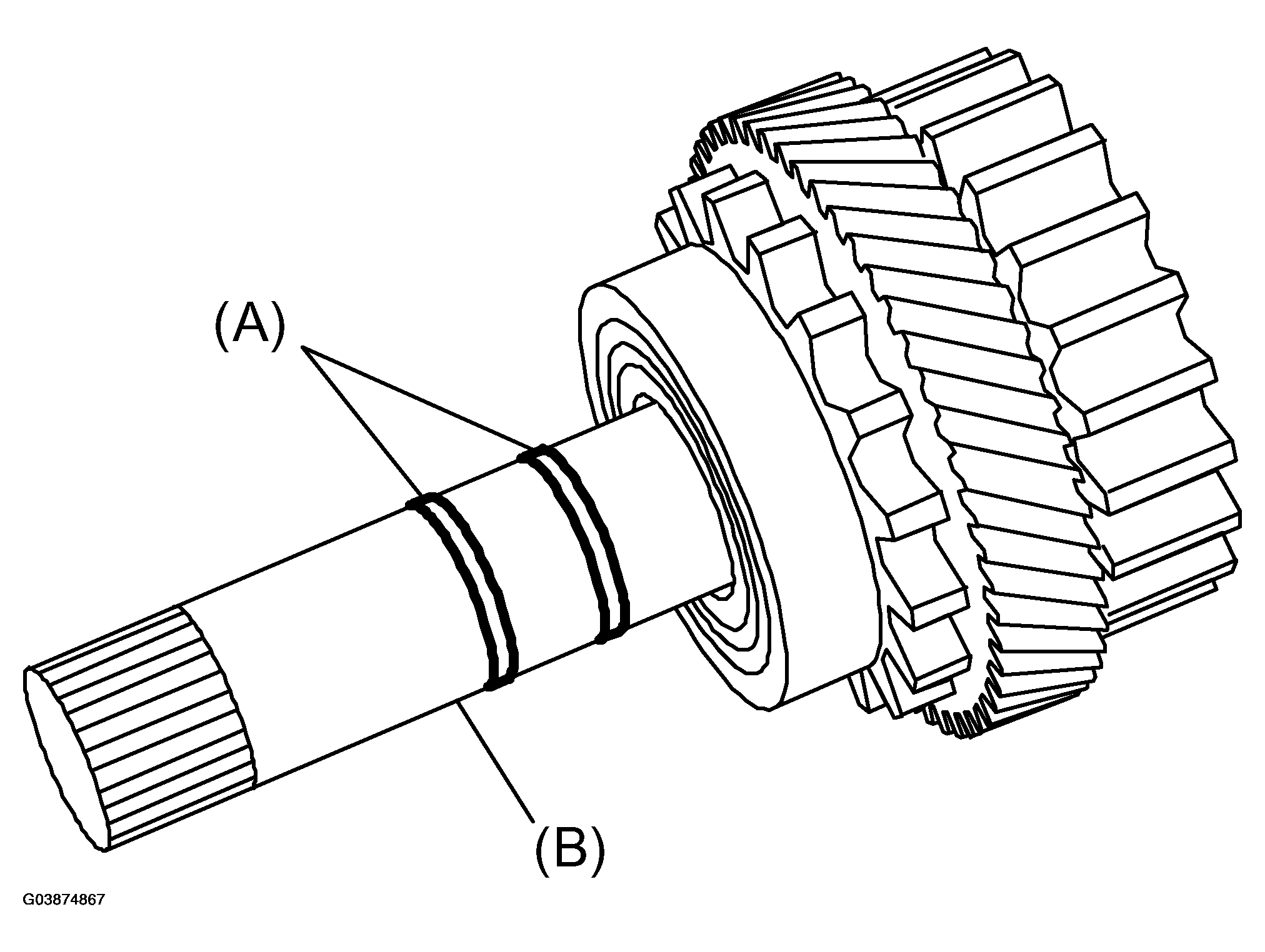

Fig 1: Attaching Seal Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Seal rings
2. Reduction drive shaft
