MPT Model

Set the vehicle on a lift, and then lift-up the vehicle.

Disconnect the connector from rear vehicle speed sensor.

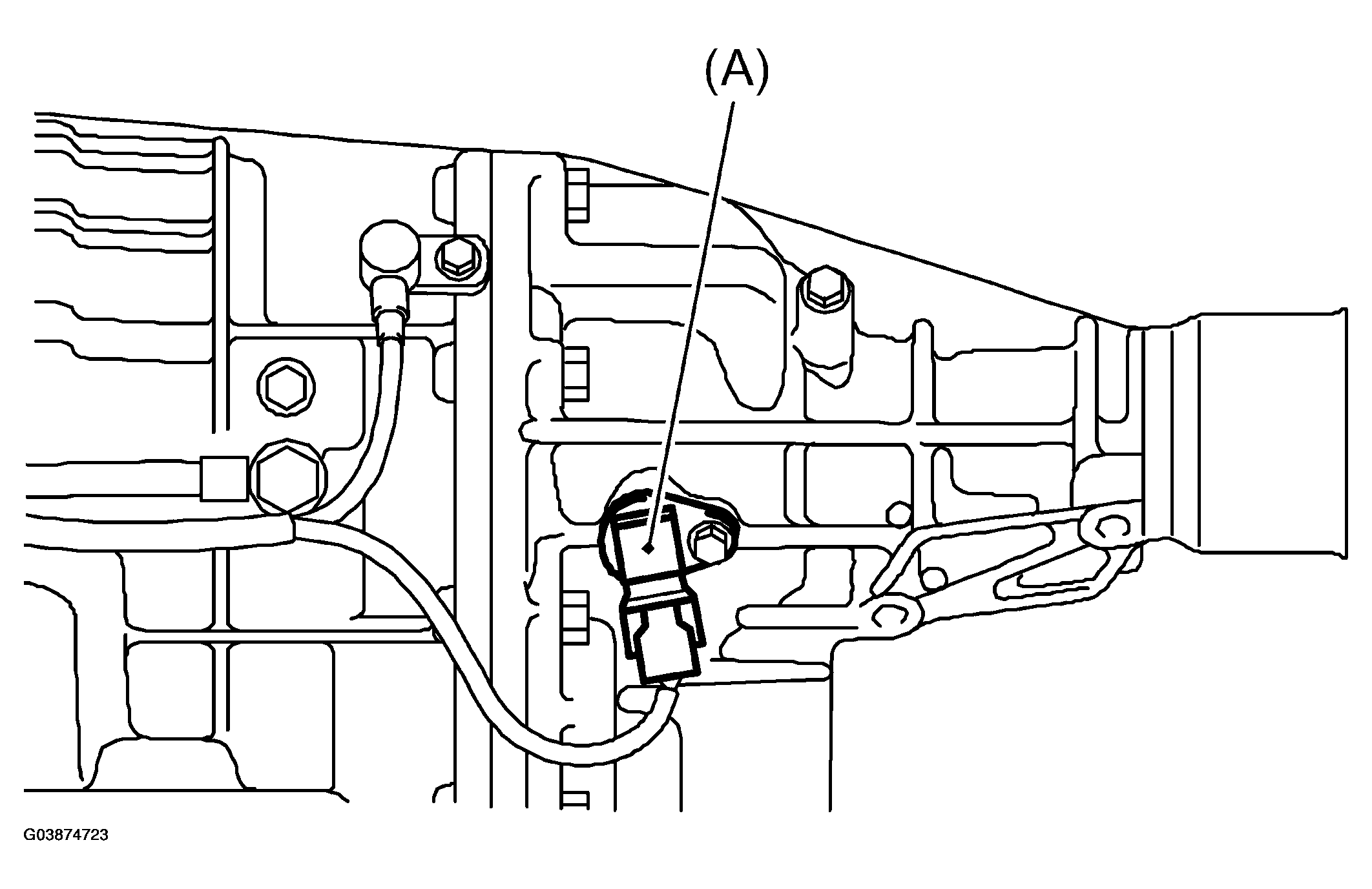

Fig 1: Disconnecting Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Rear vehicle speed sensor

Remove the rear vehicle speed sensor.

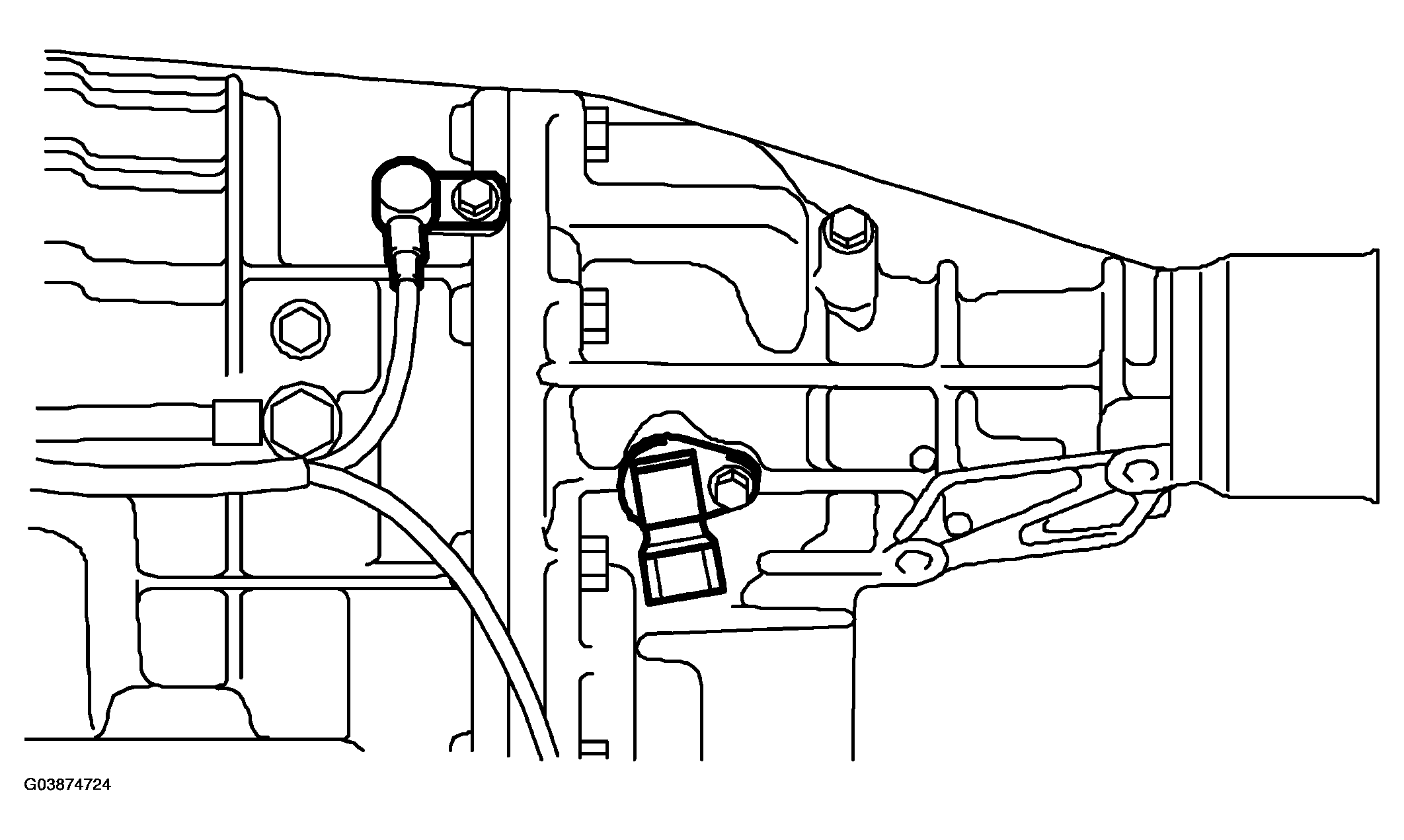

Fig 2: Removing Rear Vehicle Speed Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.
