Inhibitor Switch: Installation

Connect the inhibitor switch harness connector to inhibitor switch.

Install the inhibitor switch to transmission case.

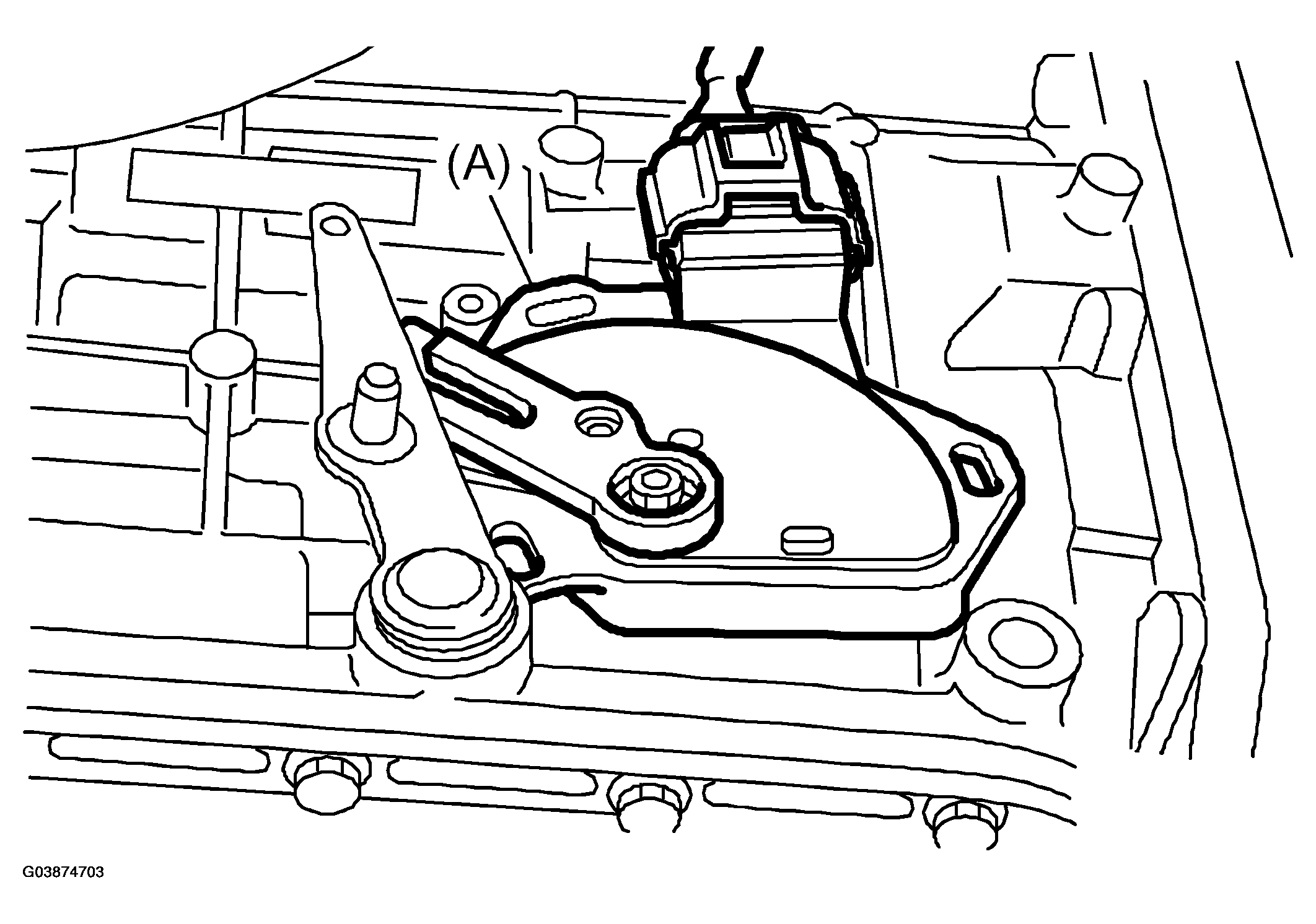

Fig 1: Installing Inhibitor Switch To Transmission Case
G03874703Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Inhibitor switch

Move the range select lever to neutral position.

Using the ST, tighten the bolts of inhibitor switch.

ST 32005129 STOPPER PIN

Tightening torque:

3.5 Nm (0.36 kgf-m, 2.6 ft-lb)

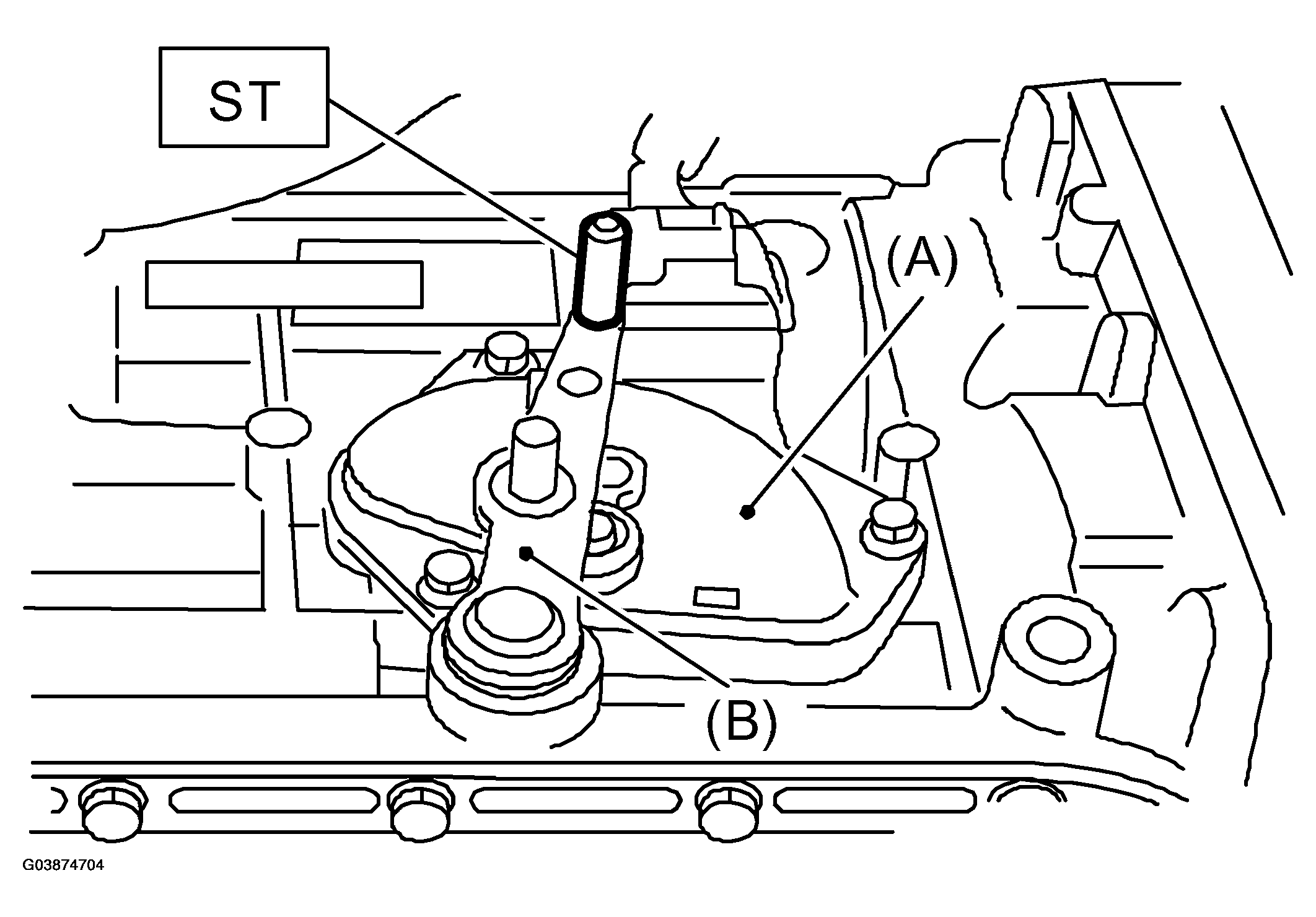

Fig 2: Tightening Bolts Of Inhibitor Switch Using ST
G03874704Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Inhibitor switch
  2. Range select lever

Install the select cable to range select lever.

Install the plate assembly to transmission.

Tightening torque:

T: 25 Nm (2.5 kgf-m, 18.1 ft-lb)

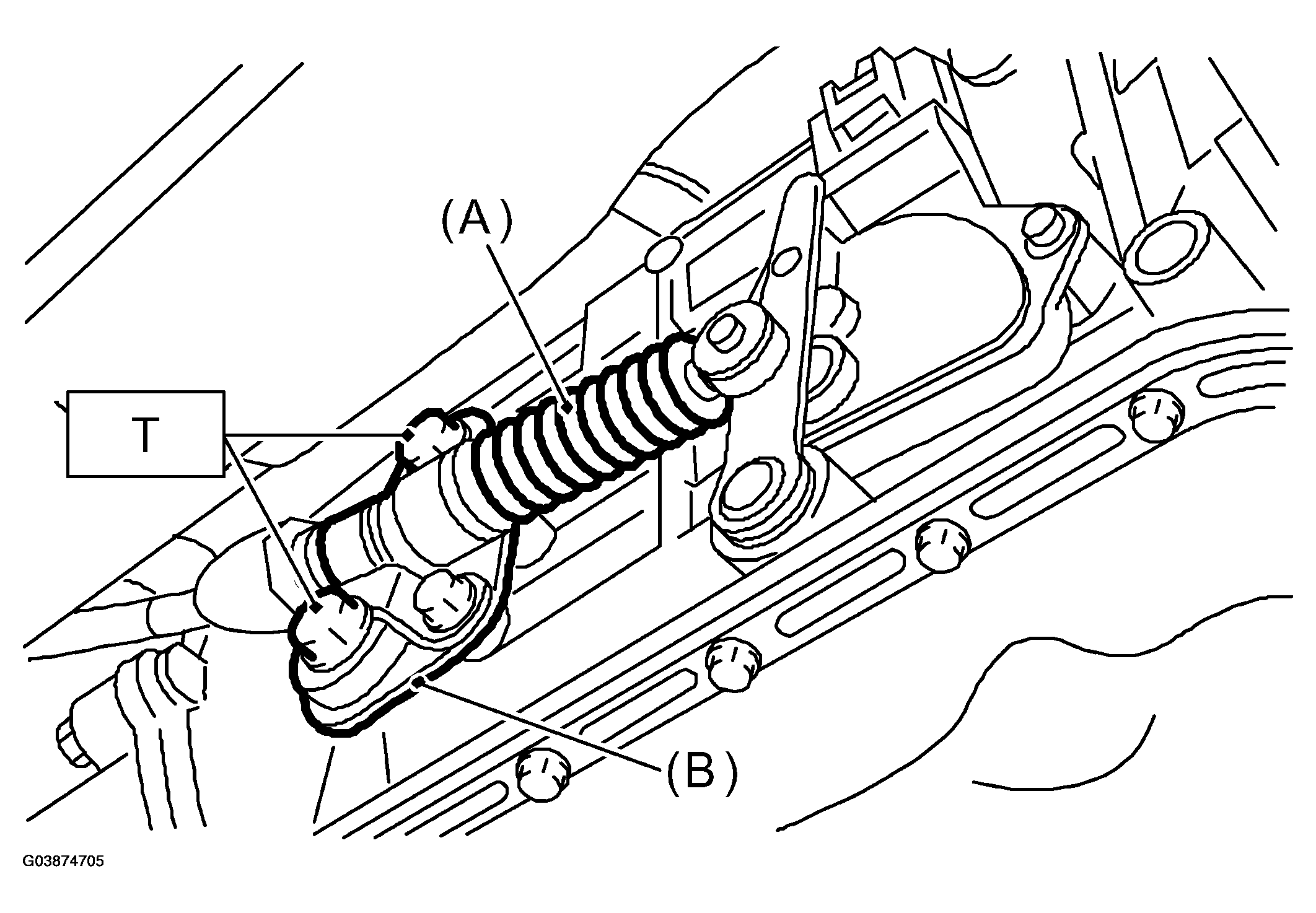

Fig 3: Installing Plate Assembly To Transmission
G03874705Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Select cable
  2. Plate ASSY

Install the washer and snap pin to range select lever.

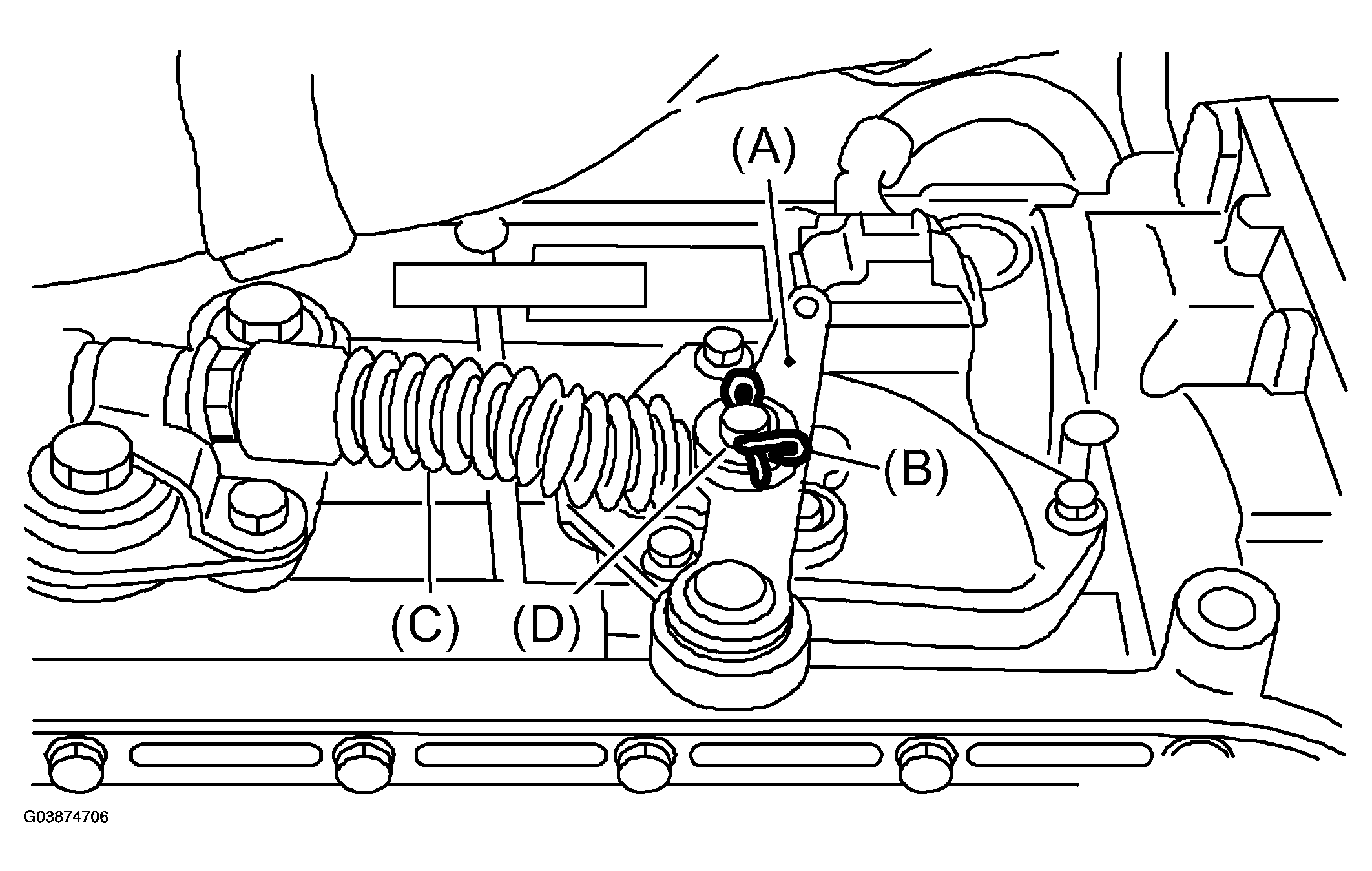

Fig 4: Installing Washer And Snap Pin
G03874706Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Range select lever
  2. Snap ring
  3. Select cable
  4. Washer

Install the front and center exhaust pipes. (Saab 9-2X 2.5i Linear)

Install the center exhaust pipe. (Saab 9-2X 2.0T Aero)

Lower the vehicle.

Install the inhibitor switch connector from stay.

Connect the inhibitor switch connector.

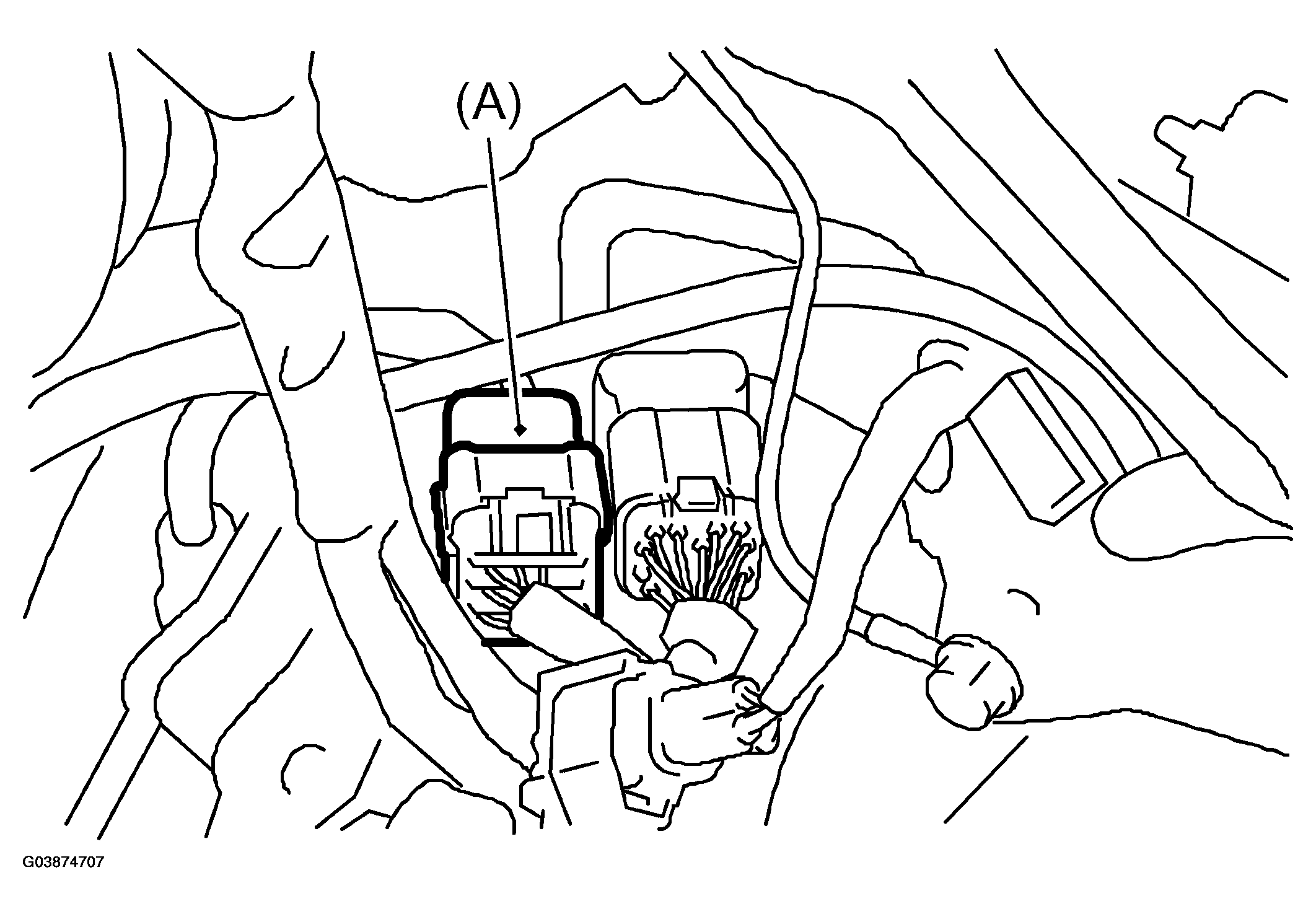

Fig 5: Connecting Inhibitor Switch Connector
G03874707Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Inhibitor switch

Install the air intake chamber. (Saab 9-2X 2.5i Linear)

Install the intercooler. (Saab 9-2X 2.0T Aero)

Inspect the inhibitor switch.
