Inhibitor Switch: Adjustment

Shift the select lever to "N" range.

Loosen the three inhibitor switch securing bolts.

Insert the ST as vertical as possible into the holes in inhibitor switch lever and switch body.

ST 32005129 STOPPER PIN

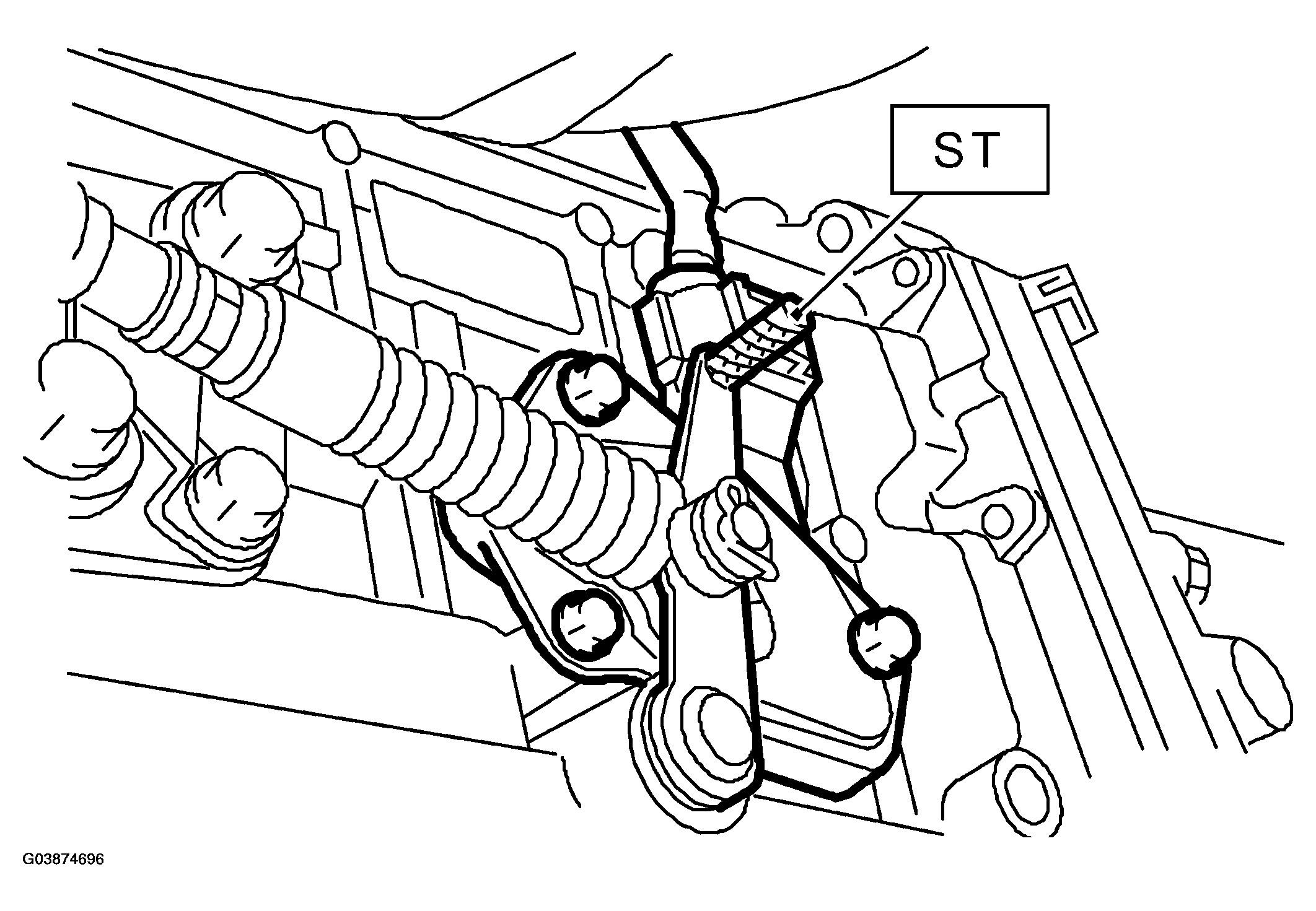

Fig 1: Inserting ST As Vertical

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tighten the three inhibitor switch bolts.

Tightening torque:

3.5 Nm (0.35 kgf-m, 2.5 ft-lb)

Repeat the above checks. If the inhibitor switch is determined to be "faulty", replace it.
