Front Vehicle Speed Sensor: Removal

Set up the vehicle on a lift.

Disconnect the ground cable from battery.

Remove the air intake chamber. (Saab 9-2X 2.5i Linear)

Remove the intercooler. (Saab 9-2X 2.0T Aero)

Disconnect the transmission connector.

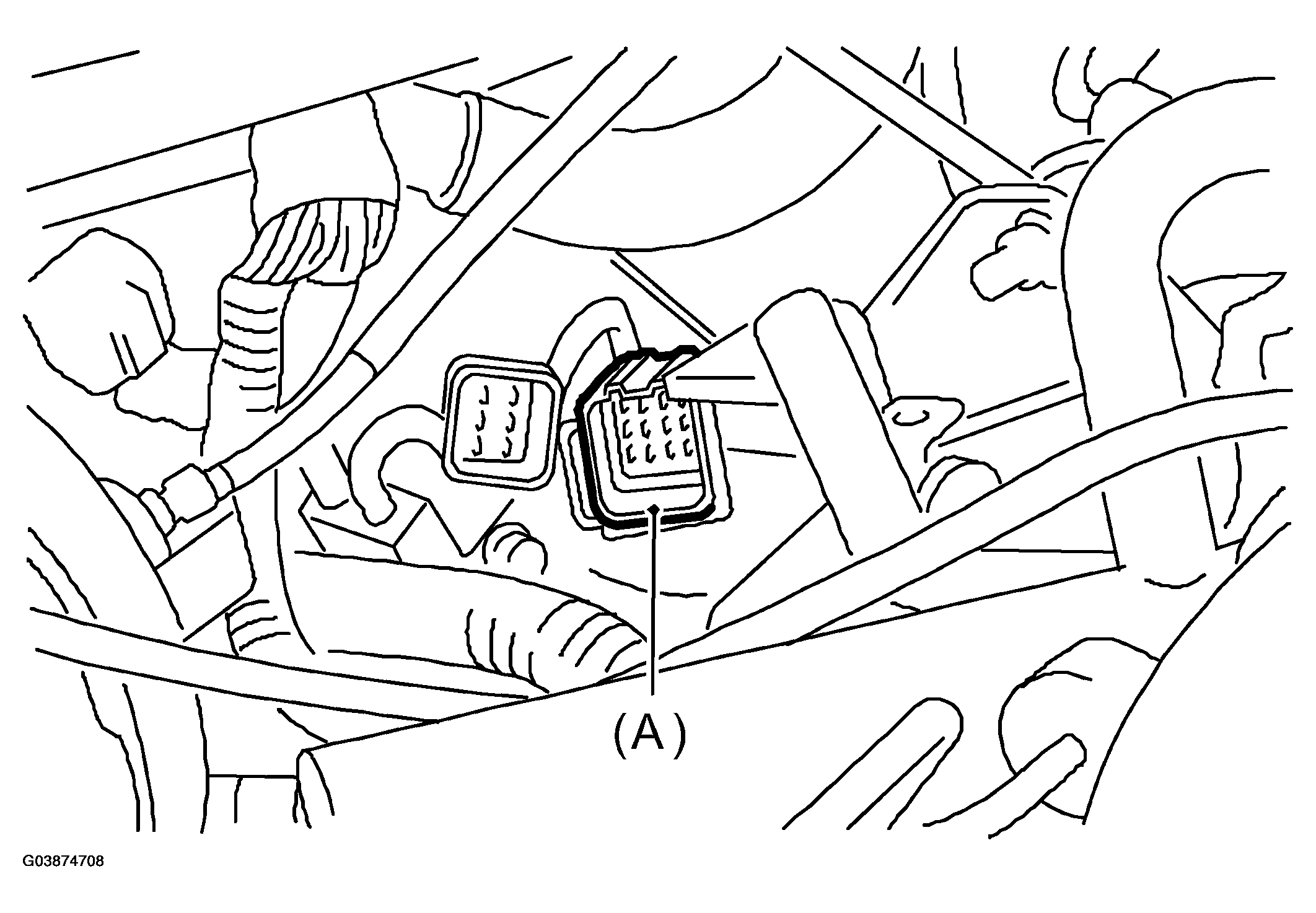

Fig 1: Disconnecting Transmission Connector
G03874708Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Transmission connector

Remove the pitching stopper.

Remove the transmission connector from stay.

Lift-up the vehicle.

Clean the transmission exterior.

Drain the ATF completely.

NOTE:
  • Tighten the ATF drain plug after draining the ATF.
  • Use a new gasket.

Tightening torque:

25 Nm (2.5 kgf-m, 18.1 ft-lb)

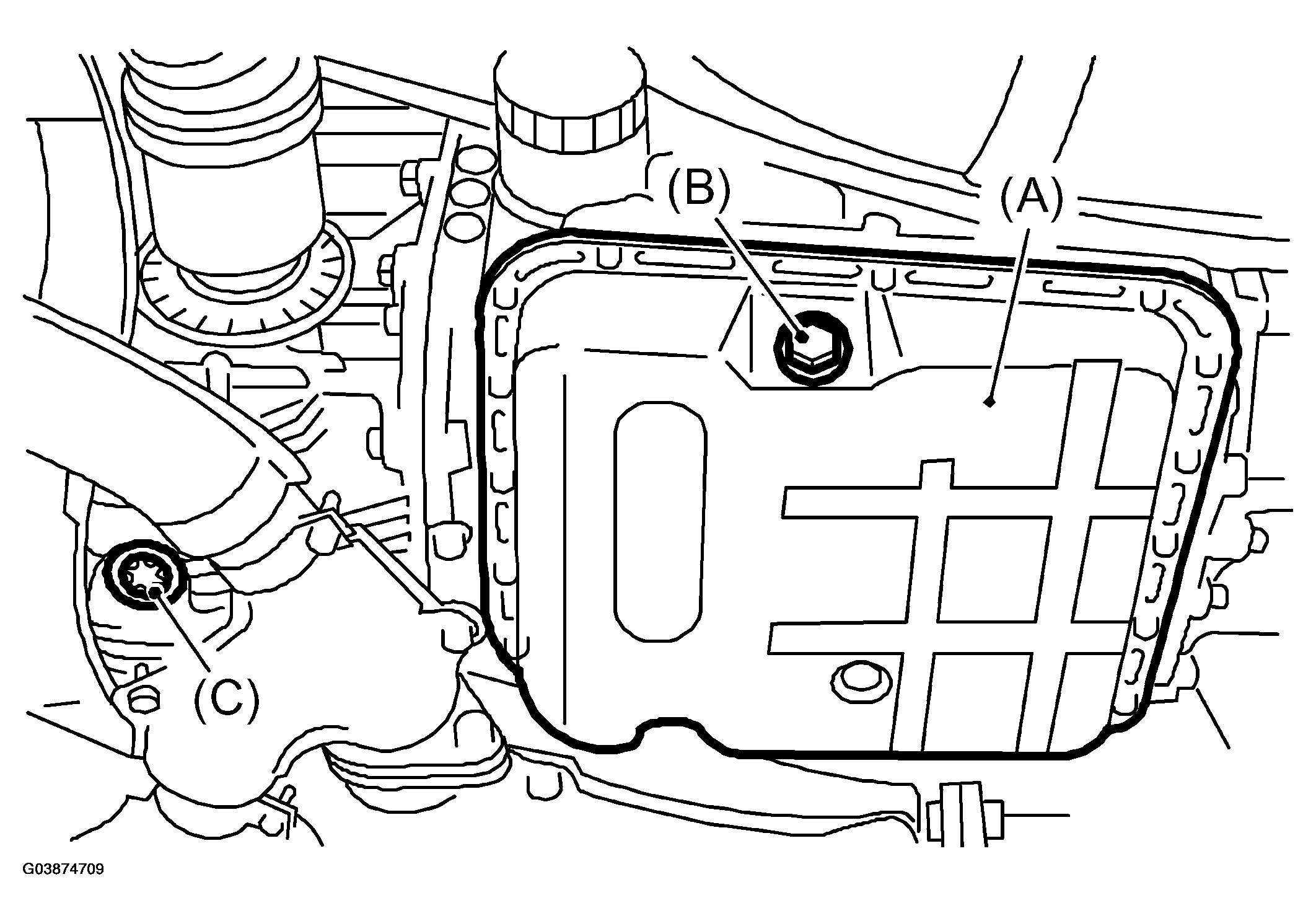

Fig 2: Locating Oil Pan Drain Plug
G03874709Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Oil pan
  2. Drain plug (ATF)
  3. Differential gear oil drain plug

Remove the front, center, exhaust pipes and muffler. (Saab 9-2X 2.5i Linear)

Remove the center, rear exhaust pipe and muffler. (Saab 9-2X 2.0T Aero)

Remove the shield cover. (If equipped)

Remove the propeller shaft.

Place the transmission jack under transmission.

NOTE: Make sure that the support plates of transmission jack don't touch the crossmember.

Remove the transmission rear crossmember bolts.

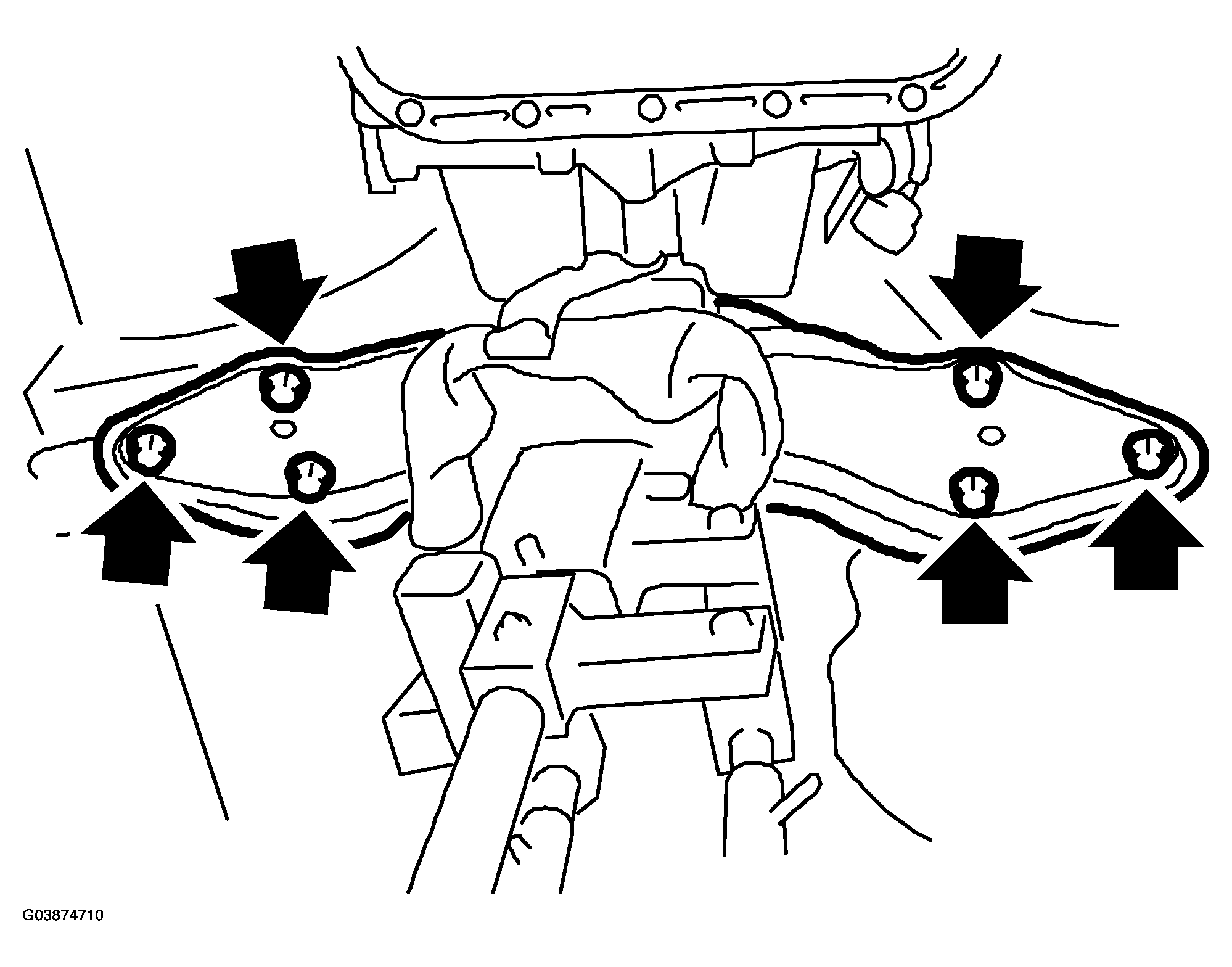

Fig 3: Removing Transmission Rear Crossmember Bolts
G03874710Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lower the AT jack.

NOTE: Do not separate the AT jack and transmission.

Remove the oil cooler inlet and outlet pipe.

NOTE: When removing the outlet pipe, be careful not to lose balls and springs used with retaining screws.

Remove the front and torque converter turbine speed sensor.

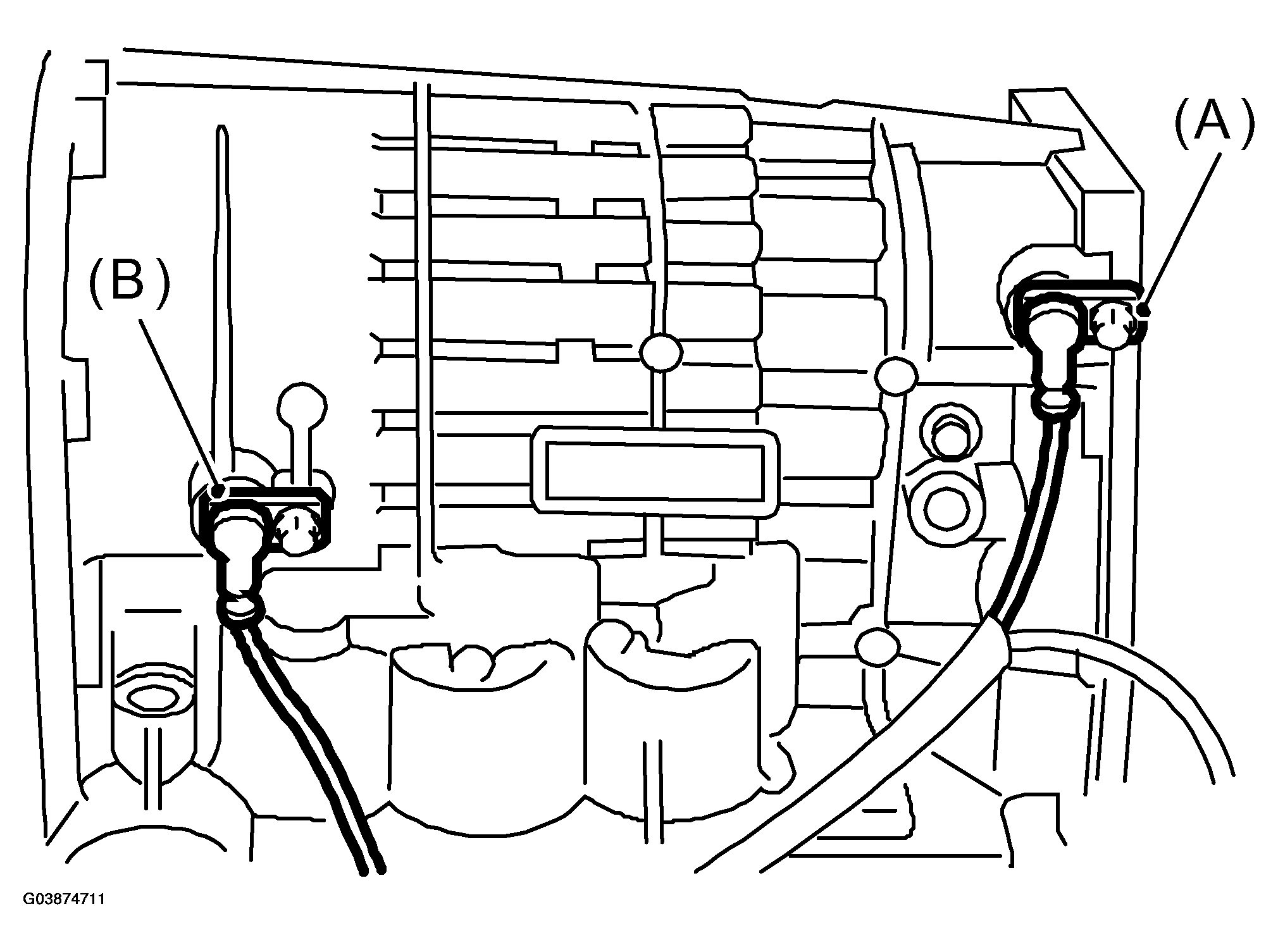

Fig 4: Removing Front And Torque Converter Turbine Speed Sensor
G03874711Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Front vehicle speed sensor
  2. Torque converter turbine speed sensor

Remove the rear vehicle speed sensor. (Saab 9-2X 2.0T Aero)

  1. Rear vehicle speed sensor

Disconnect the connector from rear vehicle speed sensor. (Saab 9-2X 2.5i Linear)

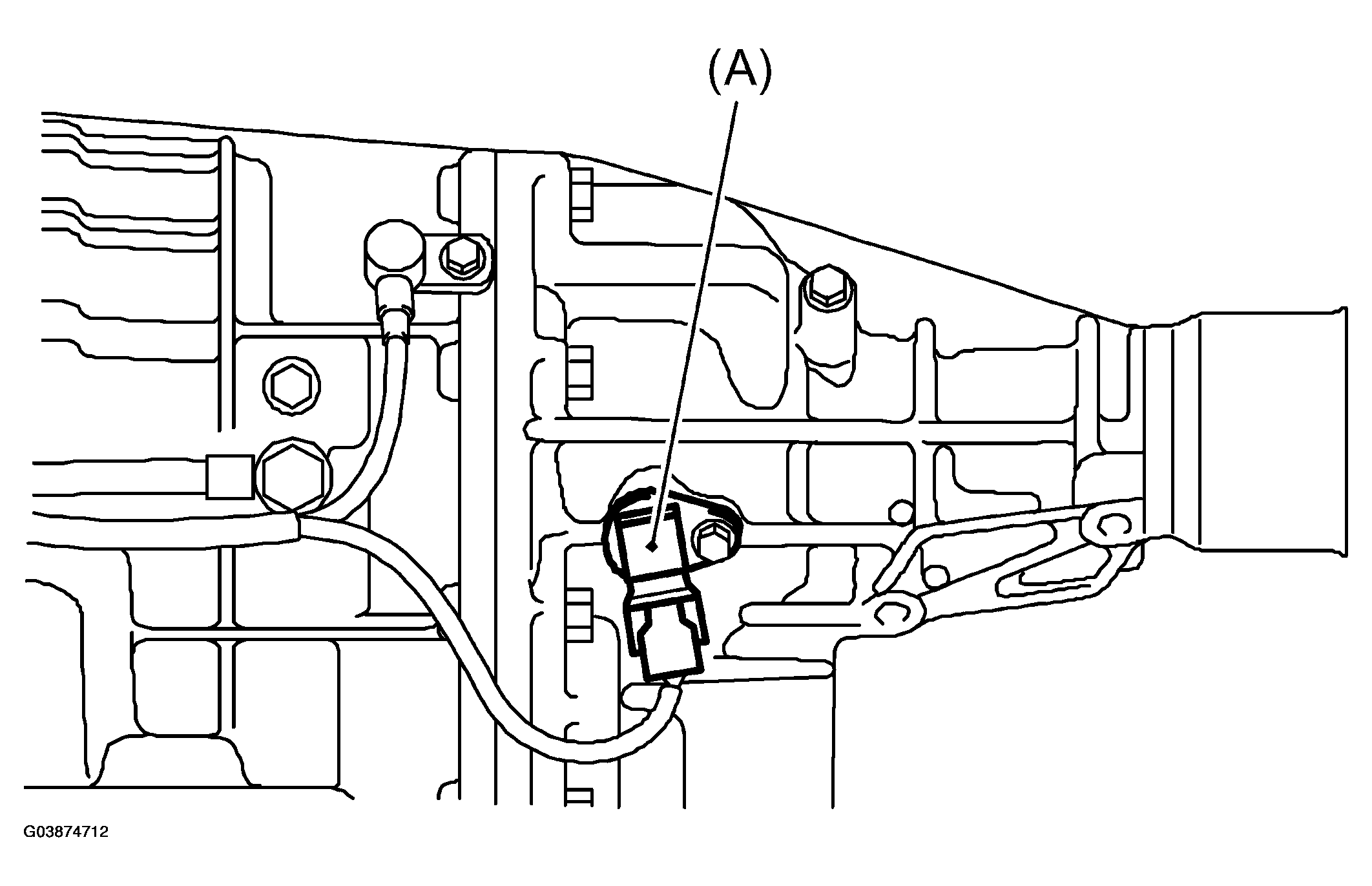

Fig 5: Disconnecting Connector
G03874712Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Rear vehicle speed sensor

Remove the oil pan.

Remove the duty solenoids connector and ATF temperature sensor. Remove the connectors from clip and disconnect the connectors. (Saab 9-2X 2.0T Aero)

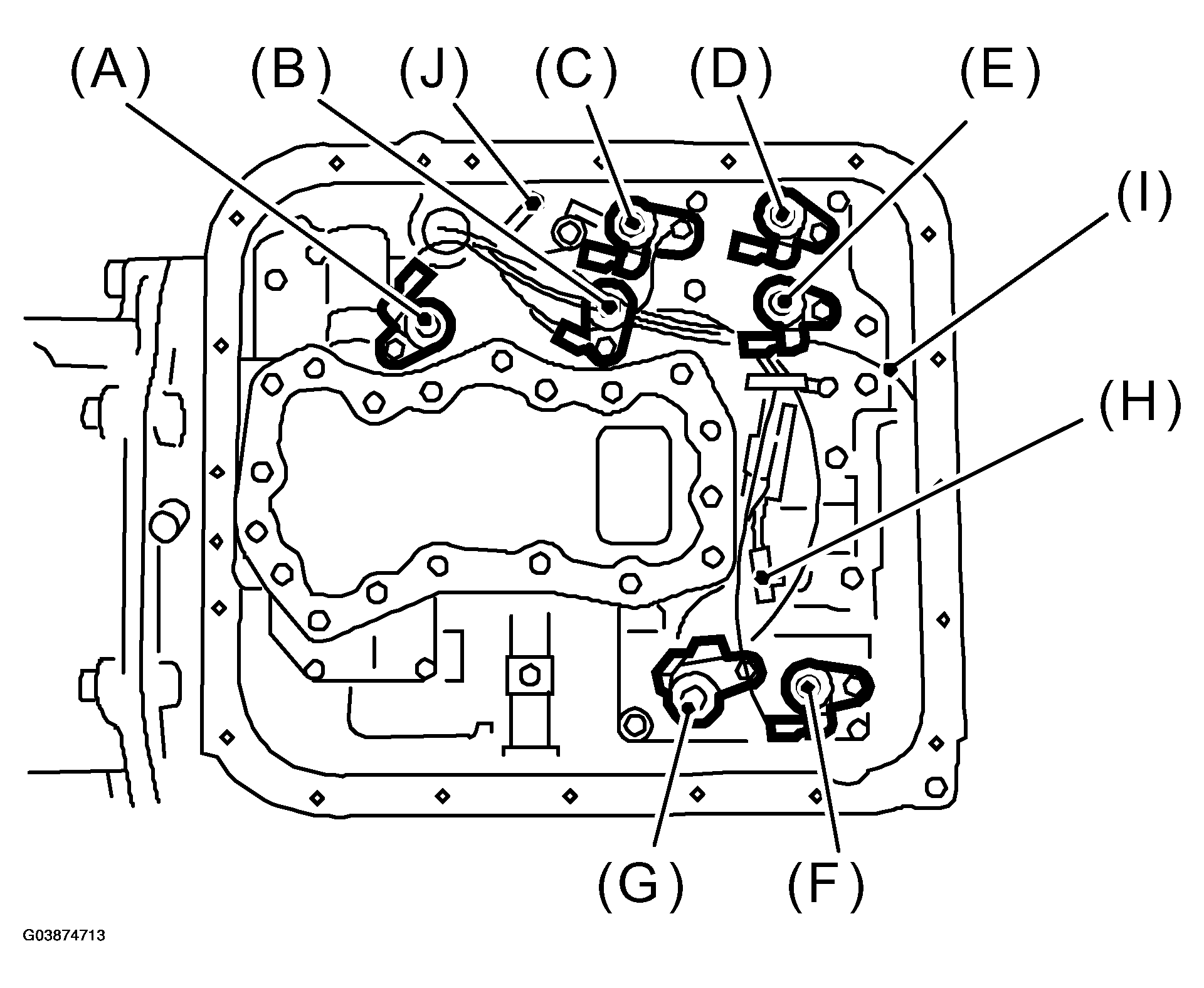

Fig 6: Removing Duty Solenoids Connector
G03874713Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lock-up duty solenoid (Blue)
  2. Low clutch timing solenoid (Gray)
  3. Line pressure duty solenoid (Red)
  4. Shift solenoid 2 (Yellow)
  5. Shift solenoid 1 (Green)
  6. 2-4 brake timing solenoid (Black)
  7. 2-4 brake duty solenoid (Red)
  8. ATF temperature sensor
  9. Transfer duty solenoid (Brown)
  10. Transmission ground

Disconnect the harness connector and transmission ground terminal. (Saab 9-2X 2.5i Linear)

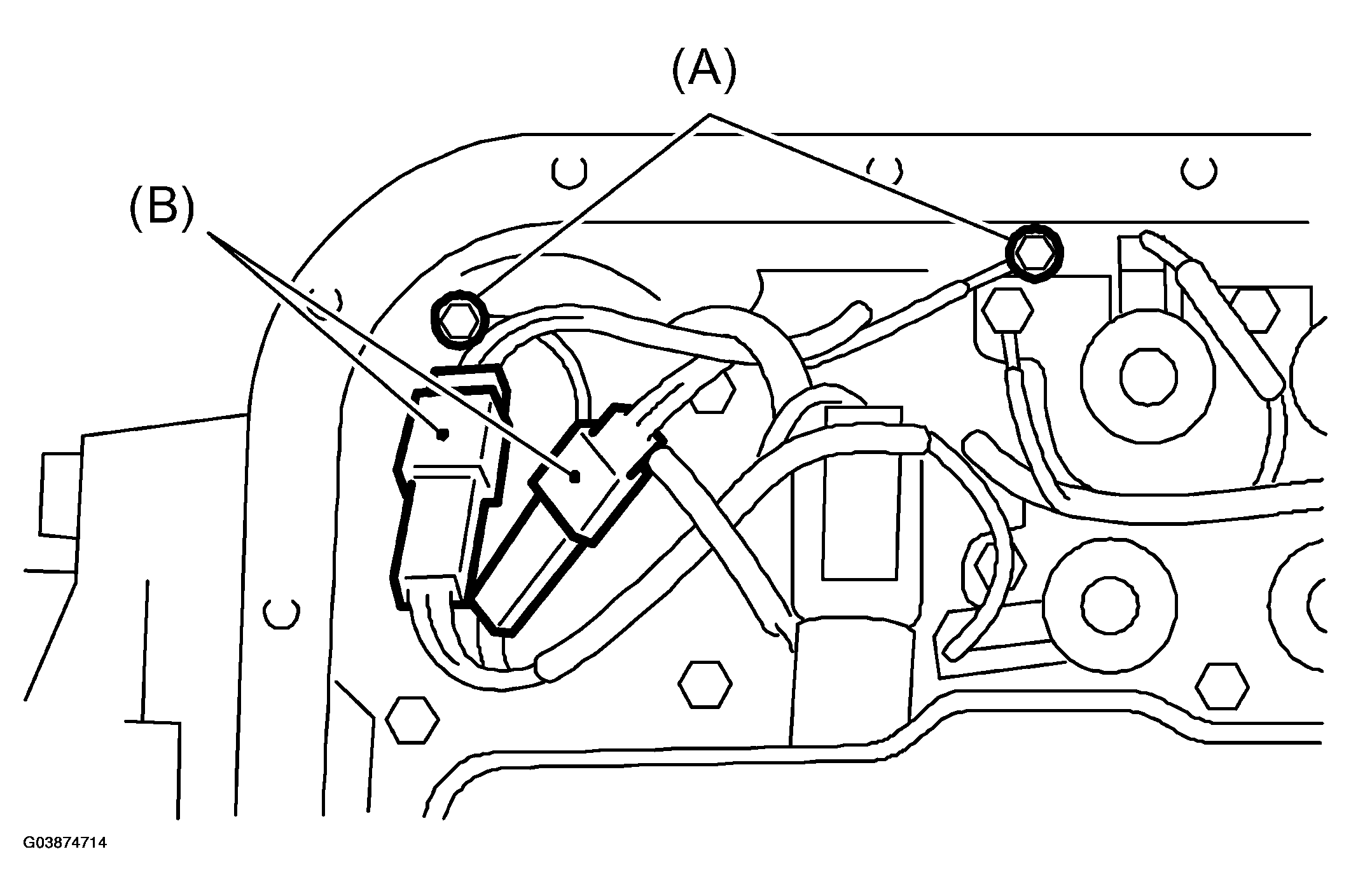

Fig 7: Disconnecting Harness Connector
G03874714Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Transmission ground
  2. Harness connector

Remove the harness assembly.
