Differential Case Assembly

Using a press and ST, remove the taper roller bearing.

ST 32005088 REMOVER

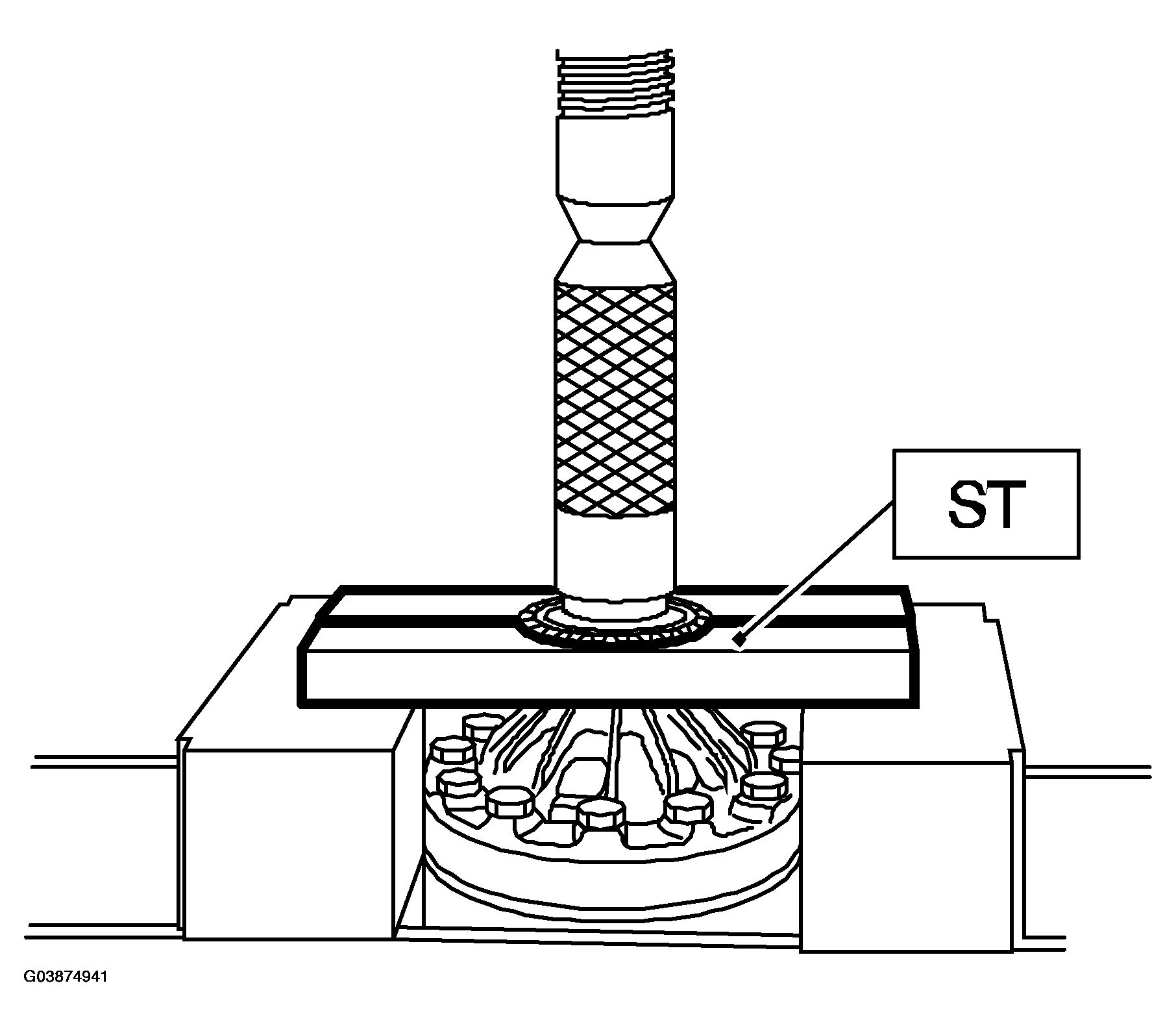

Fig 1: Removing Taper Roller Bearing Using ST 32005088 Remover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Secure the case in a vise and remove the hypoid driven gear tightening bolts, then separate the hypoid driven gear, case (RH) and case (LH).

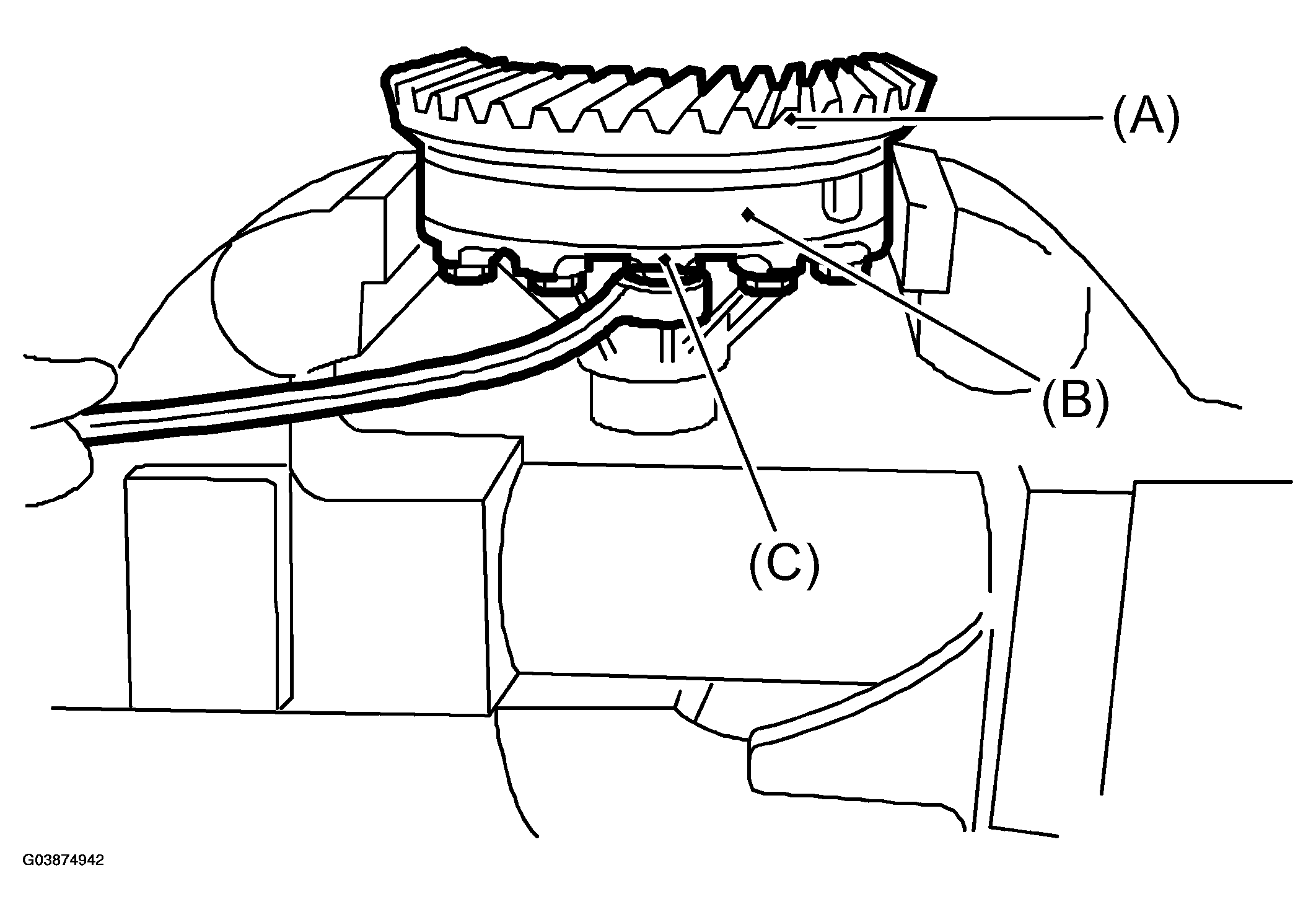

Fig 2: Securing Case In Vise

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Hypoid driven gear
2. Differential case (RH)
3. Differential case (LH)

Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

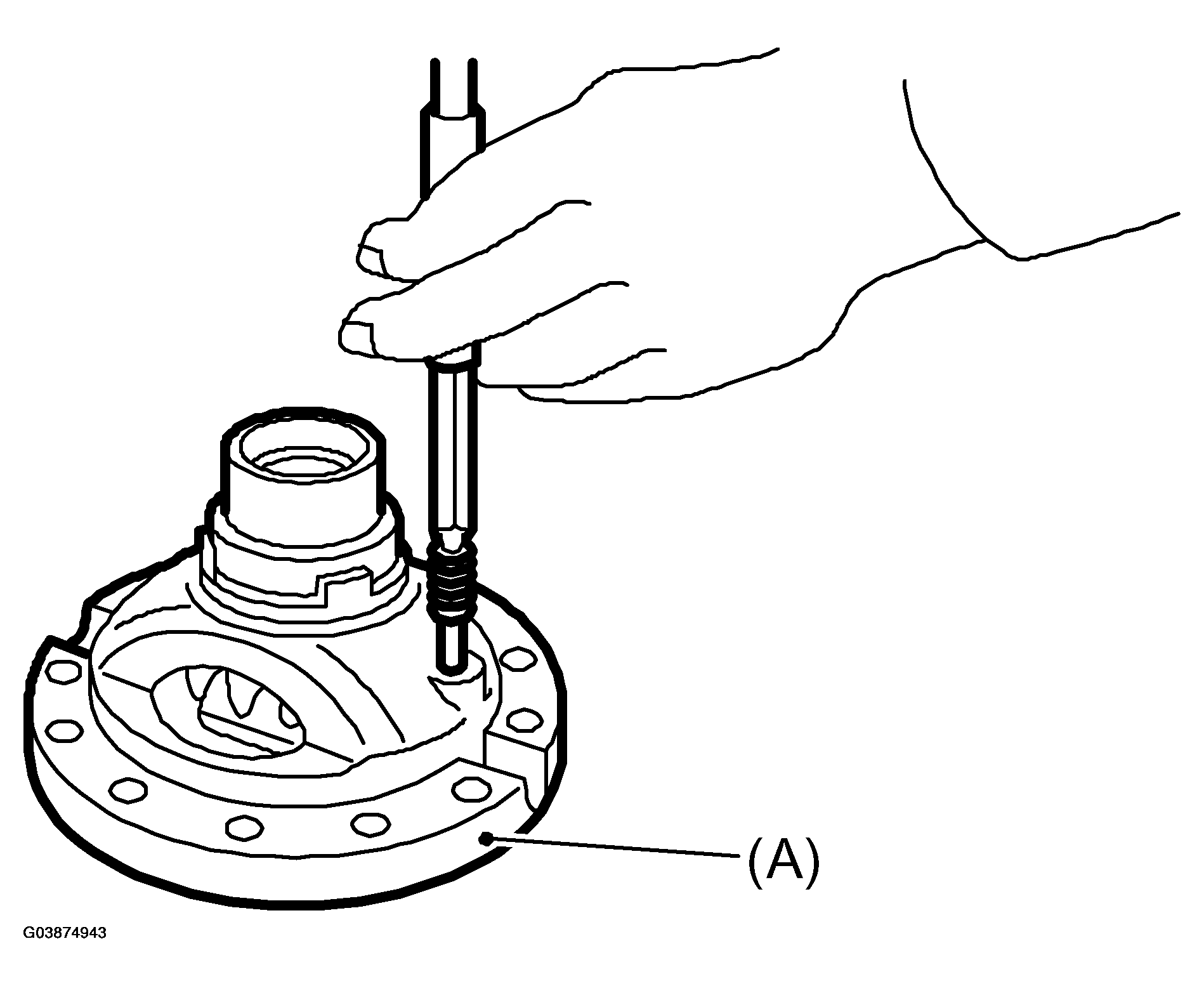

Fig 3: Removing Differential Bevel Gear, Washer, And Differential Bevel Pinion

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Differential case (RH)
