Front Differential Assembly: Adjustment

Using ST, screw in the retainer until light contact is felt.

NOTE: Screw in the RH side slightly deeper than the LH side.

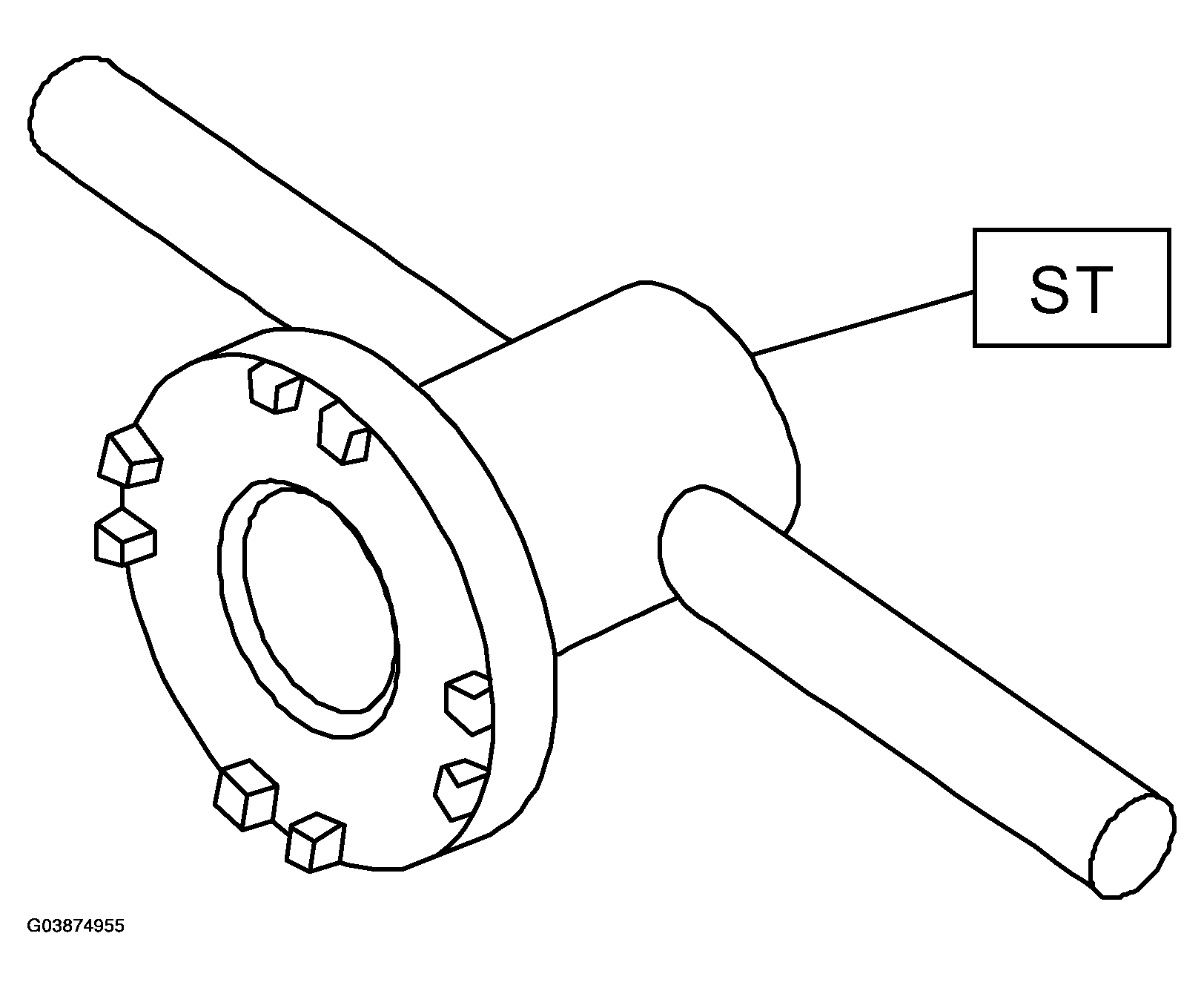

ST 32005023 WRENCH ASSY

Fig 1: Screwing Retainer Using ST 32005023 Wrench Assy

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the oil pump housing.

Thoroughly remove the liquid gasket from the case mating surface beforehand.

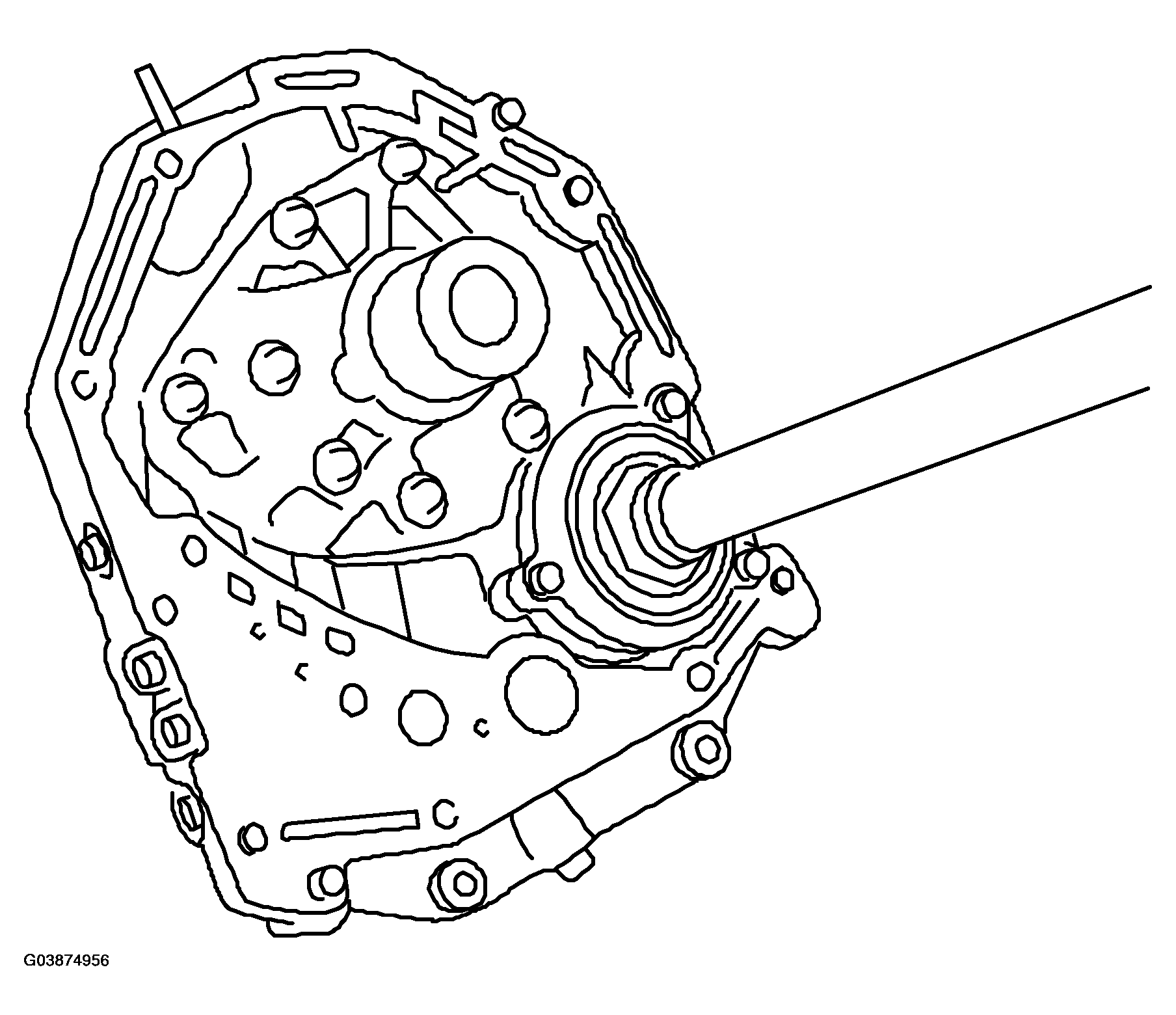

Install the oil pump housing assembly to the converter case, and secure evenly by tightening four bolts.

NOTE: Use an old gasket or an aluminum washer so as not to damage the mating surface of the housing.

Tightening torque:

41 Nm (4.2 kgf-m, 30.4 ft-lb)

Fig 2: Installing Oil Pump Housing Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

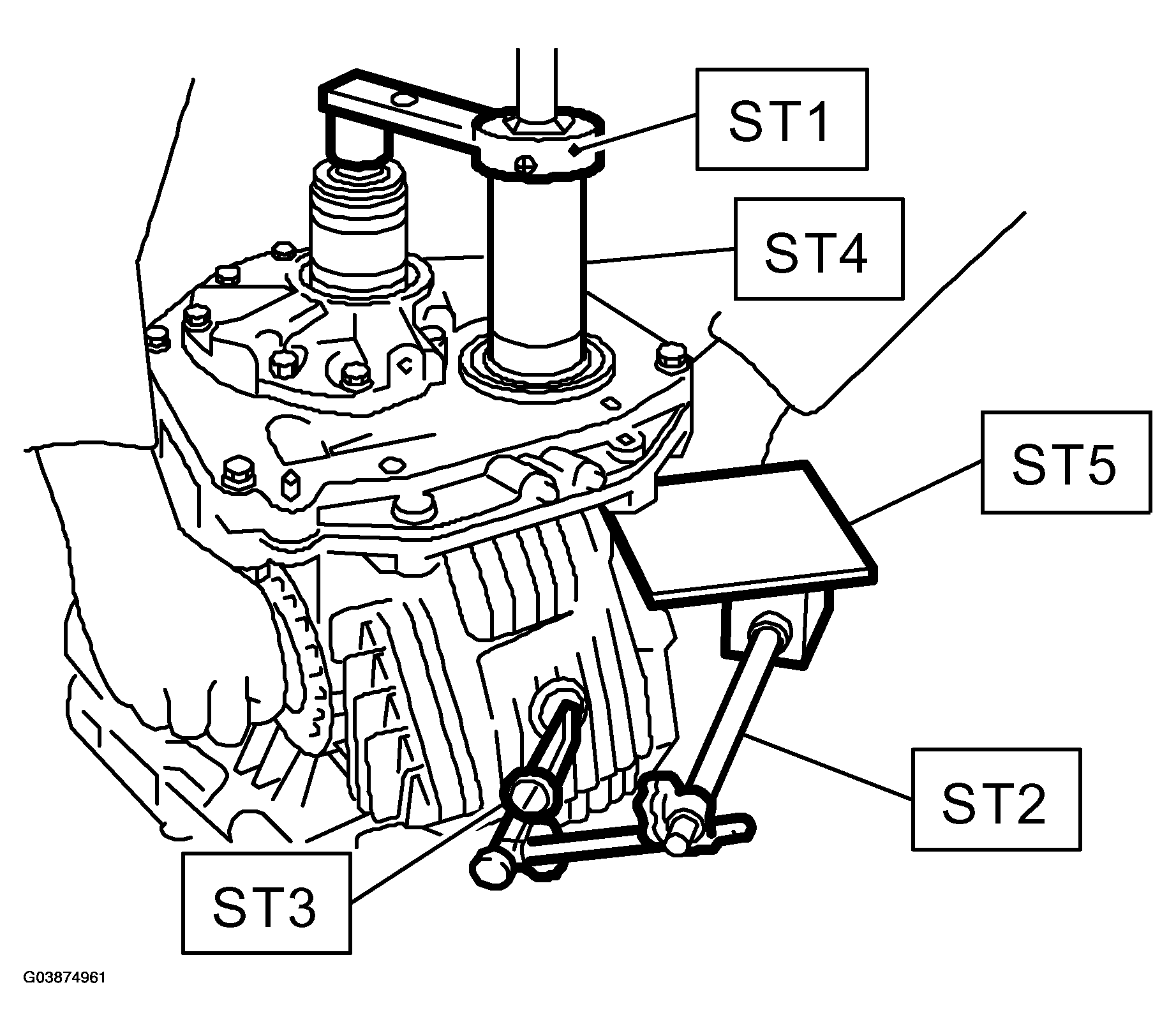

Rotate the drive pinion several times with ST1 and ST2.

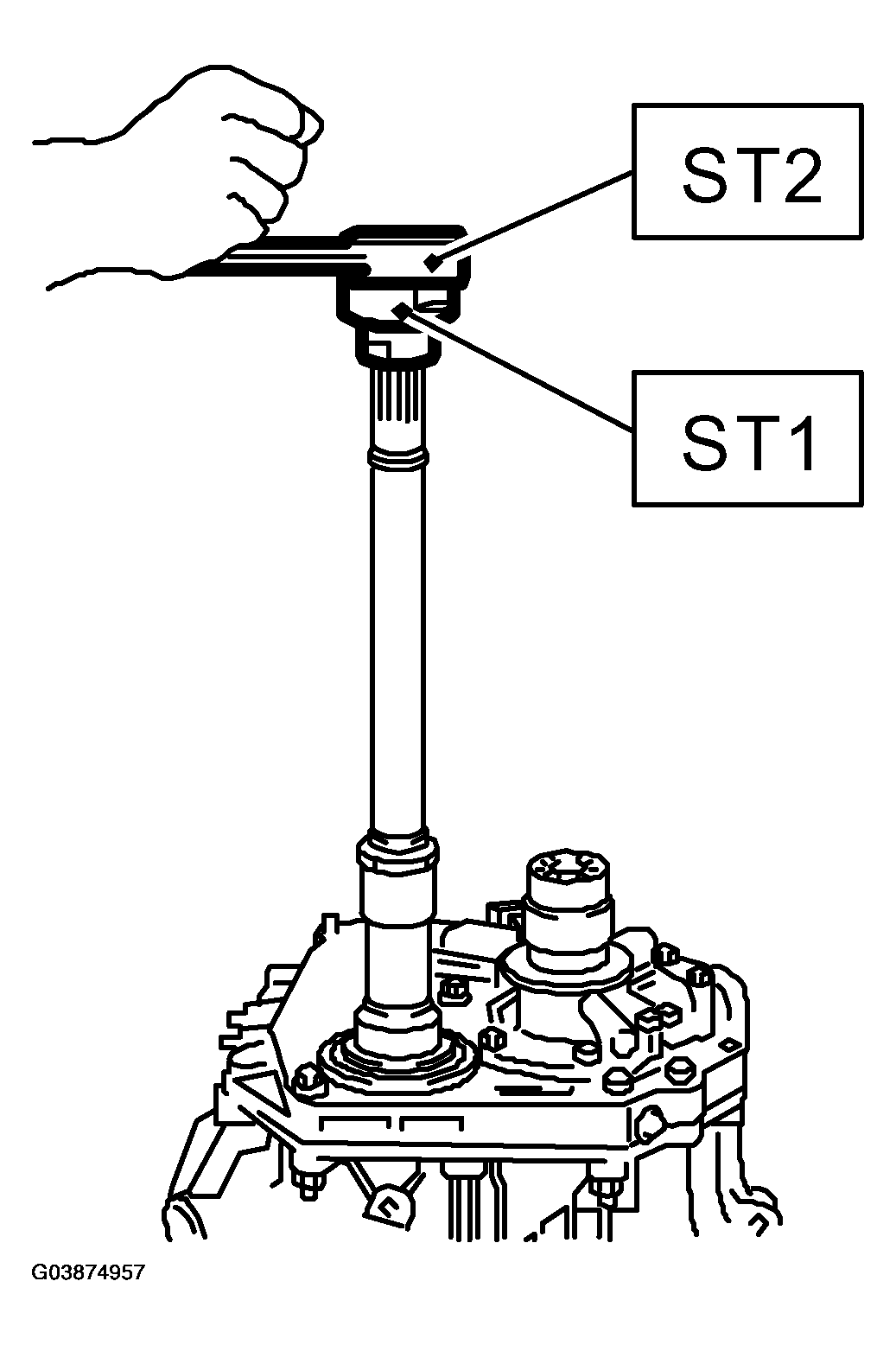

ST1 32005120 HOLDER

ST2 32005154 WRENCH

Fig 3: Rotating Drive Pinion Several Times With ST1 And ST2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tighten the LH retainer until contact is felt while rotating the shaft. Then loosen the RH retainer. Keep tightening the LH retainer and loosening the RH retainer until the pinion shaft can no longer be turned. This is the "zero" state.

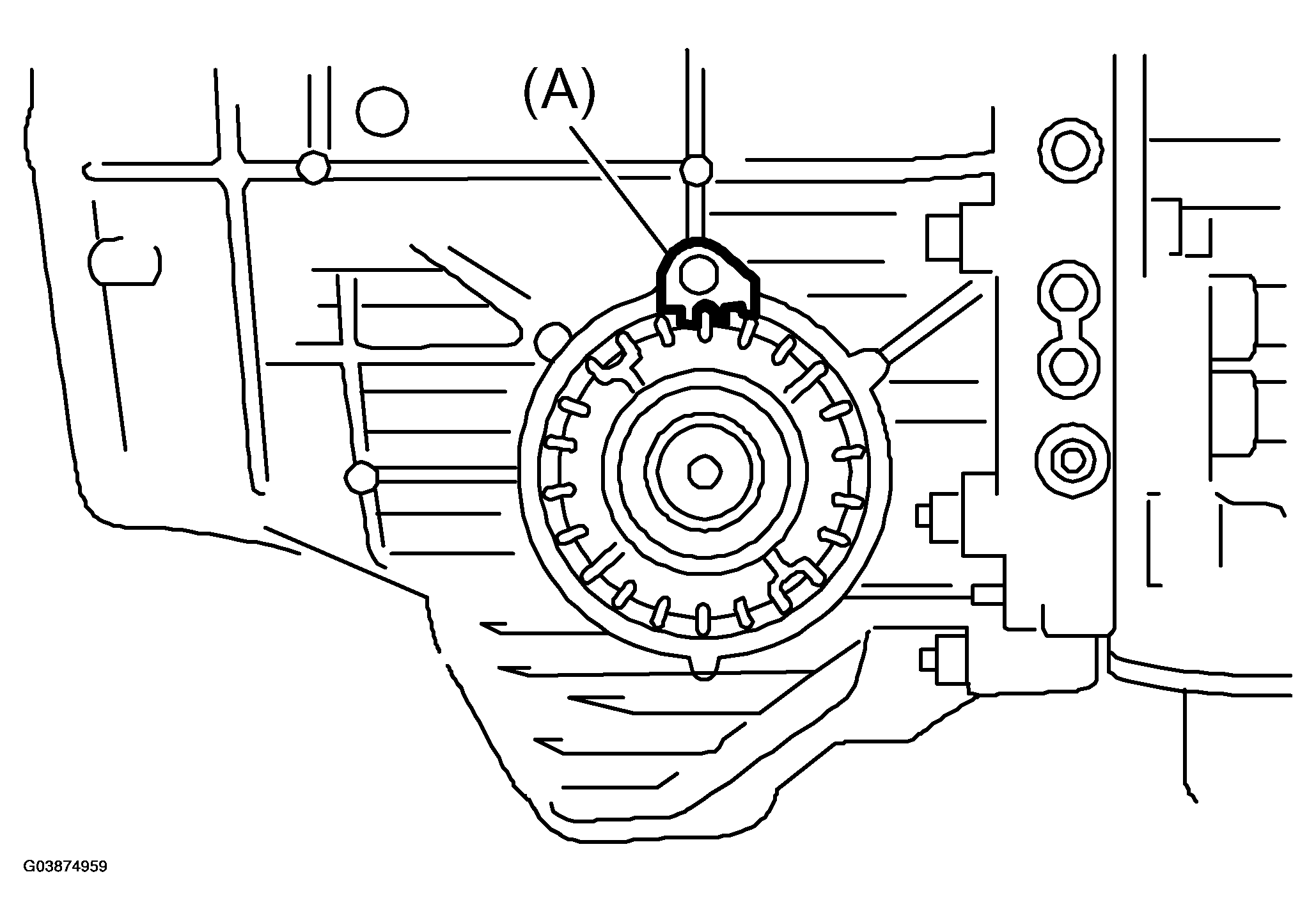

Fig 4: Tightening LH Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Retainer

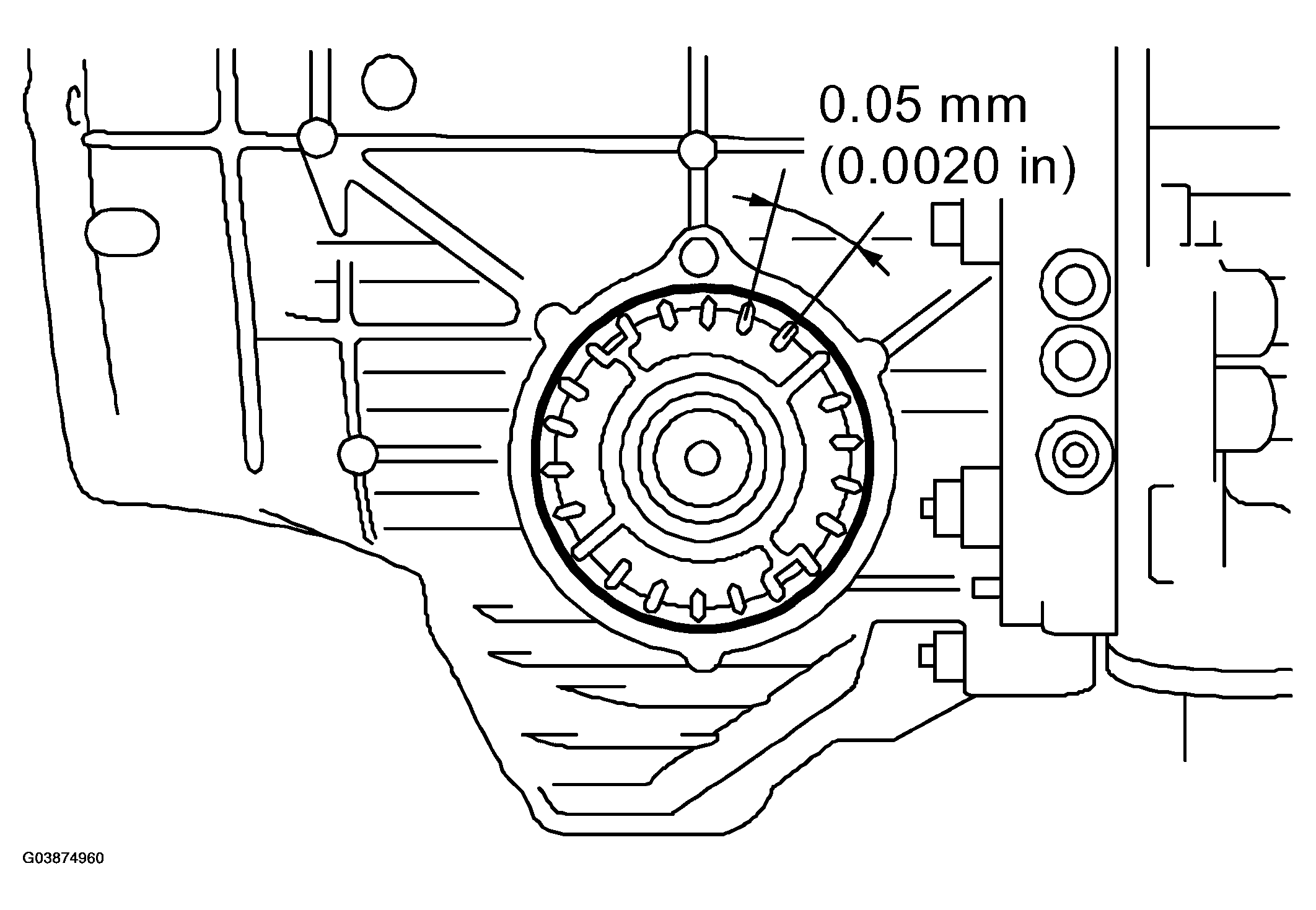

After the "zero" state is established, back off the LH retainer 3 notches and secure it with the lock plate. Then back off the RH retainer and retighten until it stops. Rotate drive pinion a few times. Tighten the RH retainer 1-3/4 notches further. This sets the preload. Finally, secure the retainer with its lock plate.

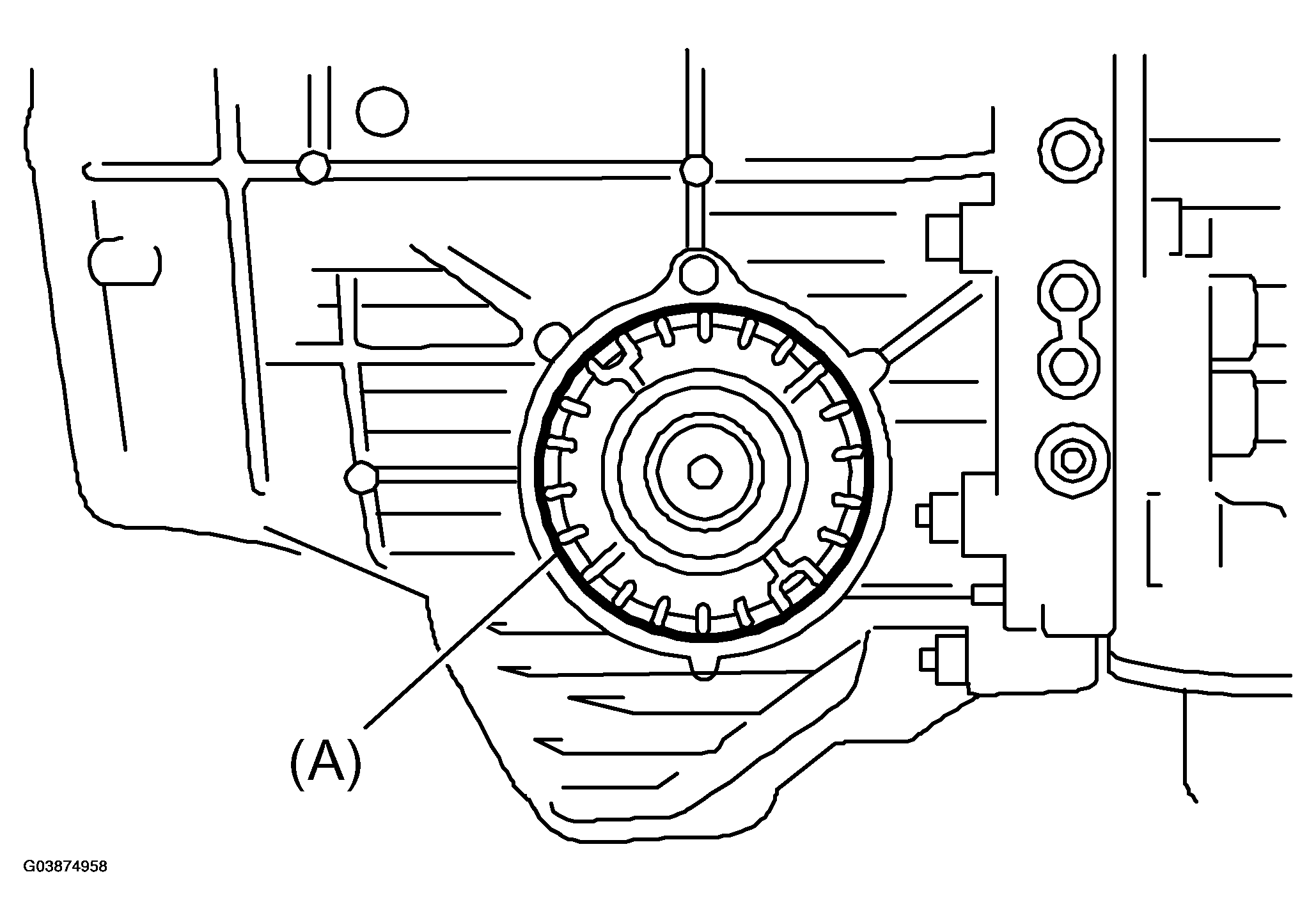

Fig 5: Securing Retainer With Its Lock Plate
