Extension Case: Removal

Remove the transmission assembly.

Remove rear vehicle speed sensor.

• MPT MODEL

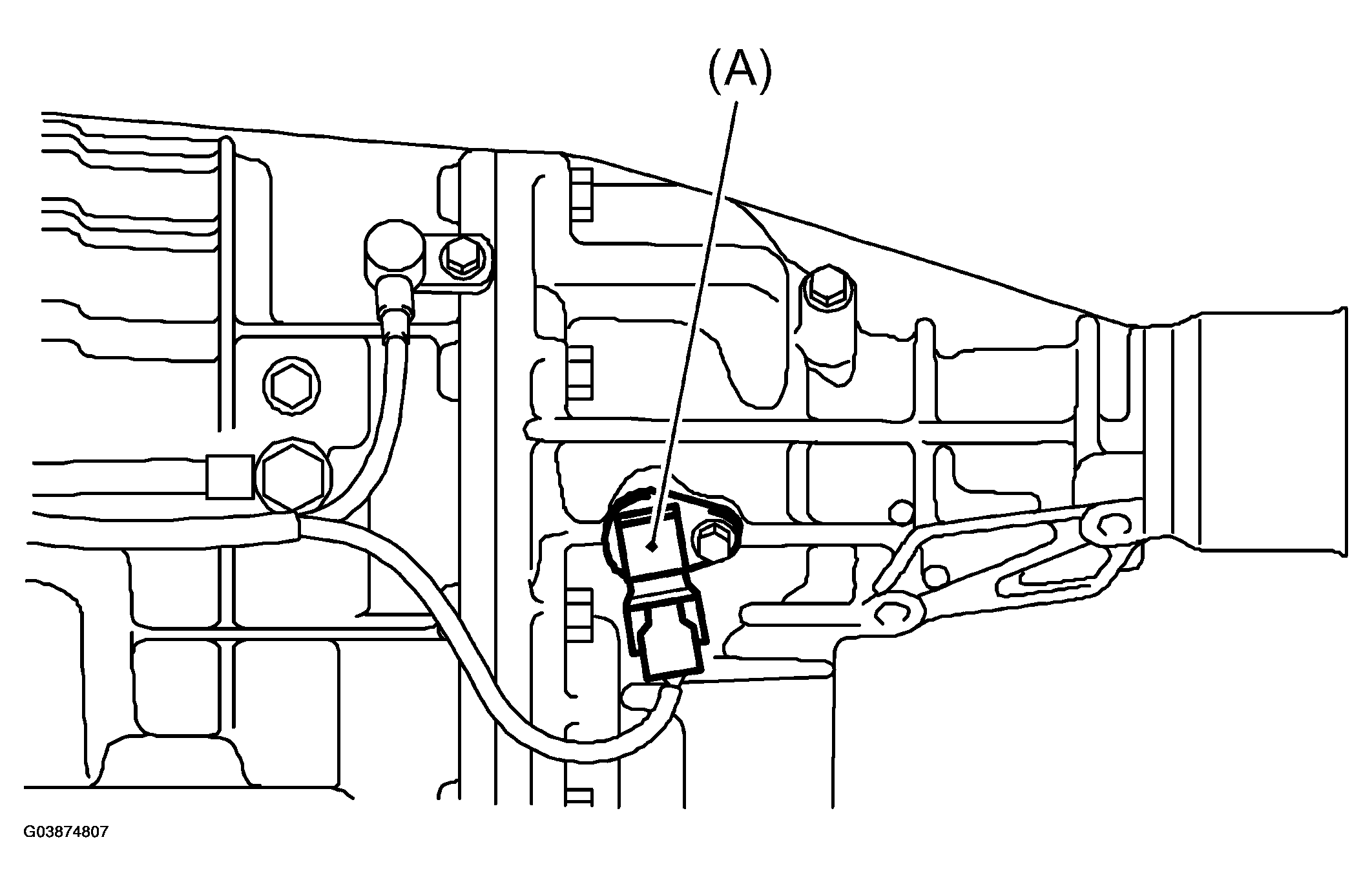

  Fig 1: Removing Rear Vehicle Speed Sensor

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Rear vehicle speed sensor
• VTD MODEL
  1. Rear vehicle speed sensor

  Separate transmission case and extension case sections.

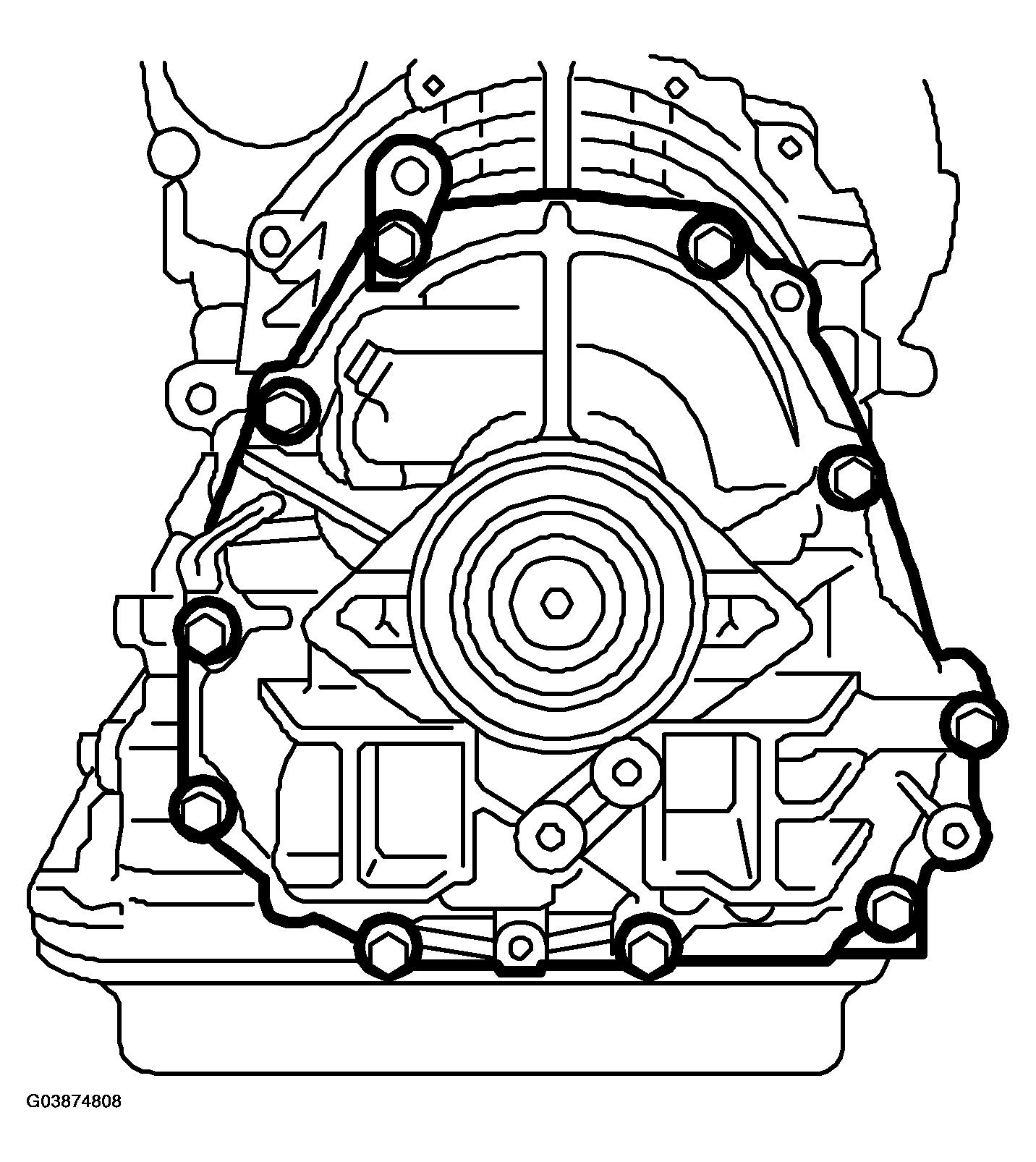

  Fig 2: Separating Transmission Case And Extension Case Sections

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
