Extension Case: Installation

Attach the selected thrust needle bearing to the end surface of reduction drive gear with vaseline.

Install new gasket.

Install the extension case to the transmission case.

Tighten bolts to secure the case.

Tightening torque:

25 Nm (2.5 kgf-m, 18.1 ft -lb)

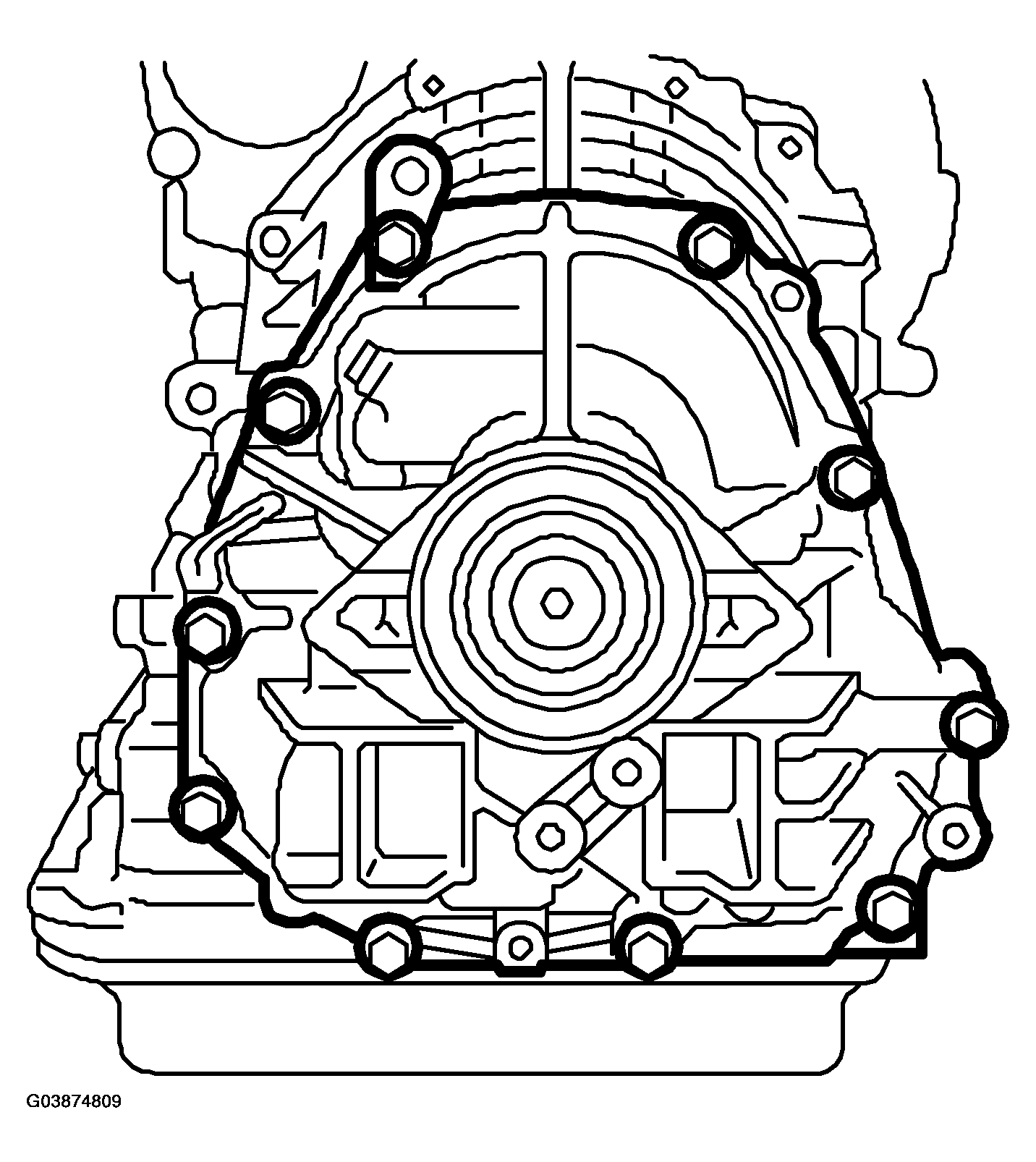

Fig 1: Installing Extension Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the rear vehicle speed sensor.

Tightening torque:

7 Nm (0.7 kgf-m, 5.1 ft-lb)

• MPT MODEL

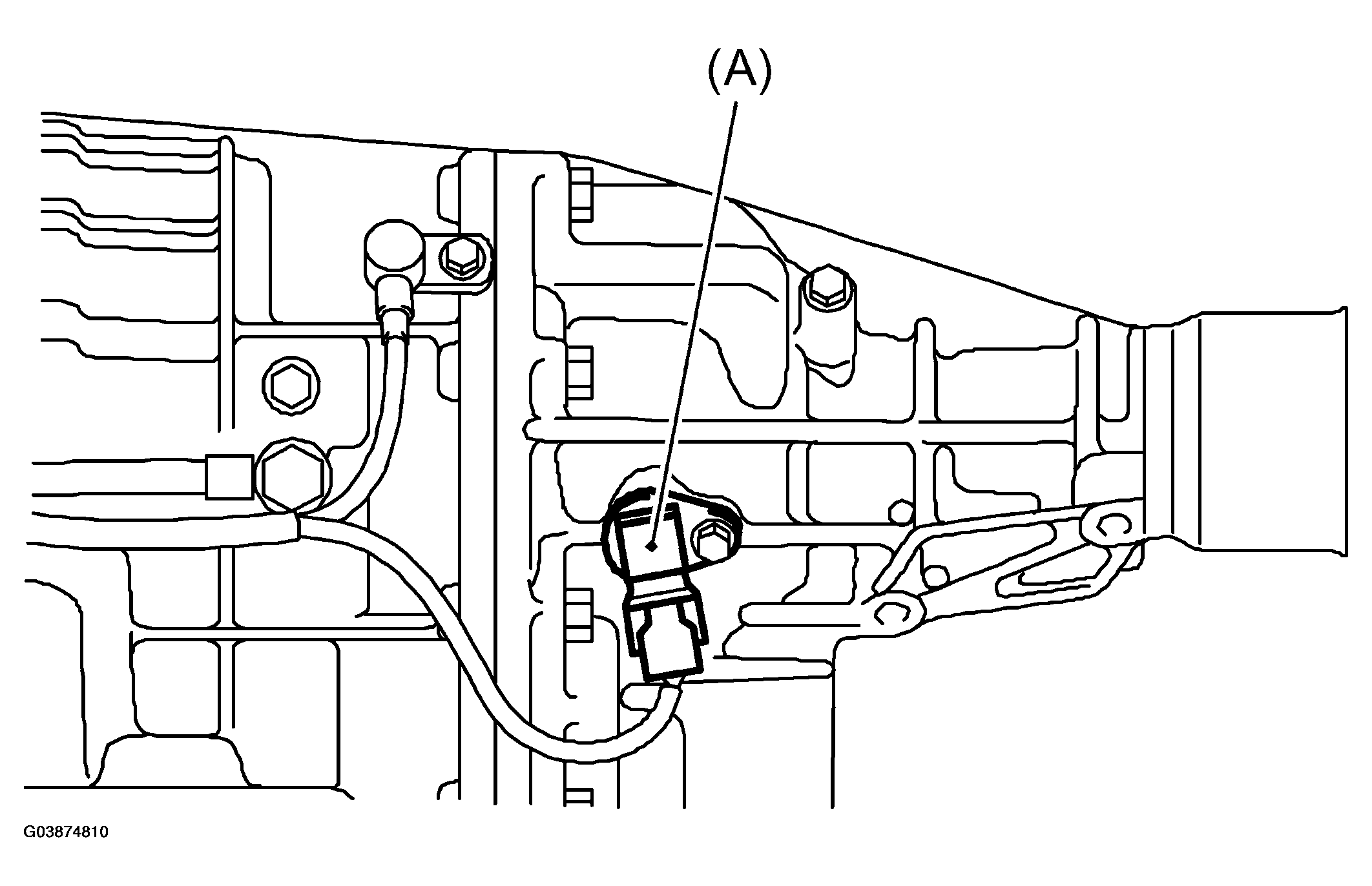

  Fig 2: Installing Rear Vehicle Speed Sensor

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Rear vehicle speed sensor
• VTD MODEL
  1. Rear vehicle speed sensor

Install the transmission assembly.
