VTD Model

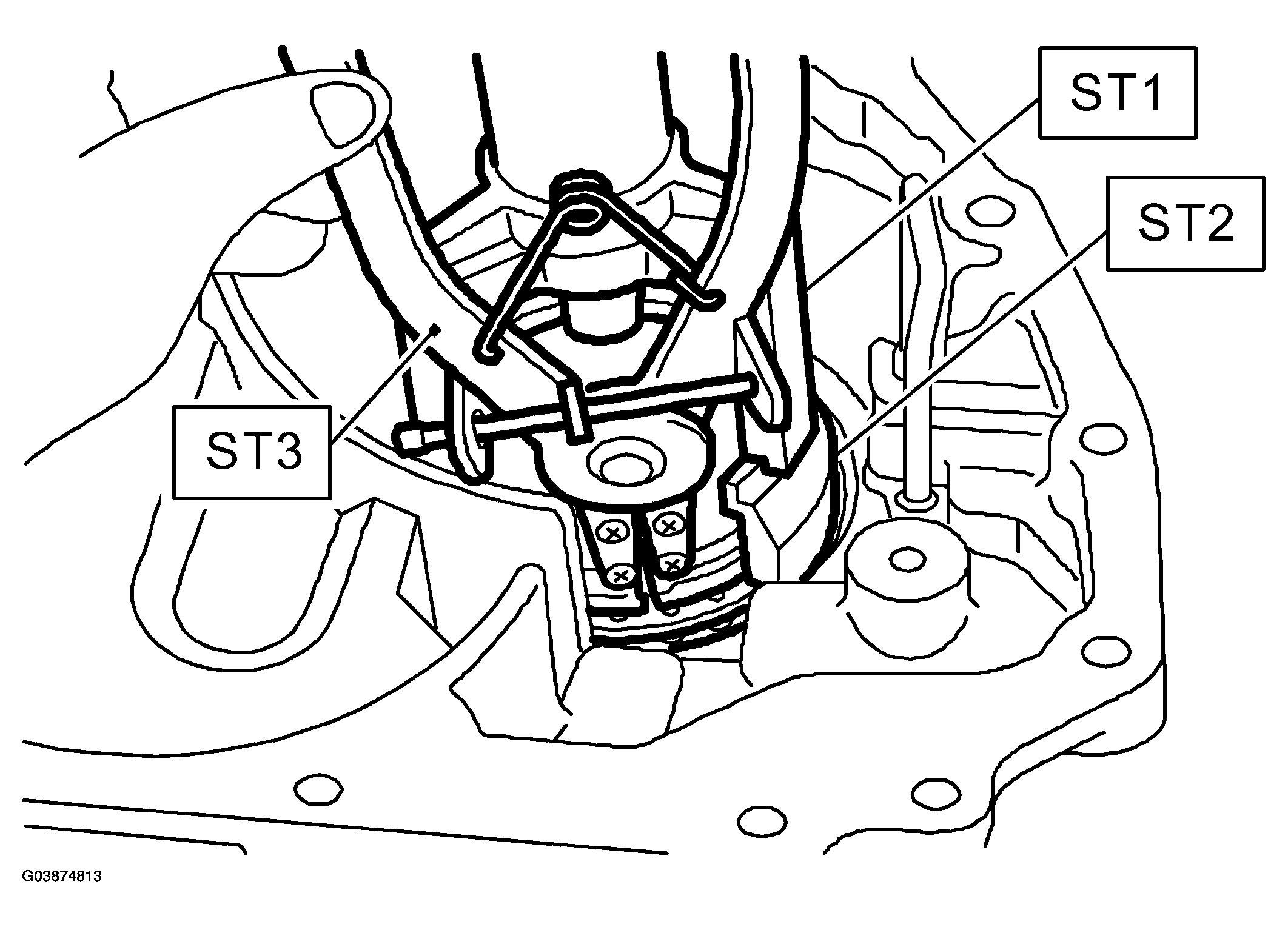

Remove snap ring using ST1, ST2, ST3 and a press.

ST1 32005075 COMPRESSOR

ST2 32005112 SEAT

ST3 32005074 PLIERS

Fig 1: Removing Snap Ring Using ST1, ST2, ST3 And Press

Courtesy of SAAB-SCANIA OF AMERICA, INC.

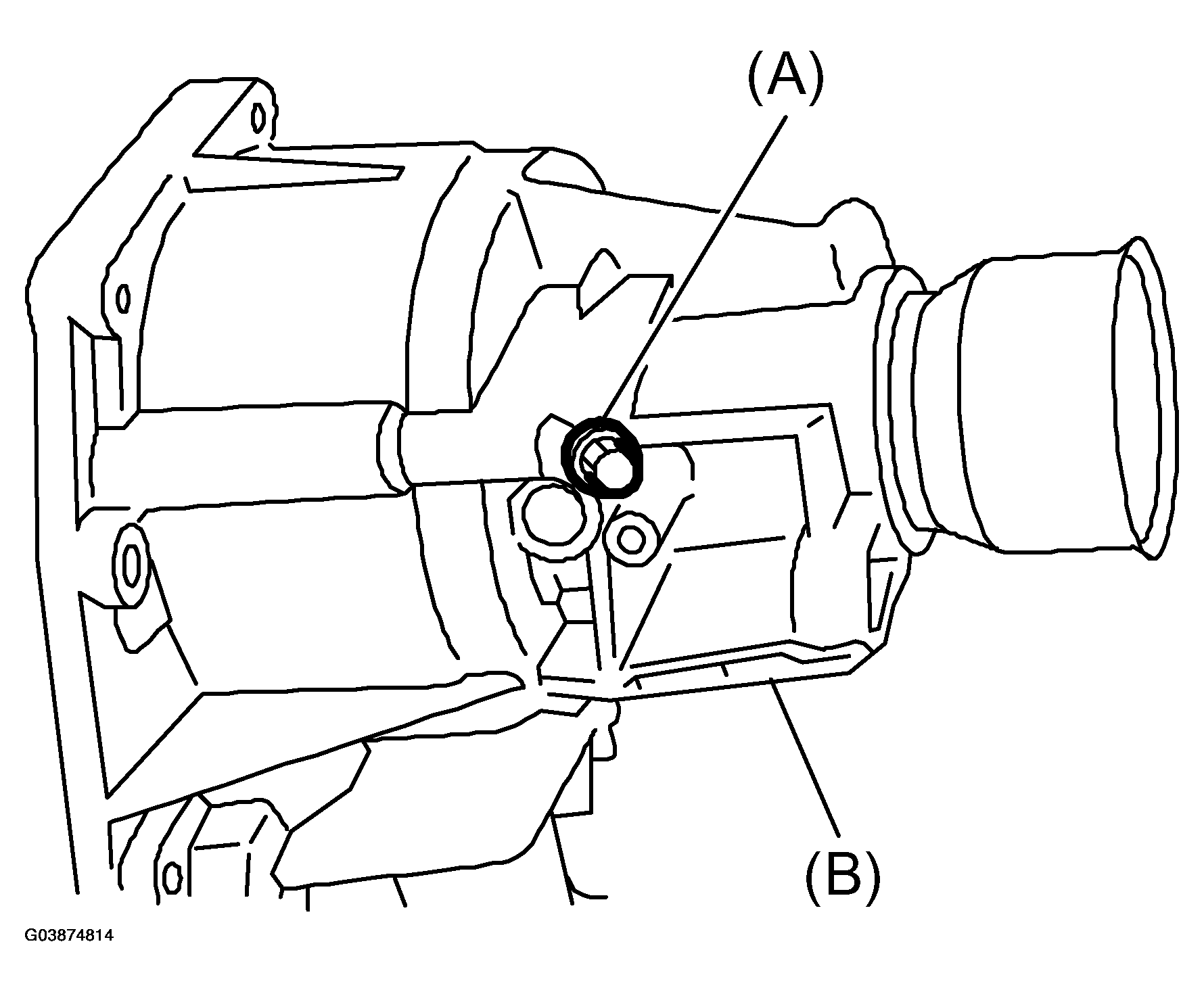

Remove test plug.

Fig 2: Removing Test Plug

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Test plug
2. Extension case

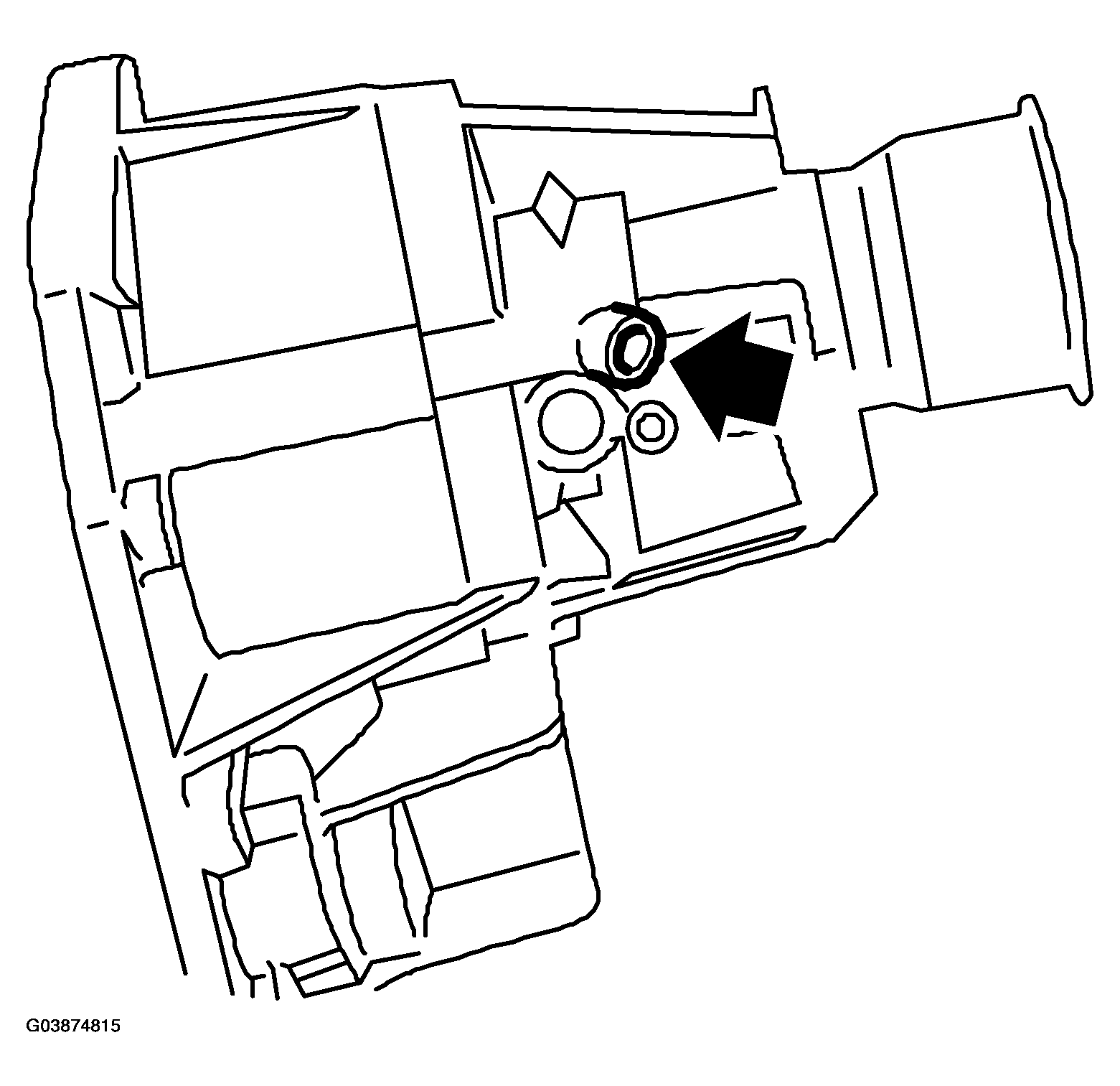

Remove clutch piston using compressed air.

Fig 3: Removing Clutch Piston

Courtesy of SAAB-SCANIA OF AMERICA, INC.

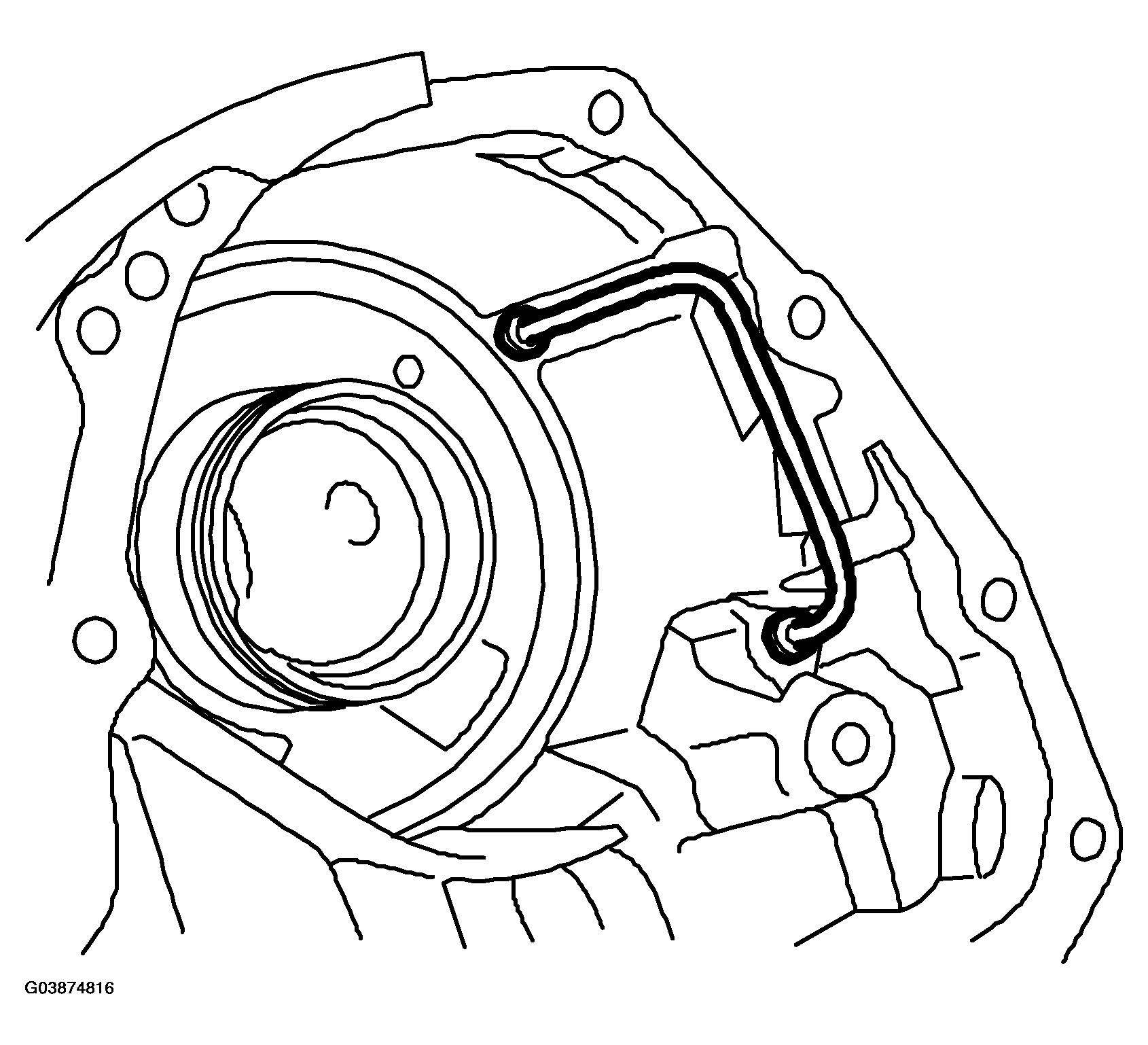

Pay attention, not to deform pipe, and remove transfer clutch pipe.

Fig 4: Removing Transfer Clutch Pipe

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the dust cover from the extension case.

Remove the oil seal from the extension case.
