VTD Model

Press new oil seal using ST and a press.

ST 32005087 INSTALLER

Press dust cover.

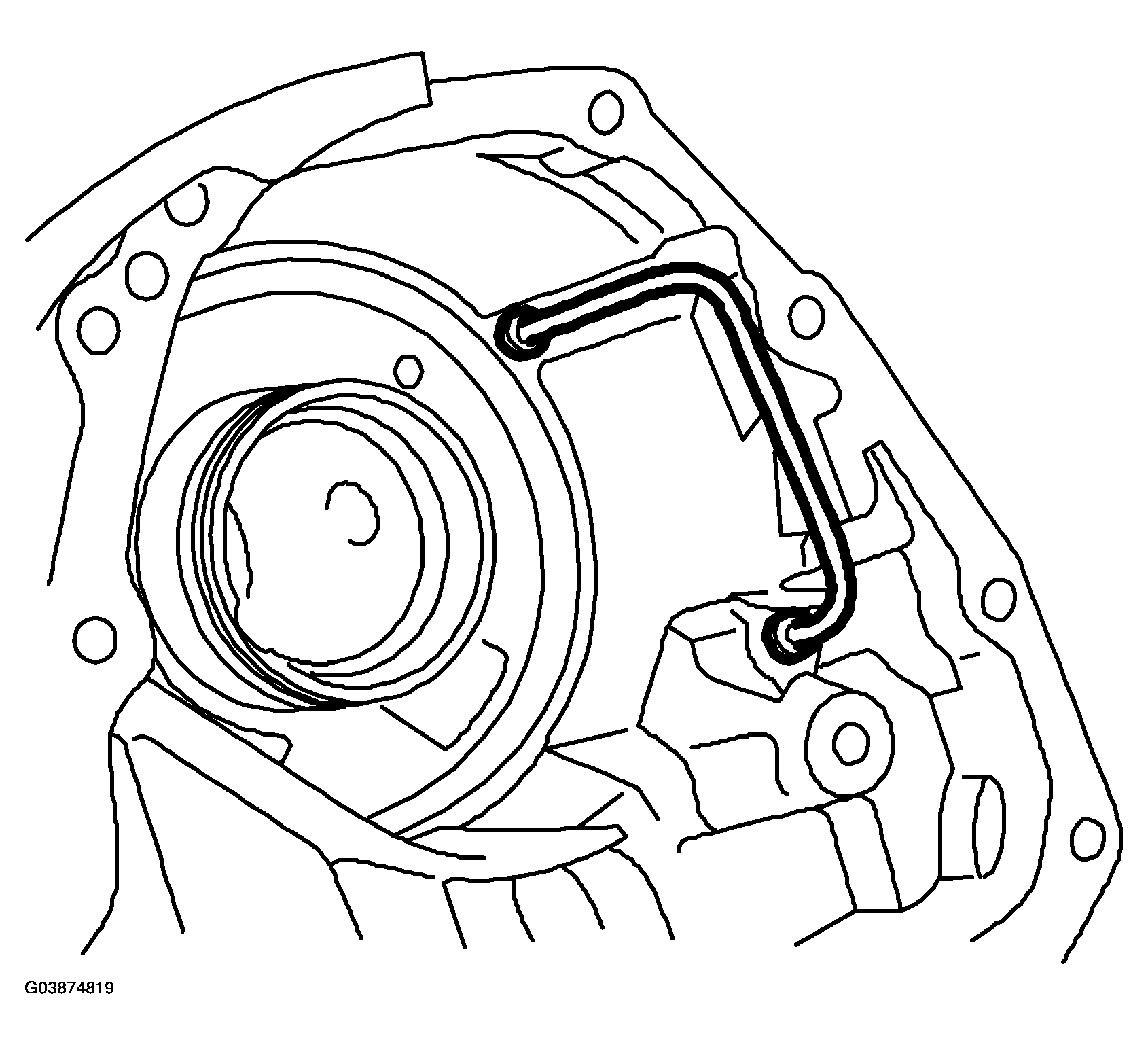

Install the transfer clutch pipe onto the extension case, taking care not to deform the pipe.

Fig 1: Installing Transfer Clutch Pipe

Courtesy of SAAB-SCANIA OF AMERICA, INC.

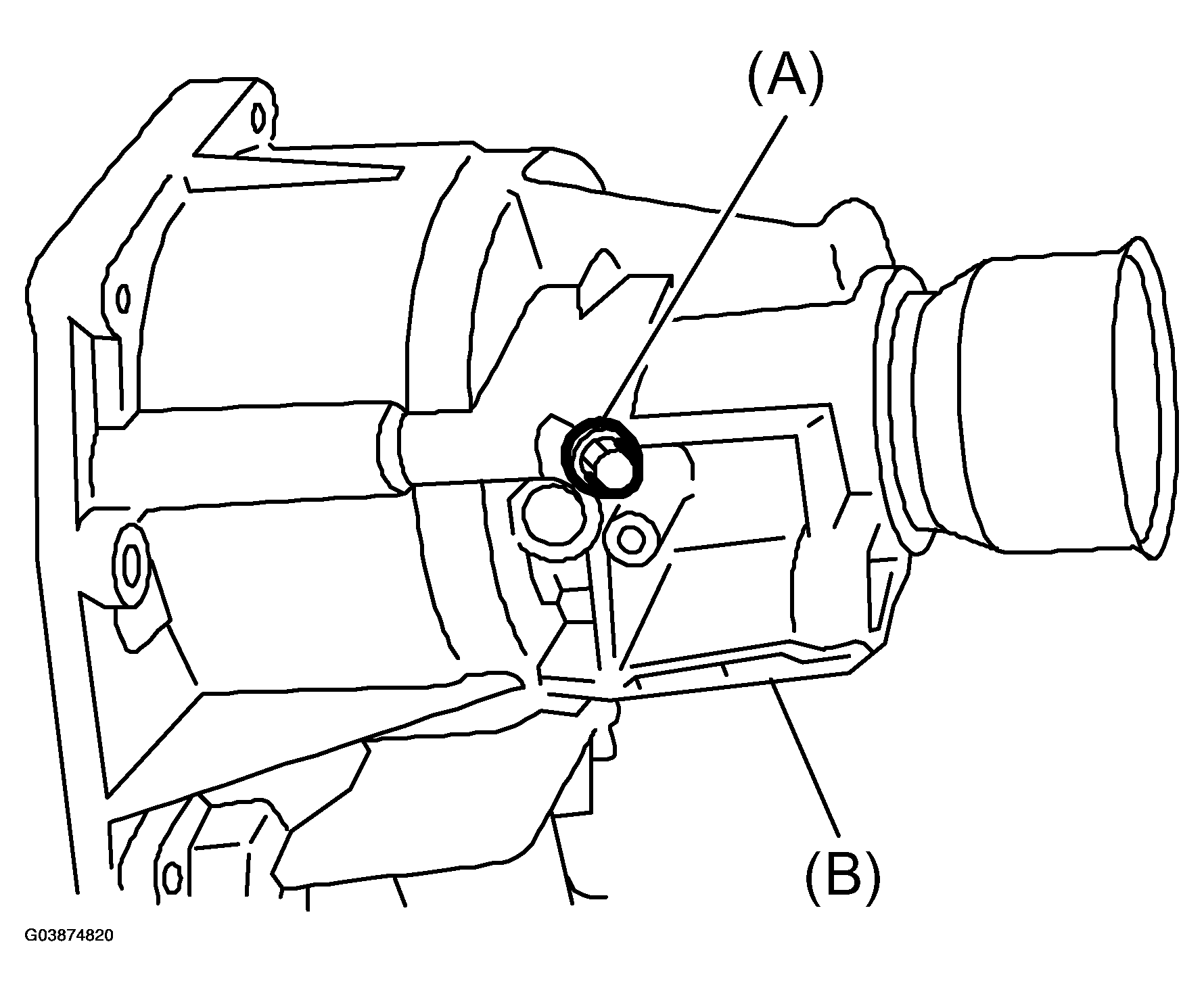

Apply ATF to new O-ring and install the test plug.

Tightening torque:

13 Nm (1.3 kgf-m, 9.4 ft-lb)

Fig 2: Installing Test Plug

Courtesy of SAAB-SCANIA OF AMERICA, INC.

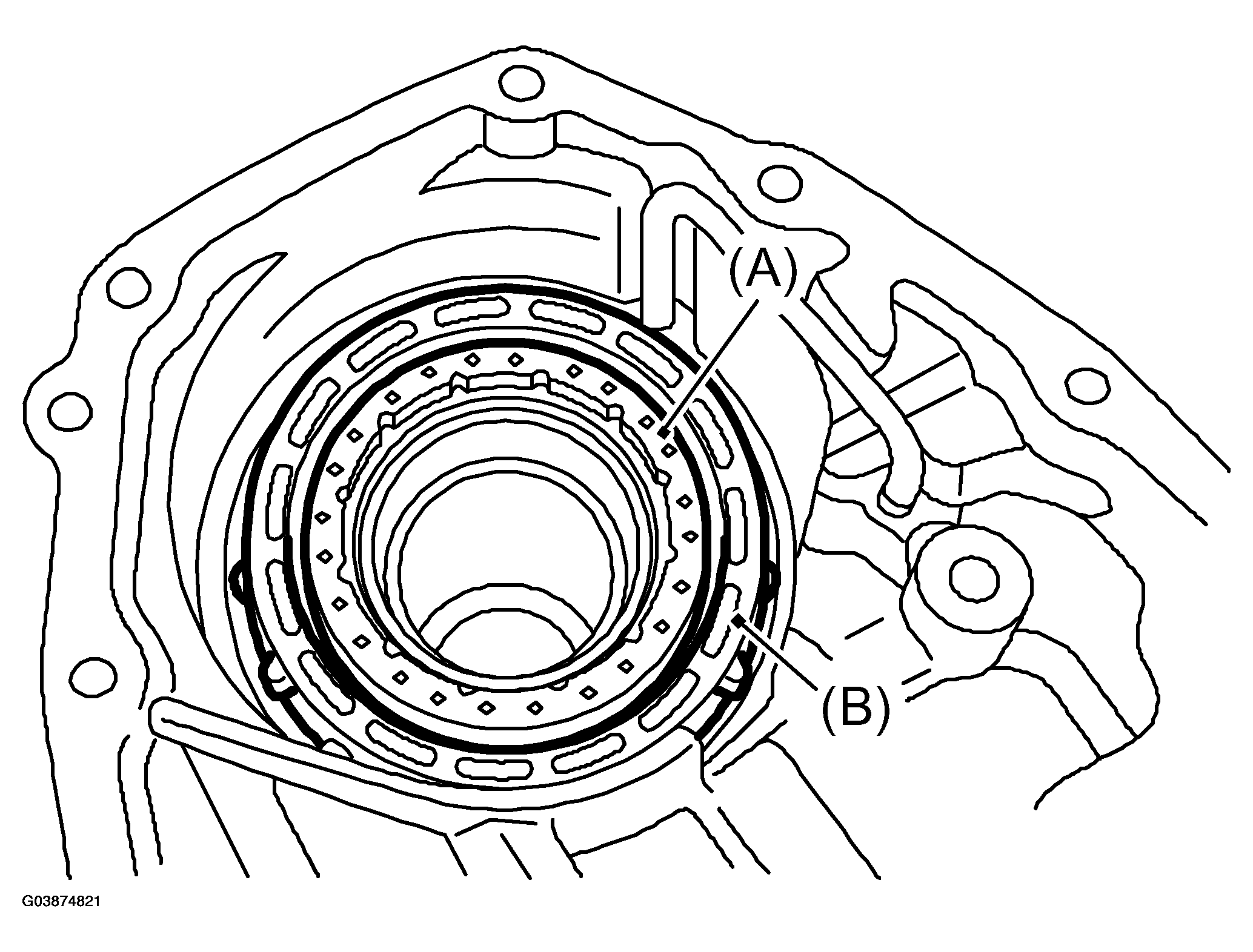

Insert the multi-plate clutch, drive plates, driven plates, and spring retainer.

Fig 3: Inserting Multi-Plate Clutch, Drive Plates, Driven Plates, And Spring Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

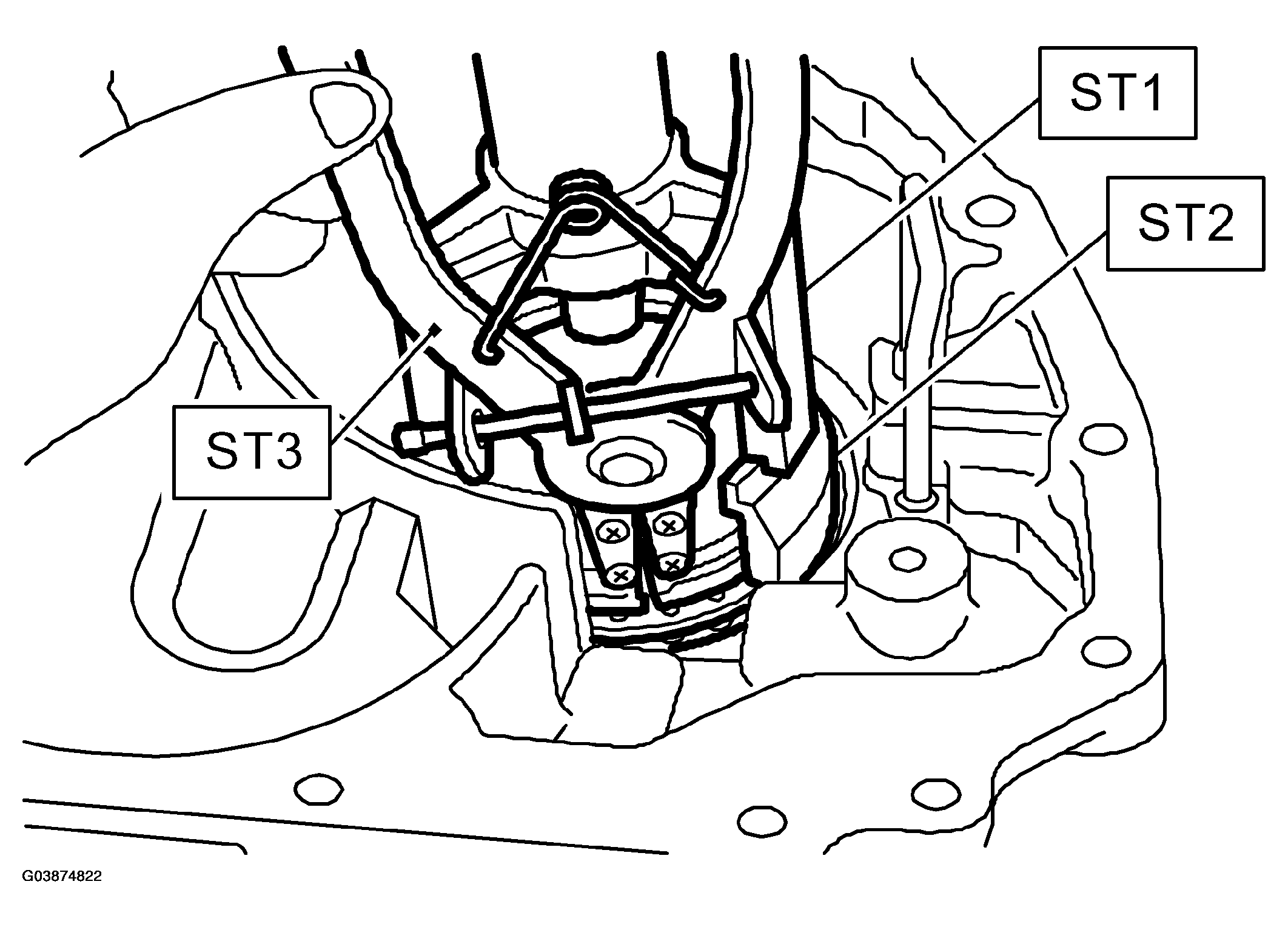

Install the snap ring using special tools 1, 2, and 3.

ST1 32005075 COMPRESSOR

ST2 32005112 SEAT

ST3 32005074 PLIERS

Fig 4: Installing Snap Ring Using Special Tools 1, 2, And 3

Courtesy of SAAB-SCANIA OF AMERICA, INC.
