Converter Case: Installation

Check the appearance of each component and clean.

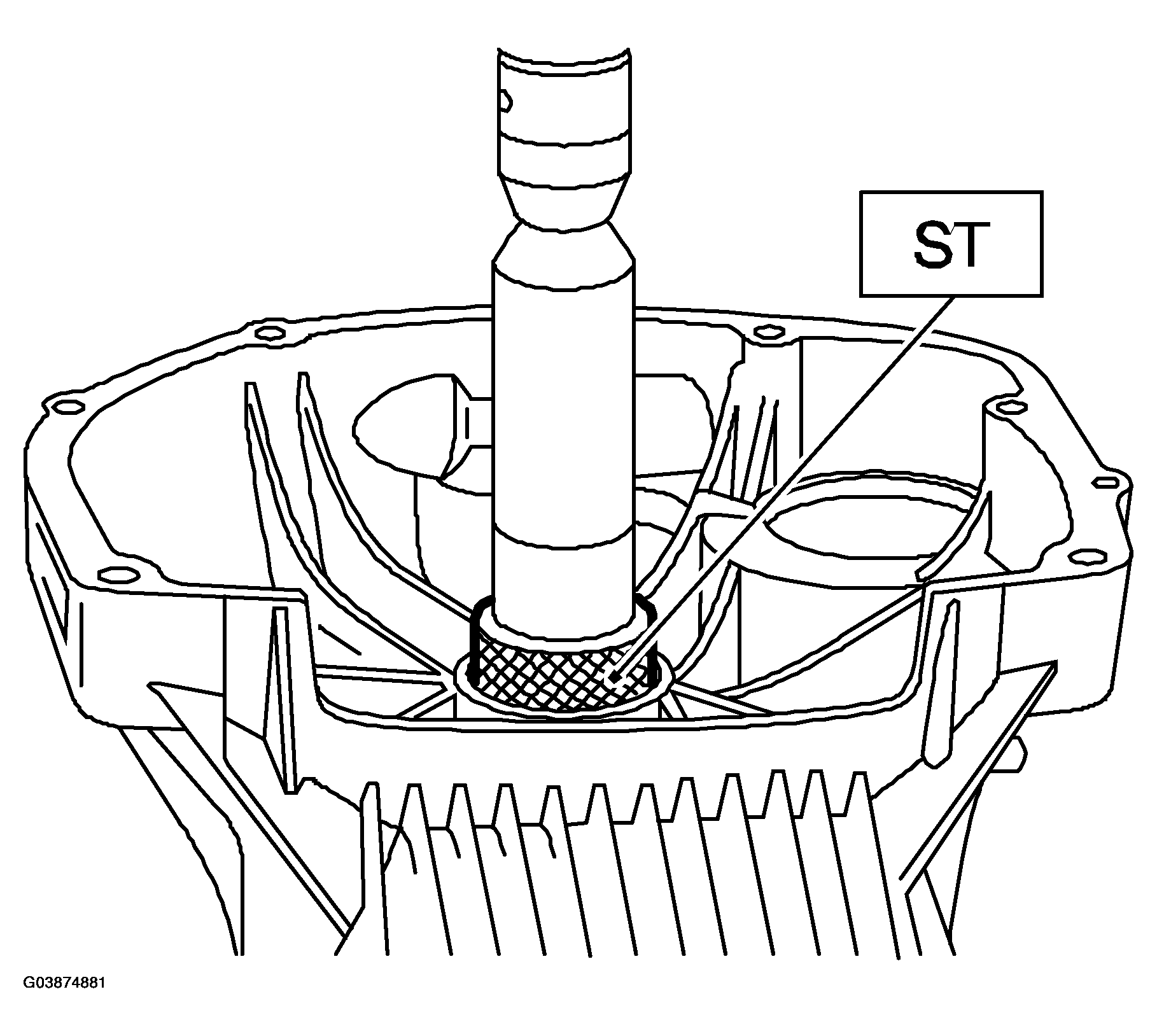

Force-fit the oil seal to the converter case with ST.

ST 32005058 DRIFT

Fig 1: Fitting Oil Seal To Converter Case With ST 32005058 Drift

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the differential assembly to the case.

Install the left and right side retainers.

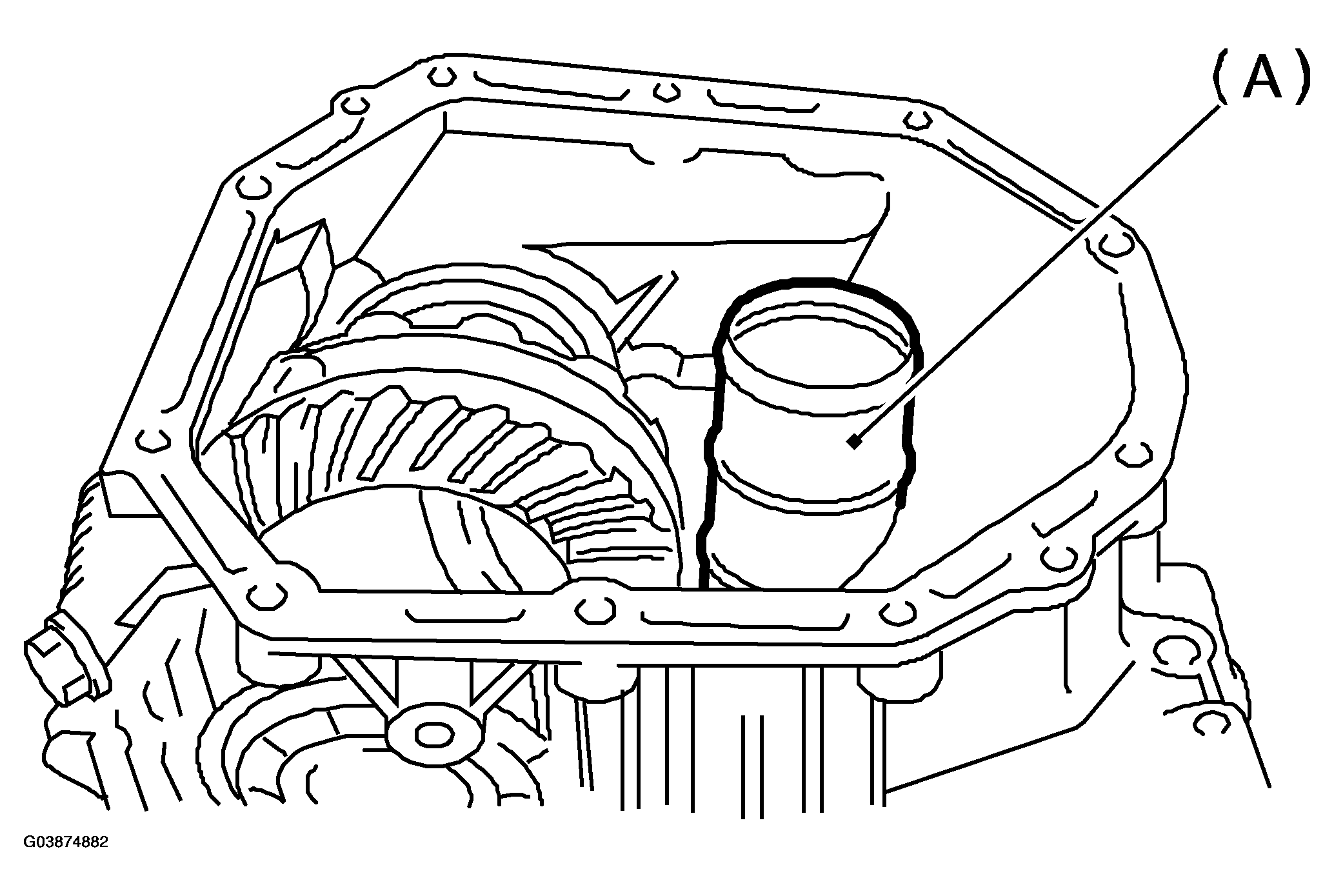

Install the new seal pipe to the converter case.

Fig 2: Installing New Seal Pipe

Courtesy of SAAB-SCANIA OF AMERICA, INC.

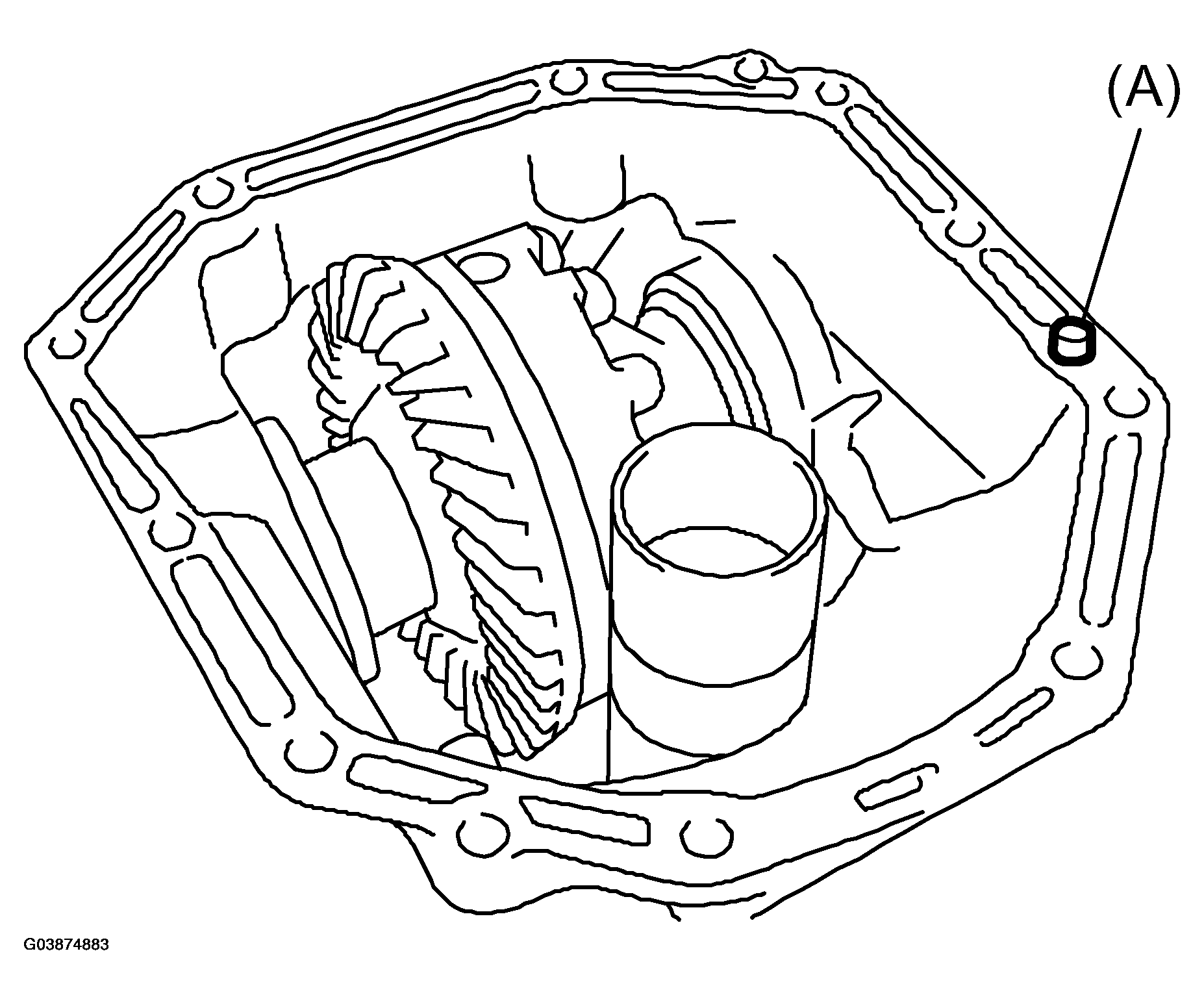

Install the rubber seal to the converter case.

Fig 3: Installing Rubber Seal To Converter Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

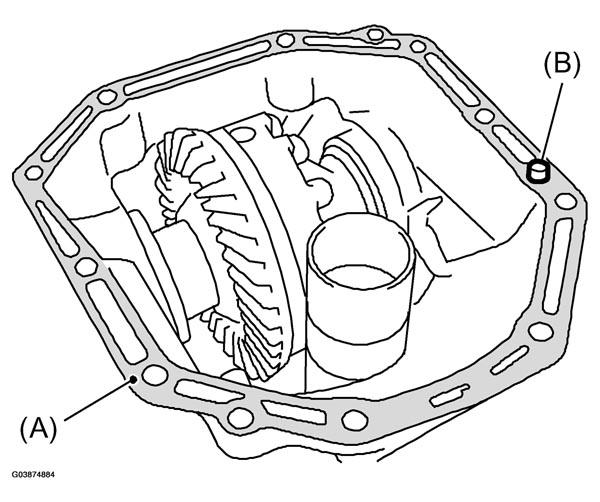

Apply proper amount of liquid gasket to the entire converter case mating surface.

Liquid gasket:

THREE BOND 1215 (Part No. 32005013)

Fig 4: Applying Proper Amount Of Liquid Gasket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

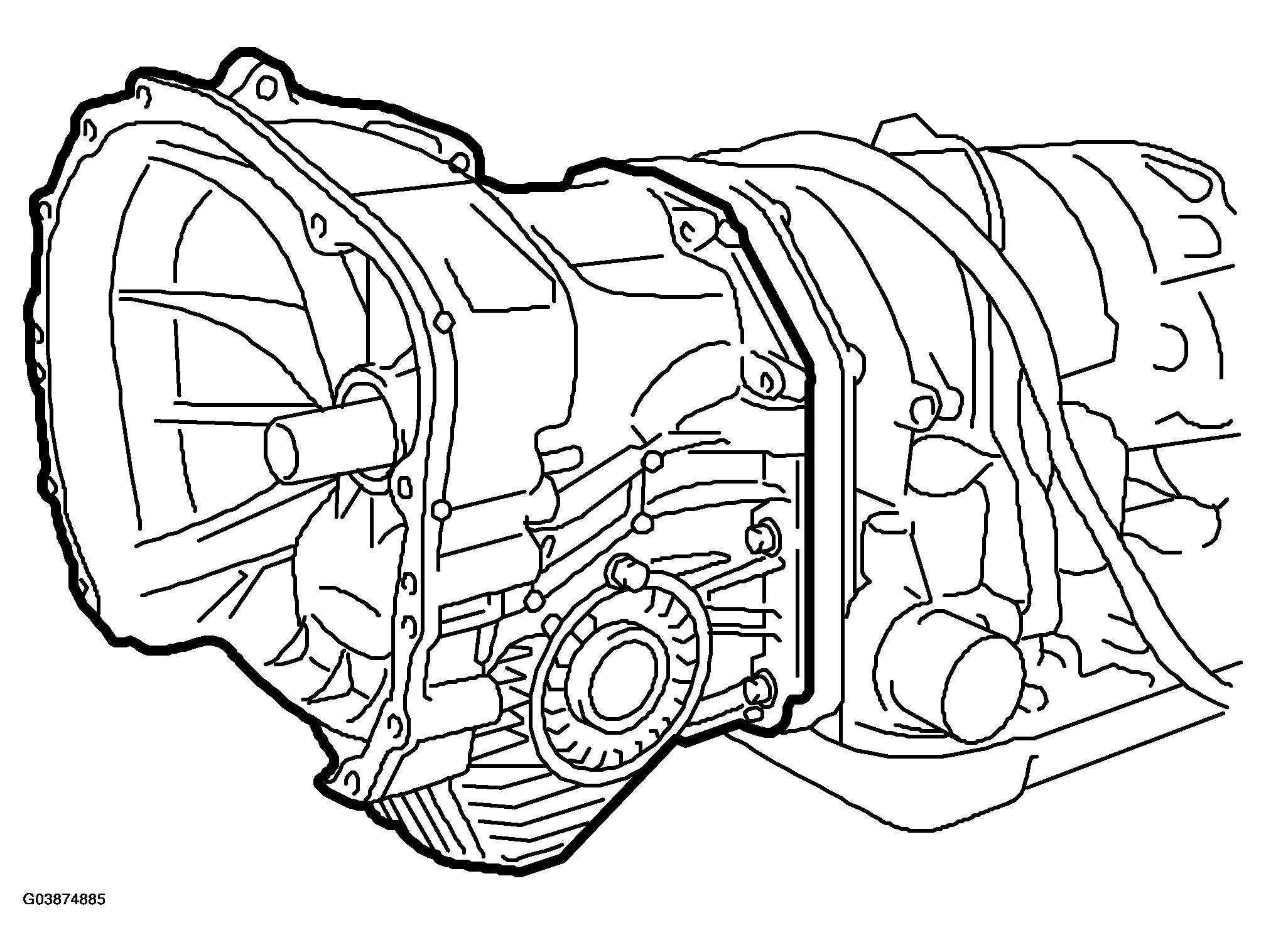

Install the converter case assembly without damaging bush and oil seal and secure with six bolts and four nuts.

Tightening torque:

41 Nm (4.2 kgf-m, 30.4 ft-lb)

Fig 5: Installing Converter Case Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Insert inhibitor switch and transmission connector into stay.

Install air breather hose.

Install the oil cooler pipes.

Install the oil charge pipe with O-ring.

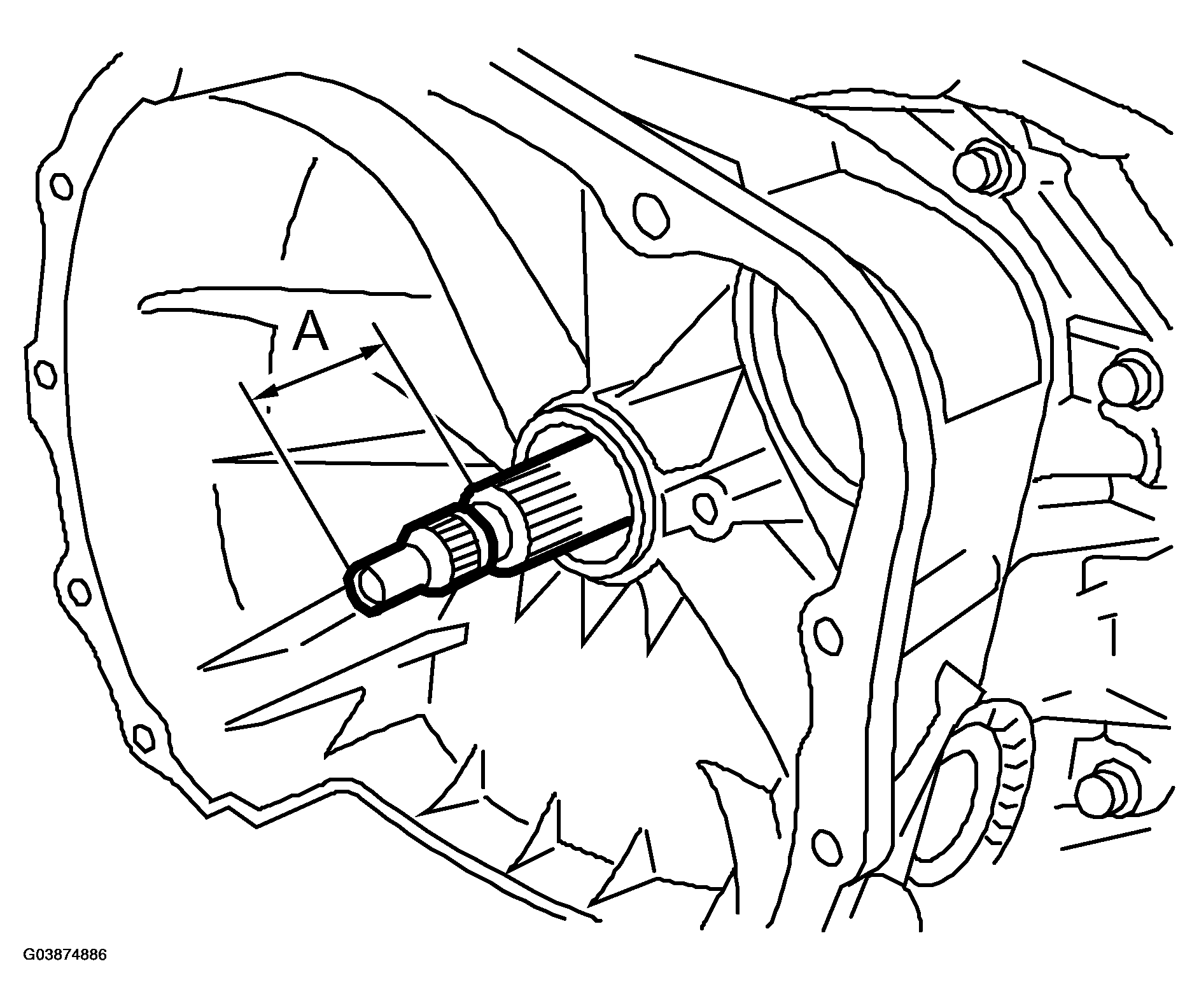

Insert the input shaft while turning lightly by hand and verify the protrusion amount.

Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

Fig 6: Inserting Input Shaft

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the torque converter clutch assembly.

Install the transmission assembly to the vehicle.
