PRETENSIONER Connector: Installation

Connect the connector in reverse order of removal. At this time, be sure to insert the push lock in until connecting sound is heard.

IMPORTANT:
  • Be sure to insert the connector in until it locks. Then pull on it gently to make sure that it is locked.
  • At this time, be sure to insert the push lock in.

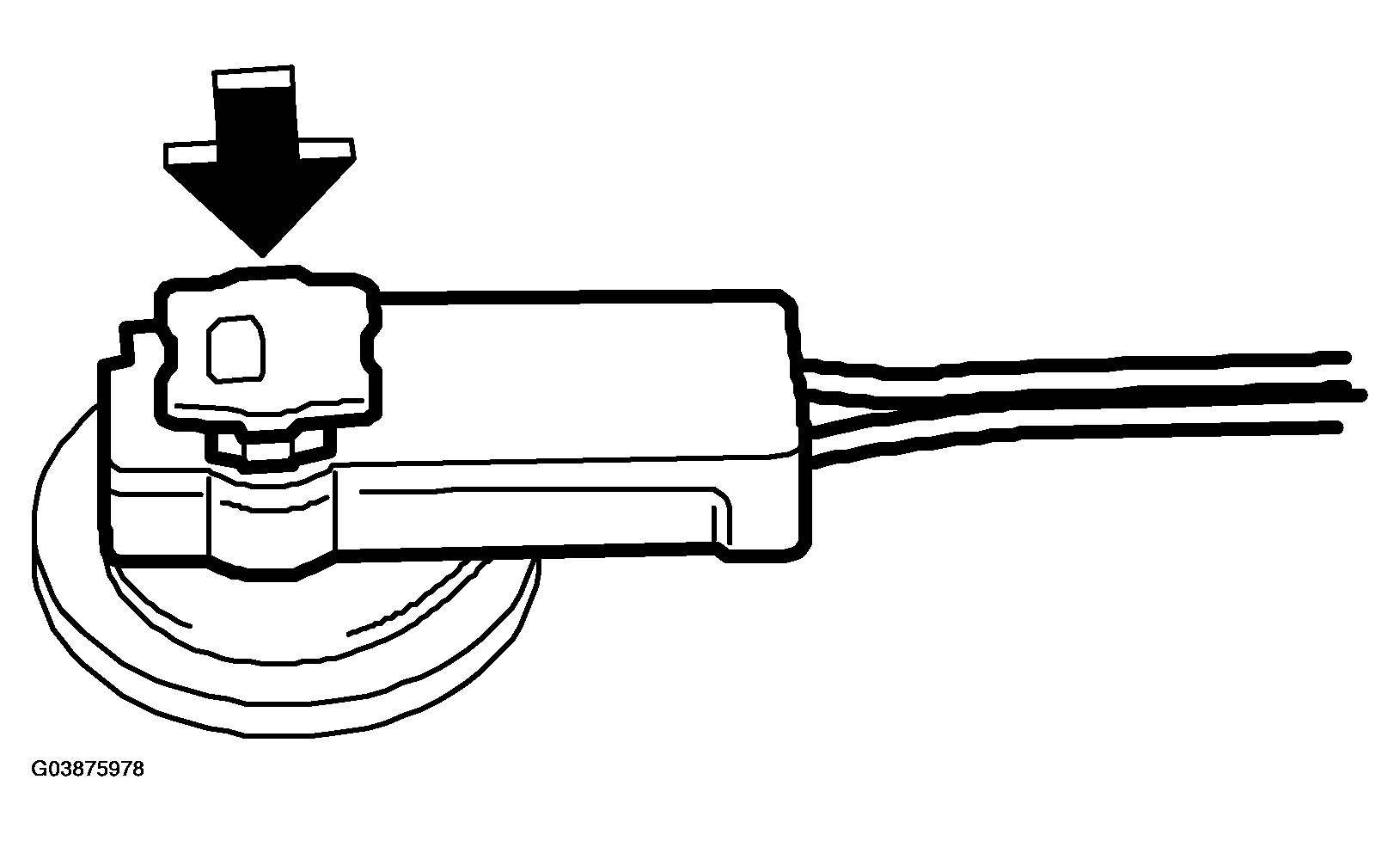

    Fig 1: Inserting Push Lock In
    G03875978Courtesy of SAAB-SCANIA OF AMERICA, INC.
