LH Side

Remove the battery.

Remove the spark plug cords by pulling the boot. (Do not pull the cord itself.)

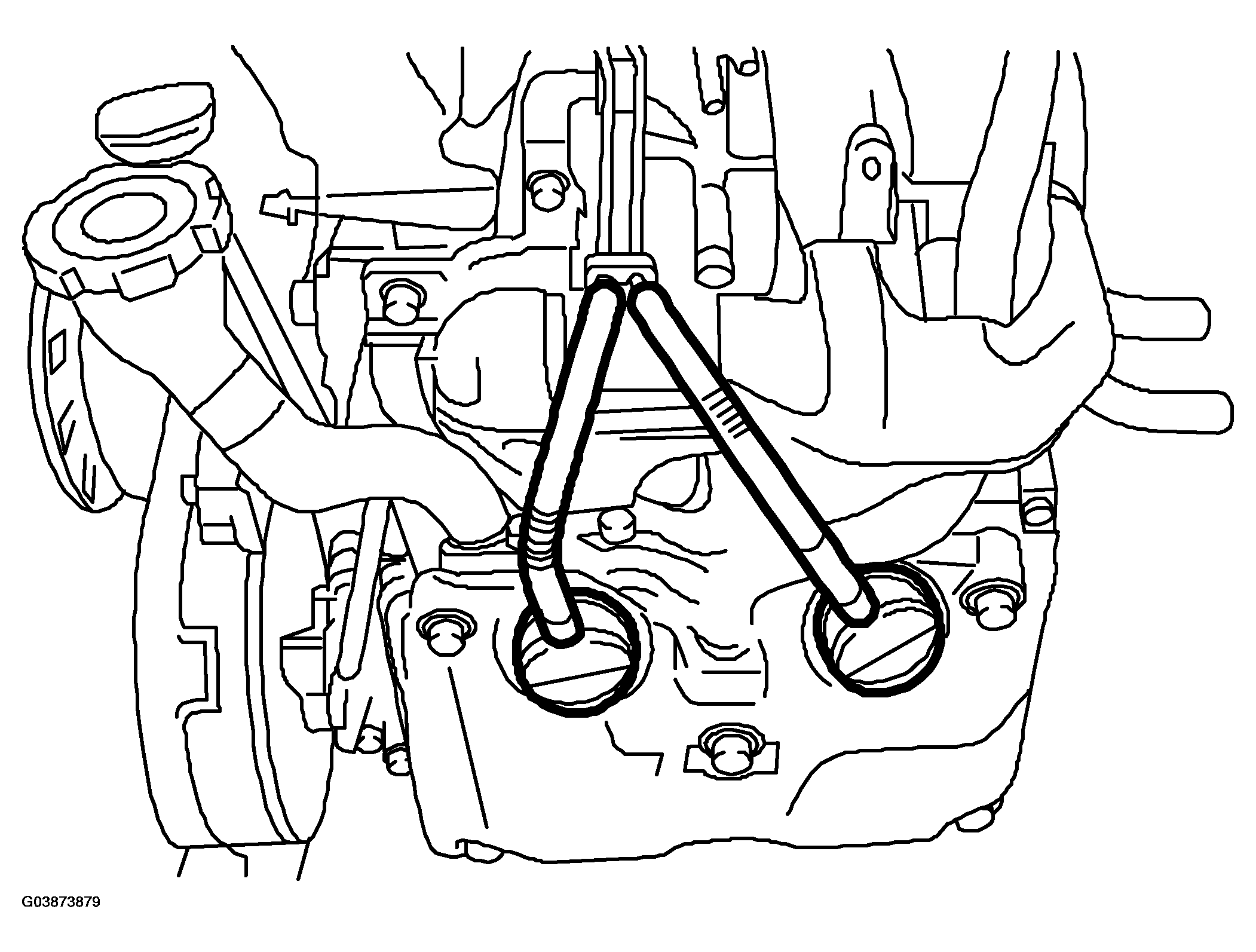

Fig 1: Removing Spark Plug Cords By Pulling Boot
G03873879Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the spark plug with a spark plug socket.

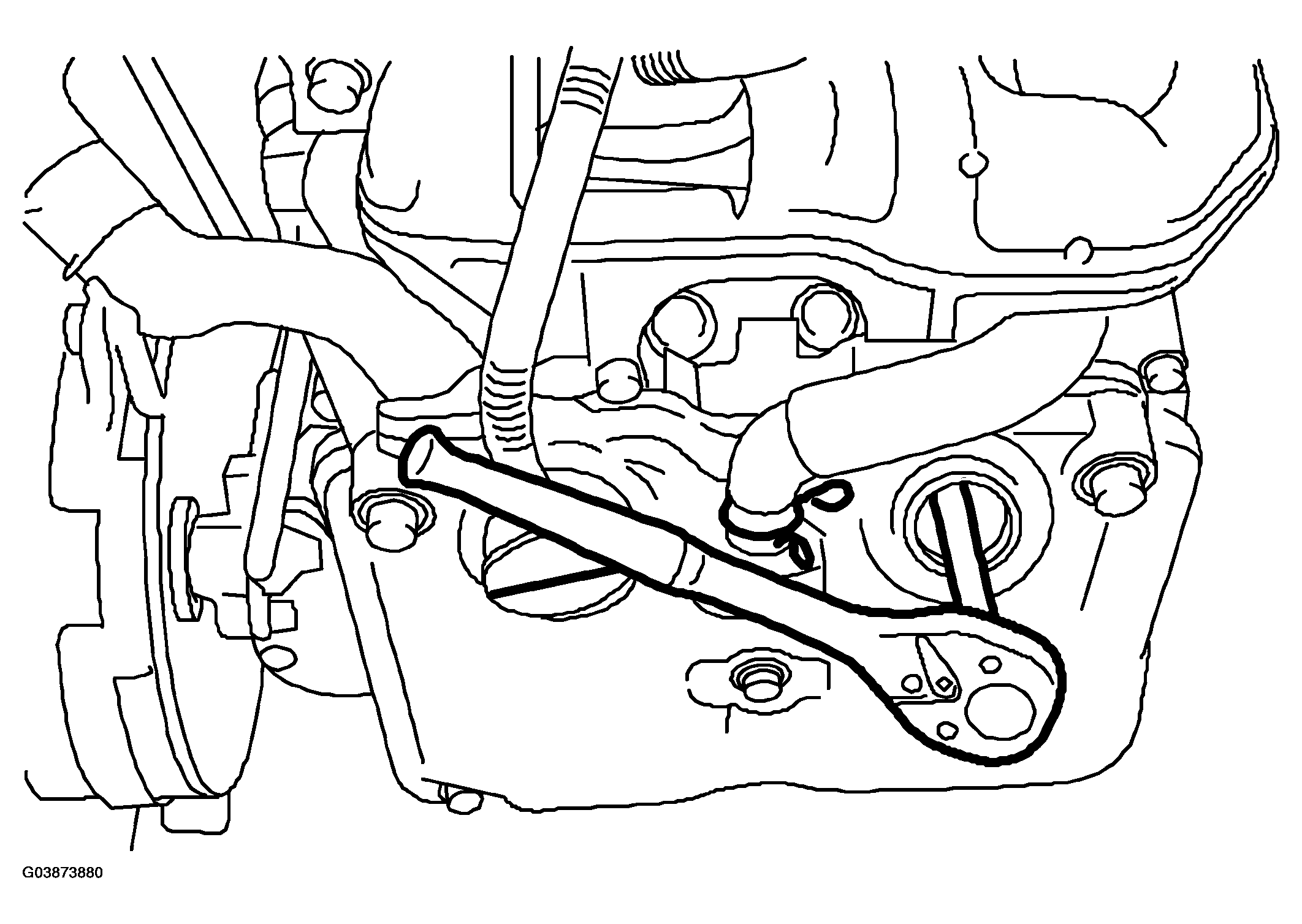

Fig 2: Removing Spark Plug With Spark Plug Socket
G03873880Courtesy of SAAB-SCANIA OF AMERICA, INC.
