Component Views: Sensor

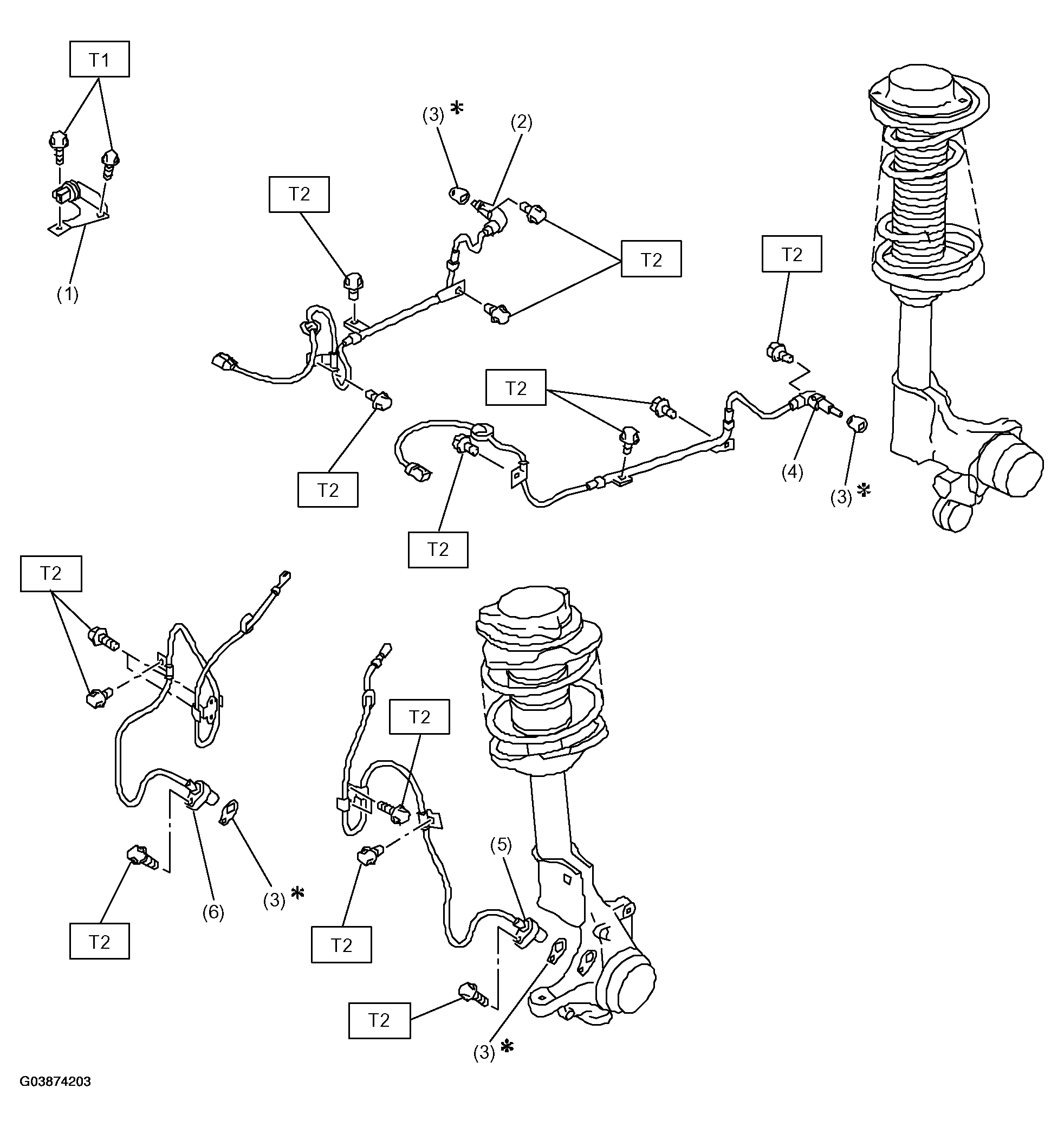

Fig 1: Identifying ABS Components
G03874203Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. G sensor
  2. Rear ABS wheel speed sensor RH
  3. Adjusting spacer
  4. Rear ABS wheel speed sensor LH
  5. Front ABS wheel speed sensor LH
  6. Front ABS wheel speed sensor RH

    Tightening torque: Nm (kgf-m, ft-lb)

    T1: 18 (1.8, 13.0)

    T2: 33 (3.3, 24)
