Front ABS Wheel Speed Sensor: Installation

Temporarily install the front ABS wheel speed sensor on housing.

IMPORTANT: Be careful not to strike the ABS wheel speed sensor's pole piece against tone wheel and adjacent metal parts during installation.

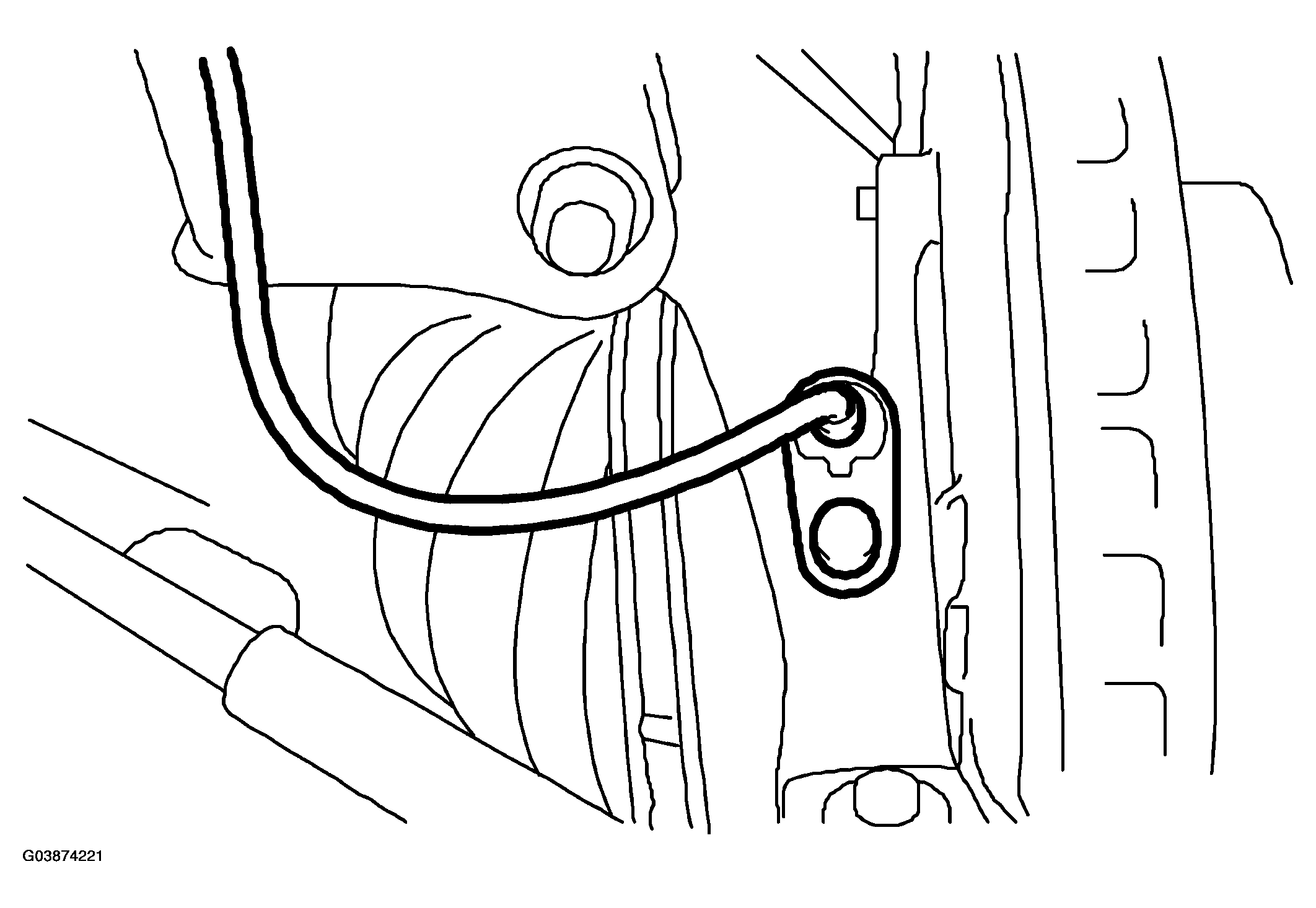

Fig 1: Installing Front ABS Wheel Speed Sensor On Housing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the front ABS wheel speed sensor on strut and wheel apron bracket.

Tightening torque:

33 Nm (3.3 kgf-m, 24 ft-lb)

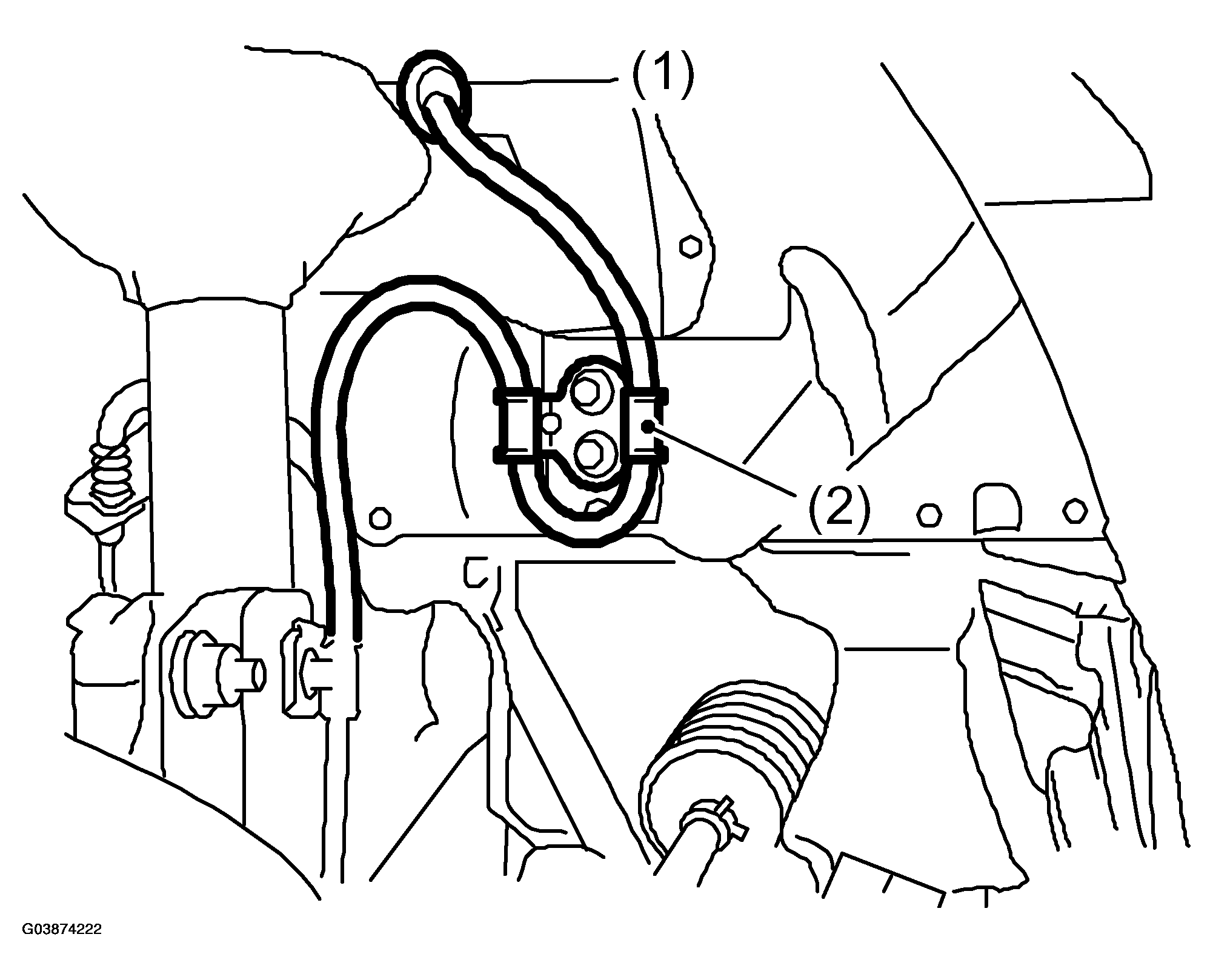

Fig 2: Installing Front ABS Wheel Speed Sensor On Strut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Check the ABS wheel speed sensor gap. After standard clearance is obtained, tighten the ABS wheel speed sensor on housing to specified torque.

If the clearance is outside specification, readjust using spacer (Part No. 32009555).

ABS wheel speed sensor standard clearance:

0.3 - 0.8 mm (0.012 - 0.031 in)

Tightening torque:

33 Nm (3.3 kgf-m, 24 ft-lb)

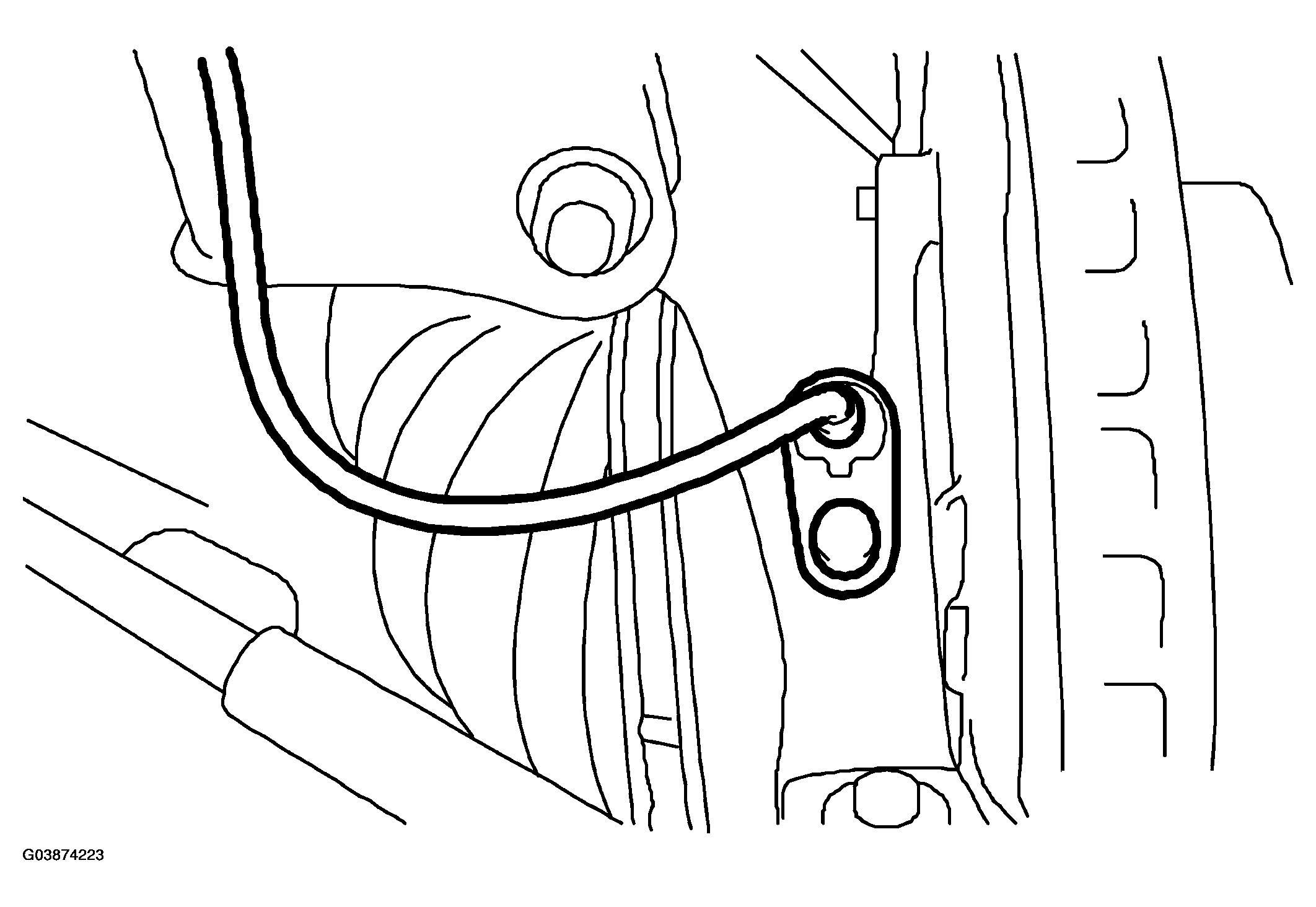

Fig 3: Tightening ABS Wheel Speed Sensor On Housing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE:

Check the marks on the harness and make sure that no kink exists. (RH: White, LH: Yellow)
Make sure the harness is not pulled and does not contact to suspension or body when steering wheel is turned.

After confirmation of the ABS wheel speed sensor clearance, connect the connector to ABS wheel speed sensor.

Connect the battery ground cable to battery.
