Conditions For Abs Sequence Control

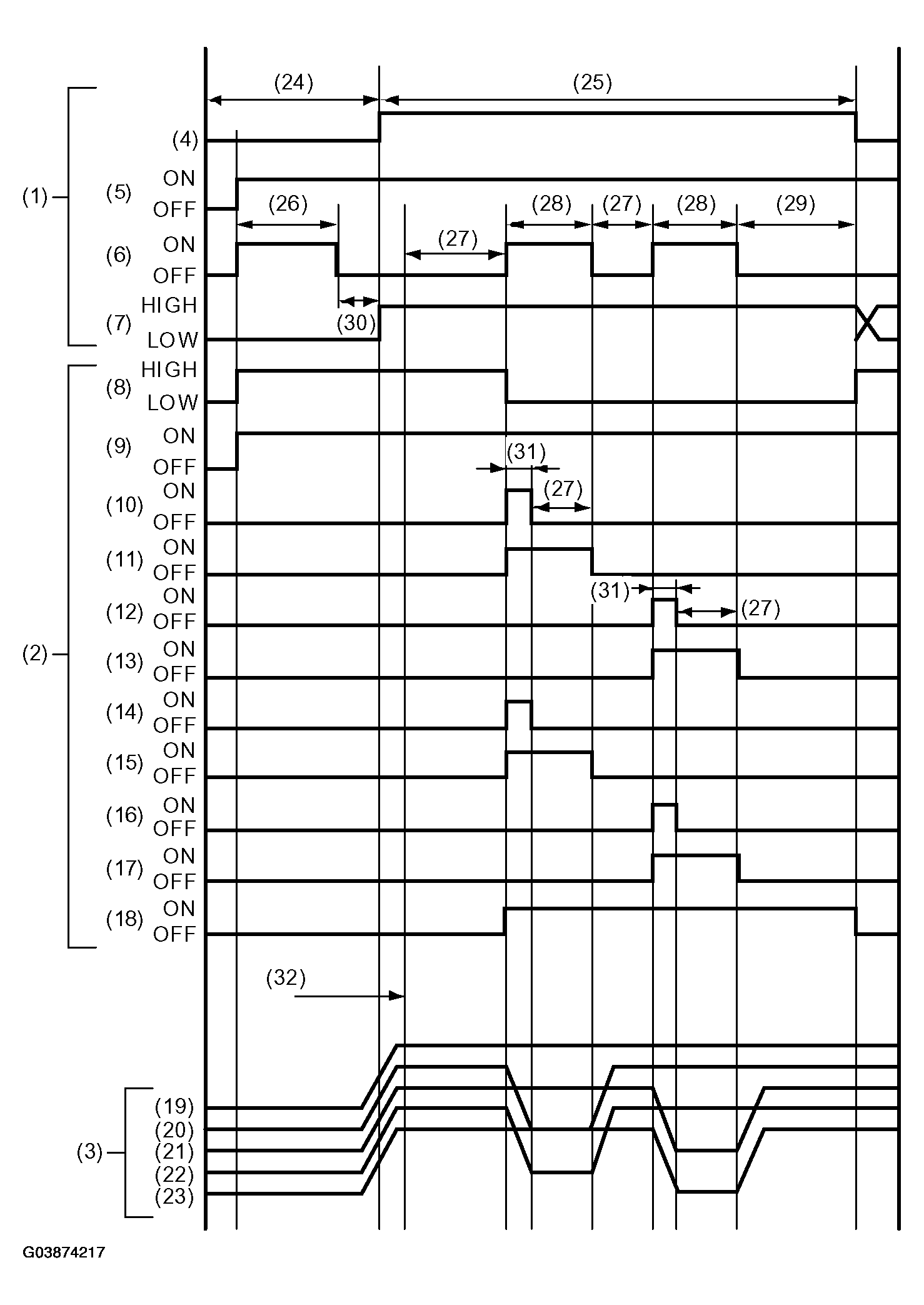

Fig 1: Identifying Conditions ABS Sequence Control
G03874217Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Operational guide line of sequence control
  2. Operational pattern of sequence control
  3. Operational pressure of sequence control
  4. Speed of all wheels
  5. Ignition key switch
  6. ABS warning light
  7. Stop light switch
  8. AT ABS signal
  9. Valve relay
  10. FL outlet valve
  11. FL inlet valve
  12. FR outlet valve
  13. FR inlet valve
  14. RR outlet valve
  15. RR inlet valve
  16. RL outlet valve
  17. RL inlet valve
  18. Pump motor
  19. Pressure of master cylinder
  20. Pressure of FL wheel cylinder
  21. Pressure of FR wheel cylinder
  22. Pressure of RR wheel cylinder
  23. Pressure of RL wheel cylinder
  24. 4 km/h (2 MPH) or less
  25. 10 km/h (6 MPH) or less
  26. 2.0 seconds
  27. 1.0 second
  28. 1.4 seconds
  29. 0.6 seconds
  30. Within 0.5 seconds
  31. 0.4 seconds
  32. Point A
NOTE:
  • When the Vehicle Diagnostic Interface is used, control operation starts at point A. (However, the stop light switch must be ON before point A.)
  • HIGH means high voltage.
  • LOW means low voltage.
