Rearview Mirror: Removal

NOTE: The spring cannot be reused. Prepare a new spring before removal.

Turn the mirror base 90° clockwise or counterclockwise to remove it.

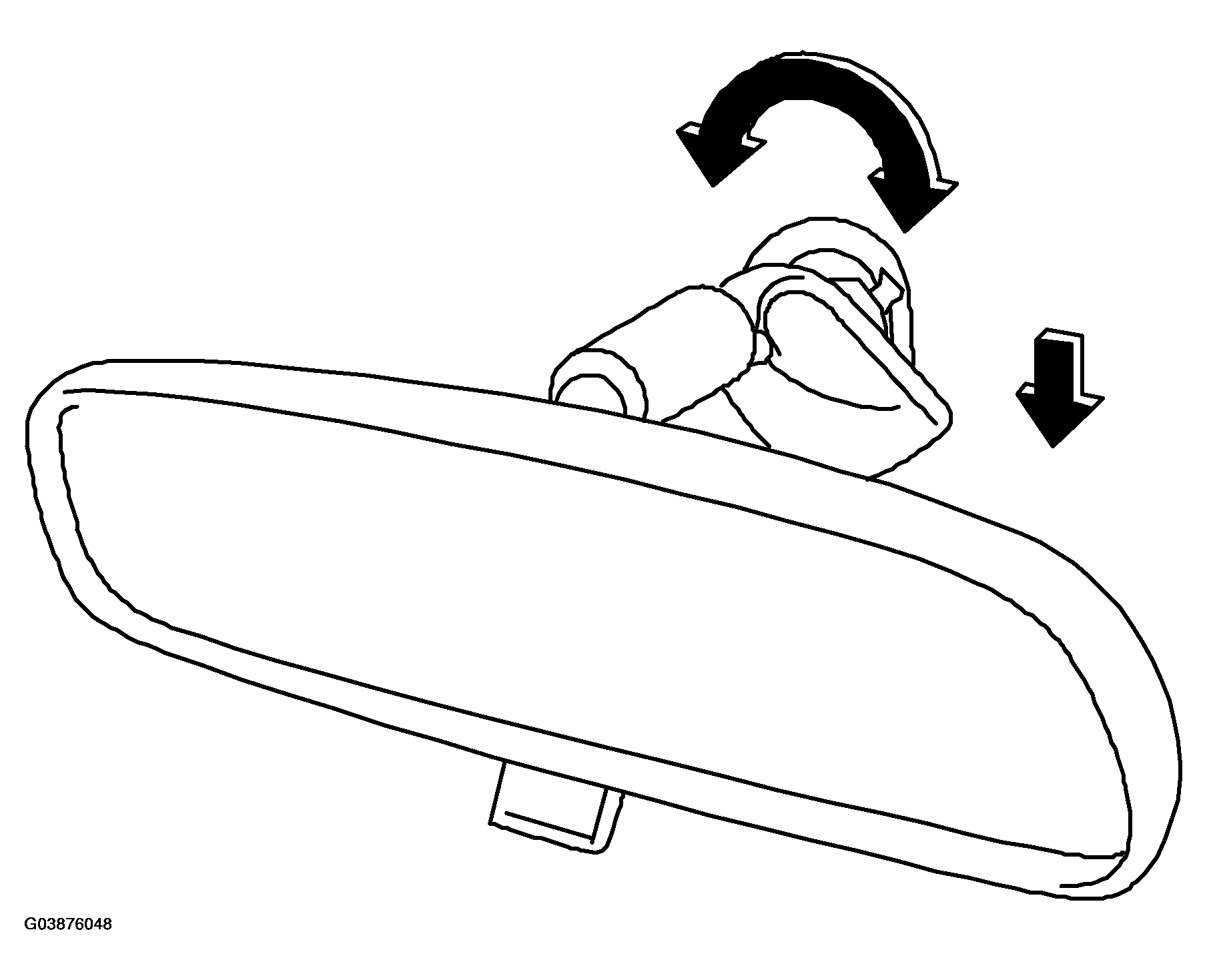

Fig 1: Removing Rearview Mirror

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the spring from mirror base.

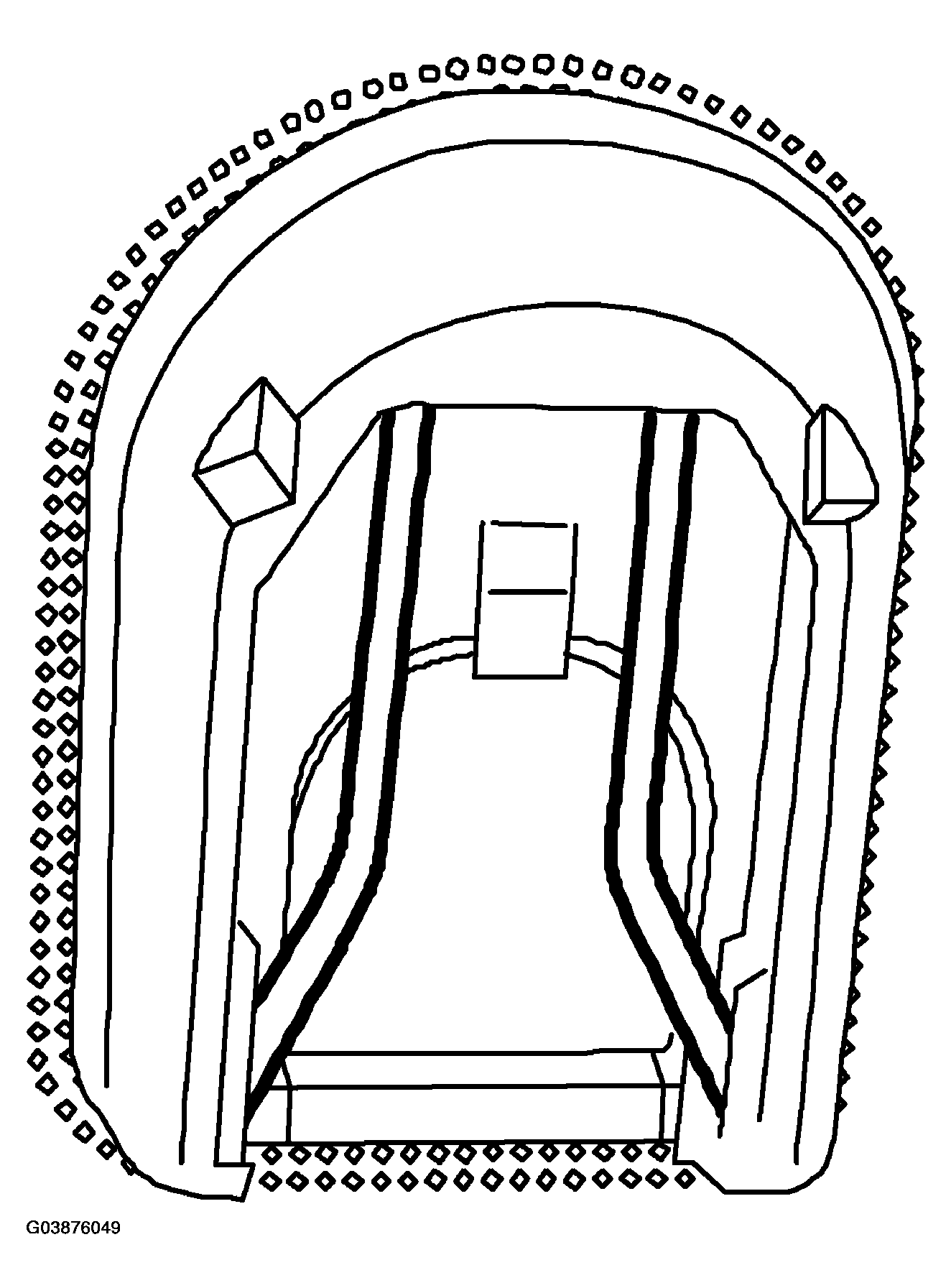

Fig 2: Removing Spring From Mirror Base

Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: Be careful not to damage the mirror surface.

If the mirror base is damaged, remove the mirror base using piano wire or spatula, etc.

IMPORTANT: Be careful not to damage the windshield glass.
