Outer Mirror Assembly: Inspection

Check to ensure that the rearview mirror moves properly when battery voltage is applied to terminals.

• Mirror heater not-equipped model

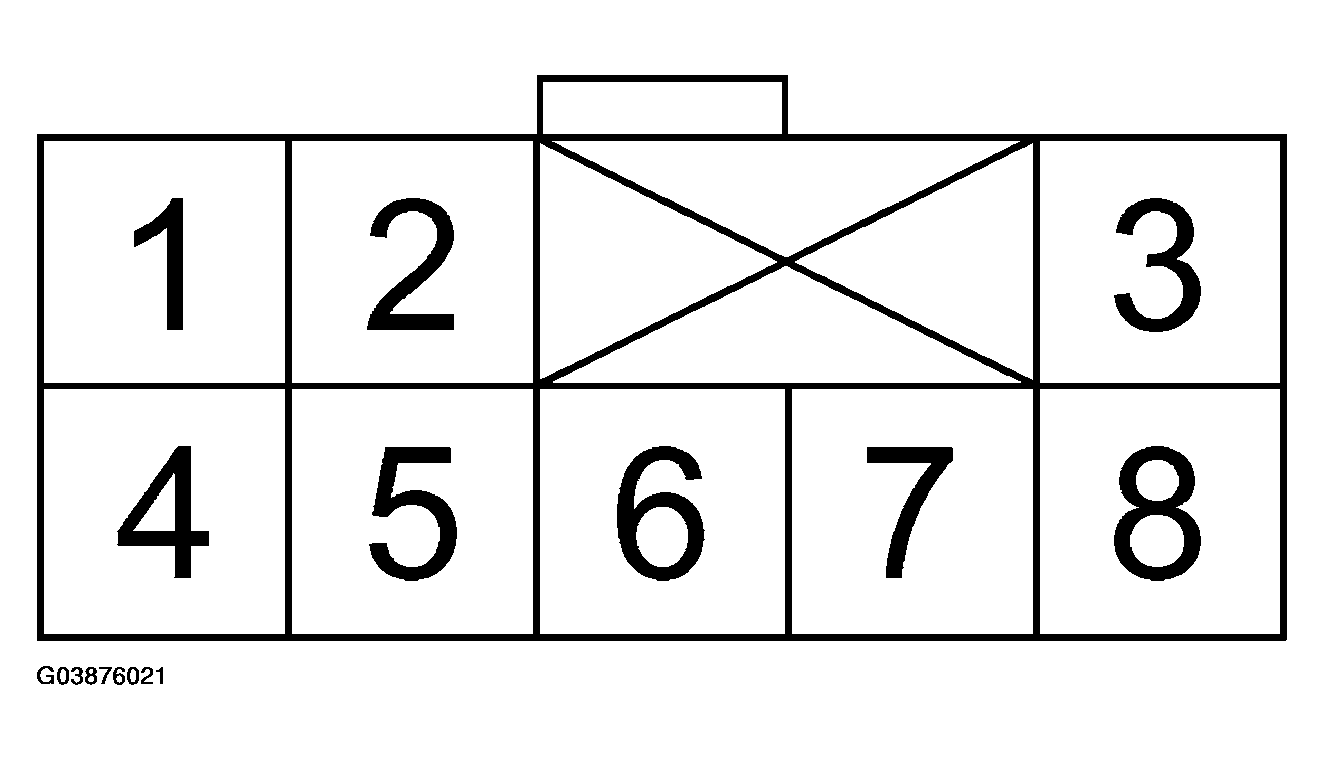

  Fig 1: Identifying Mirror Heater Connector Terminals

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  MIRROR HEATER SWITCH POSITION (MIRROR HEATER NOT EQUIPPED MODEL)



  Switch position	Terminal No.
  OFF	-
  UP	4 (+) and 6 (- )
  DOWN	6 (+) and 4 (- )
  LEFT	5 (+) and 6 (- )
  RIGHT	6 (+) and 5 (- )

  If NG, replace the mirror.

• Mirror heater equipped model
  Fig 2: Identifying Mirror Heater Connector Terminals

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  MIRROR HEATER SWITCH POSITION (MIRROR HEATER EQUIPPED MODEL)



  Switch position	Terminal No.
  OFF	-
  UP	6 (+) and 8 (- )
  DOWN	8 (+) and 6 (- )
  LEFT	7 (+) and 8 (- )
  RIGHT	8 (+) and 7 (- )

  If NG, replace the mirror.
