Front Door Glass

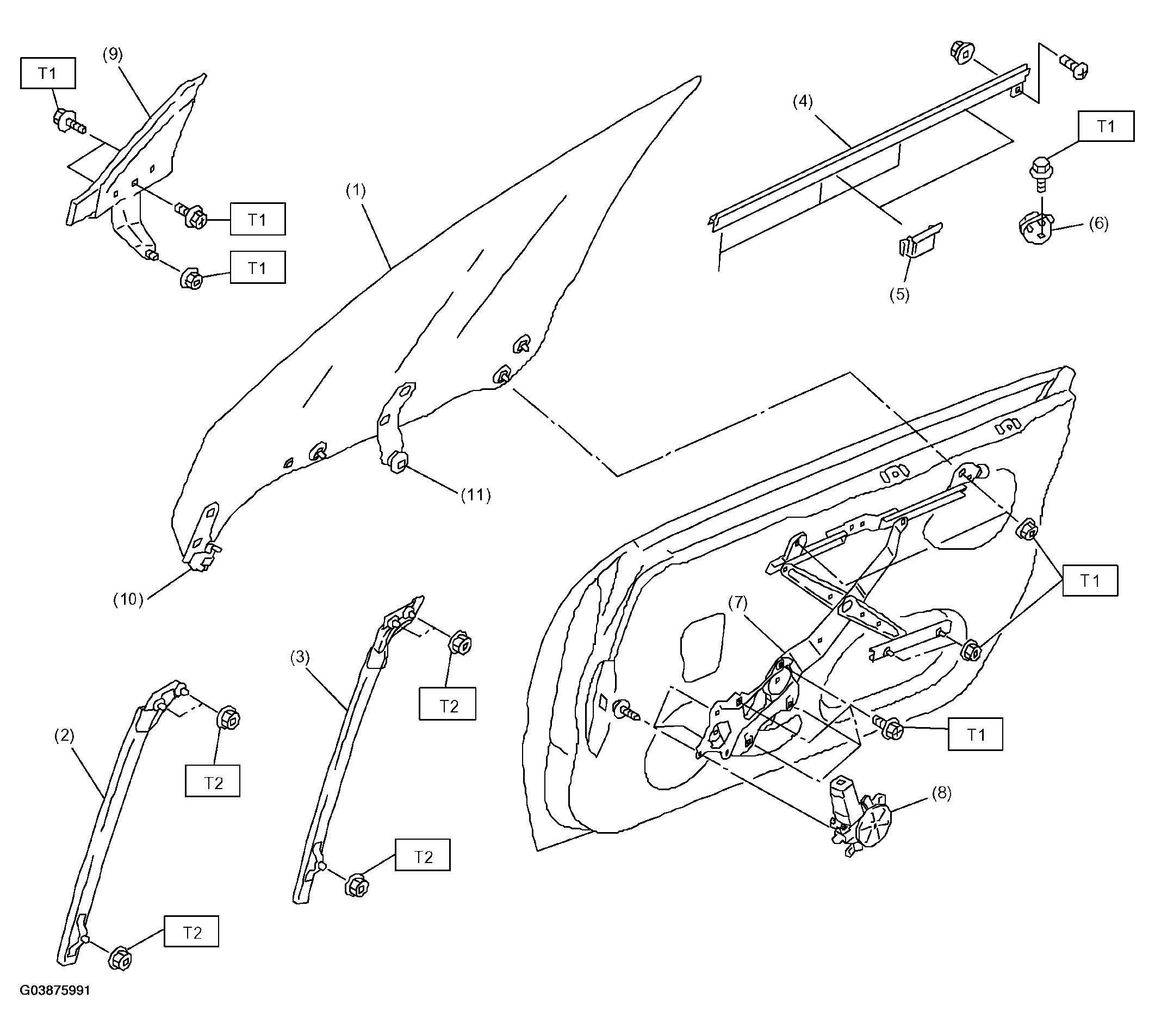

Fig 1: Identifying Front Door Glass Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Glass
2. Door sash (Front)
3. Door sash (Rear)
4. Weather strip
5. Stabilizer (Outer)
6. Stabilizer (Inner)
7. Regulator ASSY
8. Motor ASSY
9. Mirror gusset
10. Slider
11. Roller

Tightening torque: Nm (kgf-m, ft-lb)

T1: 7.4 (0.75, 5.5)

T2: 13.7 (1.4, 10.1)
