Front Regulator And Motor Assembly: Removal

Remove the door glass.

Loosen the nuts to remove the rear sash.

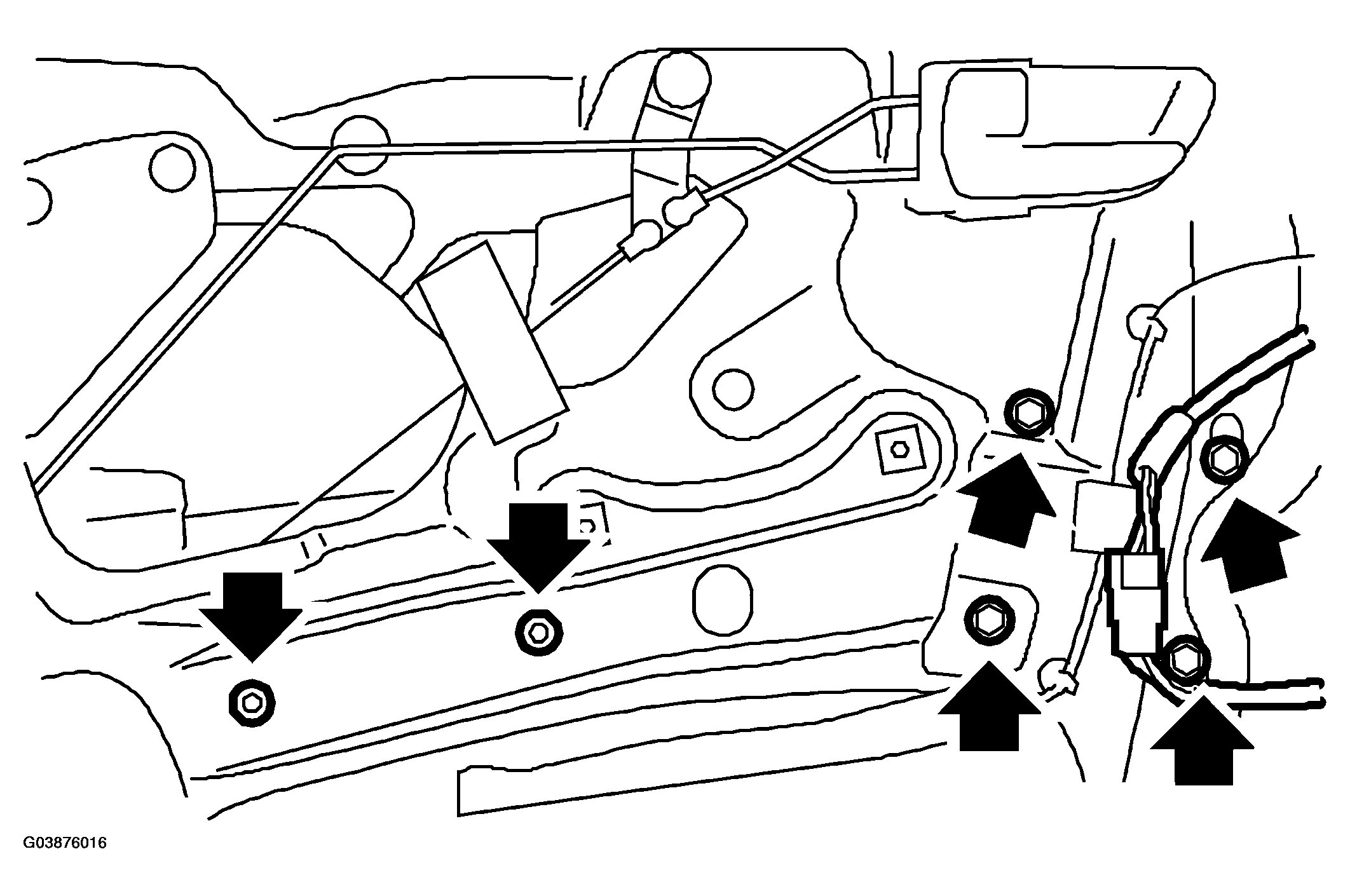

Fig 1: Removing Rear Sash

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the motor connector.

Loosen the four bolts and two nuts to remove the regulator assembly.

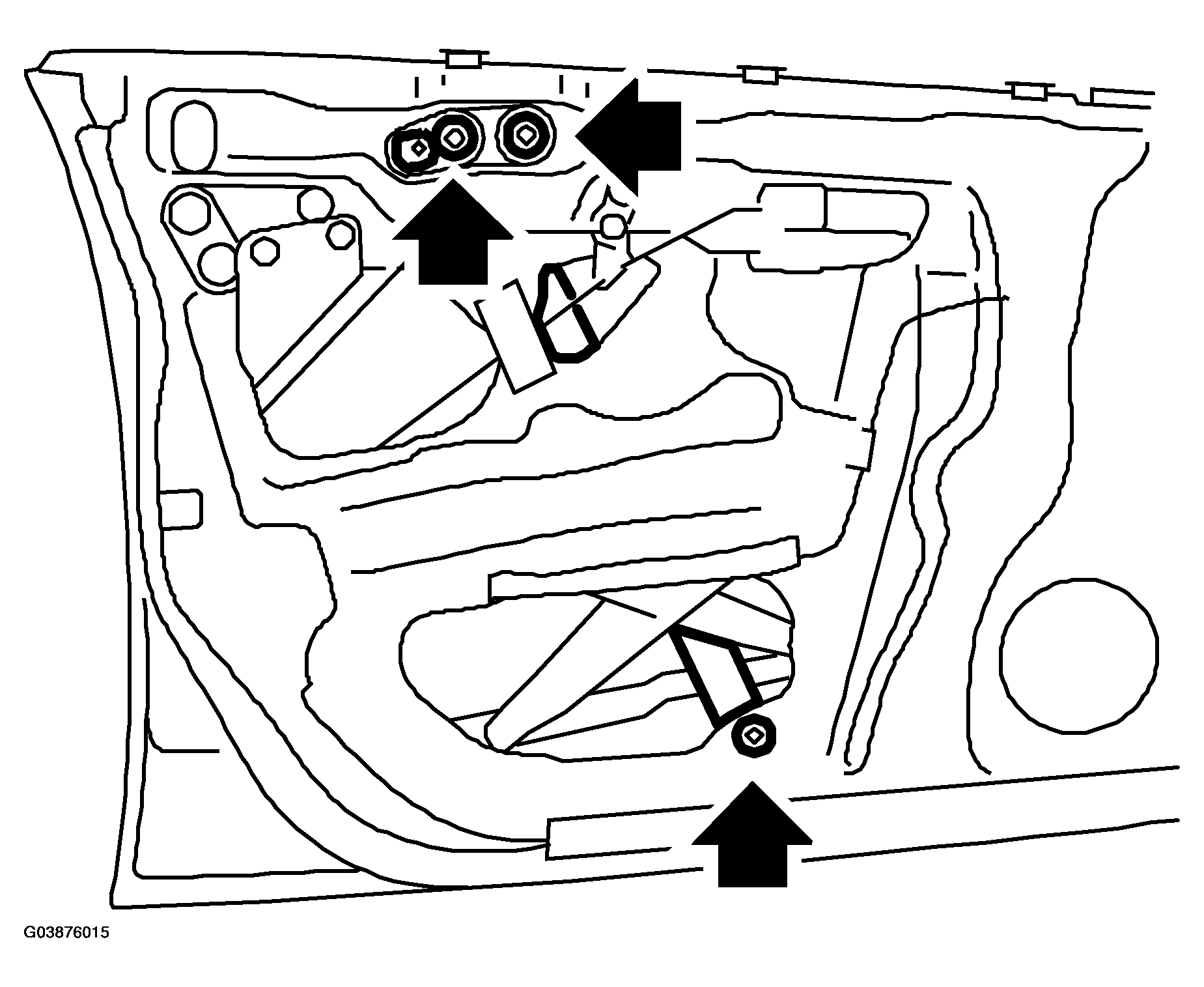

Fig 2: Removing Regulator Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Loosen the screw to remove motor assembly.

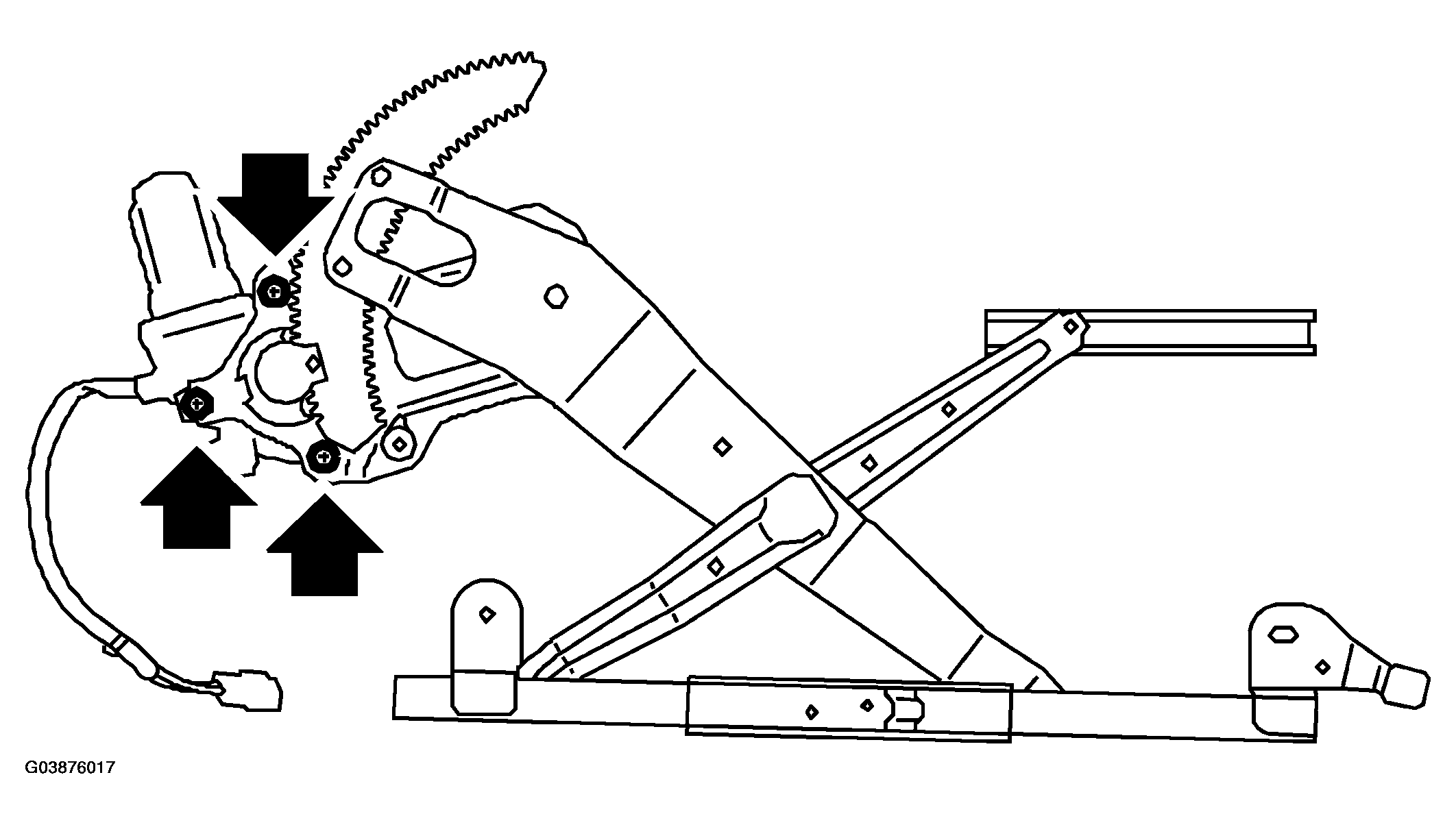

Fig 3: Removing Motor Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.
