Front Bumper: Removal

Disconnect the ground cable from battery.

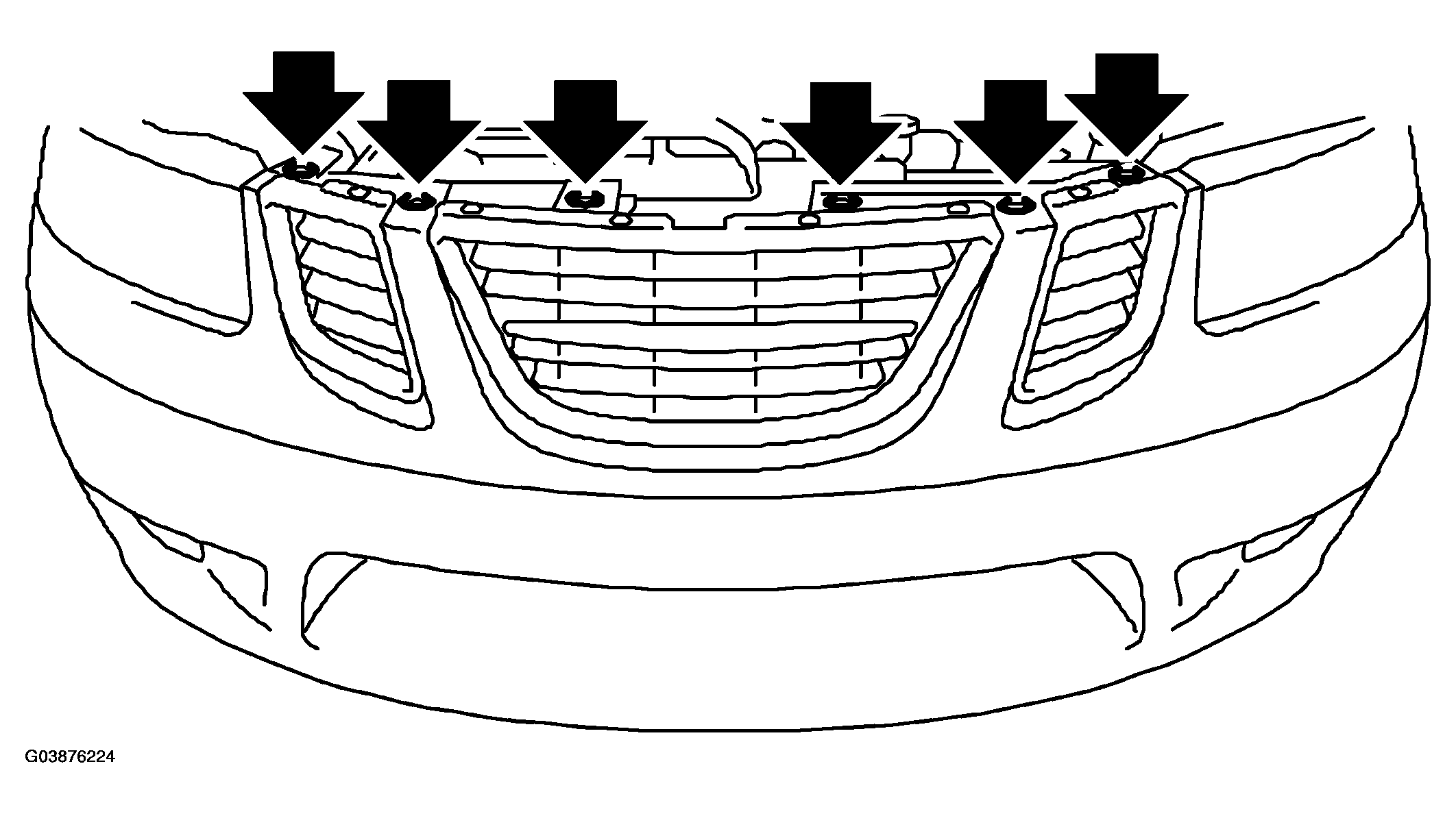

Remove the six clips on the upper part of bumper.

Fig 1: Removing Clips On Upper Part Of Bumper

Courtesy of SAAB-SCANIA OF AMERICA, INC.

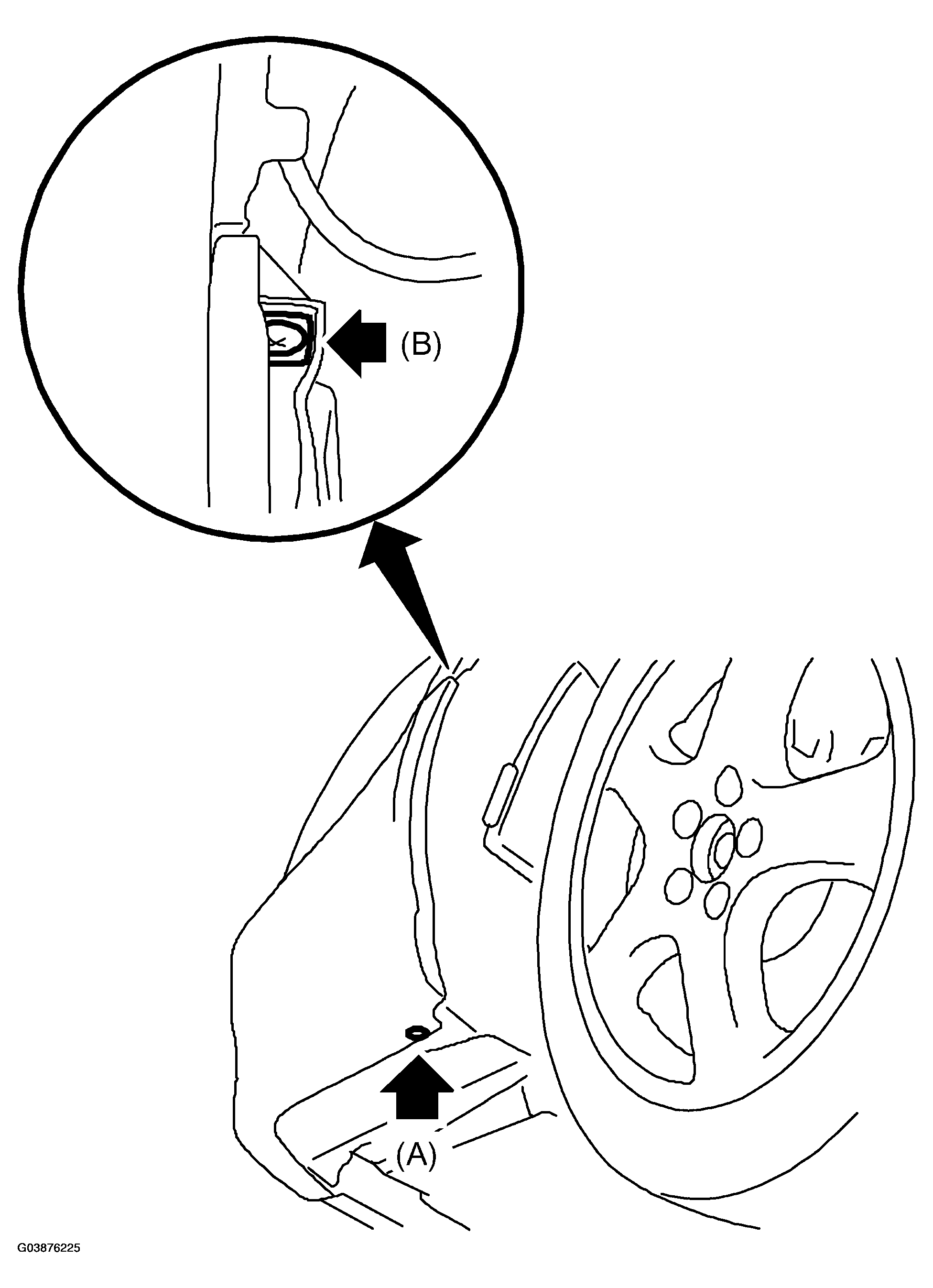

Turn over the mud guard, and then remove the clips (A) and screw (B), which clip the front bumper to fender.

Fig 2: Removing Clips And Screw

Courtesy of SAAB-SCANIA OF AMERICA, INC.

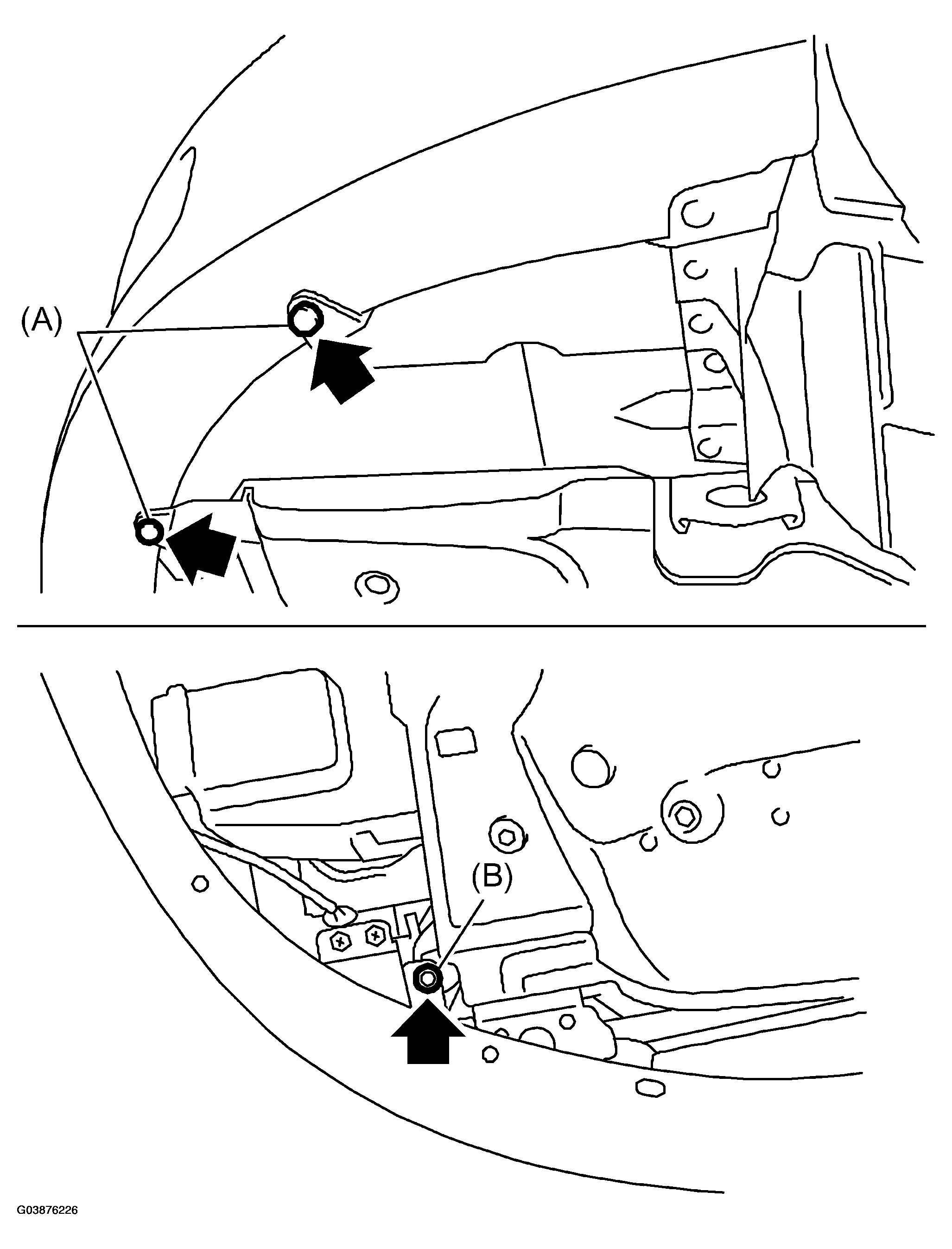

Remove the two clips (A), turn over the mud guard, and then remove the clip (B). (Conduct the same procedure on the right side.)

Fig 3: Removing Clips

Courtesy of SAAB-SCANIA OF AMERICA, INC.

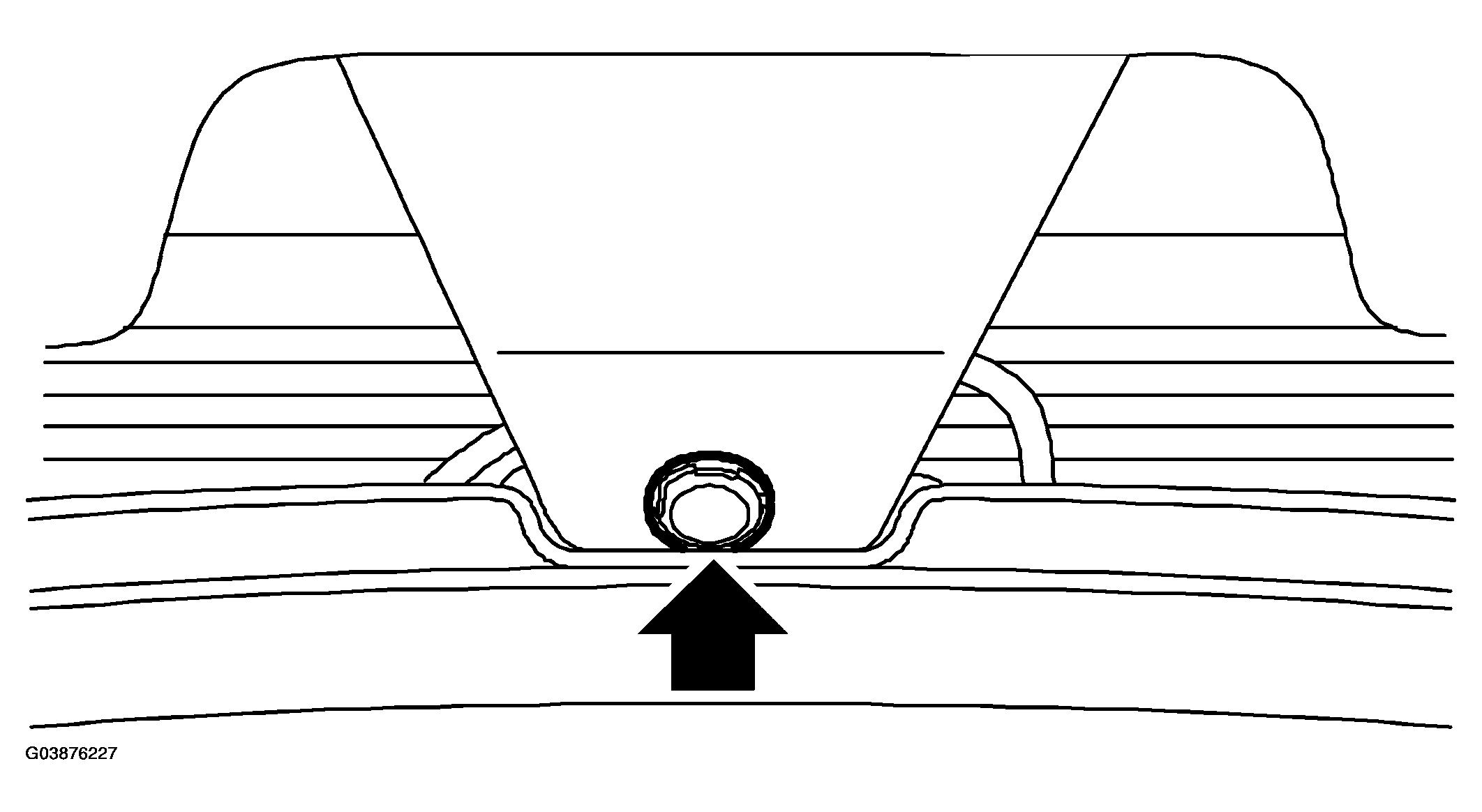

Remove the clip in the center part of bumper.

Fig 4: Removing Clip In Center Part Of Bumper

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the fog light connector.

Remove the bumper from body.

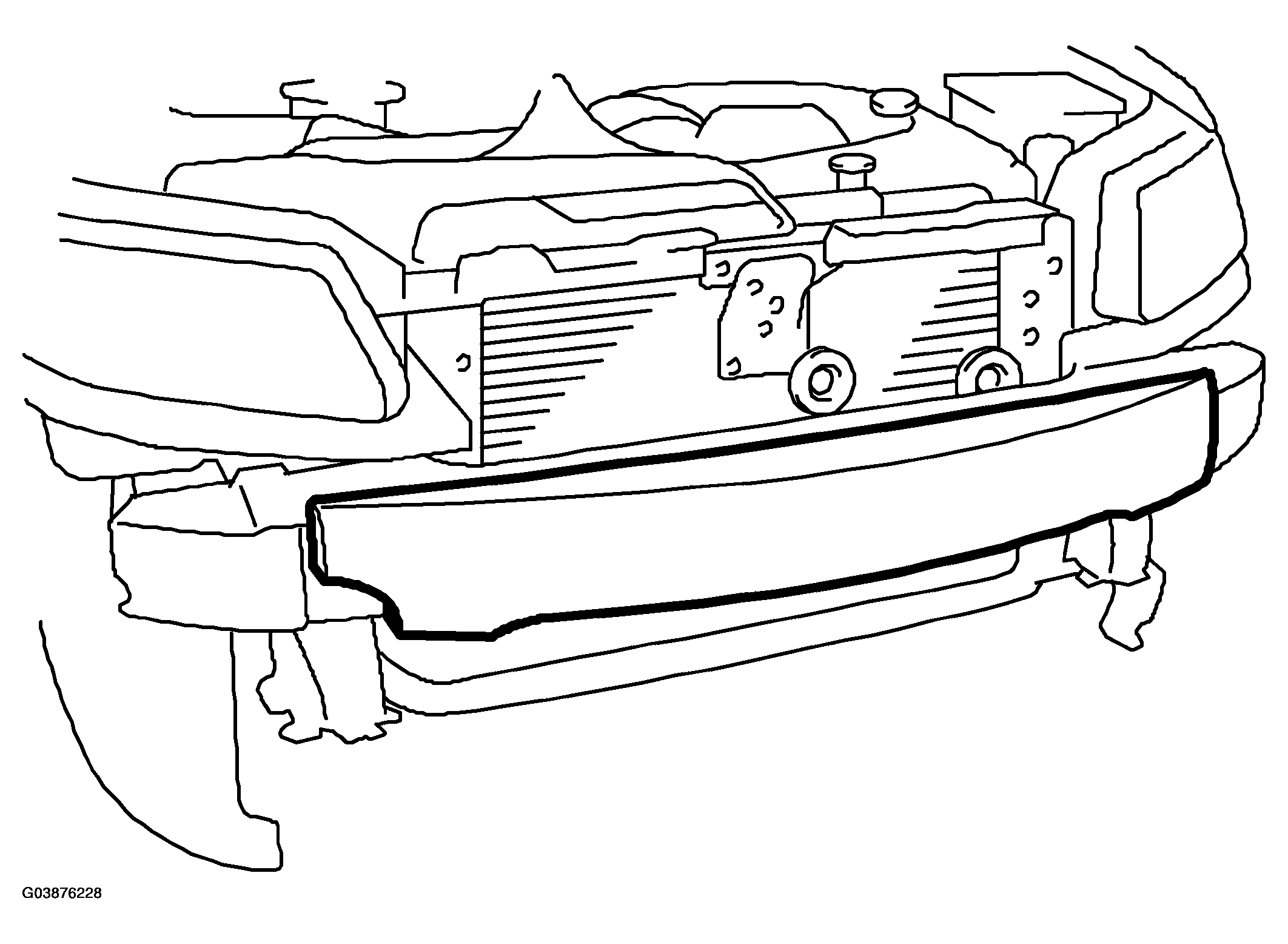

Remove the energy absorber foam from front bumper beam.

Fig 5: Removing Energy Absorber Foam From Front Bumper Beam

Courtesy of SAAB-SCANIA OF AMERICA, INC.

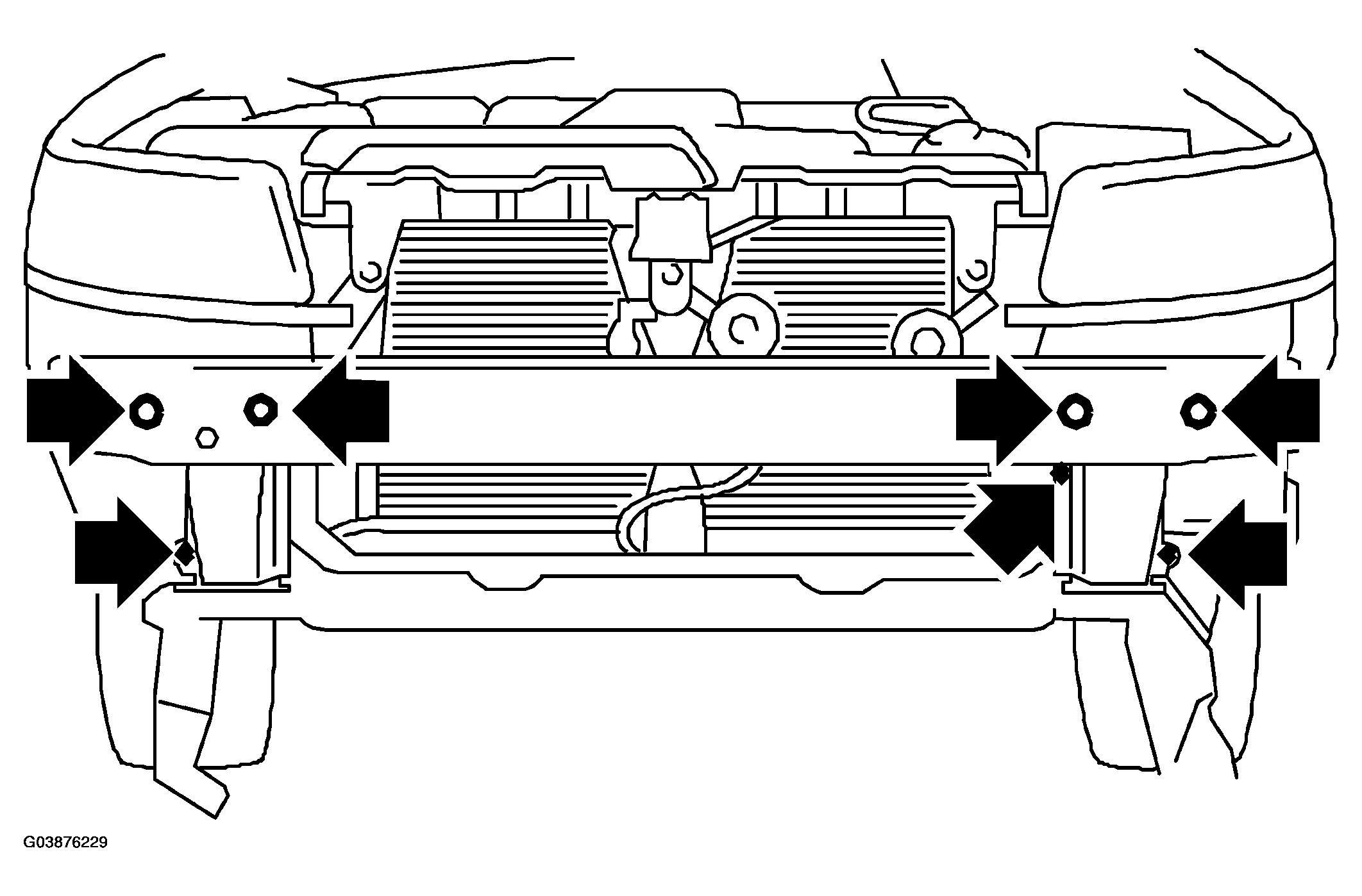

Loosen the bolt and nut, and then remove the bumper beam from body.

Fig 6: Loosening Bolt And Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.
