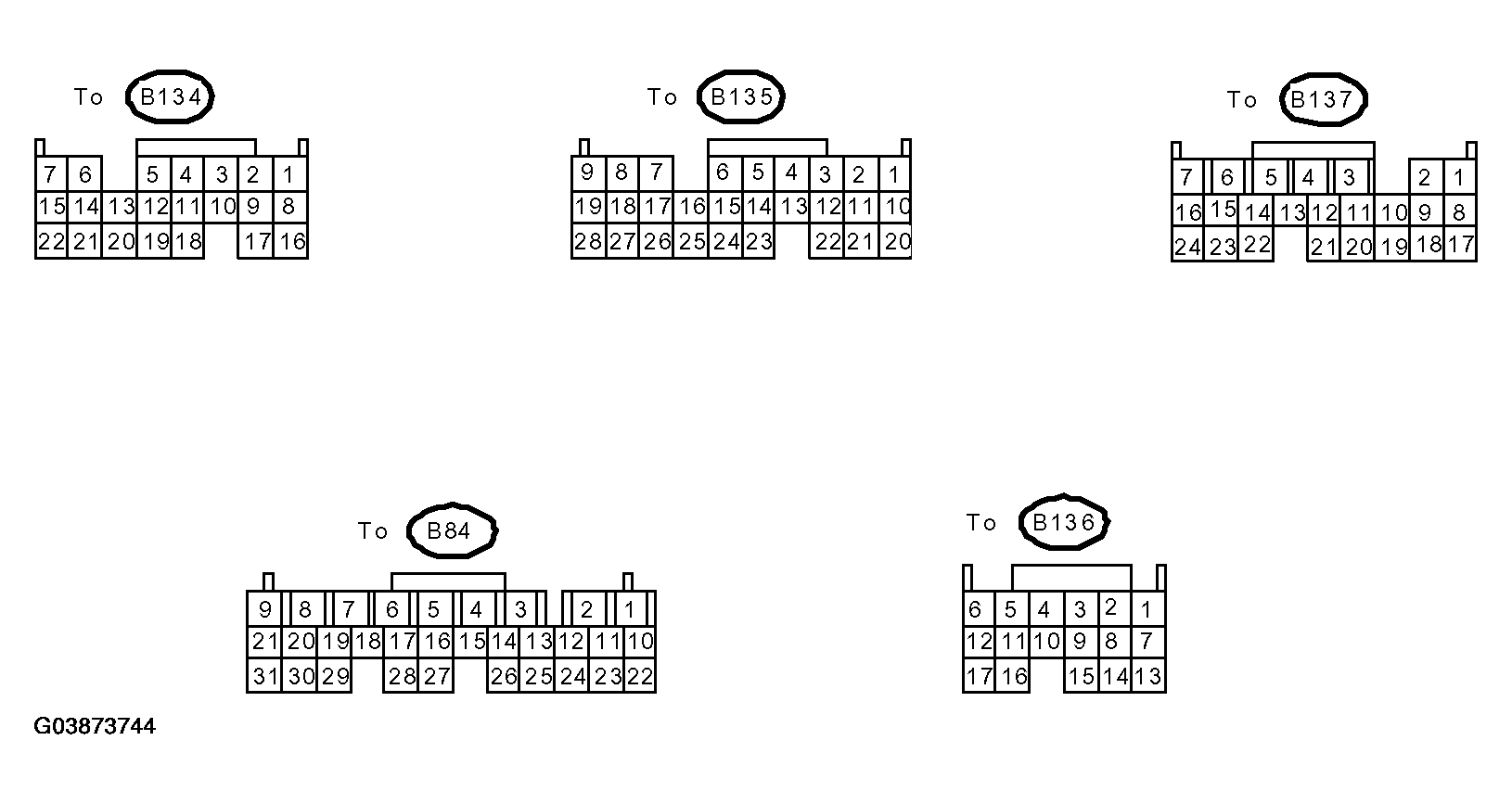

ENGINE CONTROL MODULE ELECTRICAL SPECIFICATION
| Content | Connector No. | Terminal No. | Signal (V) | Note | ||
|---|---|---|---|---|---|---|
| Ignition SW ON (Engine OFF) | Engine ON (Idling) | |||||
| Crankshaft position sensor | Signal (+) | B135 | 2 | 0 | - 7 - +7 | Sensor output waveform |
| Signal (- ) | B135 | 11 | 0 | 0 | - | |
| Shield | B135 | 21 | 0 | 0 | - | |
| Camshaft position sensor | Signal (+) | B135 | 1 | 0 | - 7 - +7 | Sensor output waveform |
| Signal (- ) | B135 | 10 | 0 | 0 | - | |
| Shield | B135 | 21 | 0 | 0 | - | |
| Throttle position sensor | Signal | B135 | 7 | Fully closed: 0.2 - 1.0 Fully opened: 4.2 - 4.7 |
- | |
| Power supply | B135 | 9 | 5 | 5 | - | |
| GND (sensor) | B135 | 19 | 0 | 0 | - | |
| Rear oxygen sensor | Signal | B135 | 17 | 0 | 0 - 0.9 | - |
| Shield | B135 | 26 | 0 | 0 | - | |
| GND (sensor) | B135 | 19 | 0 | 0 | - | |
| Front oxygen (A/F) sensor heater | Signal 1 | B84 | 5 | 0 - 1.0 | - | Waveform |
| Signal 2 | B84 | 4 | 0 - 1.0 | - | Waveform | |
| Rear oxygen sensor heater signal | B137 | 13 | 0 - 1.0 | - | Waveform | |
| Engine coolant temperature sensor | Signal | B135 | 18 | 1.0 - 1.4 | 1.0 - 1.4 | After warm-up the engine. |
| GND (sensor) | B135 | 19 | 0 | 0 | After warm-up the engine. | |
| Vehicle speed signal | B134 | 1 | 0 or 5 | 0 or 5 | "5" and "0" are repeatedly displayed when vehicle is driven. | |
| Mass air flow sensor | Signal | B136 | 13 | - | 0.3 - 4.5 | - |
| Shield | B136 | 8 | 0 | 0 | - | |
| GND | B136 | 7 | 0 | 0 | - | |
| Intake air temperature sensor signal | B135 | 27 | 0.3 - 4.6 | 0.3 - 4.6 | - | |
| Exhaust temperature sensor | Signal | B135 | 16 | - | 2.7 - 2.8 (750°C) | - |
| GND (sensor) | B135 | 19 | 0 | 0 | - | |
| Tumble generator valve position sensor RH | Signal | B135 | 23 | Fully closed: 3.8 - 4.9 Fully opened: 0.2 - 0.9 |
- | |
| Power supply | B135 | 9 | 5 | 5 | - | |
| GND (sensor) | B135 | 19 | 0 | 0 | - | |
| Tumble generator valve position sensor LH | Signal | B135 | 13 | Fully closed: 3.8 - 4.9 Fully opened: 0.2 - 0.9 |
- | |
| Power supply | B135 | 9 | 5 | 5 | - | |
| GND (sensor) | B135 | 19 | 0 | 0 | - | |
| Tumble generator valve RH (open) | B136 | 4 | 0 or 10 - 13 | 0 or 13 - 14 | Waveform | |
| Tumble generator valve RH (close) | B136 | 5 | 0 or 10 - 13 | 0 or 13 - 14 | Waveform | |
| Tumble generator valve LH (open) | B136 | 10 | 0 or 10 - 13 | 0 or 13 - 14 | Waveform | |
| Tumble generator valve LH (close) | B136 | 11 | 0 or 10 - 13 | 0 or 13 - 14 | Waveform | |
| Wastegate control solenoid valve | B84 | 24 | 0 or 10 - 13 | 0 or 13 - 14 | Waveform | |
| Starter switch | B134 | 16 | 0 | 0 | Cranking: 8 - 14 | |
| A/C switch | B134 | 2 | ON: 10 - 13 OFF: 0 |
ON: 13 - 14 OFF: 0 |
- | |
| Ignition switch | B134 | 5 | 10 - 13 | 13 - 14 | - | |
| Neutral position switch (MT model) | B134 | 8 | ON: 10 - 13 OFF: 0 |
ON: 13 - 14 OFF: 0 |
- | |
| Neutral position switch (AT model) | B134 | 8 | ON: 0 OFF: 10 - 13 |
ON: 0 OFF: 13 - 14 |
- | |
| Test mode connector | B134 | 14 | 5 | 5 | When connected: 0 | |
| Knock sensor | Signal | B135 | 4 | 2.8 | 2.8 | - |
| Shield | B135 | 22 | 0 | 0 | - | |
| Back-up power supply | B84 | 10 | 10 - 13 | 13 - 14 | Ignition switch "OFF": 10 - 13 | |
| Control unit power supply | B84 | 2 | 10 - 13 | 13 - 14 | - | |
| B84 | 3 | 10 - 13 | 13 - 14 | - | ||
| Sensor power supply | B135 | 9 | 5 | 5 | - | |
| Ignition control | #1 | B137 | 24 | 0 | 13 - 14 | Waveform |
| #2 | B137 | 23 | 0 | 13 - 14 | Waveform | |
| #3 | B137 | 22 | 0 | 13 - 14 | Waveform | |
| #4 | B137 | 21 | 0 | 13 - 14 | Waveform | |
| Fuel injector | #1 | B84 | 1 | 10 - 13 | 1 - 14 | Waveform |
| #2 | B137 | 6 | 10 - 13 | 1 - 14 | Waveform | |
| #3 | B137 | 5 | 10 - 13 | 1 - 14 | Waveform | |
| #4 | B137 | 4 | 10 - 13 | 1 - 14 | Waveform | |
| Idle air control solenoid valve | Signal | B137 | 10 | 0 or 13 - 14 | 0 or 13 - 14 | Waveform |
| Fuel pump control unit | Signal 1 | B134 | 13 | 0 or 5 | 0 or 5 | - |
| Signal 2 | B137 | 15 | 10 - 13 | 10 - 13 | - | |
| A/C relay control | B84 | 27 | ON: 0.5 or less OFF: 10 - 13 |
ON: 0.5 or less OFF: 13 - 14 |
- | |
| Radiator fan relay 1 control | B84 | 17 | ON: 0.5 or less OFF: 10 -13 |
ON: 0.5 or less OFF: 13 -14 |
- | |
| Radiator fan relay 2 control | B84 | 28 | ON: 0.5 or less OFF: 10 - 13 |
ON: 0.5 or less OFF: 13 - 14 |
Model with A/C only | |
| Malfunction indicator light | B84 | 15 | - | - | Light "ON": 1 or less Light "OFF": 10 - 14 |
|
| Engine speed output | B137 | 9 | - | 0 - 13, or more | Waveform | |
| Purge control solenoid valve | B84 | 16 | ON: 1 or less OFF: 10 - 13 |
ON: 1 or less OFF: 13 - 14 |
Waveform | |
| Manifold absolute pressure sensor | Signal | B135 | 8 | 1.7 - 2.4 | 1.1 - 1.6 | - |
| Power supply | B135 | 9 | 5 | 5 | ||
| GND (sensor) | B135 | 19 | 0 | 0 | ||
| Fuel tank pressure sensor | Signal | B135 | 15 | 2.3 - 2.7 | 2.3 - 2.7 | The valve operates when fuel filler cap is removed and reinstalled. |
| GND (sensor) | B135 | 19 | 0 | 0 | - | |
| Fuel tank pressure control solenoid valve | B84 | 22 | ON: 1 or less OFF: 10 - 13 |
ON: 1 or less OFF: 13 - 14 |
- | |
| Drain valve | B84 | 11 | ON: 1 or less OFF: 10 - 13 |
ON: 1 or less OFF: 13 -14 |
- | |
| Fuel tank sensor control valve | B84 | 23 | ON: 1 or less OFF: 10 - 13 |
ON: 1 or less OFF: 13 - 14 |
- | |
| Fuel level sensor | B135 | 25 | 0.12 - 4.75 | 0.12 - 4.75 | - | |
| Fuel temperature sensor signal | B135 | 6 | 2.5 - 3.8 | 2.5 - 3.8 | Ambient temperature: 25°C (75°F) | |
| Blow-by leak diagnosis signal | B137 | 2 | 0 | 0 | When disconnection (malfunction) = 5 | |
| Small light switch | B134 | 17 | ON: 0 OFF: 10 - 13 |
ON: 0 OFF: 13 - 14 |
- | |
| Blower fan switch | B134 | 9 | ON: 0 OFF: 10 - 13 |
ON: 0 OFF: 13 -14 |
- | |
| Rear defogger switch | B134 | 3 | ON: 0 OFF: 10 - 13 |
ON: 0 OFF: 13 - 14 |
- | |
| Power steering oil pressure switch | B135 | 24 | 10 - 13 | ON: 0 OFF: 13 - 14 |
- | |
| Front oxygen (A/F) sensor signal (+) | B84 | 29 | 2.8 - 3.2 | 2.8 - 3.2 | - | |
| Front oxygen (A/F) sensor signal (- ) | B84 | 19 | 2.4 - 2.7 | 2.4 - 2.7 | - | |
| Front oxygen (A/F) sensor shield | B84 | 18 | 0 | 0 | - | |
| Vehicle Diagnostic Interface/GST communication line | B134 | 21 | Less than 1 ? ? More than 4 | Less than 1 ? ? More than 4 | - | |
| Torque control 1 signal | B134 | 19 | More than 4 | More than 4 | - | |
| Torque control 2 signal | B134 | 18 | More than 4 | More than 4 | - | |
| Torque control cut signal | B137 | 14 | 8 | 8 | - | |
| AT diagnosis input signal | B135 | 20 | Less than 1 ? ? More than 4 | Less than 1 ? ? More than 4 | Waveform | |
| AT load signal | B135 | 28 | 4.3 - 4.4 | 0.9 - 1.4 | - | |
| GND (sensors) | B135 | 19 | 0 | 0 | - | |
| GND (injectors) | B137 | 8 | 0 | 0 | - | |
| GND (ignition system) | B137 | 18 | 0 | 0 | - | |
| GND (power supply) | B137 | 17 | 0 | 0 | - | |
| B134 | 22 | 0 | 0 | - | ||
| GND (control systems) | B134 | 7 | 0 | 0 | - | |
| B134 | 15 | 0 | 0 | - | ||
| GND (front oxygen (A/F) sensor heater 1) | B84 | 9 | 0 | 0 | - | |
| GND (front oxygen (A/F) sensor heater 2) | B84 | 8 | 0 | 0 | - | |
