Engine (Diagnostics) - 2.0L: Electrical Component Location: Engine: Sensor

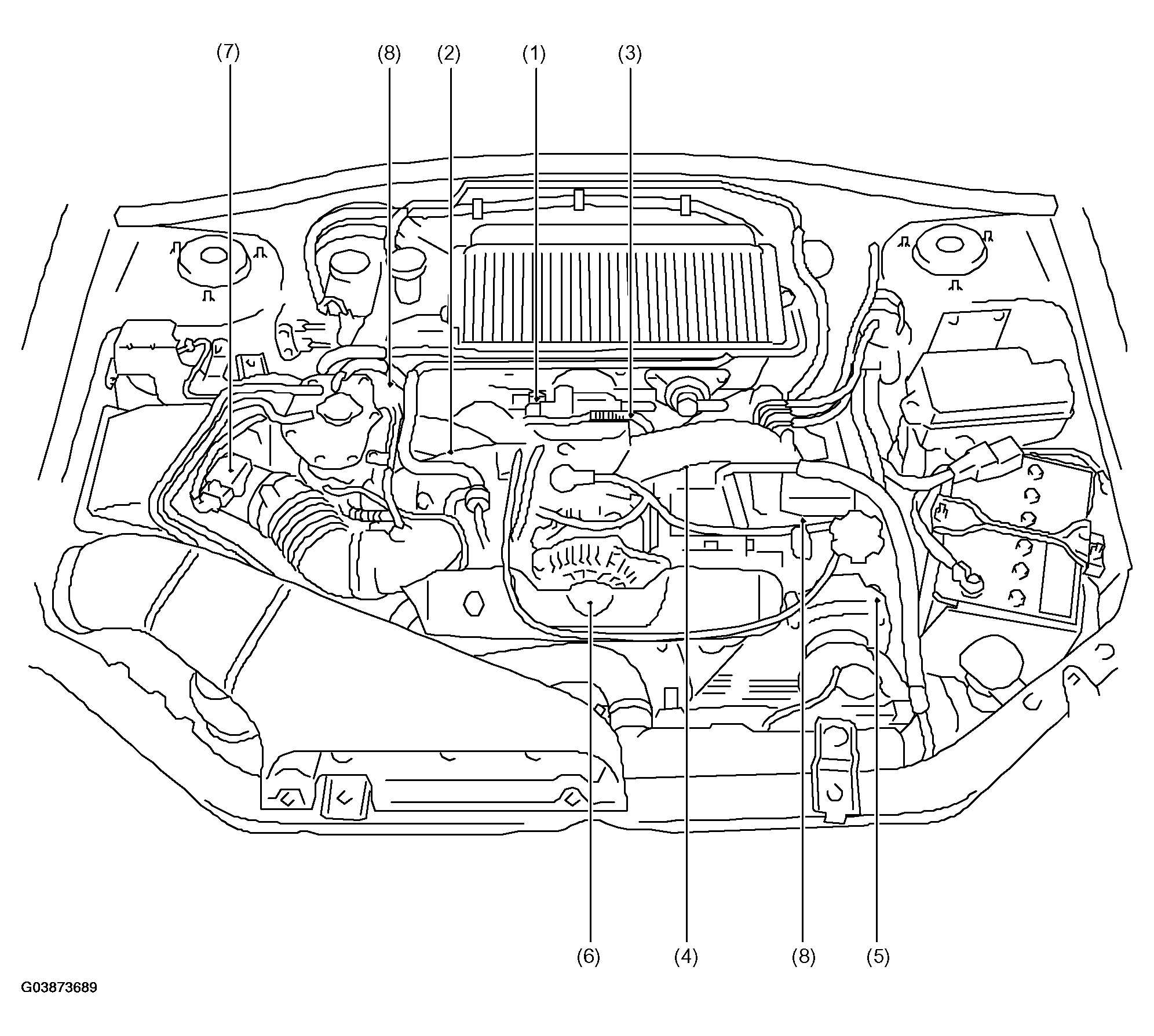

Fig 1: Locating Engine Sensors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Manifold absolute pressure sensor
2. Engine coolant temperature sensor
3. Throttle position sensor
4. Knock sensor
5. Camshaft position sensor
6. Crankshaft position sensor
7. Mass air flow and intake air temperature sensor
8. Tumble generator valve position sensor

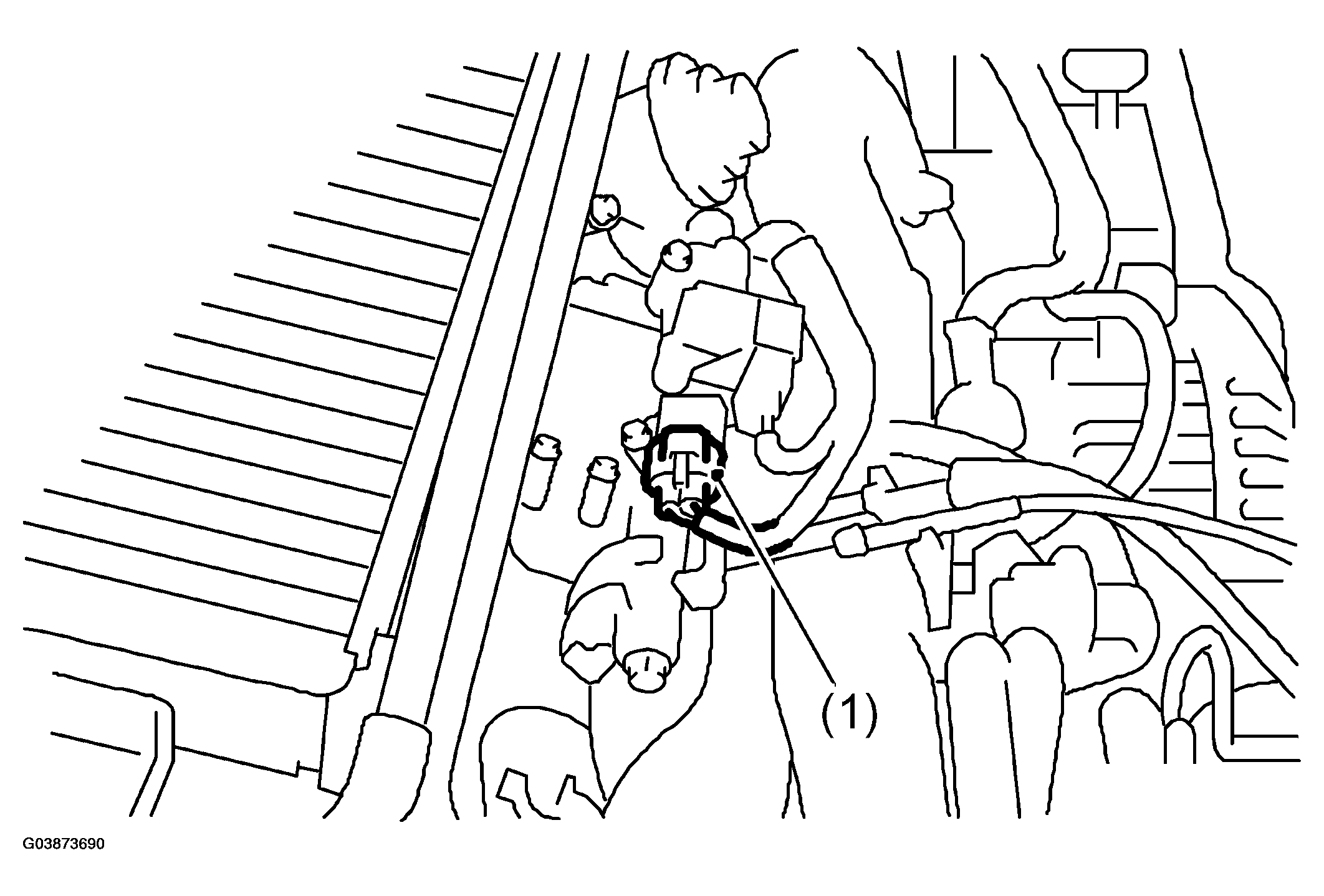

   Fig 2: Identifying Manifold Absolute Pressure Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

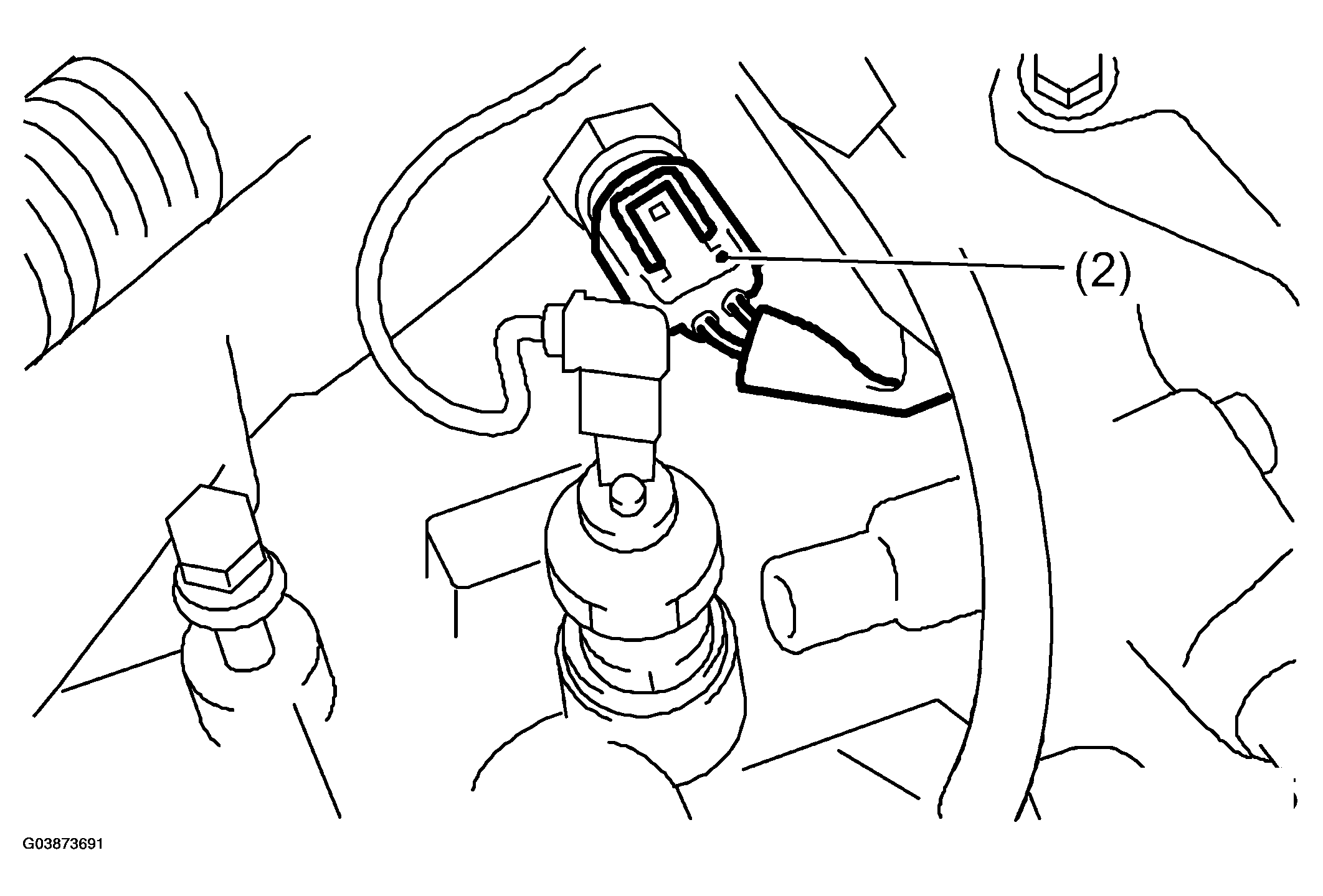

   Fig 3: Identifying Engine Coolant Temperature Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

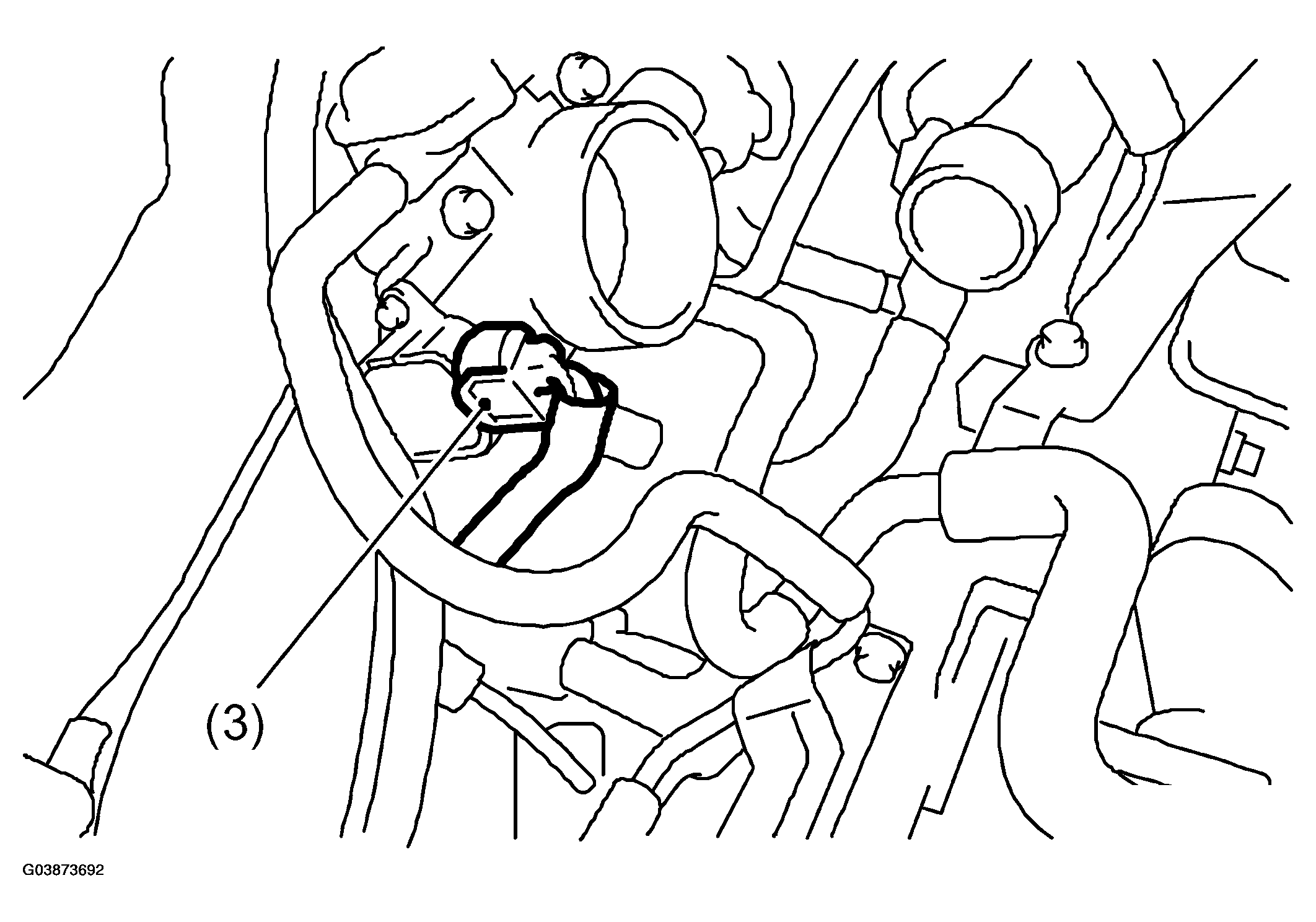

   Fig 4: Identifying Throttle Position Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

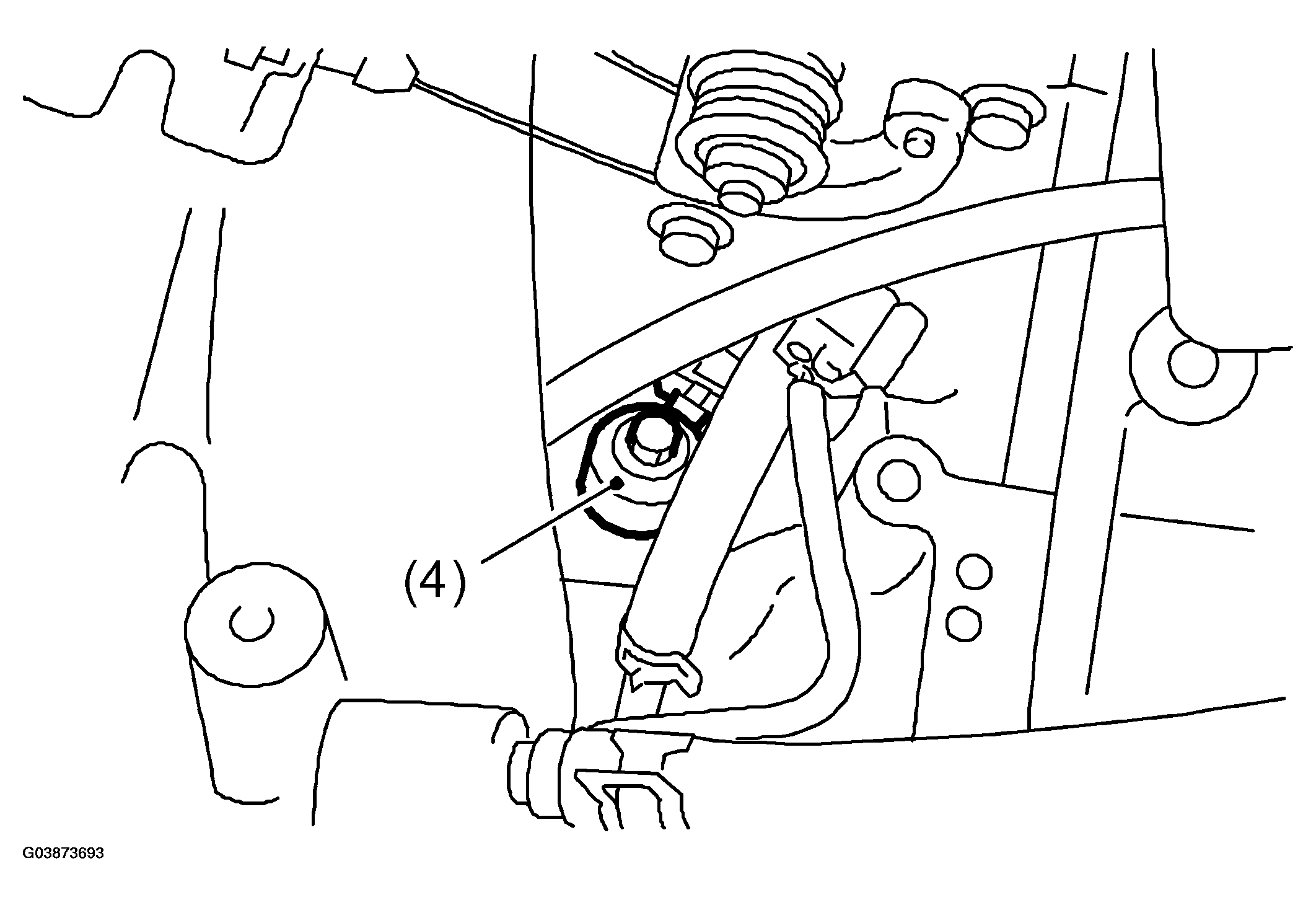

   Fig 5: Identifying Knock Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

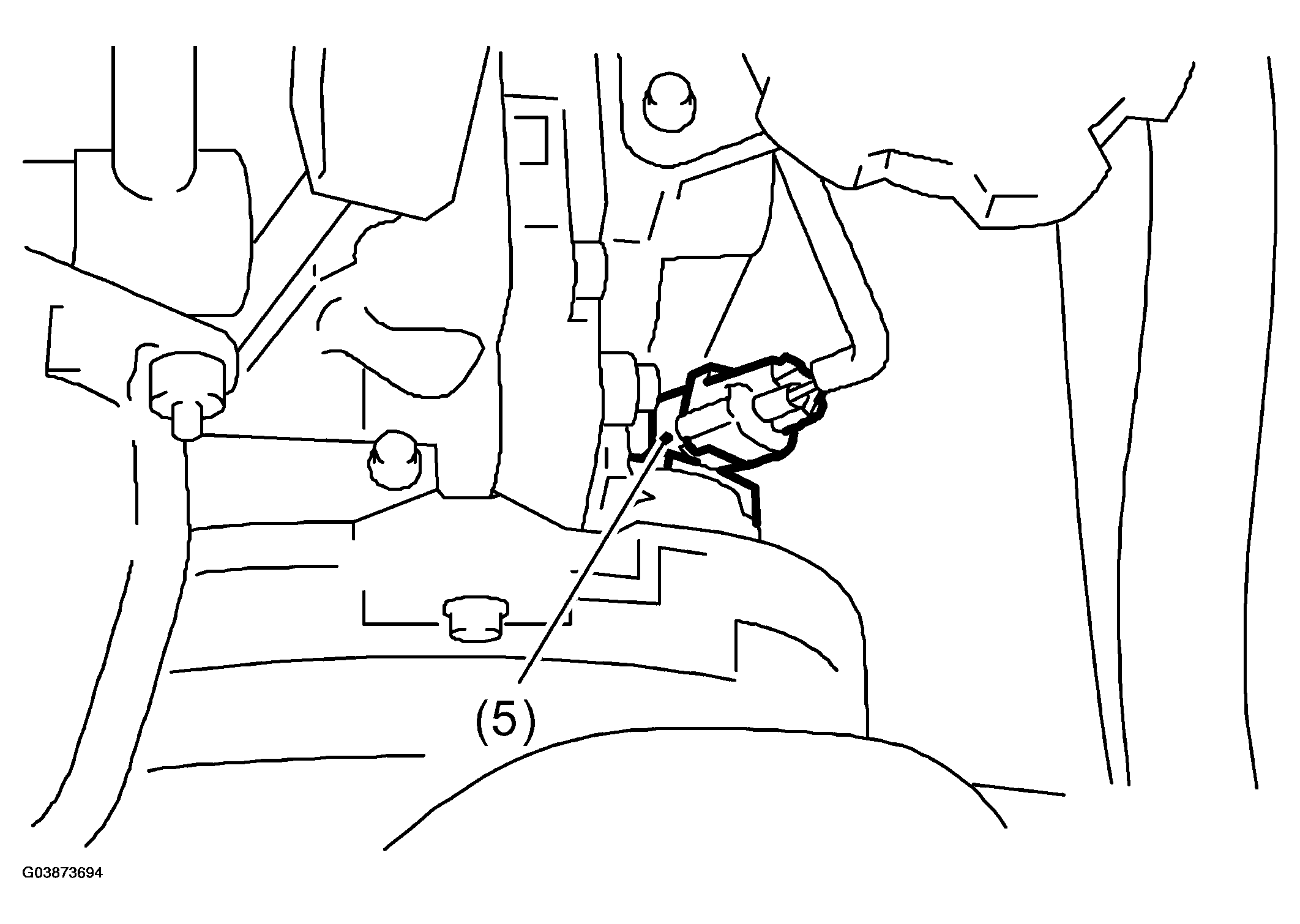

   Fig 6: Identifying Camshaft Position Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

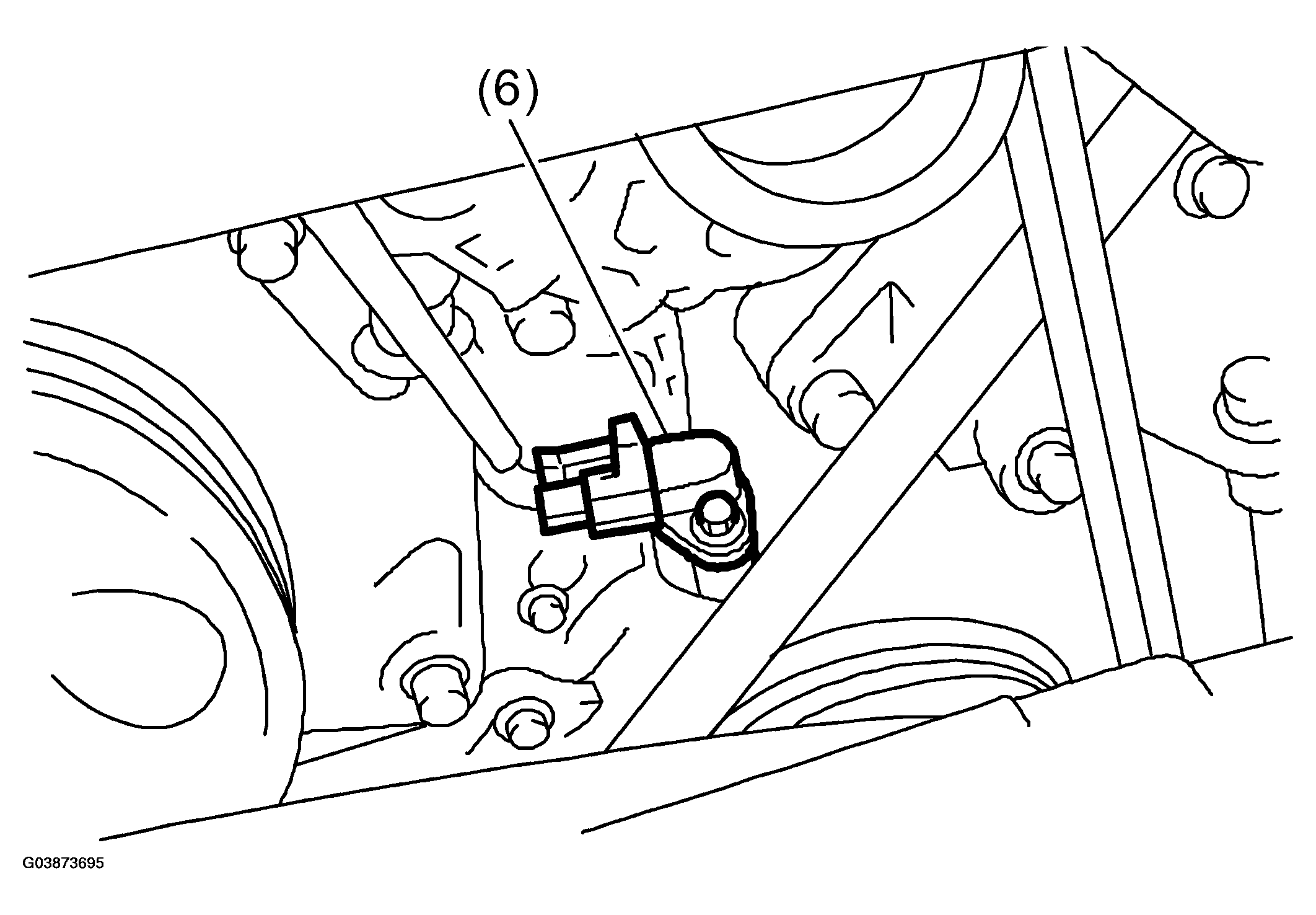

   Fig 7: Identifying Crankshaft Position Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

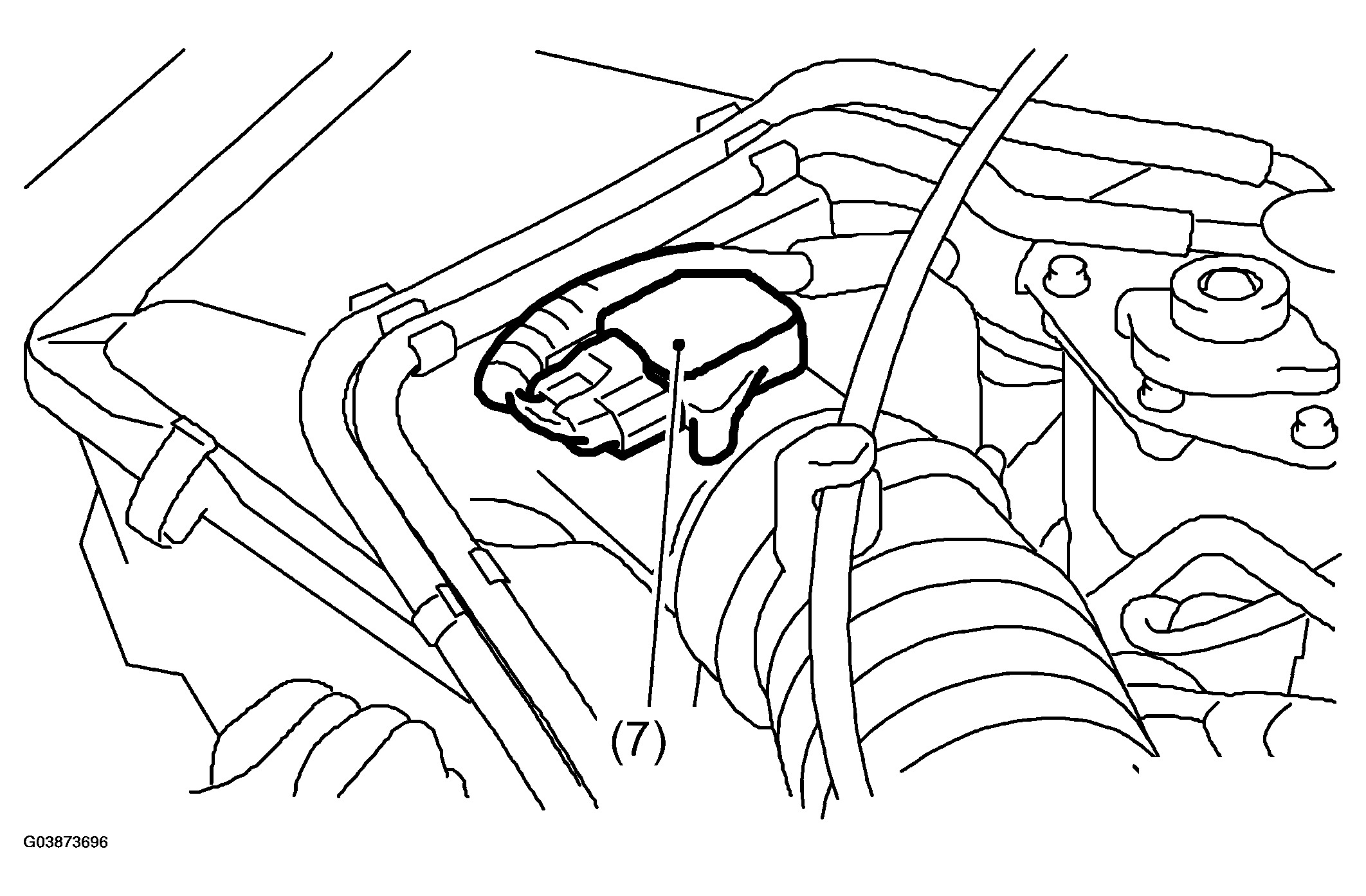

   Fig 8: Identifying Mass Air Flow & Intake Air Temperature Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

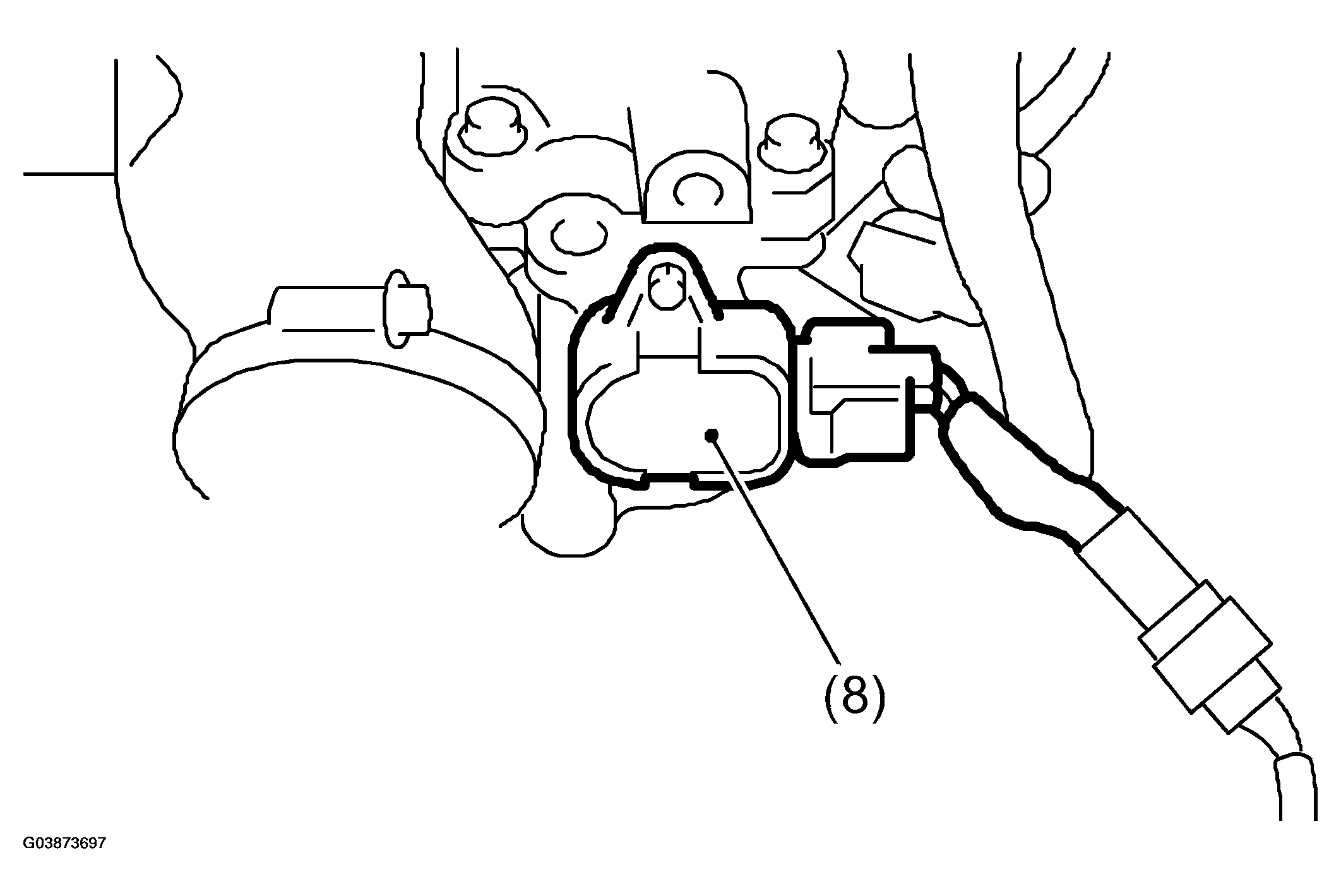

   Fig 9: Identifying Tumble Generator Valve Position Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

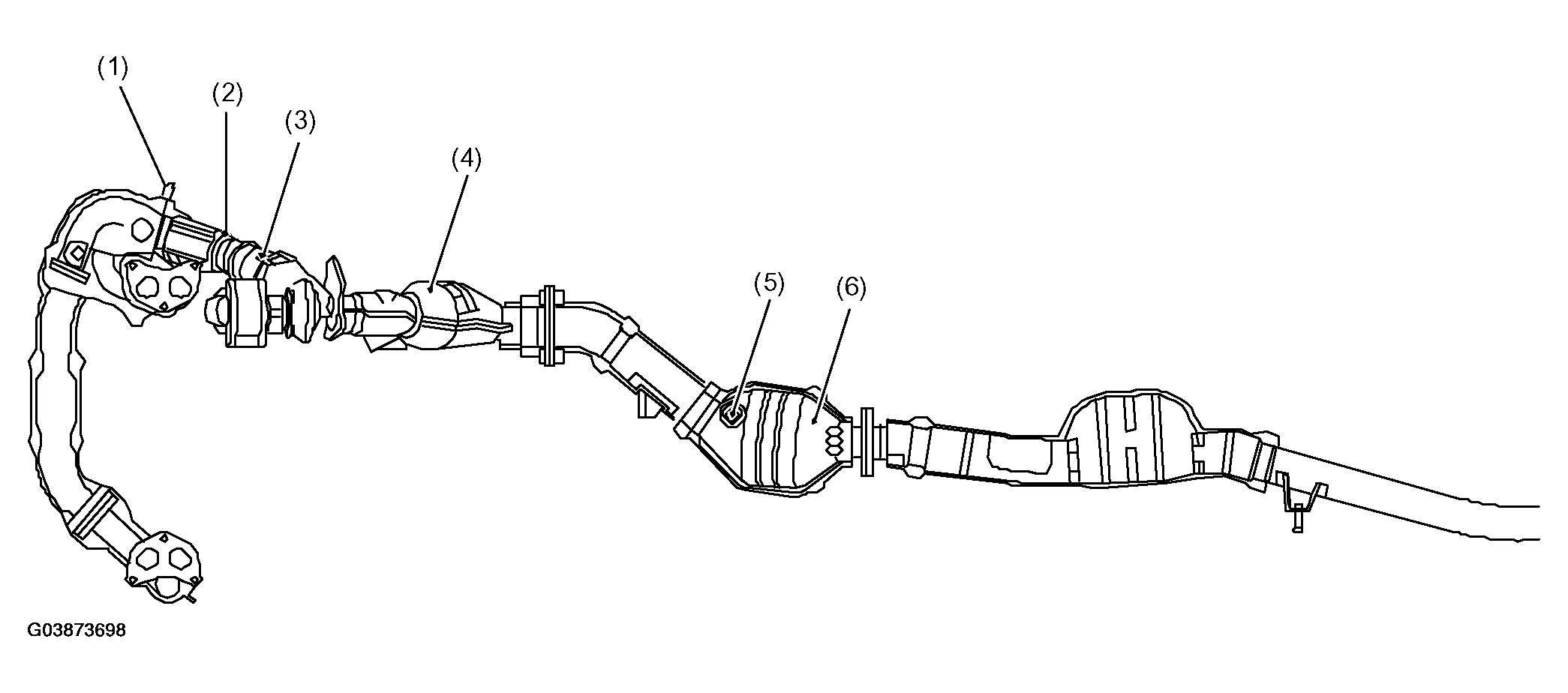

   Fig 10: Locating Exhaust System Components & Sensors

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Front oxygen (A/F) sensor
2. Pre-catalytic converter
3. Exhaust temperature sensor
4. Front catalytic converter
5. Rear oxygen sensor
6. Rear catalytic converter

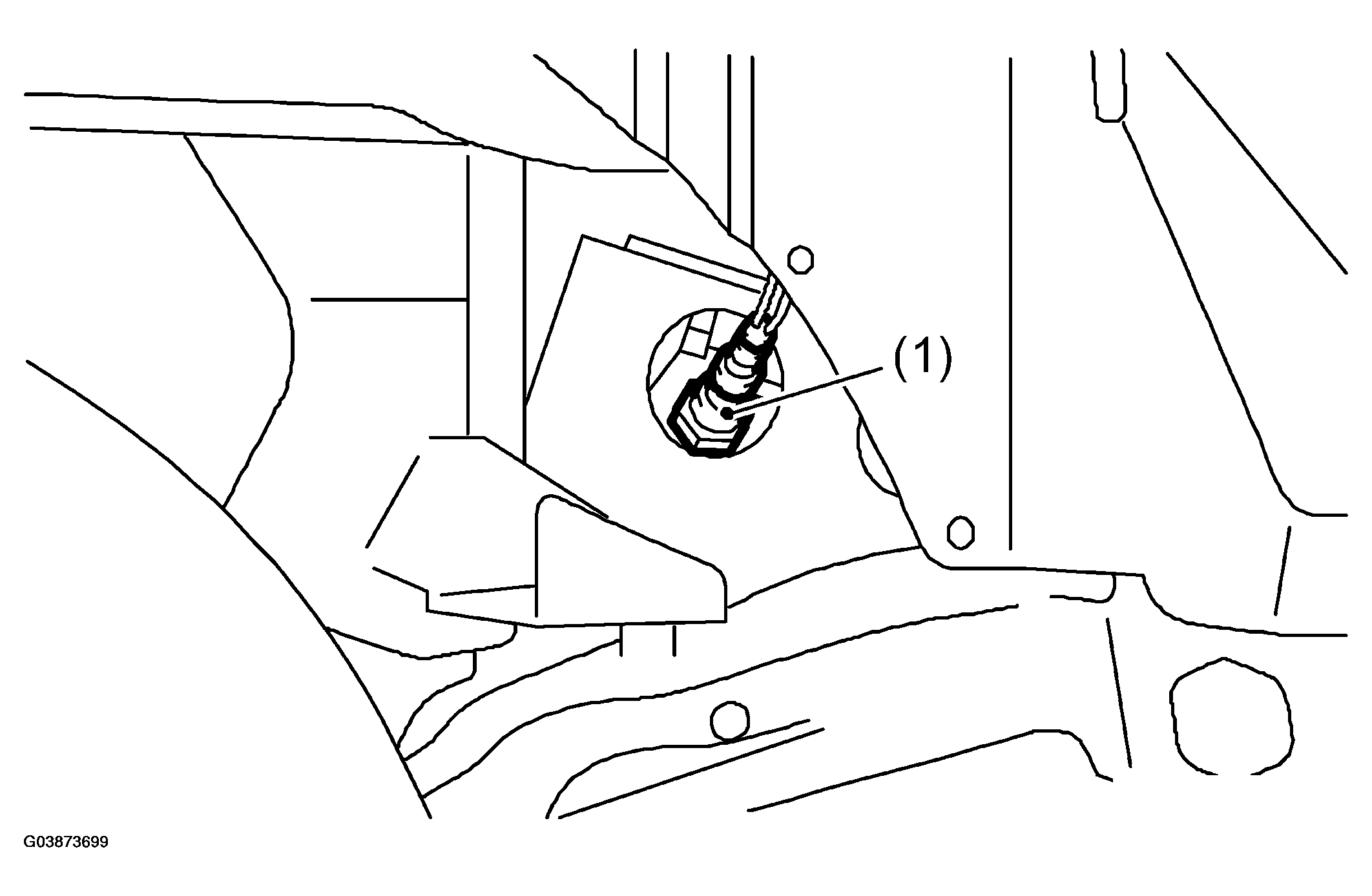

   Fig 11: Identifying Front Oxygen (A/F) Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

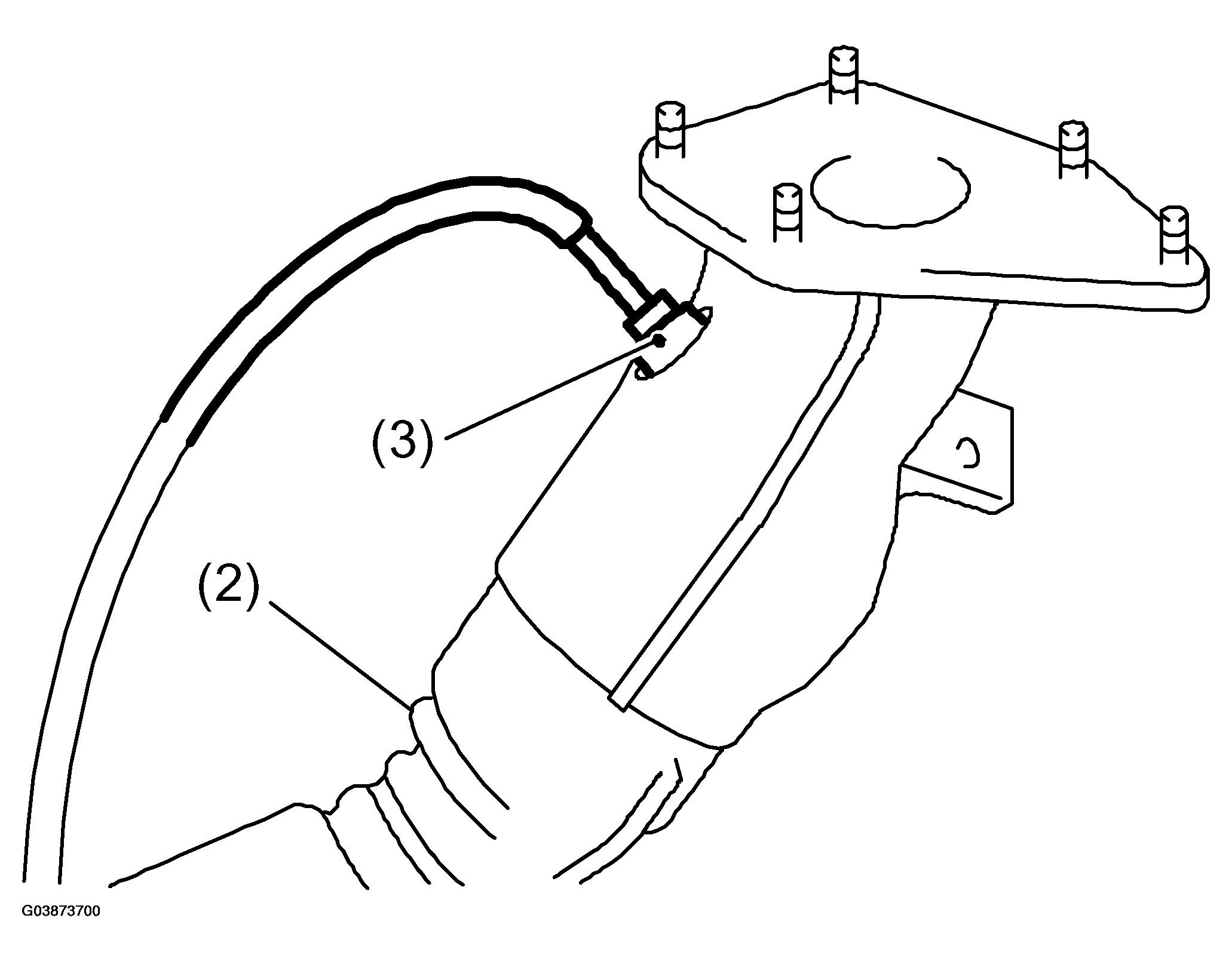

   Fig 12: Identifying Pre-Catalytic Converter & Exhaust Temperature Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

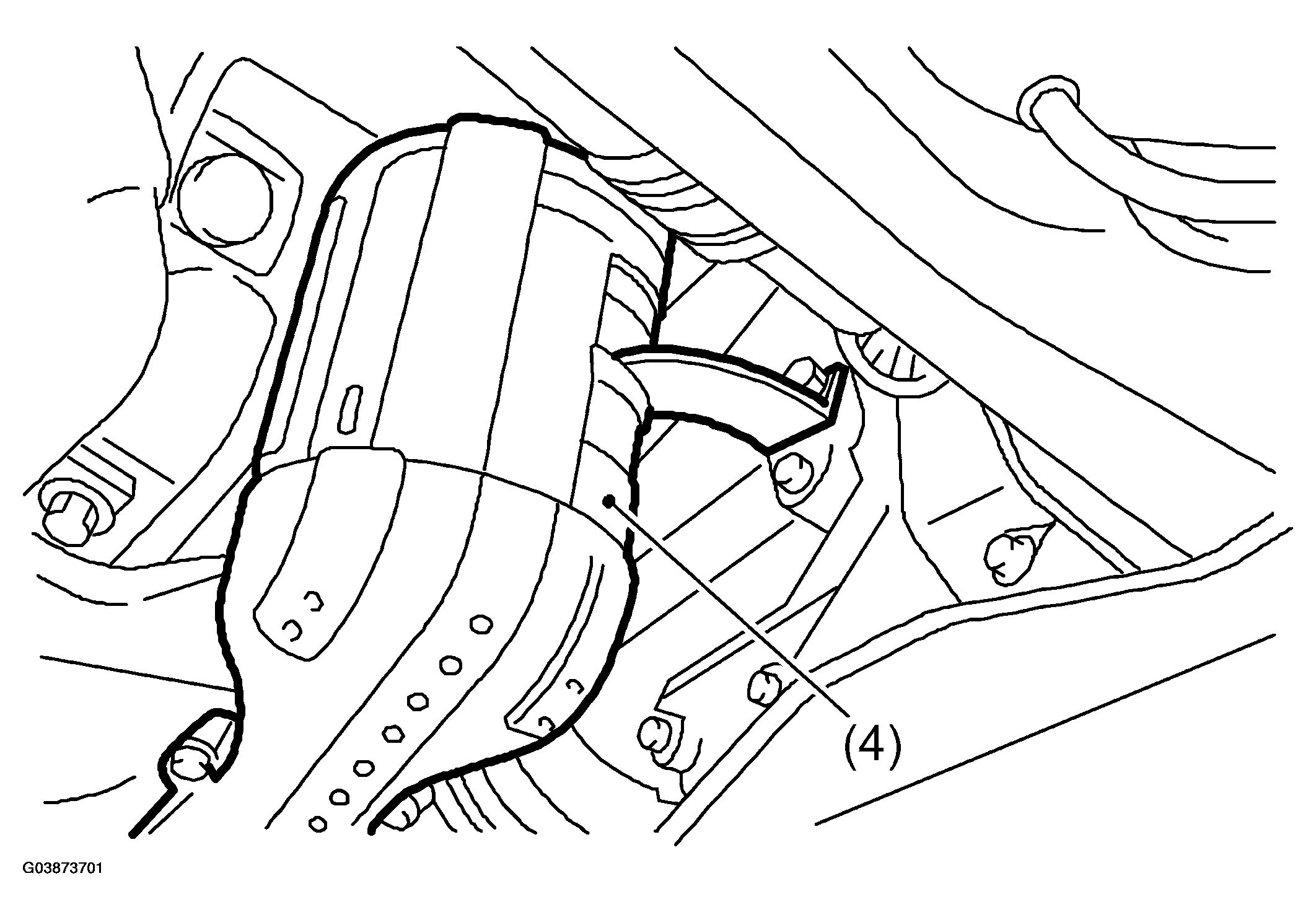

   Fig 13: Identifying Front Catalytic Converter

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

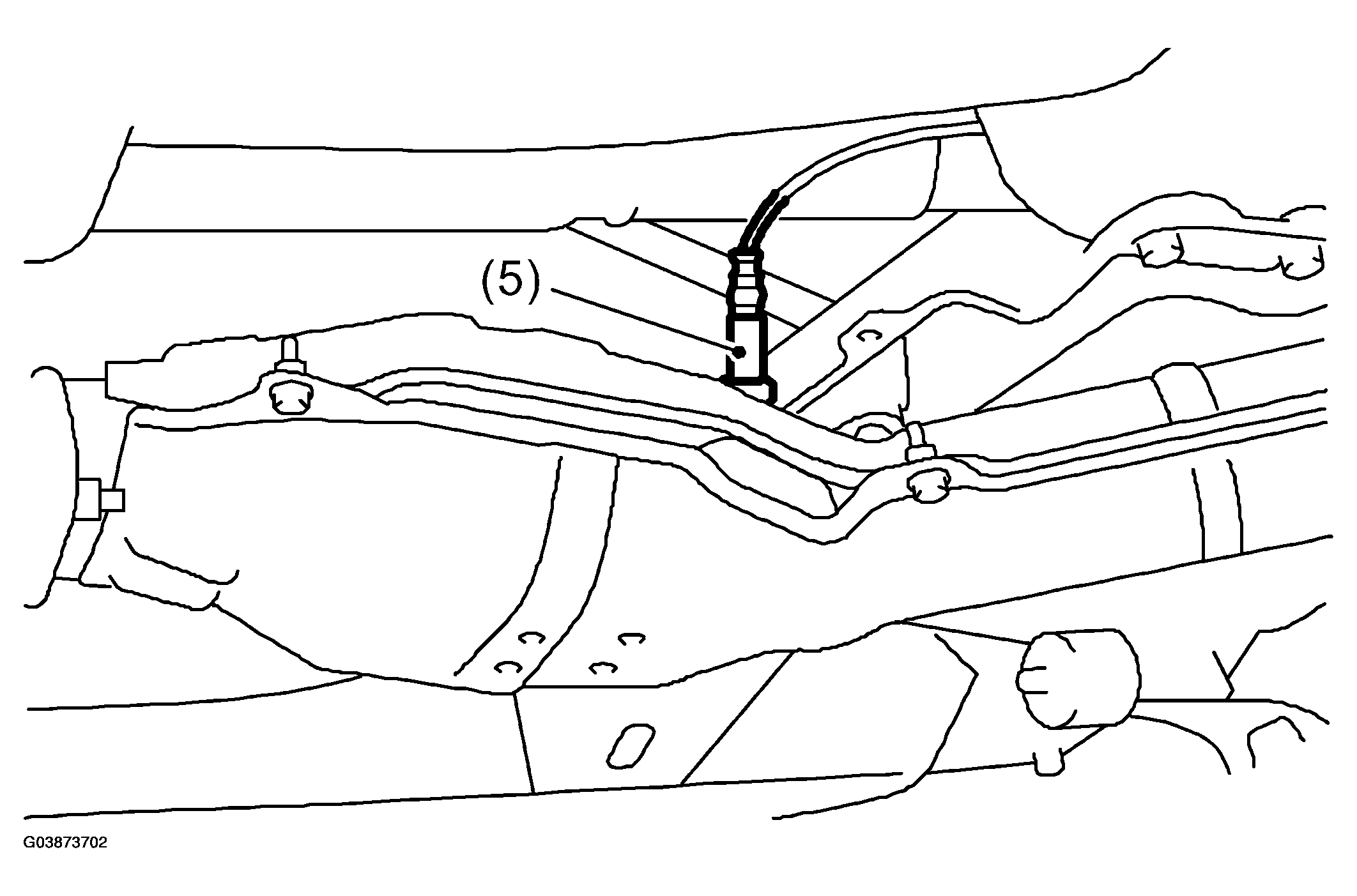

   Fig 14: Identifying Rear Oxygen Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

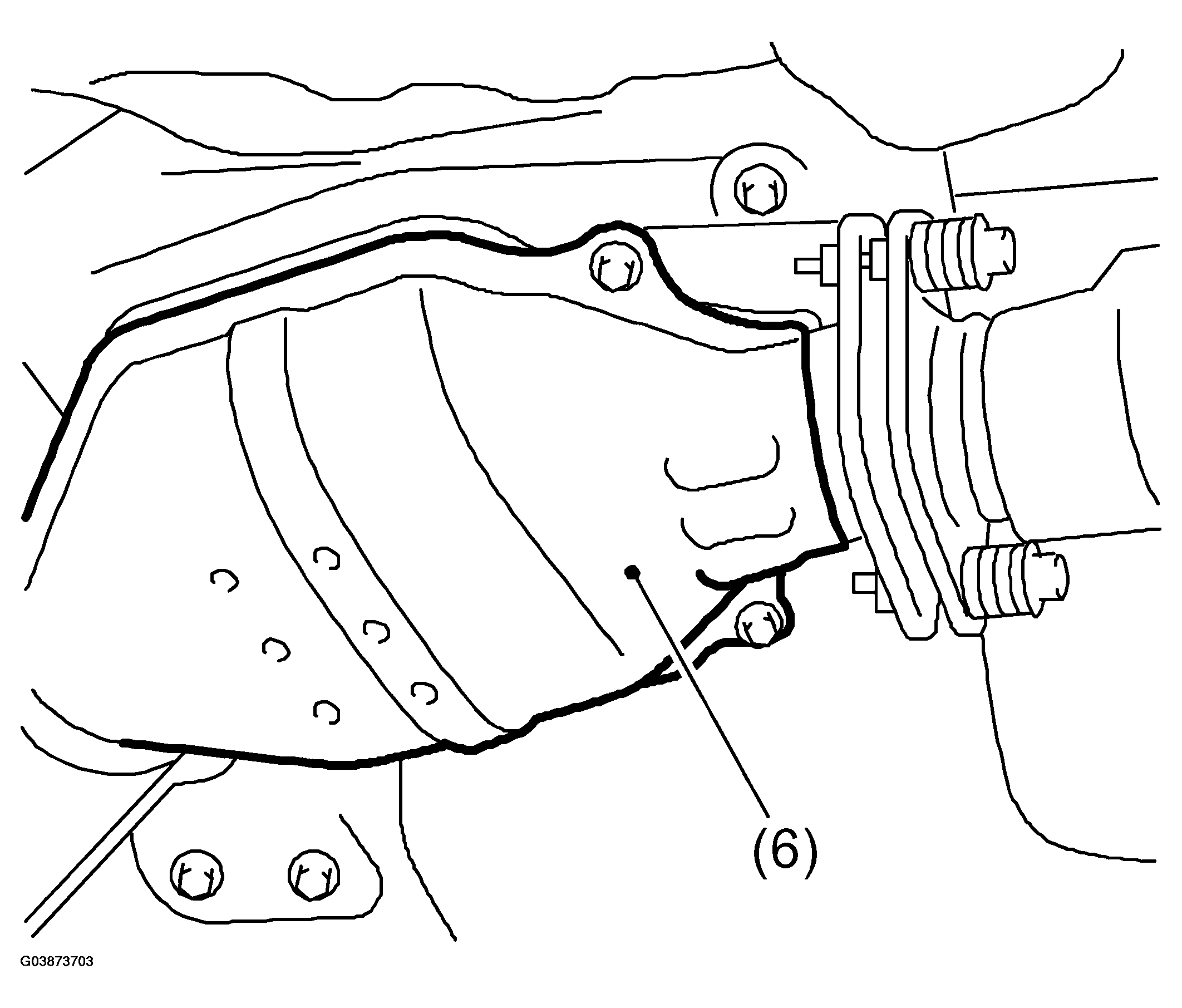

   Fig 15: Identifying Rear catalytic converter

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

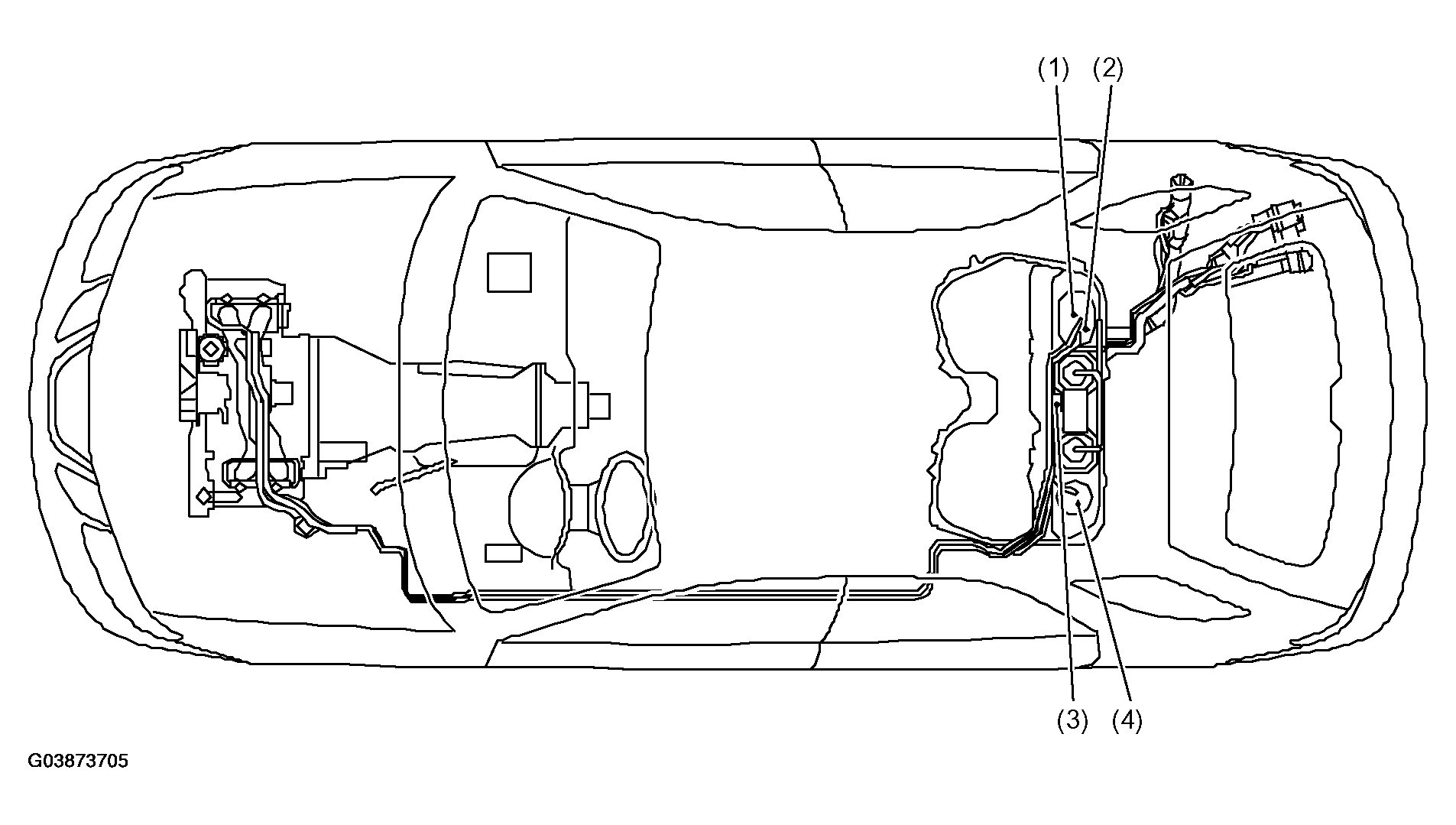

Fig 16: Locating Fuel System Sensors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Fuel level sensor
2. Fuel temperature sensor
3. Fuel tank pressure sensor
4. Fuel sub level sensor
   Fig 17: Identifying Fuel Level Sensor & Fuel Temperature Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

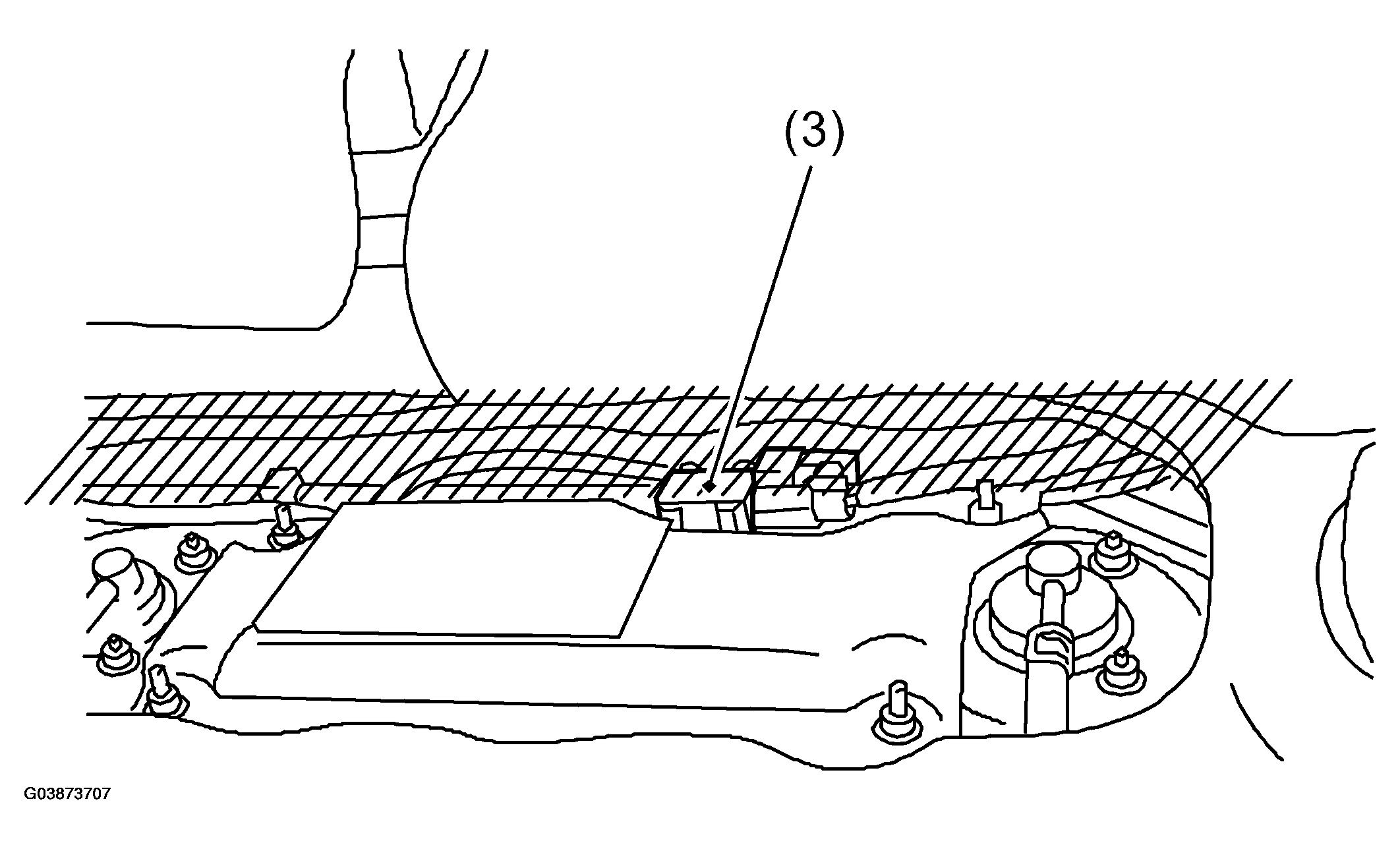

   Fig 18: Identifying Fuel Tank Pressure Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

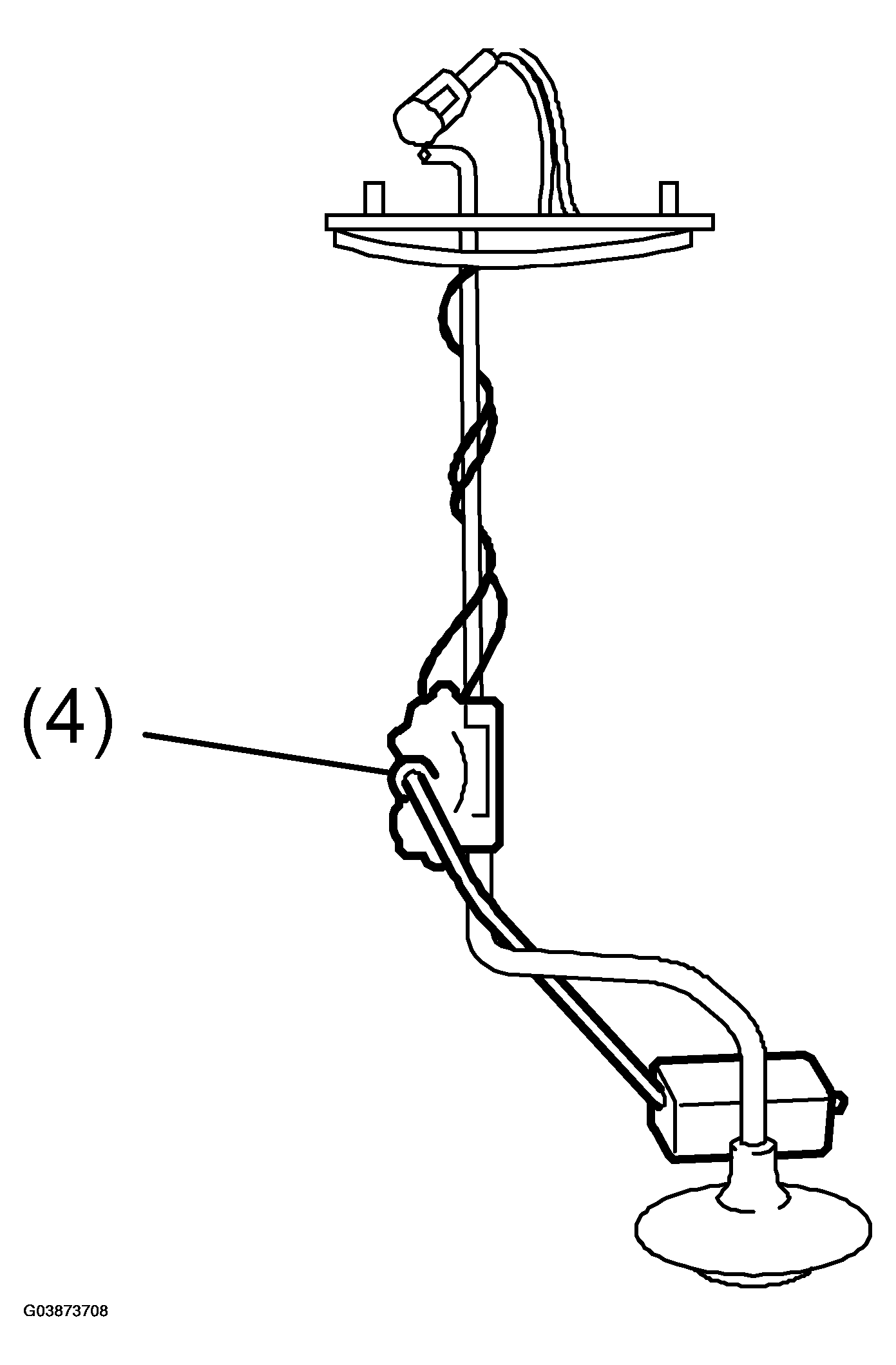

   Fig 19: Identifying Fuel Sub Level Sensor

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
