Engine (Diagnostics) - 2.0L: Electrical Component Location: Engine: Module

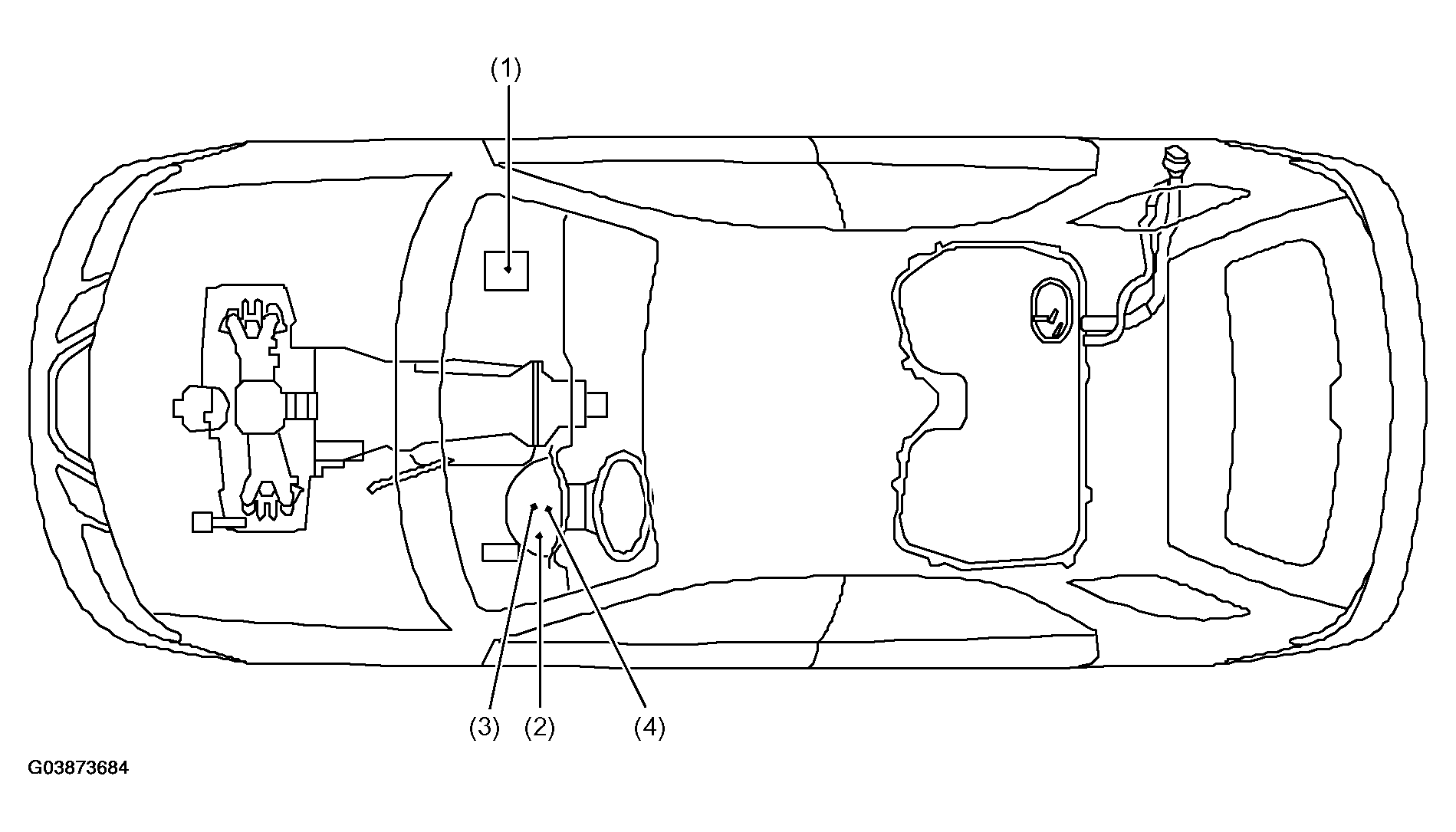

Fig 1: Locating Engine Modules

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Engine control module (ECM)
2. Malfunction indicator light
3. Data link connector
4. Test mode connector

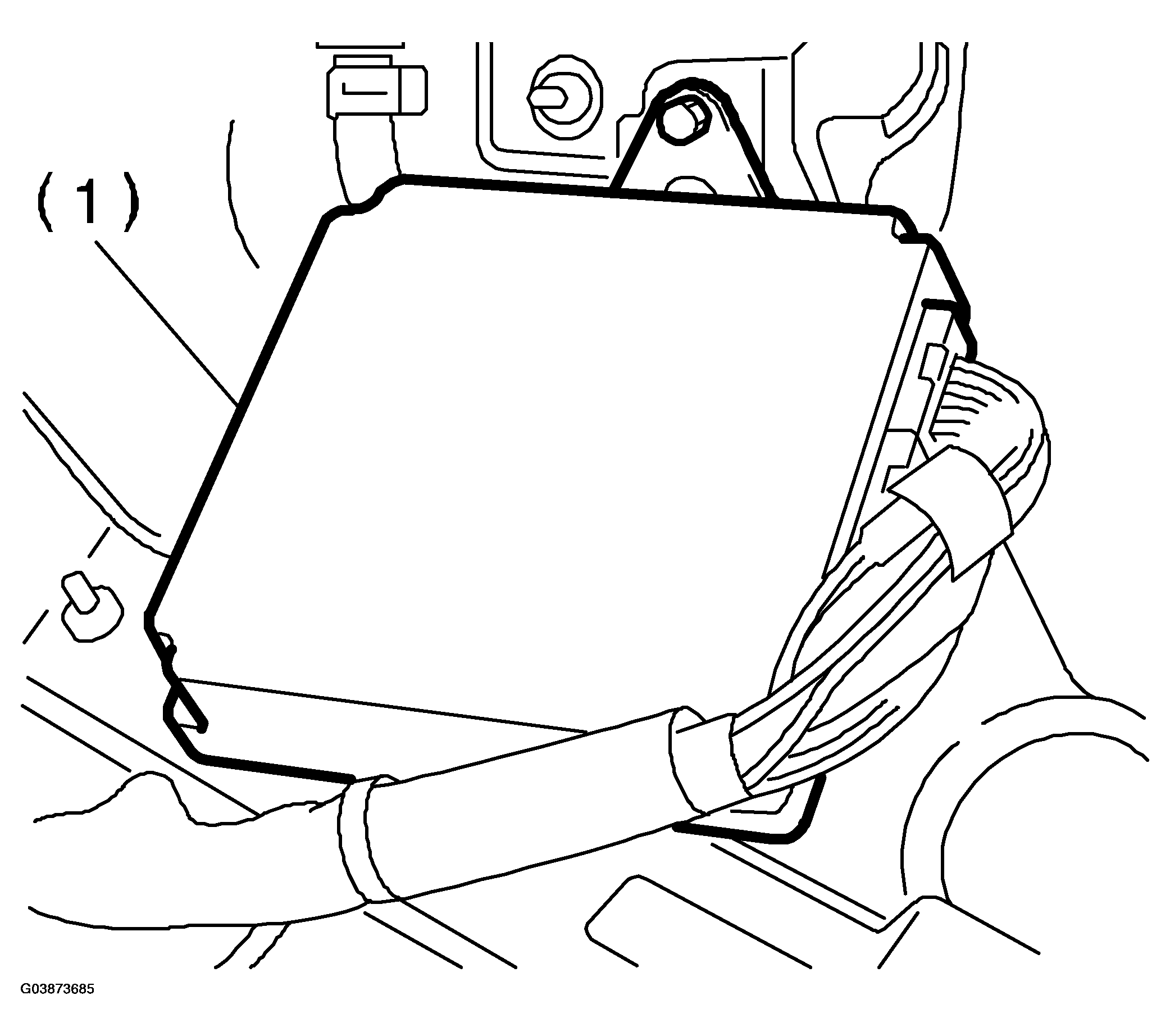

   Fig 2: Identifying Engine Control Module (ECM)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

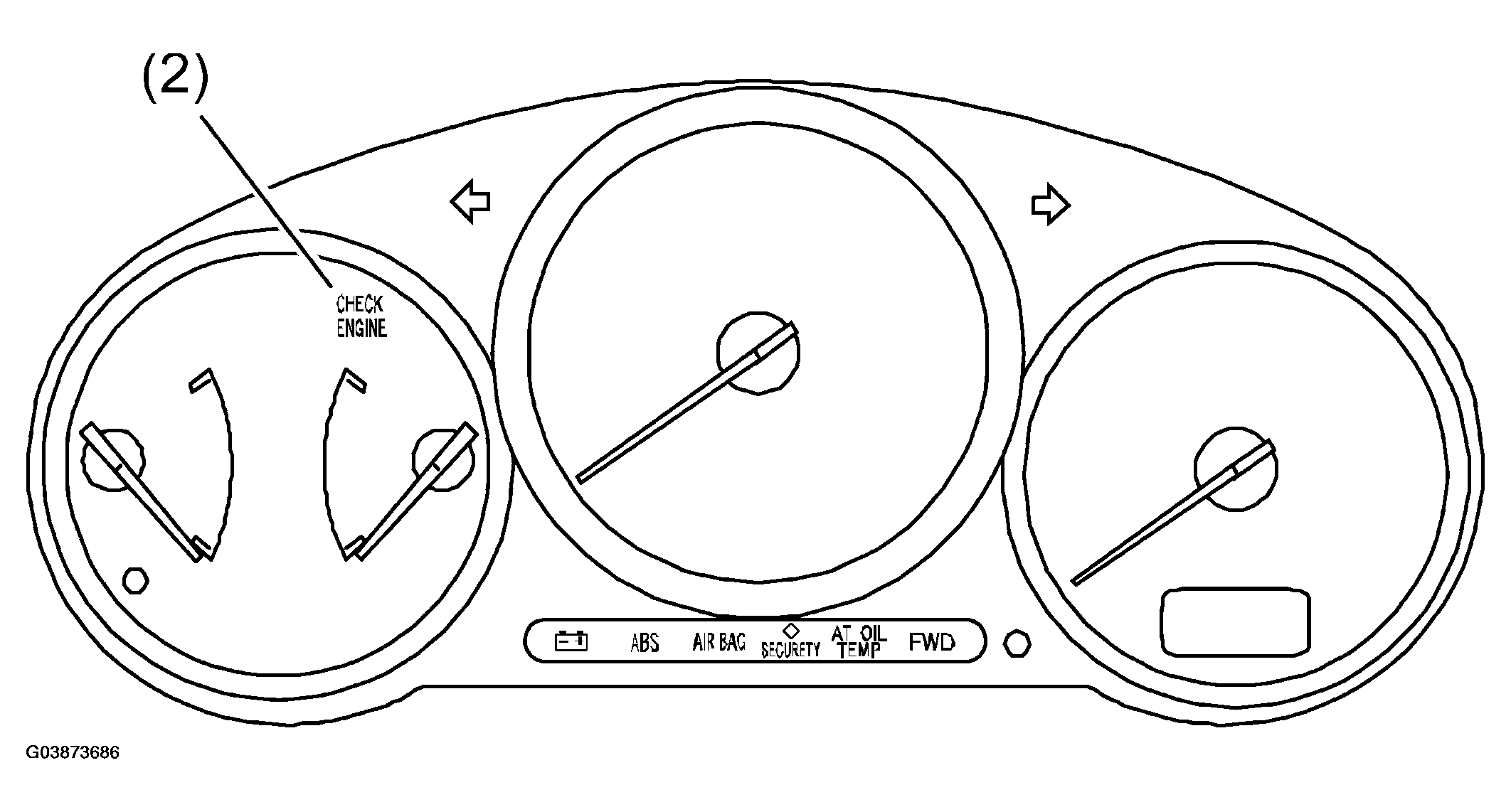

   Fig 3: Identifying Malfunction Indicator Light

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

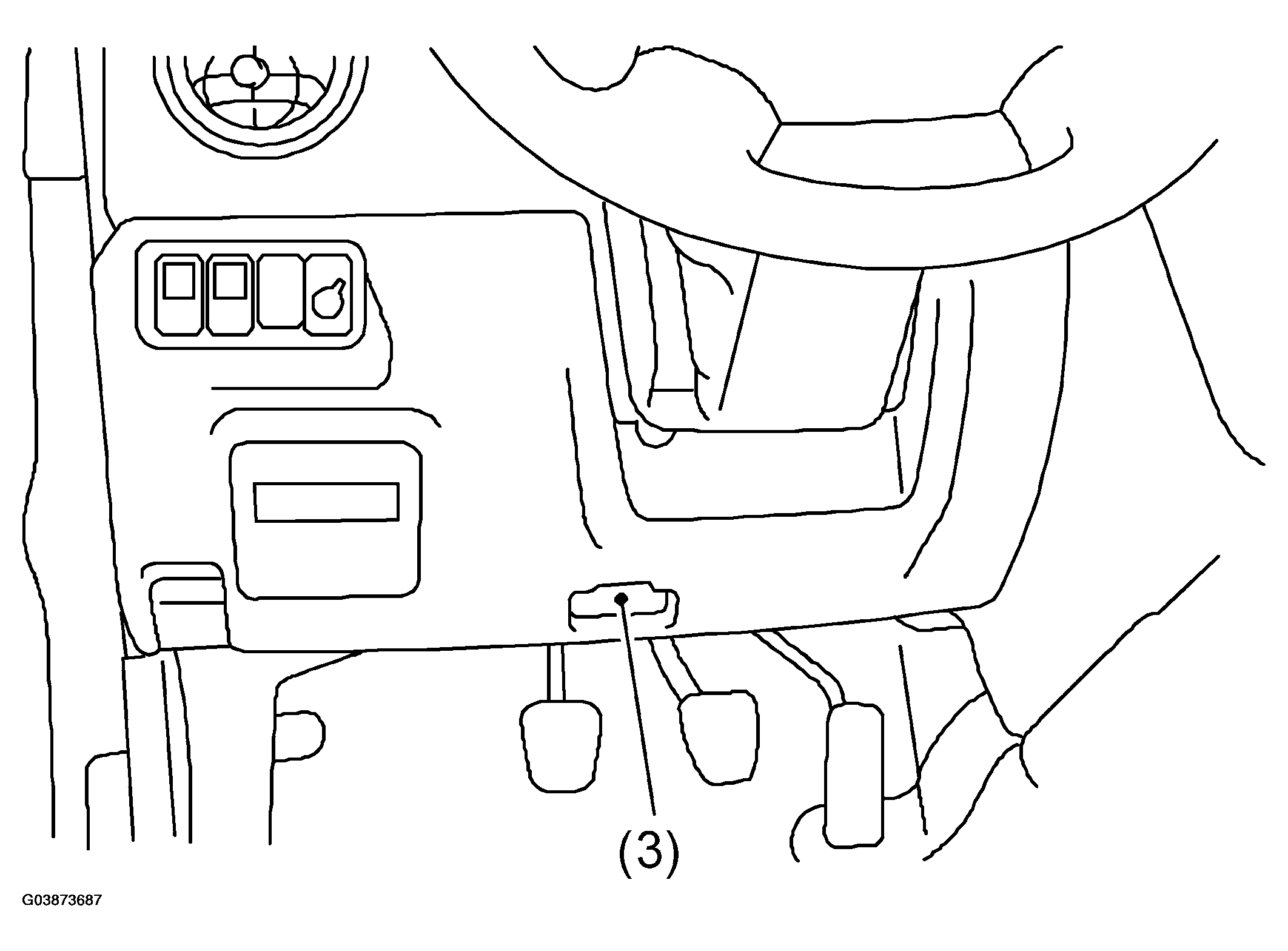

   Fig 4: Identifying Data Link Connector

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

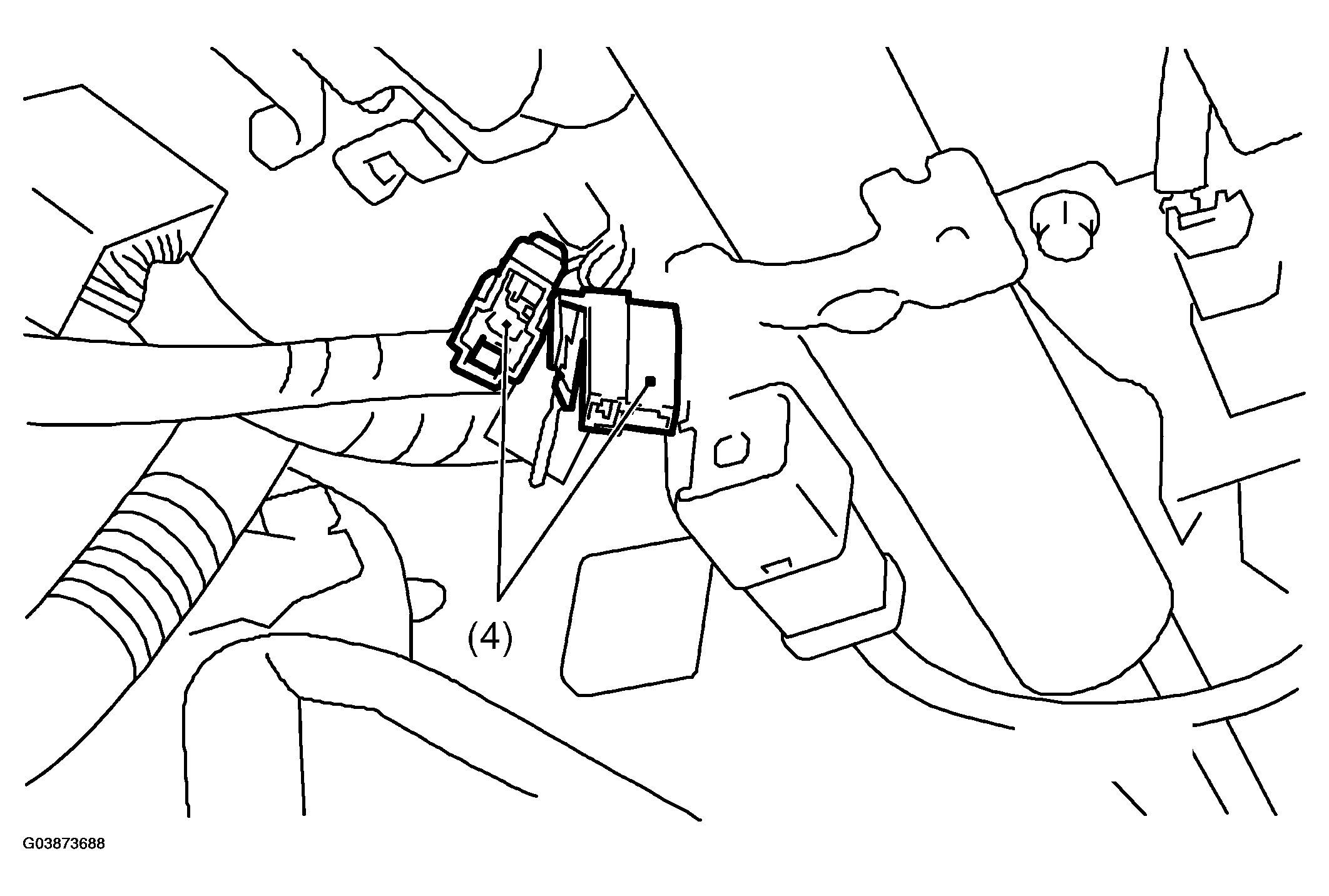

   Fig 5: Identifying Test Mode Connector

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
